  • Today's experiment in blender was with edge splits.  Necessary to insert cuts into the mesh to create the directional vents.

    ....and I'm sure there's nothing to worry about with that glow coming out of the heating vent, right?



    Oh, sure, heating vents always glow hot pink, don't they?  Nothing to worry about at all!  Nice work!  :)

  • That's cool.  Um, but what I found cooler was the fact that your switches were red!  A very nice, pretty red, too.  :)  I havn't gotten into rigging yet.  I have a couple of projects that are ready for rigging, but haven't managed to give it a try yet.  I do think it's cool that you managed to do that, though.  :)

    @Knittingmommy, thanks!   I was going to go with a basic red plastic material from MEC4D (which looked cool and more realistic), but wanted to do something involving textures also. So I picked a random monochrome pattern out of Filter forge and modified the base diffuse color.



    wgdjohn said:

    Very good switch plates. I applaud your effort of detail rigging etc you've done.  Are they silent or do they make a clicking noise when you switch them on/off? :)  Looks a lot like the one I thought about modeling but keep getting busy with something else and forgetting.

    Boolean is powerful but it can create a huge mess. 3DAGE explained that in order not to it needs vertices that will match up in what you use to cut with and the main mesh where you want the cutout.

    Tell me are these 3 separate objects or 3 separate polymeshs of one object?

    Please let me know where to find SickleYield's rigging tutorial.  I recently learned how to set up constraints and add morphs in Carrara.

    Please excuse my crazy questions.  UVmapping and UnWrapping are next on my list of things to learn.



    In blender it's multiple meshes, with each one assigned to its own vertex group.

    It was exported as one object with polygroups enabled.

    When rigging in Daz (as laid out by SickleYield:  http://sickleyield.deviantart.com/journal/Tutorial-Rigging-A-Door-In-Daz-Studio-607711029) you import the geometry using the Figure Setup window.  That brings in the polygroups as bones for the object.

    For UV Mapping in blender, I followed:

    and



    Thank you so much for posting the links to these videos. Especially the Rigging one! I have been beating my head against the wall trying to figure that out in DAZ, and that tutorial was super helpful. Thank you again!! laugh

  •

    Thank you so much for posting the links to these videos. Especially the Rigging one! I have been beating my head against the wall trying to figure that out in DAZ, and that tutorial was super helpful. Thank you again!! laugh

    You're very welcome!   SickleYield's got some really, really helpful tutorials on her pages.  Always happy to point people towards them.



  • TabascoJackTabascoJack Posts: 865
    edited December 2016

    Today's experiment involves creating greebles/nurnies to provide detail to an object.  This has the side benefit of providing lots of practice in what's called hard surface modeling - the manipulation of vertices and edges to create different shapes.   I found it to be a really good way of getting faster with modeling. The model also provided a chance to work with material assignment in blender and verifying how it transitions to Daz Studio.

    This is part of a larger work in progress of a sci-fi scene.



    800 x 800 - 260K
    Post edited by TabascoJack on
  • That looks really cool.  I have that pack but haven't really used it much.  You did good, though, because I can't tell what you modeled from the parts from the pack.  :)

  • It's all modeled.  smiley

     I used the terms greebles/nurnies in the generic sense.





  • Ah, I misunderstood!  I get what you were saying now!  Sorry, sometimes, I can be a little bit dense with the modeling stuff.  I'm getting there, but there are times when I wonder what I'm even doing messing around with it.  :)

  • NovicaNovica Posts: 23,887

    Keeping in practice with all of the tools in the toolbox.....

    Votive candles and candleholders modeled in Blender.

    Rendered in Iray using light group canvases.

    Lighting adjustments and other postwork in Photoshop.

    Beka by Candlelight



    An alternative version can be found on my DeviantArt page.

    Absolutely stunning! I also loved your lightning bolt. yes

  • IceDragonArtIceDragonArt Posts: 12,548

    Wow great job on the modelling.  Looks very technical lol.

  • TabascoJackTabascoJack Posts: 865
    edited December 2016

    Modeling done and some shaders applied.  The scene really drives home the need for good textures - the panels and corridor look very plastic like.  Need some decent bumps, scratches, etc to make it look less like a model and more like something real.   So the next step is UV unwrapping and texture creation.

     I need to do something other than a regular emissive plane for the ceiling light, but other than that, I'm pretty happy with the modeling.

    Corridor (Work in Progress)

    Blender->Daz Studio->Iray->Photoshop

    800 x 640 - 409K
    Post edited by TabascoJack on
  • 3Diva3Diva Posts: 11,460

    Modeling done and some shaders applied.  The scene really drives home the need for good textures - the panels and corridor look very plastic like.  Need some decent bumps, scratches, etc to make it look less like a model and more like something real.   So the next step is UV unwrapping and texture creation.

     I need to do something other than a regular emissive plane for the ceiling light, but other than that, I'm pretty happy with the modeling.

    Corridor (Work in Progress)

    Blender->Daz Studio->Iray->Photoshop

    That looks stunning! That turned out AWESOME!

    I think the textures look great. The "plastic like" look actually really works - it looks like something you'd expect to see in a realistic futuristic ship.

    Great work, Jack!

  • Just discovered your thread TJ, and I'm glad I did. I'm having difficulty trying to organize my own 3d modeling curriculum. It's good to see a little bit of your learning process. Maybe I need to post more of my learning process too. Is postiing your experiments helpful to you at all?

  • Still, textures aside which I happen to think work here, too, it turned out to be a great set!  Nice modeling.

  • IceDragonArtIceDragonArt Posts: 12,548

    Wow looks great!  Color me impressed!

  •

    Thanks, Diva, Knittingmommy, and Sonja!

    Just discovered your thread TJ, and I'm glad I did. I'm having difficulty trying to organize my own 3d modeling curriculum. It's good to see a little bit of your learning process. Maybe I need to post more of my learning process too. Is postiing your experiments helpful to you at all?

    FaxMisher, it's helpful in that it provides feedback.   This is especially true if I'm having a challenge getting past a certain point - asking others for assistance or ideas can help a lot.  It's also the case that other folks may have alternative ideas on how to accomplish something.  I've learned a lot from knittingmommy, Will Timmins, and others by following their threads.

    One thing to keep in mind - if you really want a crtitique of your work, you probably need to specifically ask for it.  Some of us (myself included) tend to offer positive feedback freely, but may withhold constructive criticism unless it's requested.





  • wgdjohnwgdjohn Posts: 2,634

    Greebles are pesky criters that are a nuisance... Oooh wait... Greeebles are quite useful... can't ever have enough!  Gremlins are the pesky ones. :)  Great job on your Corridor WIP... don't scratch it up too much... looks very good as is. yes

    Positive feedback is always good for encouragement.  Constructive criticism is good to help us get better and give us alternatives.  I'm always open to the latter... no need to ask me.

  • TabascoJackTabascoJack Posts: 865
    edited January 2017

    ...and to finish off 2016, here's a render of the completed model:



    Blender->Daz Studio->Iray->Photoshop->NIK

    Click the attachment for full size

    Bay Seven Alpha





    and I like this one after running it through one of FilterForge's filters --- the colors help highlight Eva...



    Bay Seven Alpha - FF

    1600 x 1280 - 1M
    1600 x 1280 - 2M
    Post edited by TabascoJack on
  • IceDragonArtIceDragonArt Posts: 12,548

    Thats fantastic!  Wow, very well done!

  • wgdjohnwgdjohn Posts: 2,634

    Great job.  yes   Guess I'll have to wait til later this year... 2017  to see what's behind that far door. :)

  • Thanks!

    As for what's behind the door......well.....it's a landing bay....we will have to see what could be there......laugh

  • You did good, TJ!  I love the set and your textures.  Very nice renders.  :)

  • TabascoJackTabascoJack Posts: 865
    edited January 2017

    So.......I started sketching out a landing bay.....and it turned into a bigger scene with some hangars and a launch deck, etc.  I started modeling one of the hangars.

    Then a few days ago, I saw petipet's new Sci-Fi Hangar A..  It made me realize how much further I have to go.  laugh  Oh well, at least I'm still learning a lot about blender, and getting faster with it.  While I've been working on the hangar, I also noticed that I seemed to be shifting towards more of an industrial style look.  External pipes with flanges.  Visible fuel tanks.  Then I realized how much other stuff I wanted to have in the scene to make it look natural.  Crates.  Tools.  Carts.  Just general clutter.   Felt like a mountain of a project.  How do you climb a mountain?   One step at a time.

    Decided to start building out a cart.  And to build a cart, I need wheels.



    On the bright side, I'm starting to build out a library of components now.....





    800 x 640 - 196K
    Post edited by TabascoJack on
  • Nice treads.  I really like the writing on the sidewall!

  • wgdjohnwgdjohn Posts: 2,634

    Excellent!  Make it low profile with chrome or brushed aluminum texture on wheel... then model a sports car. :)

  • Hah!

  • IceDragonArtIceDragonArt Posts: 12,548

    Nice!



  • TabascoJackTabascoJack Posts: 865
    edited January 2017

    It's been a while since I posted anything on canvases.  I've seen a couple of questions and requests for information about them recently so I thought I'd update some of the earlier posts I made.

    First off, some basics.

    What are canvases?

    Before I answer that, let's consider how renders work.  Simplifying it greatly, imagine light rays being sent out from the camera (yes, I realize that's not how things work in the real world, but there's no point in considering light rays that never reach the camera).  Those rays hit an object, collect some properties such as color, specularity, glossiness, and then bounce off, maybe hit another surface, bounce off, and eventually find their way to a light source which gives it an initial color and intensity.  This determines what the camera or eye actually sees.   The path that a light ray takes from the source to the destination, including all the points where it interacts with some object, is what Iray uses to render an image.

    So, back to the original question.  What are canvases?

    I'm sure that Nvidia and Daz have some specific definition, but from my perspective, canvases are a way to specify exactly which light paths will get rendered in an image.

    Daz provides a number of canvases out of the box  (Please ignore the black disc in the upper left of the render....that's what happens if you dont turn "Render Emitter" off in the spotlight parameters):

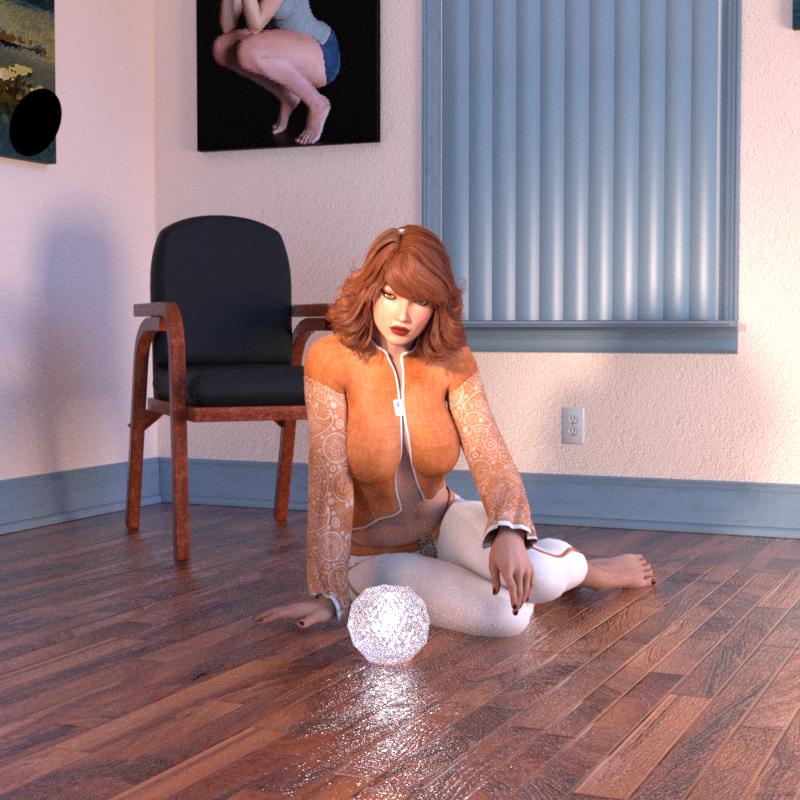

    1. Beauty - this is the standard render we all know and love

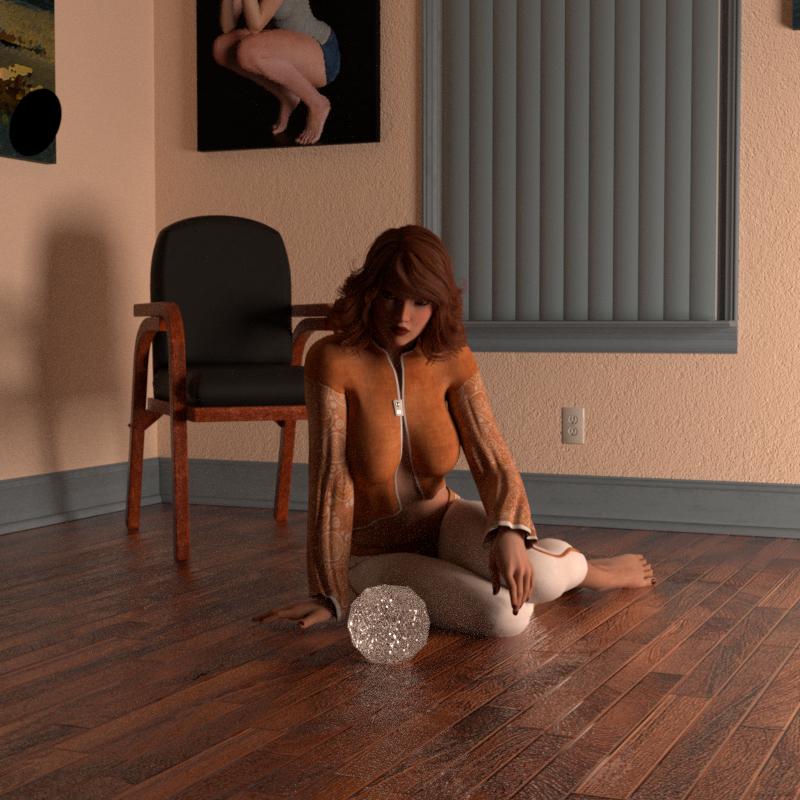

    2. Diffuse - this renders just the diffuse portions of the materials.  No glossiness, no reflection.



    3. Specular - this renders just the specular portions of the materials.  In other words, just reflected light.



    4. Glossy - this renders just the glossiness of the materials


    5. Emission - I'm not sure what this one actually does.  One would think it render emissive surfaces, but that does not appear to be the case.

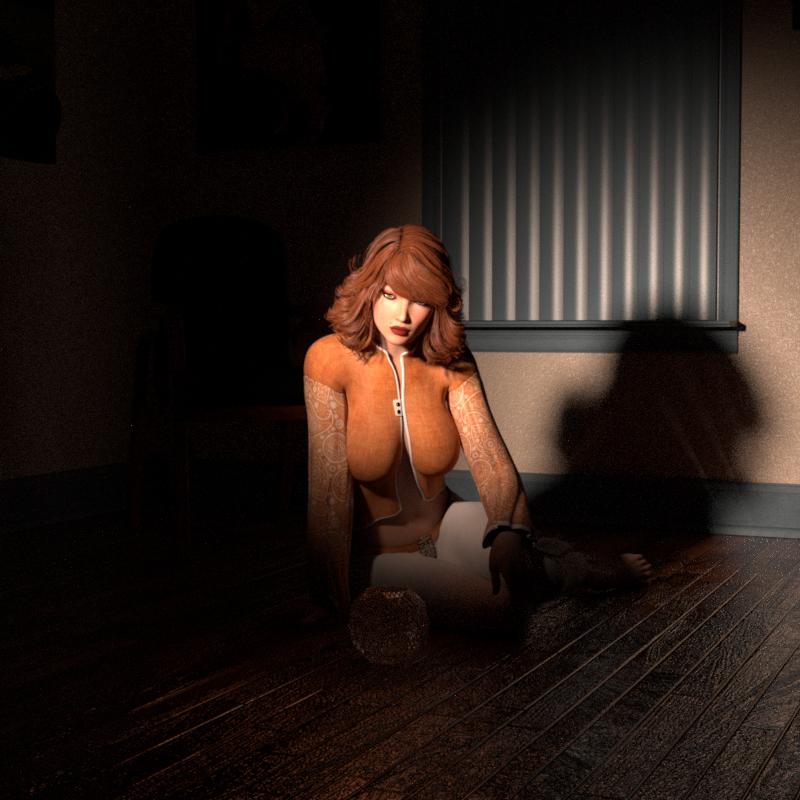

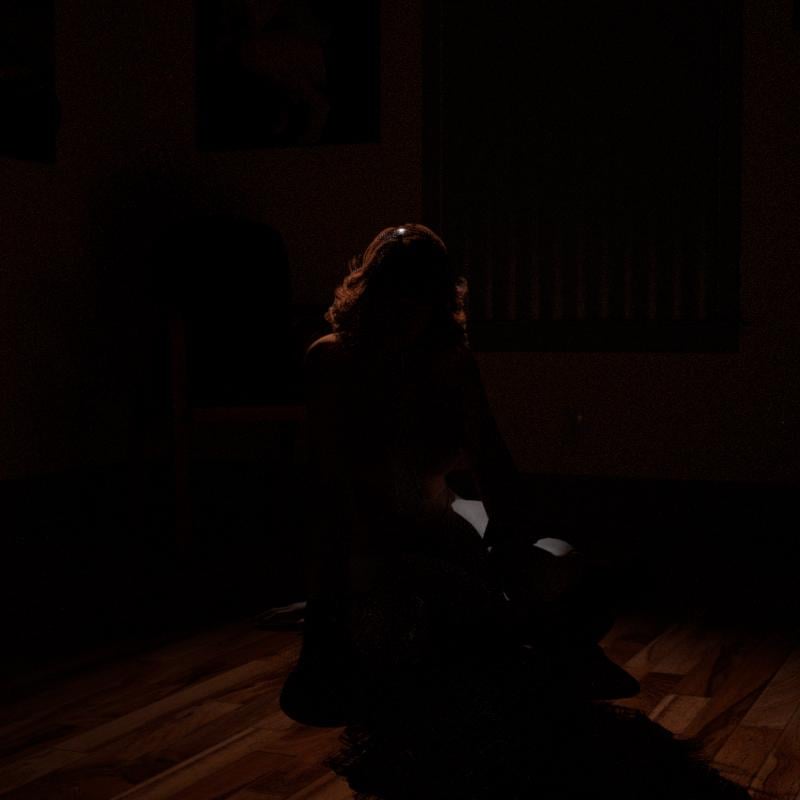

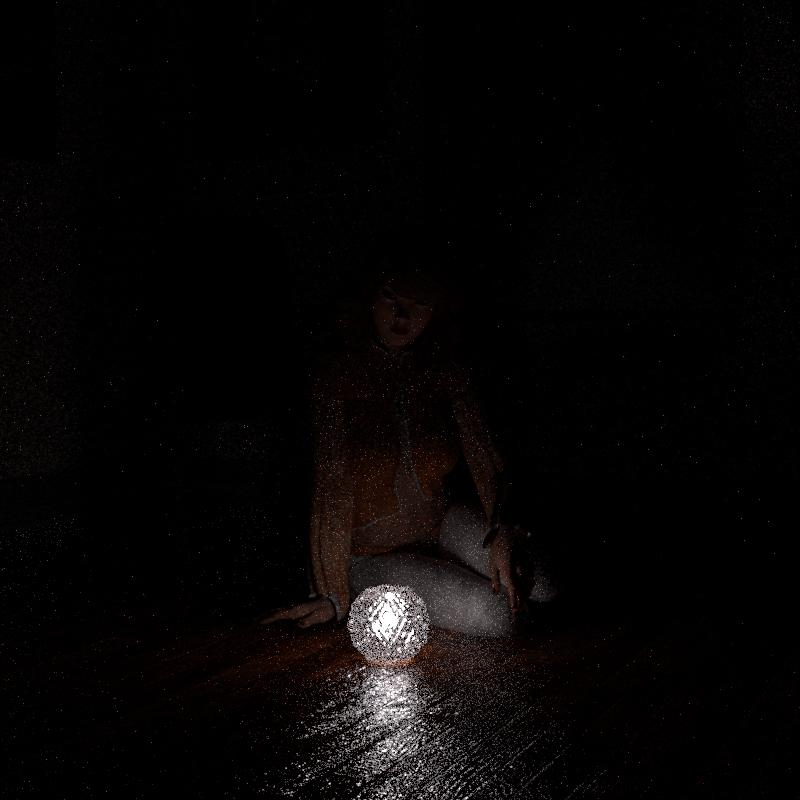

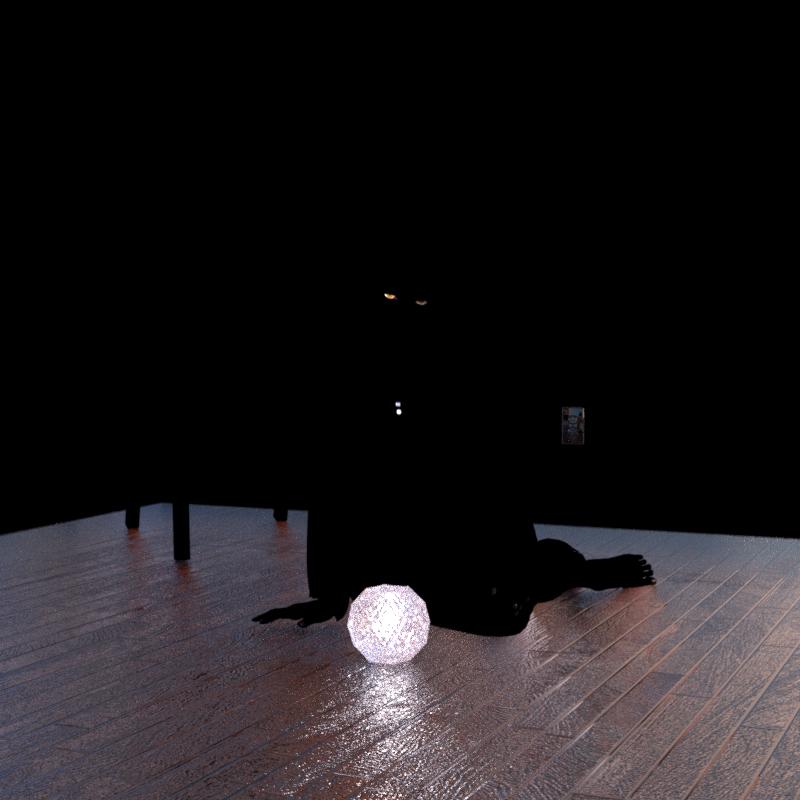

    6. Light Groups - With Light group canvases, you can isolate individual lights or sets of lights, and see the just the light rays that were generated from those sources.  This works for both photometric lights (spotlights, point lights) and emissive surfaces.
      1. KEY LIGHT


      2. FILL LIGHT



      3. RIM LIGHT
      4. POINT LIGHT



    7. Environment - this renders just the light rays that come from the HDRI (if any) set in the Iray environment tab.  In other words, dome lighting.
    8. Depth (and Distance).  These may not look like they do anything, but they do.  You just can't see it in the standard render as it gets calculated as an HDR image and that doesn't show up in the standard viewport.
    9. Alpha - Like Depth and Distance, this may not look like anything in the Daz render window, but it will show up later in postwork.
    10. Light Path Expression (LPE)- This is where you can tell Iray to render light paths that meet specific criteria.  This is very, very powerful, but not terribly easy to wrap one's head around.  (As a side note, most of the canvases above, other than Depth, Distance, and Alpha can be specified with LPEs).



    One really nice thing about canvases is they all get rendered simultaneously.   Iray has to calclulate all the light paths anyway, so it's not a big deal to determine where the light came from, or what object it hit.  This saves a tremendous amount of time when compared to having to do individual renders for each light source and then compositing later.

    So why would you want to use canvases?

    In a word, postwork.

    If you're not doing any postwork, there's no need to do anything with canvases.  But if you are, then there are a couple of really useful things you can do, such as:

    • Relighting
    • Depth Masks
    • Special Effects

    I'll cover each of these in later posts, but first let's take a look at how to set up canvases.

    800 x 800 - 671K
    800 x 800 - 609K
    800 x 800 - 274K
    800 x 800 - 395K
    800 x 800 - 514K
    800 x 800 - 562K
    800 x 800 - 369K
    800 x 800 - 618K
    800 x 800 - 331K
    800 x 800 - 321K
    Post edited by TabascoJack on
  • TabascoJackTabascoJack Posts: 865
    edited January 2017

    So how do you set canvases up?

    In the Render Settings pane, in the "Advanced" tab, there's a tab for Canvases.  You need to check the Canvases Checkbox to turn them on.  Then use the "+" sign to add them.  It will bring up a pane with fields for the name, type, Nodes,and other information.

    The easiest way I've found to set up things like Light Groups is to select the lights I want to use from the Scene pane.  Then go to the canvases pane and add a canvas.  Select Light Group, and in the Node pull down menu is an option to "Create From Selection".  Choose that, and it will automatically create a Node List to be used for that canvas.  Give it a meaningful name and you're good to go.  Keep setting up canvases until you're done.  Then add one more because of some UI weirdness:  If you click back to the Render Settings->Editor tab, you'll see there's a new item at the bottom named 'Canvases'.  From there you can select which canvas is "Active', meaning which one will show up in the render window when you actually render the scene.  The UI weirdness is that the name of the last canvas you created shows up as the default even if you have changed it.  So to make sure the new name shows up in the pulldown, I create one last canvas when I'm done.  You can always delete it if you'd like, but it's the only way I've found to force Studio to pick up the name of the last canvas

    Then you can go ahead and render.

    After it's completed and you click Save, it will save all the canvases in a folder in your regular render directory.  The files are all 32 bit EXR files, so you're going to need some postprocessing software that can cope with 32 bit images.

    Post edited by TabascoJack on
  • TabascoJackTabascoJack Posts: 865
    edited January 2017

    Using Canvases in Photoshop

    I apologize up front to Knittingmommy - this is gonna be a Photoshop centric post, but I think the concepts carry over easily to GIMP.

    So, the first thing we're gonna do is get all the images into PS.

    1. Go to "File->Scripts->Load Files into Stack.."   This brings up a dialog to Load Layers.
    2. Browse the folder that you specified when you saved the render.  You'll see a bunch of .EXR file.  Select the ones you want to use.
    3. Click OK.  Postscript will load in each .EXR file as a different layer.  You'll see a whole bunch of really overexposed images.  There is no tonemapping performed in Iray before it renders out canvases, so we need to tone them down.  The good news is that the EXR files are all High Dynamic Range so we can lower the exposure and still get good results.
    4. Find the Beauty Canvas and make it the only one that's visible.
    5. Create an exposure adjustment layer at the top of the layer stack.  Drop the exposure down to something that makes the Beauty canvas look good.  I find you have to take exposure values down below -10 to get decent results.   Setting the value to be a little overexposed here is OK.
    6. Now we have a choice - we can either composite by illumination component (diffuse, specular, and glossy) or by light source.  Personally I find light source to be more useful.   Let's take a look at compositing by light source.
    7. First off, create a new layer, fill it with black, and put it at the bottom of the stack
    8. Now select the all the various light source layers, (in this case, Key, Fill, Rim, Pointlight, and Environment) and set their blending mode to "Linear Dodge (Add)"
    9. Go through the lighting layers, one by one, make sure it's the only layer active, and adjust the Opacity slider to provide the amount of light you want. Since we set the exposure adjustment to be a little overexposed to begin with, we have some wiggle room on the Opacity sliders to get what the results we want.
    10. Turn all the lighting layers on together and see the composite.  Now you can tweak individual lights to get the result you want.   Here's an example of just the Key and Environment layers, with the Key light at about 50% and the Environment about 30%.

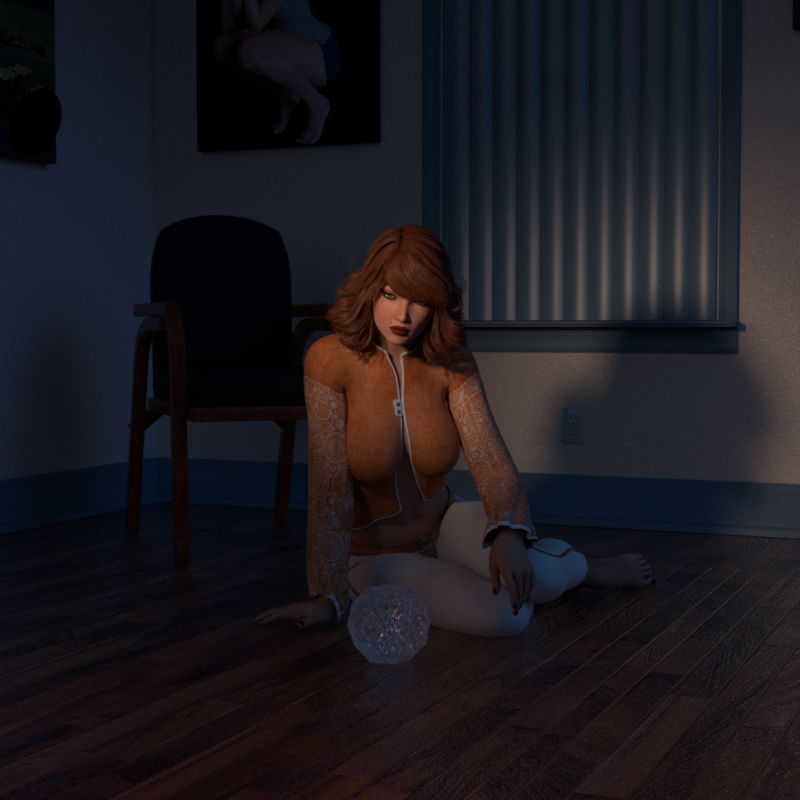

      And here's with all the light sources tweaked for a final render.

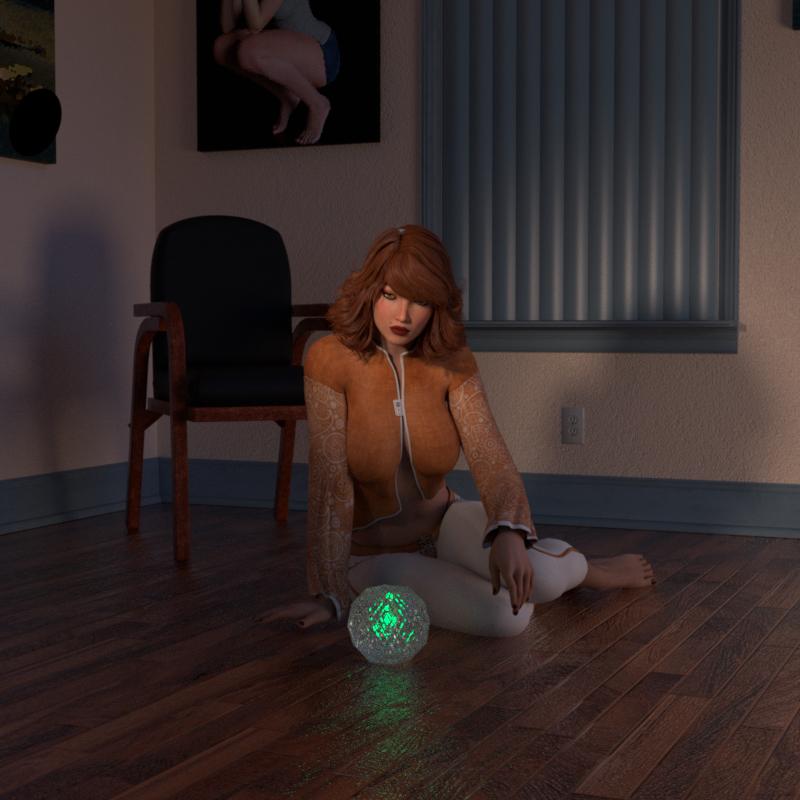

    11. But wait, that's not all.  You can also tweak color saturation, etc for each light.  Let's say you want the point light to be more blue-green.  You don't need to re-render, you can just set the tint on that point light canvas by using a photo filter adjustment layer.  Voila!



      Set the fill light to be cooler also and get this result



    Note all of this is done without ever having to re-render in Daz Studio.  So if your renders take a couple of hours, this saves a tremendous amount of time.






    800 x 800 - 883K
    800 x 800 - 392K
    800 x 800 - 402K
    800 x 800 - 436K
    Post edited by TabascoJack on
  • Ah, TJ, I could kiss you!  I didn't know what some of those did even though I played around with a lot of the presets.  I wasn't really sure what the differences were.  Thanks for the clear explanations.  Canvases have really opened up how I do postwork with my images.  I can't even imagine not using canvases for some renders.  And, I don't remember to render out canvases, I actually fake it with some layers in Gimp using the NIK filters because there are some there that can get you some interesting layers as if you had done canvases.

    I'm starting to get to the point where I remember to do this inside DS, though.  I love your explanations.  They will help me decide which layers I actually want to play with while I'm playing around with my experiments.  Looking forward to the PS part when it gets posted. :)
