Luxus Skin Settings

12345679»

Comments

  • brainmuffinbrainmuffin Posts: 409
    edited December 1969

    Now the price is $20, I just may have to try this plug-in. Does it play nice with Reality 2?

  • andreasrauhandreasrauh Posts: 10
    edited December 1969

    Luxus and Reality are both bridges to luxrender and stand for them alone so Luxus cannot work with Reality

  • BarubaryBarubary Posts: 1,135
    edited December 1969

    You can have both of them installed at the same time, though.

  • starionwolfstarionwolf Posts: 3,041
    edited May 2014

    Help...Young teen Julie looks reddish brown.

    I used the values in the first post:

    Glossy Translucent:
    Diffuse Color: 255, 255, 255
    Transmission ColorL 255, 255, 255
    Specular Color: 150, 150, 150

    Roughness U: 0.30
    Roughness V: 0.30
    Absorbtion Color: 35, 93, 131
    Absorption depth: 1.00

    Multibounce: on
    Backface specular color: 158, 188, 217

    Luxrender Volume type: homogeneous
    Absorption color: 35, 93, 131
    Absorption scale: 500
    Scattering color: 128, 64, 0
    Scattering scale: 500

    Mesh - Bumpmap: 1.00

    What am I doing wrong? I couldn't find a setting that works well with her skin. Maybe I accidental skipped over a good suggestion?

    edit: I would've let Luxrender run longer but it is getting late.

    528 x 576 - 175K
    Post edited by starionwolf on
  • SpottedKittySpottedKitty Posts: 6,090
    edited May 2014

    Specular Color is way, way, way too high, I never use a value over about 50, and that gives an unrealistic really shiny surface if what you want is skin. Backface Specular should probably be turned right down as well.

    Do you have a bump map applied? For some reason, bump strength frequently comes in at full — and remember that number is in metres, not centimetres as in a plain 3Delight material. Use 0.001 (1 millimetre) as a start point and nudge it up and down a little from there until a test render looks OK.

    Lighting is a frequent cause of LuxRender weirdness. Are you letting a D|S light auto-convert, or setting up a light manually with LuxRender parameters?

    Can't help you with SSS settings, I haven't got as far as playing with that yet.

    Post edited by SpottedKitty on
  • SiliconAyaSiliconAya Posts: 18
    edited December 1969

    I believe the strange redness is caused by the bump setting being to high, so do as SpottedKitty suggests and hit it with a nerf bat. I don't use Lux any more, but I remember having this problem when I first used Luxus.

  • starionwolfstarionwolf Posts: 3,041
    edited May 2014

    Turning down the specular strength and the Luxus bump map strength worked. Thanks. I didn't see those tips before.

    I am using lights that I converted to Luxus style lights using the dialog box. Now I just need to save the material preset and copy it to the dual-core Pentium.

    Thanks

    edit: clarified info on lights

    208 x 112 - 10K
    545 x 576 - 159K
    Post edited by starionwolf on
  • orcadudeorcadude Posts: 24
    edited December 1969

    Not sure if this was covered before, but for the volume-based SSS to work, there's one key setting you need to keep in mind - opacity.
    With opacity at 1.00 you won't get ANYTHING out of volume, as the "skin" over the volume will be 100% opaque.

    You need to bump it down a notch (0.9-1.0) to get some scatter through the volume.

    Better yet, make an SSS map (where black = SSS and white = no SSS, so inverse of the maps used in 3Delight), set the opacity to 0.85 or so, then assign it that texture map. 0.85 is QUITE transparent (for skin), but it will give you some leeway for painting in the SSS on very thin skin (nostrils, thinnest parts of ears, the very edge of the skin between the fingers etc.).

  • SphericLabsSphericLabs Posts: 598
    edited December 1969

    orcadude said:
    Not sure if this was covered before, but for the volume-based SSS to work, there's one key setting you need to keep in mind - opacity.
    With opacity at 1.00 you won't get ANYTHING out of volume, as the "skin" over the volume will be 100% opaque.

    You need to bump it down a notch (0.9-1.0) to get some scatter through the volume.

    Better yet, make an SSS map (where black = SSS and white = no SSS, so inverse of the maps used in 3Delight), set the opacity to 0.85 or so, then assign it that texture map. 0.85 is QUITE transparent (for skin), but it will give you some leeway for painting in the SSS on very thin skin (nostrils, thinnest parts of ears, the very edge of the skin between the fingers etc.).

    Using the glossy material type in LuxRender, you are right SSS won't really show up. But that is not the complete answer. Opacity in LuxRender is not physically plausible. The first version(a preview to artists) of Luxus did not support it. Opacity was added because it is so familiar to users.

    A physically plausible transparent material in LuxRender would be glass or glass2. A semiopaque material, what skin is, would be glossytranslucent. Wean yourselves of opacity! Maybe? If you feel like it. :)

  • orcadudeorcadude Posts: 24
    edited December 1969

    I *was* talking about the glossytranslucent material.
    Try disabling the glossytranslucent's scattering.

    Then add volume material properties.

    Set opacity to 1.00, add homogenous volume scattering.
    Result: no scattering.

    Now set opacity to 0.95.
    Result: scattering.

    Yes, glossytranslucent does not require opacity for scattering, but if you want to do volume-based scatter, you will need to reduce opacity to get it to show up.
    Or, put it this way - having homogenous volume on with glossytranslucent makes no sense and yields no result (despite it being suggested somewhere at the beginning of this thread), unless you reduce opacity of glossytranslucent.

  • orcadudeorcadude Posts: 24
    edited December 1969

    (On top of that, there is no way to use a texture map to control the SSS with fully opaque, non-volume-based glossytranslucent absorption/scatter with 100% opacity - it is fully dependent only on the thickness of the object...

    You might say: "so what, that's physically accurate, using a control texture is only good for faking the physical response".

    But that is not 100% true:
    - different tissues and materials can have different absorption and translucency in different areas, regardless of the thickness.
    - it's sometimes easier to "mask out" areas you *don't* want SSS in, if you find it distracting.
    - characters from DAZ studio are rarely physically accurate volumes to begin with

    In conclusion, despite your opinion, i still believe there's a use to opacity.)

  • clarke_af31e2e15dclarke_af31e2e15d Posts: 21
    edited June 2014

    Awesome thread...great resource for learning about Luxrender Materials (and Luxus' handling thereof). Huge thanks to all who have contributed, the diversity of approaches is fantastic.

    I downloaded Slosh's Luxus Skin file from ShareCG, and set about adapting it to V4/Lana. After a bunch of tweaking, I only got the Glossy Translucent material looking as good as the first example below.

    Had much better results switching to Glossy, with Michael_G's settings from post #184 (example on the right, below). I added a little bit of Absorption (depth: 0.4, color 32,77,102 - from Slosh's chart in post #151) to bring a little more color to the skin. I think this looks fantastic, especially considering a low-res texture like Lana, but would love some opinions from those with a more critical eye than mine.

    At this point, I don't think translucency is worth all the tweaking I'd have to do to get it looking anything other than weird. Let me know if I'm doing something obviously wrong, but at this point I'm ready to give up on it and stick with the (much simpler, easier) glossy material for skin.

    562 x 750 - 341K
    562 x 750 - 433K
    Post edited by clarke_af31e2e15d on
  • GXT6000GXT6000 Posts: 15
    edited June 2014

    Figured out my probs. sorry :red:

    Post edited by GXT6000 on
  • SpottedKittySpottedKitty Posts: 6,090
    edited December 1969

    gxt6000 said:
    Figured out my probs. sorry :red:

    What were they? You might have come up with a fix for something that bites me every now and then (unexpectedly long until-it-looks-good times).
  • cedarwolfcedarwolf Posts: 60
    edited December 1969

    I have an ongoing problem with grain as well. I stumbled, literally, across a tutorial a couple of days ago that was an online video, but being the doofus I am I forgot to bookmark it. Took me about five minutes to follow the video, and I had a very, very nice image in about five more. Wish I could find that video again. I've been reading through this thread and hope to learn more by observation, trial, and practice. Thank you to everyone who has contributed.

  • edited December 1969

    Can someone post some good hair settings for realism? I've looked through the thread but couldn't find anything...

  • PulpArtstPulpArtst Posts: 88
    edited December 1969

    For the hair settings so far I've just been converting it to matte with a sigma of 90. Once or twice I've used car paint of all things, but I think the solution is glossy translucent though I haven't found the magic numbers as of yet.

    This sounds like a good experiment today...

  • PulpArtstPulpArtst Posts: 88
    edited September 2014

    Without a specular map on the hair the glossy settings will make it look like a helmet. Here are the two examples with Matte Sigma 90 and then Glossy with essentially no glossy settings and an absorption color of RGB 16-65-128 and 0.5 absorption depth. The absorption color and the depth is really a matter of taste, but remember it is opposite of the color you want in the object.

    I'll try a hair with a specular map to see if I can get the glossy setting to have an acceptable restult.

    400 x 600 - 394K
    400 x 600 - 387K
    Post edited by PulpArtst on
  • PulpArtstPulpArtst Posts: 88
    edited December 1969

    Pen Hair has speculars and here are the results. I had the glossy setting very high, but with a dark color. Personally I think the glossy setting isn't as important as the absorption, but can help if you are patient and test it. Glossy Spec Color 29-17-7 IOR 140 Roughness for both is .014.

    480 x 600 - 518K
    480 x 600 - 505K
  • cwichuracwichura Posts: 1,041
    edited September 2014

    One of the things that I find helps a lot with skin in LuxRender, is converting bump maps into normal maps. I've been doing this for all my figures for over a year now. (I actually do this for pretty much all bump maps now, but especially for skin and hair.)

    Using tools like ShaderMap 2, this is a visual process and eliminates a lot of the trial-and-error on setting the bumpmap strength to get best results from Lux. Additionally, another thing that comes up regularly is how to use displacement maps for things like vascularity and get the displacement maps to work well in Lux. (I see this a fair bit in the Reality forums, and it's really a Lux topic, not a function of the export tool used.) I've just done my first tutorial video showing how to use ShaderMap to make normal maps from a skin, as well as combine bump and displacement maps into a single normal map, eliminating the need to use displacement at all in Lux. It's posted on YouTube here: http://youtu.be/r0uegrj1Ido

    Hopefully this is useful to some of you.

    Post edited by cwichura on
  • 3D User 7133D User 713 Posts: 13
    edited September 2014

    Hello All!

    Got a question I can't seem to answer, and maybe I'm looking at it the wrong way. Is there any reason Luxus/Luxrender would override my skin settings after I save the daz project and open it the next day?

    Yesterday I applied my glossy settings and saved the project wanting to dial them in today and now every time I do a render in lux it keeps pulling up the normal converted uber settings.

    Any help or information would be greatly appreciated.

    Post edited by 3D User 713 on
  • MystarraMystarra Posts: 28,745
    edited December 1969

    is the eluxir almost ready to go commercial yet? :cheese:

    i think the beta was only good for a year when i d/l it :down:

  • MN-150374MN-150374 Posts: 922
    edited March 2015

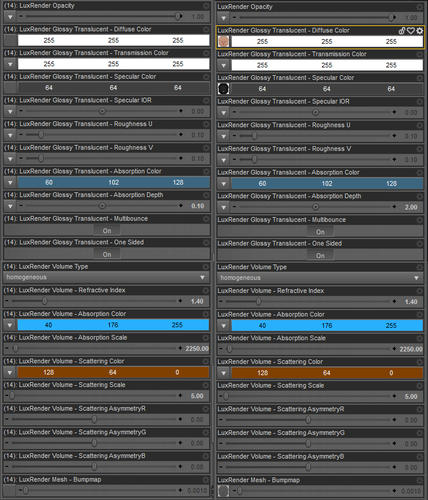

    WIP-Render: V5 Bree Skin Texture with Glossy Translucent Material and Volume

    There is still some work to do to make this Render better. But I lost patience. As it was requested in the Gallery, here are my settings.
    Added the lip settings too, to show where are the maps have been apllied and only at the lips a diffrent Glossy Translucent Absorbtion Depth Value was used.

    724 x 845 - 478K
    1384 x 900 - 213K
    Post edited by MN-150374 on
