Hexagon sword Tutorial

2

Comments

  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

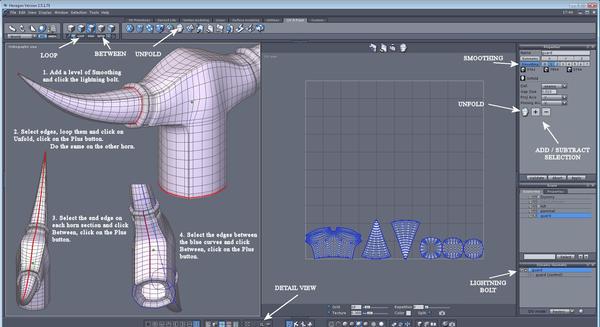

    Step 31 - Guard

    1919 x 1046 - 316K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    Guard finished - time to Save the project :)

    1919 x 1046 - 292K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    Step 33 - Blade

    1920 x 1044 - 235K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

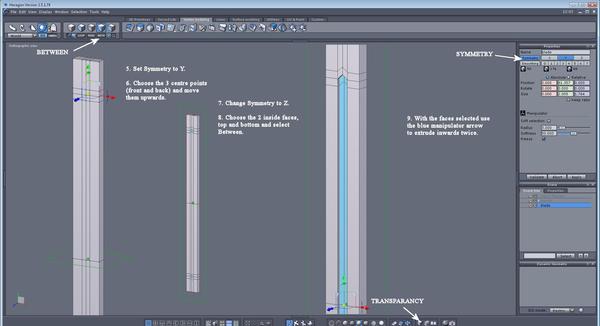

    Step 34 - Blade

    1920 x 1044 - 195K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    Step 35 - Blade

    1920 x 1044 - 197K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    Step 36 - Blade

    1920 x 1044 - 221K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited July 2014

    Step 36 - Blade

    1920 x 1044 - 221K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

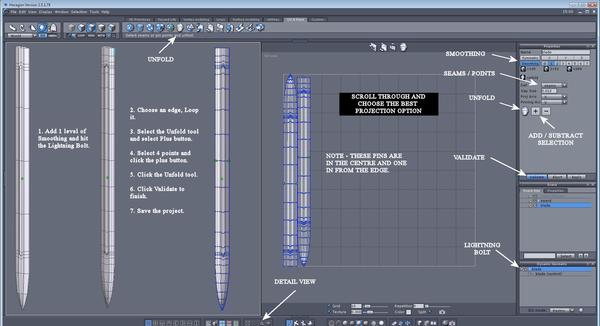

    Step 37 - Blade

    1920 x 1044 - 247K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    Blade finished - Time to Save the project :)

    1920 x 1044 - 258K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    Getting ready to Export - 1

    1920 x 1044 - 160K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited July 2014

    Getting ready to Export - 2

    1920 x 1044 - 319K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited July 2014

    As I am no expert with Daz Studio I have asked Catherine aka Patience55 to take over from here, so please give her time.

    In the mean time I will go back and have another look at this project and mess things up on purpose - (make it so DS gives a material error message) and find solutions. If you have any problems with this tutorial post your concerns below or drop me a PM and I'll try to help.

    Over at ShareCG you find some textures and UVmapping aids I put together when making this prop, feel free to use them in your own projects.

    http://www.sharecg.com/v/76902/view/21/DAZ-Studio/Hexagon-sword-Tutorial

    That is it for now .................

    1920 x 1044 - 226K
    Post edited by Wee Dangerous John on
  • GhostmanGhostman Posts: 215
    edited December 1969

    Nice looking tutorial John. Really good work. ;)

  • RoygeeRoygee Posts: 2,242
    edited December 1969

    Well done, John - clear and concise tut, good work-flow and great result :)

    Looking forward to patience's part - hopefully making it a smart prop?

  • KeryaKerya Posts: 10,153
    edited December 1969

    Great tutorial! Thank you so much!

  • patience55patience55 Posts: 6,989
    edited December 1969

    Wow! Somebody's been busy! That's one of the best tutorials I've seen done recently.

    time ... yeah ... little bit of time .... me learning too lol ... idea is for smart props, packaging and whatever else happens along the way ;-)

  • patience55patience55 Posts: 6,989
    edited December 1969

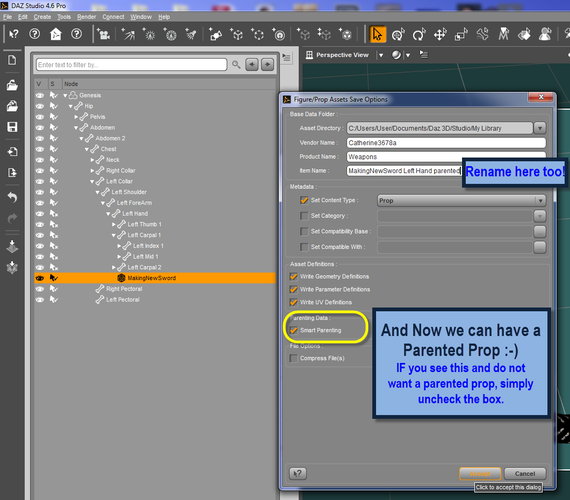

    Good news ... making parented props is very easy :-)

    Have a few images to edit ... hopefully will be uploaded tomorrow.

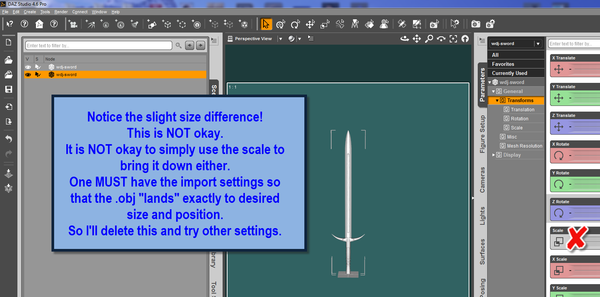

    So go ahead and make swords! However you plan to export/import ... just be sure that the sword is exactly the correct size for the intended figure. For ease of posing, keep it to the "0" landing field. From said .obj file import, one can make a D/S prop, a placed-in-hand prop and a parented prop.

    Do not be concerned about .obj files importing "white" or "grey" ... in D/S use the Surface Tab to texture and/or colour as desired. For making a prop, do NOT use shaders. Esp. for planned shares. More info tomorrow.

  • patience55patience55 Posts: 6,989
    edited July 2014

    Here we go ...

    1 of too many ... good golly, can't preview today! This means only 1 pic per post. There are 32 pics.

    edit ... okay pictures are posted, feel free to post :-)

    1920 x 967 - 268K
    Post edited by patience55 on
  • patience55patience55 Posts: 6,989
    edited December 1969

    and 2 ....

    1920 x 796 - 211K
  • patience55patience55 Posts: 6,989
    edited December 1969

    Why??? Oh wait ... maybe now ...

    3 ...

    662 x 726 - 45K
    1123 x 1043 - 141K
    1920 x 1035 - 433K
    1890 x 817 - 290K
    1149 x 478 - 82K
  • patience55patience55 Posts: 6,989
    edited December 1969

    and page 4 ...

    1840 x 964 - 220K
    674 x 1023 - 82K
    1694 x 926 - 187K
    1586 x 967 - 189K
    682 x 718 - 67K
  • patience55patience55 Posts: 6,989
    edited December 1969

    and the next post ...

    1580 x 839 - 152K
    1195 x 792 - 67K
    1529 x 918 - 167K
    1585 x 785 - 137K
    1524 x 919 - 165K
  • patience55patience55 Posts: 6,989
    edited July 2014

    and the next one ...

    Somewhere in here I mention not to use shaders on an .obj being created to be a file for redistribution. This is because some shaders place information in strange places on our computers and simply will not work on somebody else's computer. One can certainly create shaders for redistribution with their products if so desired ... or shader presets if I have the correct term to load them onto an already created file.

    1920 x 1038 - 185K
    1083 x 934 - 139K
    1682 x 830 - 214K
    1246 x 872 - 147K
    1244 x 839 - 111K
    Post edited by patience55 on
  • patience55patience55 Posts: 6,989
    edited December 1969

    and the next one ...

    1260 x 708 - 154K
    673 x 788 - 71K
    1681 x 790 - 200K
    1251 x 742 - 186K
    1877 x 787 - 253K
  • patience55patience55 Posts: 6,989
    edited December 1969

    And the last one for this set :-)

    1485 x 826 - 165K
    1061 x 930 - 152K
    1623 x 519 - 142K
    1251 x 872 - 167K
    1244 x 801 - 187K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited July 2014

    Thank you Patience, I'm so glad you got it to work - I'll give it a go myself this weekend.

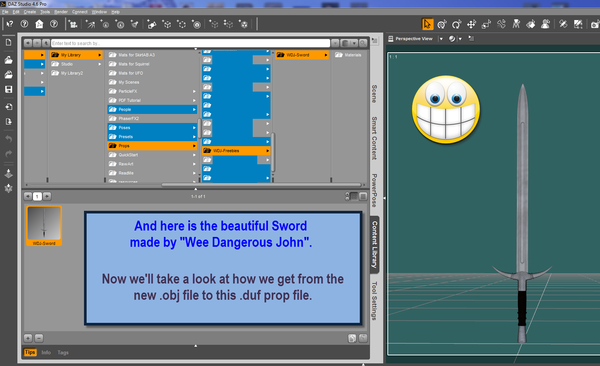

    Here is a link to the sword I made if you want to jump straight to the good part -

    http://www.sharecg.com/v/76934/view/21/DAZ-Studio/WDJ-Sword

    Post edited by Wee Dangerous John on
  • patience55patience55 Posts: 6,989
    edited December 1969

    Thank you Patience, I'm so glad you got it to work - I'll give it a go myself this weekend.

    Here is a link to the sword I made if you want to jump straight to the good part -

    http://www.sharecg.com/v/76934/view/21/DAZ-Studio/WDJ-Sword

    You're welcome. Thanks for sharing the Sword ;-)

  • Wee Dangerous JohnWee Dangerous John Posts: 1,336
    edited December 1969

    No problem, if it helps the HXN and OBJ files are in the the "sword file" I uploaded to ShareCG (link on previous page).

  • KeryaKerya Posts: 10,153
    edited December 1969

    Thank you Patience!

  • patience55patience55 Posts: 6,989
    edited December 1969

    You're quite welcome.
