How on earth did you do that - I can only get the gizmo, with a point selected to align like that if I rotate the shape so that the inclined edge is parallel to the ground, regardless of the view or whether selection or world is selected. It also doesn't make sense that it should align because a vert has no orientation.

What view are you in? The gizmo isn't perfectly aligned, although it appears to be in an orthographic view.

I can get the gizmo to align with the inclined edge by giving the shape thickness, using the face to set a custom working plane then deleting the back faces. Your pic seems to be in the default working plane.

To summarize my question was:
[can you] slide a point along a line inclined?
I think my answer is: no

In hexagon yes, the answer is "no". :-)

But in life there are far more serious problems

And here the answer is "yes". :)

But that doesn't keep geeks like me from trying to have fun with the lesser ones like this, and by using slope intercept, you can CALCULATE where the point should be moved to, and you'll end up with exactly what you wanted to do by sliding it there.

But instead of sliding it to where it should be, you just enter the calculated XY coordinates and it pops to where it should be.

This is no problem for a single point such as you have here, though admittedly it would be far too much trouble if you had to do it repeatedly.

If you want to try it yourself, the equation for the slope of a line ("m") is:
m = (y1-y2) / (x1-x2)
Where x1,y1 are the XY coordinates for P2 and x2,y2 are the XY coordinates for P3.

Once the slope is found, then you can find the Y-intercept ("b") with:
-b=mx-y
Where "x" and "y" are the XY coordinates of either P2 or P3. Note that "-b" is the negative value, so for "b" you need to flip the sign.

And finally you can find the Y coordinate for the point you want to move by using the slope intercept equation:
y=mx+b
Where "x" is the X coordinate of P1, and "b" is the Y-intercept from the last calculation

So finally, the coordinates you want to move the "sliding point" to are:
xfinal,yfinal
Where "xfinal" is the X coordinate of P1, and "yfinal" is the slope intercept from the last calculation.

So you would select the point you want to move, type in the xfinal and yfinal values from the last calculation, hit enter, and the point "pops" to exactly where you would have put it if you were able to "slide" it. - which is EXACTLY on the line between P2 and P3, and 90 degrees from P1.

For most people this stuff is boring and a real PITA, but for people like me it's more fun than a crossword puzzle.

Hell, for most people, just READING about this stuff is boring and a real PITA! :lol:

:-)

She is a genius.
Thank you.
But the discomfort remained intact......

To summarize my question was:
you can slide a point along a line inclined?
I think my answer is: no.

Try this:

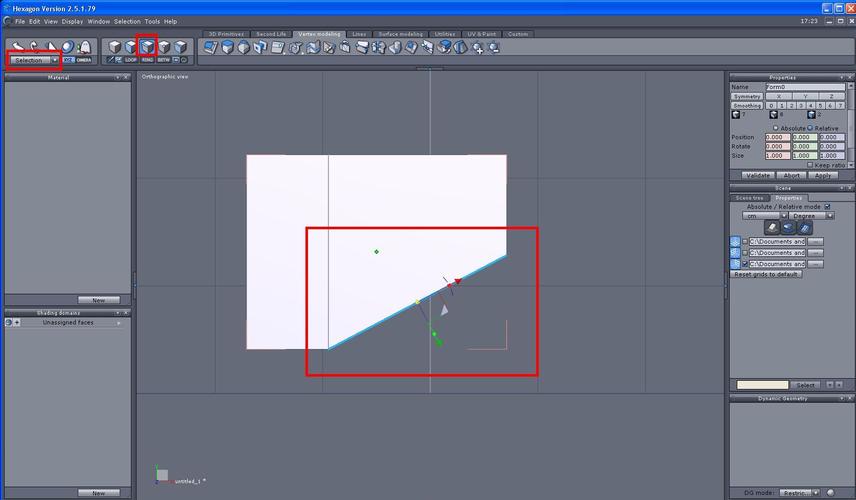

With the point selected, change the manipulation mode from "World" to "Selection," and the manipulator gizmo should re-align along the line in which the point resides (see attached image).

With the point selected, change the manipulation mode from "World" to "Selection," and the manipulator gizmo should re-align along the line in which the point resides (see attached image).

With this there's the chance that the local axes don't conform to the plane the line lies in andyou go shooting off into the depth though.

Heheh...I've been called a "genius" before (both seriously and sarcastically :) ) but I don't think I've ever been called a "she" before... :lol:

But you're welcome, and I enjoy trying to help!

But the discomfort remained intact......

:-) (sorriso)

Does this mean you tried following my (admittedly convoluted) instructions and it didn't work for you?

Does this mean you tried following my (admittedly convoluted) instructions and it didn't work for you?

No.
I have not tried it yet because I do not see a tube (tubo) of English.
I say again: it's nice to find this ability to move easily without going around the world.

I only had a minute to skim through this thread but will read through it later.
I will show you how to move that point along that edge very easy.
But have to head to work now,

## Comments

2,220How on earth did you do that - I can only get the gizmo, with a point selected to align like that if I rotate the shape so that the inclined edge is parallel to the ground, regardless of the view or whether selection or world is selected. It also doesn't make sense that it should align because a vert has no orientation.

What view are you in? The gizmo isn't perfectly aligned, although it appears to be in an orthographic view.

I can get the gizmo to align with the inclined edge by giving the shape thickness, using the face to set a custom working plane then deleting the back faces. Your pic seems to be in the default working plane.

126You're right; I was in orthographic (Front View), and thought I'd stumbled across a solution.

365Ho bisogno di qualche mese per tradurre....

Per ora: GRAZIE

Traduzione libera:

I need some months to translate.

Please wait

Now you just say THANKS

365And here the answer is "yes". :)

But that doesn't keep geeks like me from trying to have fun with the lesser ones like this, and by using slope intercept, you can CALCULATE where the point should be moved to, and you'll end up with exactly what you wanted to do by sliding it there.

But instead of sliding it to where it should be, you just enter the calculated XY coordinates and it pops to where it should be.

This is no problem for a single point such as you have here, though admittedly it would be far too much trouble if you had to do it repeatedly.

If you want to try it yourself, the equation for the slope of a line ("m") is:

m = (y1-y2) / (x1-x2)

Where x1,y1 are the XY coordinates for P2 and x2,y2 are the XY coordinates for P3.

Once the slope is found, then you can find the Y-intercept ("b") with:

-b=mx-y

Where "x" and "y" are the XY coordinates of either P2 or P3. Note that "-b" is the negative value, so for "b" you need to flip the sign.

And finally you can find the Y coordinate for the point you want to move by using the slope intercept equation:

y=mx+b

Where "x" is the X coordinate of P1, and "b" is the Y-intercept from the last calculation

So finally, the coordinates you want to move the "sliding point" to are:

xfinal,yfinal

Where "xfinal" is the X coordinate of P1, and "yfinal" is the slope intercept from the last calculation.

So you would select the point you want to move, type in the xfinal and yfinal values from the last calculation, hit enter, and the point "pops" to exactly where you would have put it if you were able to "slide" it. - which is EXACTLY on the line between P2 and P3, and 90 degrees from P1.

For most people this stuff is boring and a real PITA, but for people like me it's more fun than a crossword puzzle.

Hell, for most people, just READING about this stuff is boring and a real PITA! :lol:

:-)

She is a genius.

Thank you.

But the discomfort remained intact......

Devo tradurre bene.

Ciao

365Try this:

With the point selected, change the manipulation mode from "World" to "Selection," and the manipulator gizmo should re-align along the line in which the point resides (see attached image).

As Roygee said some days ago:

"How on earth did you do that?"

:ohh:

Devo tradurre meglio

365:long:

Linee: yes

Punti: no

Bye

0Does this mean you tried following my (admittedly convoluted) instructions and it didn't work for you?

307With this there's the chance that the local axes don't conform to the plane the line lies in andyou go shooting off into the depth though.

365:-) (sorriso)

Does this mean you tried following my (admittedly convoluted) instructions and it didn't work for you?

Does this mean you tried following my (admittedly convoluted) instructions and it didn't work for you?

No.

I have not tried it yet because I do not see a tube (tubo) of English.

I say again: it's nice to find this ability to move easily without going around the world.

0I only had a minute to skim through this thread but will read through it later.

I will show you how to move that point along that edge very easy.

But have to head to work now,

365Thanks!

Good job.....

0I will post a video tomorrow.

All of the solutions posted by others in this thread are very good ones.

I will give you another option in the video.

365O.K.

Grazie

0Video has been posted.

I hope this helps

http://www.youtube.com/watch?v=HzGZOldRPZg

365GRAZIEEEEEEEEEEE!

Grazie a tutti voi.

(anche a "fonpaolo")

Ciao

GRAZIEEEEEEEEEEE!

0Posting error. Soreeee. :red:

0Nice one Johnny. :cheese:
