Dealing with Matt Colours:

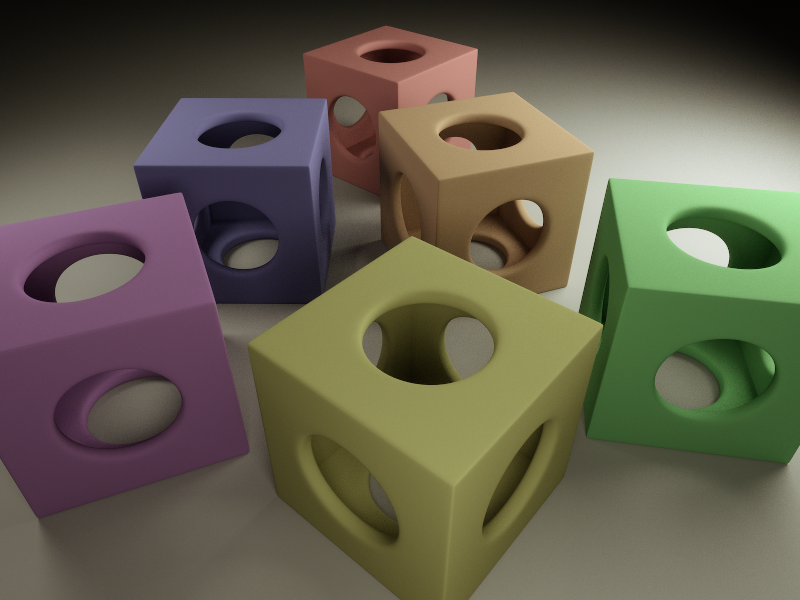

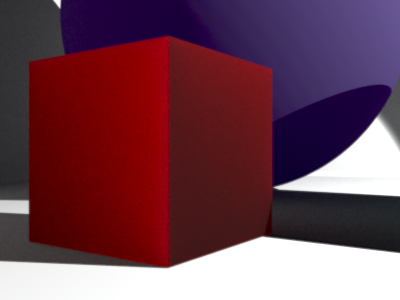

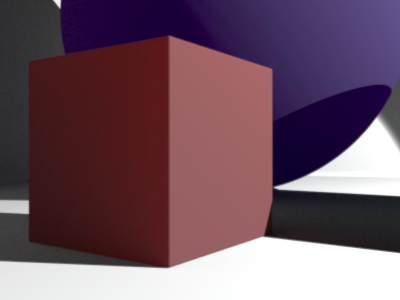

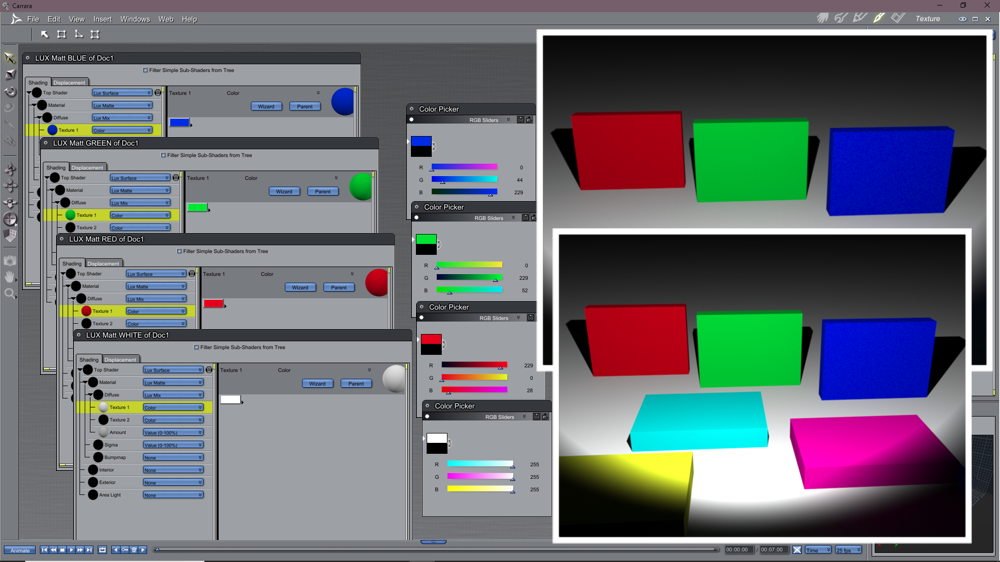

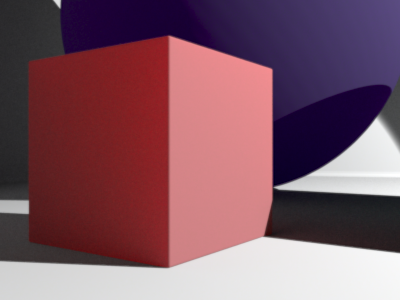

In this image, you will see that getting a particular colour as mixed in Carrara to read correctly in LuxRender needs a bit of juggling to get it right. My initial experiments show that by mixing the desired colour and then mixing in 80% Black seems to do the trick with red... I've yet to experiment with other primes before moving on to textures and the like.

Here's what we are looking at:

  • In Carrara a red is mixed with a RGB value of 229,000,027 and applied as a LuxMatt meterial to a cube which is rendered
  • A LuxMixer node is applied to add a percentage of Black to stop the LuxRender looking as though it glowed
  • An initial value of %60 black was tried and the resultant values checked
  • A final value of %80 was hit upon and as you can see the sampled colour is close enough to Carrara's original colour value

The acutall render is lit with a LuxInfinity light and an HDRI environment map.

MODS: If this shouldn't be a new thread but put somewhere easy to find then I kindly ask one of you to move it or delete it if it is redundant.


​Selina

Post edited by FENgari on
«13

Comments

  • FENgariFENgari Posts: 1,104
    edited April 2018

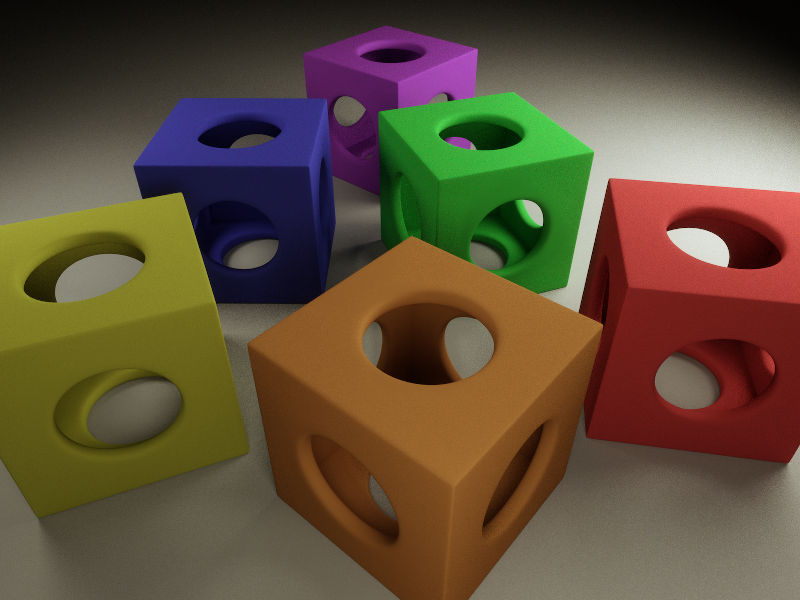

    Dealing with Matt Colours - Conclusion:

    ​Using the LuxMix Node and adding 80% black to your chosen matt colour seems to work across the board...

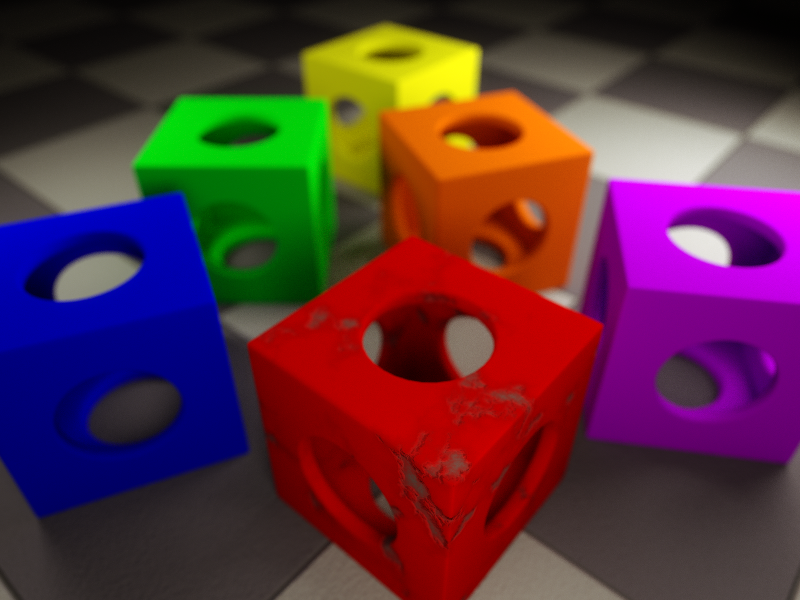

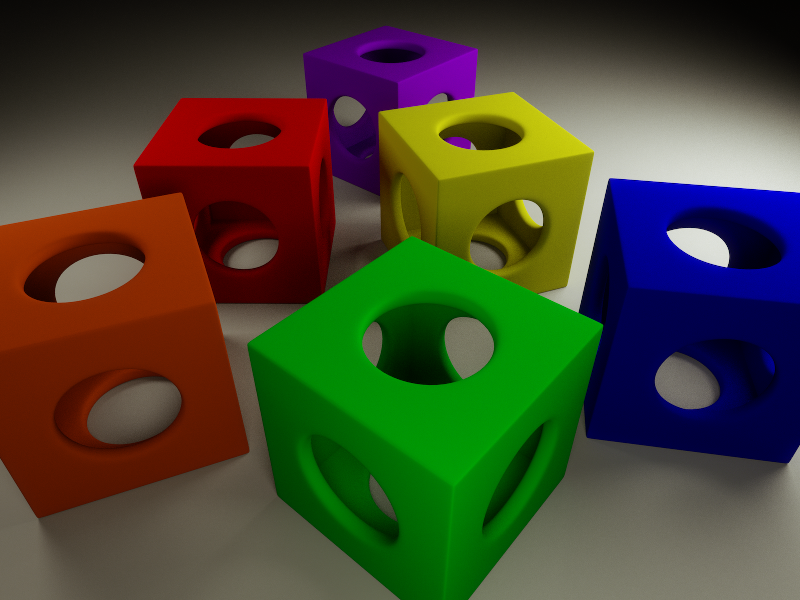

    In this image an ordinary Carrara Spot was used as the light source and the colours tested were the purest, brightest I could think of at the time. This concludes this stage of LUX Matt material experimentation...


    ​Selina

    Post edited by FENgari on
  • FENgariFENgari Posts: 1,104
    edited April 2018

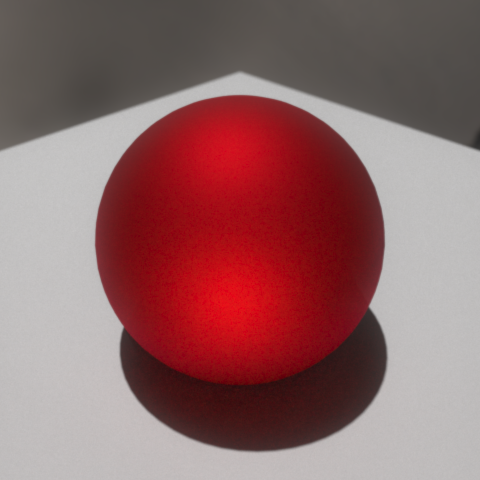

    Dealing with Matte Translucency:

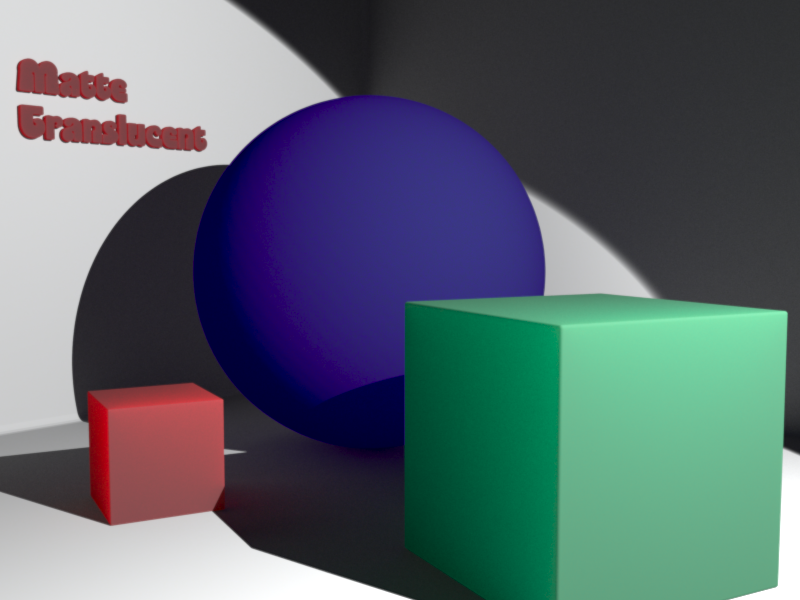

    The following image is my attempt at demonstrating LuxRender's Matte Translucent capabilities.




    My various experiments have led me to believe that a basic HLS setting of:

    1. Reflection: H: 0.00, L: 20.00, S: 20.00
    2. Transmission: H: (same as above), L:40.00, S: 20.00
    3. Interior: Lux Clear
      1. Fresnel: 1.42 (50% Sugar Solution)
      2. Absorpition: H: (same as above) plus 60 modulo 100, L: 30.00, S: 50.00, Value: 250.00
    ..is a great starting place from which to create all sorts of interesting shaders that need a matte translucency base. In this example red is being used as fundamental hue.

    Below is a table demonstrating some variations on the above 'default' with each changed parameter shown below each image. I have made sure that the Reflection and Transmission L: settings when added together do not exceed 80.00:


    Reflection L: 5.00
    Transmission S: 40.00

    Reflection L: 10.00
    Transmission S: 40.00

    Reflection L: 15.00
    Transmission S: 40.00

    Reflection L: 30.00
    Transmission S: 40.00

    Reflection L: 40.00
    Transmission S: 40.00


    ..and there's more. This table shows the effect of changing the Transmission L: setting:


    Reflection L: 20.00
    Transmission L:30.00, S: 40.00

    Reflection L: 20.00
    Transmission L:40.00, S: 40.00

    Reflection L: 20.00
    Transmission L:50.00, S: 40.00


    The one major issue to realise with this shader is that it can take between 15 and 30 times longer to render, but well worth the wait!


    Selina

    Post edited by FENgari on
  • FENgariFENgari Posts: 1,104
    edited April 2018

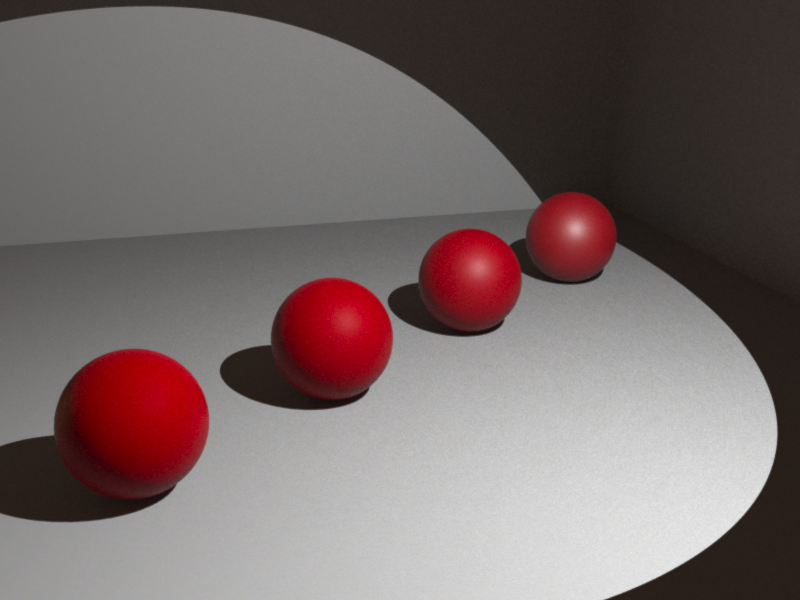

    Dealing with Glossy:

    Building on what has gone before... This image highlights the correlation between Specular and Roughness settings.

    The highest specular setting for glossy materials is 25% anything higher will turn the surface into a mirror and the diffuse colour is lost - great for chrome perhaps but I have yet to experiment with the Metal shaders. Specular reflections can be blurred by increasing the roughness values for U and V.


    Just to highlight what we are looking at; the cuboid nearest the camera and the disc to the right of frame has no diffuse colour whatsoever, a specular value of 7.50%, Index of Refraction (IOR) of 1.75 and UV Roughness values of 2.50%. The two yellow spheres have a Specular value of 15.00%, IOR of 2.26 and a UV Roughness value of 0.50%. Finally, the nearest cyan sphere has a specular value of 25.00% (the recommended maximum), an IOR of 3.00 and UV Roughness of 5.00%.


    ​Selina

    Post edited by FENgari on
  • FENgariFENgari Posts: 1,104
    edited April 2018

    Dealing with Glossy - Conclusion:

    The following four images (below) highlight the relationship between specularity and IOR (Index of Refraction)... Each features four red spheres with the specularity set at 2.5%, 7.5%, 15% and 25% for the near to far spheres. The only parameter to change is the UV roughness setting as indicated under each image. There is a strong mathematical correlation between the specularity and IOR thus: IOR = (sqrt(SPECULARITY)+1)/(1-sqrt(SPECULARITY)) these values are calculated as 1.3756, 1.7523, 2.2642 and 3 for each of the spheres respectively.


    U: 2.5%
    V: 2.5%

    U: 7.5%
    V: 7.5%

    U: 15%
    V: 15%

    U: 25%
    V: 25%


    In all of the test renders above identical values were used for U and V, but it is interesting to note that a difference between these two could be used to show anisotropic highlights as seen on hair or velvet for example. This concludes my experiments with LUX Glossy shaders at this time.


    Selina

    Post edited by FENgari on
  • wow Selina, I am so sorry I missed this. Thank you for posting those results. You rock!!

  • mindsongmindsong Posts: 1,101

    wow, I missed this too. Very interesting. Thanks Selina for sharing the work, and thanks head wax for the thread bump!

    --ms

  • pleasure I dont know why we all missed it! I feel bad

  • FENgariFENgari Posts: 1,104

    Boys - thanks for the bump, and don't feel bad we all lead busy, busy lives !

  • MystarraMystarra Posts: 31,837

    Thanks!!



  • FENgariFENgari Posts: 1,104

    ..started to have a look at this again...


    This image uses a plane as a 'true' area light (not something that Carrara currently offers,) just have to remember to make sure that the normals are pointing in the correct direction - lost half a day on that one!

    Also experimenting with Networking as my laptop and desktop offer a similar 8 cores each. This image is a recap on what I did before, matte, matte_translucent and gloss as surfaces only - no volume settings, yet, I'll touch that when I get to glass.

  • 3drendero3drendero Posts: 1,450
    Thanks Selinita. Still no response from SphericLabs, but LuxCoreRender is being updated, now at 2.2 beta, but for Blender only.
  • chickenmanchickenman Posts: 1,137

    I have still been using his luxcore beta he did for Carrara but with the ability to bring in the IRay textures I have not trieed them again which I should.

  • DiomedeDiomede Posts: 9,591

    I don't have Luxus or Octane but I am enjoying his thread.

  • chickenmanchickenman Posts: 1,137

    you can get luxcore as it was a free beta and still works just look for the thread on it.

    Last update had removed the monthly build locks.

  • DiomedeDiomede Posts: 9,591

    you can get luxcore as it was a free beta and still works just look for the thread on it.

    Last update had removed the monthly build locks.

    Thanks



  • ed3Ded3D Posts: 589

    does You have to have Carrara 8 or 8.5  +then ??

  • FENgariFENgari Posts: 1,104
    edited June 24

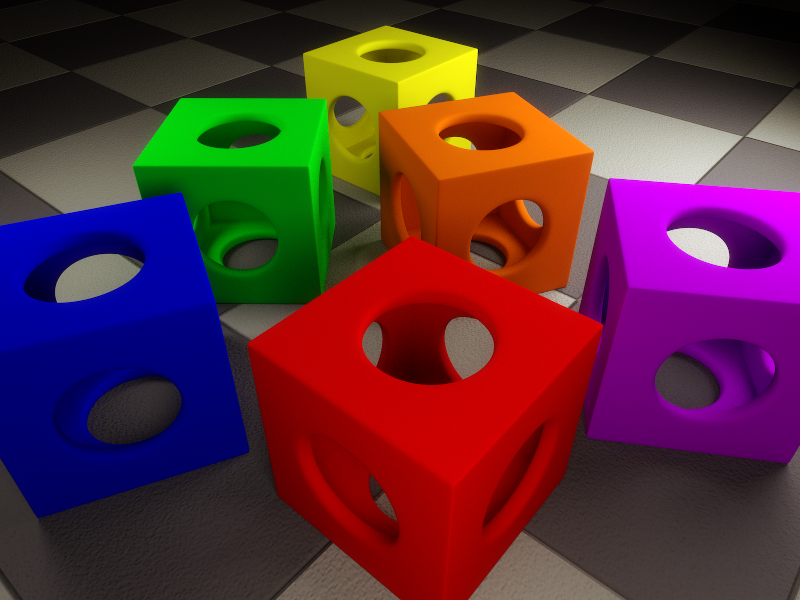

    Fireflies: What are they and how to avoid them (?) - Initial Thoughts


    The above image of LUX Render mattes shows 'Fireflies' or hot pixel spots in the render and they can be reduced by:

    • Making sure you have enough light in your image, the rendering engine is a physically-based one that tries to imitate the real world.
    • Watching the colours you use, ie full R, G or B values don't appear in the natural world that often.

    Here are a set of images to illustrate the above points where the highest R, G or B values are kept to a ceiling of 64%, ie 164:

    image image image image
    H: ?
    S: 32
    L: 100
    H: ?
    S: 48
    L: 33
    H: ?
    S: 56
    L: 18
    H: ?
    S: 60
    L: 10


    NOTE:

    1. With more light comes quicker renders, also lights can be turned off once loaded into LuxRender.
    2. The noise reduction offered should be used judiciously as it can produce unwanted halo effects, I find a small amount of lens bloom has a more natural effect. Whatever your preferred method, 'subtle' is the key word!
    3. Some of the Film Responses can have a dramatic effect on the overall colour balance of the finished render; if you're familiar with photography, you'll have no difficulty using LUX Render 1.6. As a side, all images set with Agfacolor Vista 800.
    4. The image brightness can be set using Film IOS, f/Stop and Shutterspeed - I used IOS: 200, f/Stop 5.6 and Shuttterspeed 1/60.
    Post edited by FENgari on
  • FENgariFENgari Posts: 1,104

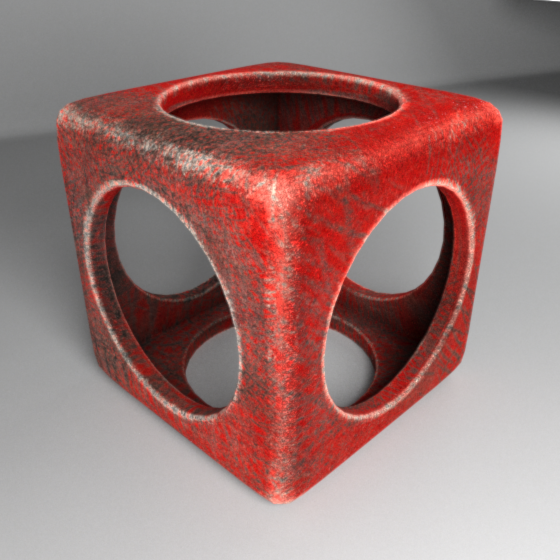

    ..Starting to look at Texture Mapping for colour and bump (still with Matte textures) ...



    NOTE:

    1. Grainy shadows (due to less light available) are not so critical on busy textured areas
    2. Textures seem to need to be applied to UV mapped objects
    3. Bumps have a 0 value (no bump) at 50% luminosity, -1 (valleys) at 0% and 1 (peaks) at 100%. I've yet to test normal maps or displacement maps - but bumps do look good for now!
  • FENgariFENgari Posts: 1,104

    ..and looking at Depth Of Field..


    IMAGE 1



    IMAGE 2



    NOTE:

    1.  Focal Distance is in meters
    2. Lens Radius is also in meters. You can use the table below to convert

    f/Stop

    1
    1.4
    2
    2.8
    4
    5.6
    8
    11
    16
    22

    Radius

    0.025
    0.0179
    0.0125
    0.0089
    0.0063
    0.0045
    0.0031
    0.0023
    0.0016
    0.0011



  • MystarraMystarra Posts: 31,837

    played with any glass bottle shaders?

  • FENgariFENgari Posts: 1,104
    edited July 5

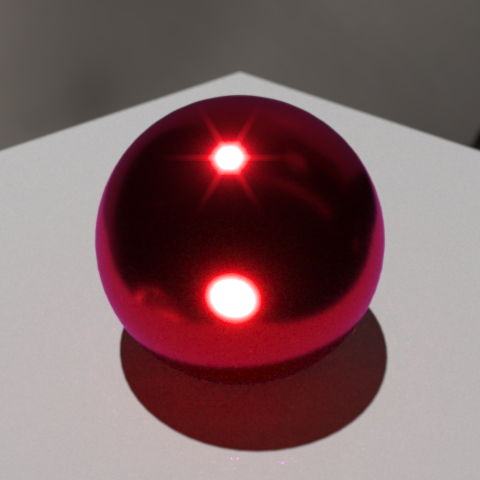

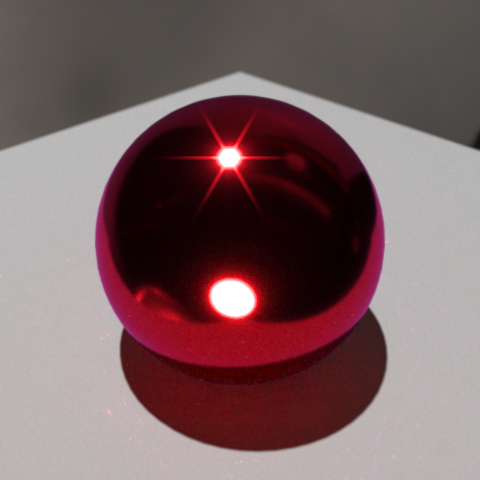

    Looking at Shiny Surfaces: Glossy, Metal2 and Glass...



    NOTE:

    1. None of these materials are using volume to achieve translucency, which makes them less than 'real.'
    2. The Glass shader (Mystarra) has the transmission colour set lighter than the reflection colour and an appropriate IOR for crystal
    3. The Metal2 shader has a low roughness setting and a colour (a better effect could probably have been obtained using 'ShinyMetal.' Roughness has a direct effect on the reflective quality of the surface as shown below:
    image image image
    Roughness: 2% Roughtness: 4% Roughtness: 48%
    Post edited by FENgari on
  • FENgariFENgari Posts: 1,104
    edited July 5

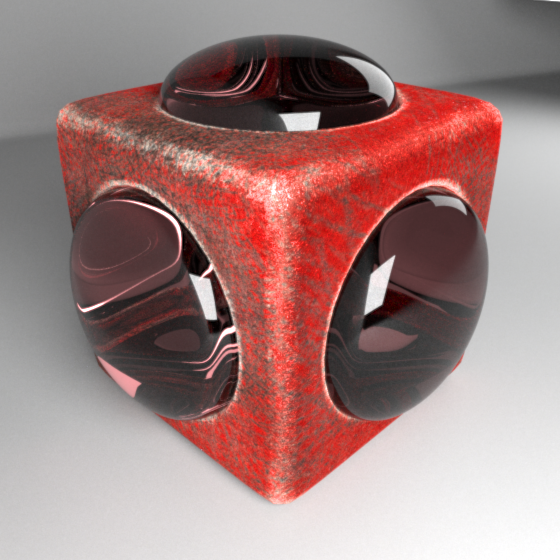

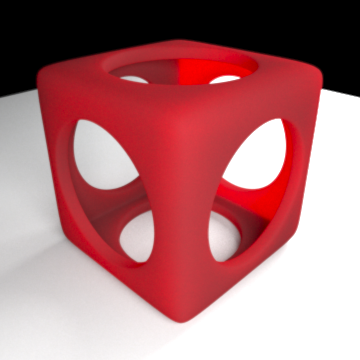

    Just a very sparce overview of the Matte and Glossy Translucent settings using red as a base in the form of two PDFs...

    image image


    These shaders do not use 'volume' settings and therefore offer a flat translucency, which is not realistic, but quicker to render...

    pdf
    pdf
    MT LUX Settings.pdf
    193K
    pdf
    pdf
    GT LUX Settings.pdf
    196K
    Post edited by FENgari on
  • 3drendero3drendero Posts: 1,450
    Even better than the official Luxrender manual. Thanks.
  • FENgariFENgari Posts: 1,104
    edited June 29

    ..another sparce overview of the Glass shader settings using red as a base in the form of one PDF...


    NOTE:
       PDF removed as it was inaccurate - see replacement here.

    Post edited by FENgari on
  • FENgariFENgari Posts: 1,104
    3drendero said:
    Even better than the official Luxrender manual. Thanks.

    Wow! That's very kind, albeit inaccurate blush

  • UnifiedBrainUnifiedBrain Posts: 2,111
    Selinita said:

    ..another sparce overview of the Glass shader settings using red as a base in the form of one PDF...


    That looks very realistic, and frankly, gorgeous.

    I've never used Luxus, or any other PBR.  I will likely wait until I can afford Octane (which I think will be easier to use).

    But I'm enjoying your experiments, like everyone else.yes

  • mindsongmindsong Posts: 1,101
    Selinita said:

    ..another sparce overview of the Glass shader settings using red as a base in the form of one PDF...


    These are great - this mix of materials is impressive and showcases the capabilities quite nicely.

    My interest in Luxrender has always been for distributed rendering - like RIB sequences in DS/3DL. Are you thinking of doing something similar?

    tnx for sharing your research/results!

    --ms

  • FENgariFENgari Posts: 1,104

    ..a quick foray into 3D-Coat and back to Carrara (before being discovered) for final rendering in LUX Render..


    IMAGE 1


    IMAGE 2


    Creating Texture Maps and UV coordinates in 3D-Coat

  • FENgariFENgari Posts: 1,104

    I've never used LUX (Core) Render, or any other PBR.  I will likely wait until I can afford Octane (which I think will be easier to use).

    I've seen some good examples (and some not so good) of Octane, but for a small hobby such as this is for me I can't justify the purchase of a better graphics card, stand alone software and plugin...

    But LuxRender is not doing so bad for now wink

  • FENgariFENgari Posts: 1,104
    mindsong said:

    My interest in Luxrender has always been for distributed rendering - like RIB sequences. Are you thinking of doing something similar?

    Yes using other PC's with LUX Render is such a breeze! I tried setting up my laptop and desktop with Carrara - but it was... shall we say, 'temperamental?'

    I expected to get RIB sequencing with Carrara, but it didn't work like that for me. I had to wait for each frame to be completed by each machine - they didn't work together on the same frame. I'll have to have another look [some day!]
