Iray Starter Scene: Post Your Benchmarks!

1…1415171920…49

Comments

  • artphobeartphobe Posts: 97

    I also have an offer for a 980 4gb for 280 USD.

    I think Ill settle for that, it has 2k CUDA cores and memory hopefully should be okay :/

    I tried using the Iray Memory Assitance tool to see the size of my renders, but it wouldnt load..

  • flashlong_56_770bcbc682flashlong_56_770bcbc682 Posts: 0

    My system：i7 2700k OC 4.5GHz/ GALAX GTX 1080 Ti FE 11GB 1481MHz /RAM 16GB

    Windows7 x64/Daz studio version 4.9.3.166 pro

    Benchmark results：

    gpu only  (Optix off/Memory) Total Rendering Time: 3 minutes 17.36 seconds

    gpu+cpu   (Optix on/Memory)  Total Rendering Time: 2 minutes 17.67 seconds

    gpu only  (Optix off/Speed) Total Rendering Time: 2 minutes 15.85 seconds

    gpu only  (Optix on/Memory)  Total Rendering Time: 1 minutes 57.18 seconds

    gpu only  (Optix on/Speed) Total Rendering Time: 1 minutes 49.96 seconds

    cpu only   Total Rendering Time: 46 minutes 37.77 seconds 。。。



  • stryfestryfe Posts: 19
    edited March 2017

    Ryzen 1800X @ Stock
    GTX 970 x2
    32GB RAM
    OptiX On


    CPU Only:            Total Rendering Time: 18 minutes 13.51 seconds
    GPU1 Only:          Total Rendering Time: 4 minutes 12.5 seconds
    CPU + GPU1:       Total Rendering Time: 3 minutes 39.45 seconds
    GPU1+2:               Total Rendering Time: 2 minutes 23.47 seconds
    CPU + GPU1+2:    Total Rendering Time: 2 minutes 8.30 seconds

    Can't wait for the ASUS Strix 1080 Ti's to come out to finish my build!

    Post edited by stryfe on
  • outrider42outrider42 Posts: 3,679

    I think I saw 2 xeons get a 21 minute time, so it can beat a workstation quite easily, though those weren't the latest. Pretty nice.

    The 970 solo time matches one of mine, so it did very little to enhance a gpu only score. Not surprising, though.

    The cpu+gpu 1 is interesting. I am unable to test because it seems the newest drivers screwed up my render times. Now my 970 is doing 4:55 solo, and the cpu+gpu was 4:41. I lost a ton of time on these drivers (378.78.) I guess its my fault for wanting to play video games on the same same system I use Iray on...

    So I'd like to ask what drivers you are on, since I assume you had to install them just now.

  • Robert FreiseRobert Freise Posts: 4,267
    edited March 2017

    I've run this three times twice with only one card and gotten different results which I expected with two cards but not so much on the repeat with only one card

    I did close and restart between each test

    System Xenon E5 2670 x2

    128 GB ram

    GTX 1070 8Gb x2

    First run with only one card

    18 min 36.46 sec CPU only

    5 min 01.00 sec GPU only

    4 min 20.17 sec GPU + CPU

    Second time with one card

    8 min 36.03 sec CPU only

    4 min 01.20 sec GPU only

    2 min 37.25 sec GPU + CPU

    Third time after installing second card

    CPU only stayed the same

    GPU only 2 min 54.33 sec

    CPU + GPU 1.30.76

    Post edited by Robert Freise on
  • outrider42outrider42 Posts: 3,679

    Those are some drastic swings.

  • posecastposecast Posts: 386

    I've got a 1080ti inbound as we speak. So my test will by 1080ti + 980ti.

  • junkjunk Posts: 1,230
    edited March 2017

    Here are my Ryzen results along with Zotac GTX 1070 non-amp version (ZT-P10700I-10P) and Gigabyte G1 GTX 1070:

    Ryzen 1800x @ stock Zotac GTX 1070 Gigabyte G1 GTX 1070 Time for render
    YES     17 minutes 43 seconds
    YES overclock @ 4.025GHz     16 minutes 31 seconds
    YES YES   2 minutes 51.33
      YES   3 minutes 9.94 seconds
      YES +200GPU, +400RAM   2 minutes 52.51
      YES +200GPU, +400RAM YES +115GPU, +275RAM 1 minutes 35.5 seconds
    YES YES +200GPU, +400RAM YES +115GPU, +275RAM 1 minutes 32.47 seconds



    Using CPU in combination with two good video cards is a waste it seems as it only helped it by 3.03 seconds. Perhaps the more complicated the scene the more it would be noticed.

    BENCHMARKS WERE RUN  ** WITHOUT **  VIEWPORT SWITCHED TO IRAY

    Post edited by junk on
  • Richard HaseltineRichard Haseltine Posts: 96,907
    edited March 2017

    Perhaps those of you with Ryzen systems could post your experiences with stability and so on to the thread on the new CPUs - I'm sure a lot iof us are interested. http://www.daz3d.com/forums/discussion/149966/ot-ryzen-is-coming-out-soon/p1

    Post edited by Richard Haseltine on
  • trip citrustrip citrus Posts: 5

    1 minute 32 seconds

    i7 6800k at 3.4gHz ; 64gb RAM ; 2xGTX 1080 w/SLI bridge

    CPU+2xGPU+OptiX prime enabled

  • nothingmorenothingmore Posts: 24
    edited March 2017

    Intel i7-5960X, 1080 Ti, Titan X(Maxwell), 980. All components running at default clock. OptiX enabled on all renders

    GTX 980 = 3 minutes 25 seconds

    Titan X(M) = 2 minutes 34 seconds

    GTX 1080 Ti = 1 minute 45 seconds

    GTX 980 + Titan X(M) + Gtx 1080 Ti = 52 seconds

    1st gen Titan X is about 33% faster than GTX 980

    The 1080 Ti is about 47% faster than last year's Titan X(M) and 95% faster than the GTX 980.



    Post edited by nothingmore on
  • PA_ThePhilosopherPA_ThePhilosopher Posts: 1,039
    outrider42 said:

    nothingmore said:

    Intel i7-5960X, 1080 Ti, Titan X(Maxwell), 980. All components running at default clock. OptiX enabled on all renders

    GTX 980 = 3 minutes 25 seconds

    Titan X(M) = 2 minutes 34 seconds

    GTX 1080 Ti = 1 minute 45 seconds

    GTX 980 + Titan X(M) + Gtx 1080 Ti = 52 seconds

    1st gen Titan X is about 33% faster than GTX 980

    The 1080 Ti is about 47% faster than last year's Titan X(M) and 95% faster than the GTX 980.



    Nice test @nothingmore This is helpful.

  • PA_ThePhilosopherPA_ThePhilosopher Posts: 1,039
    flashlong_56_770bcbc682 said:

    My system：i7 2700k OC 4.5GHz/ GALAX GTX 1080 Ti FE 11GB 1481MHz /RAM 16GB

    Windows7 x64/Daz studio version 4.9.3.166 pro

    Benchmark results：

    gpu only  (Optix off/Memory) Total Rendering Time: 3 minutes 17.36 seconds

    gpu+cpu   (Optix on/Memory)  Total Rendering Time: 2 minutes 17.67 seconds

    gpu only  (Optix off/Speed) Total Rendering Time: 2 minutes 15.85 seconds

    gpu only  (Optix on/Memory)  Total Rendering Time: 1 minutes 57.18 seconds

    gpu only  (Optix on/Speed) Total Rendering Time: 1 minutes 49.96 seconds

    cpu only   Total Rendering Time: 46 minutes 37.77 seconds 。。。



    Nice test. 1080 ti looking good.

  • Robert FreiseRobert Freise Posts: 4,267

    Comparison between my Ryzen and my Xenon dual systems

    Ryzen  1700X                                                                              Xenon E5 2670 x2
    Ram  64GB                                                                                  128GB
    GPU  Nvidia 1070                                                                        GPU  Nvidia 1070

    CPU only                  13 minutes 38.75 seconds                         18 min 36.46 seconds
    GPU only                   2 minutes 21.56 seconds                            5 min 01.00 seconds
    CPU + 1 GPU            2 minutes 13.36 seconds                            4 min 20.17 seconds
    CPU + 2 GPUS          1 minutes 47.3 seconds                              1 min 30.76 seconds
    2 GPUS                     1 minutes 44.75 seconds                            2 min 54.33 seconds

  • PA_ThePhilosopherPA_ThePhilosopher Posts: 1,039
    edited March 2017
    Robert Freise said:

    Comparison between my Ryzen and my Xenon dual systems

    Ryzen  1700X                                                                              Xenon E5 2670 x2
    Ram  64GB                                                                                  128GB
    GPU  Nvidia 1070                                                                        GPU  Nvidia 1070

    CPU only                  13 minutes 38.75 seconds                         18 min 36.46 seconds
    GPU only                   2 minutes 21.56 seconds                            5 min 01.00 seconds
    CPU + 1 GPU            2 minutes 13.36 seconds                            4 min 20.17 seconds
    CPU + 2 GPUS          1 minutes 47.3 seconds                              1 min 30.76 seconds
    2 GPUS                     1 minutes 44.75 seconds                            2 min 54.33 seconds

    Interesting. That old Xeon really slows things down--even in GPU-only rendering---despite having 8 cores.

    Post edited by PA_ThePhilosopher on
  • Takeo.KenseiTakeo.Kensei Posts: 1,303
    PA_ThePhilosopher said:
    Robert Freise said:

    Comparison between my Ryzen and my Xenon dual systems

    Ryzen  1700X                                                                              Xenon E5 2670 x2
    Ram  64GB                                                                                  128GB
    GPU  Nvidia 1070                                                                        GPU  Nvidia 1070

    CPU only                  13 minutes 38.75 seconds                         18 min 36.46 seconds
    GPU only                   2 minutes 21.56 seconds                            5 min 01.00 seconds
    CPU + 1 GPU            2 minutes 13.36 seconds                            4 min 20.17 seconds
    CPU + 2 GPUS          1 minutes 47.3 seconds                              1 min 30.76 seconds
    2 GPUS                     1 minutes 44.75 seconds                            2 min 54.33 seconds

    Interesting. That old Xeon really slows things down--even in GPU-only rendering---despite having 8 cores.

    Not if you read more carefully. Best score is dual xeon + dual GPU at 1 min 30. That raises a question : Why ?

    I'd expect the dual Xeon to be slightly ahead in CPU only mode but iray may be badly optimized for CPU, so that could explain the result

    However that can't explain the poor result of the dual xeon with one GPU and the contrast when running two GPU + 2 CPU

    @ Robert ; could you do the tests again with optix On/Off and specify optimisation for speed/memory ? Also what are your RAM speed and does your dual Xeon mobo run dual PCIe 3.0 at x16 speed ?

  • IllriggerIllrigger Posts: 12

    For reference, I am getting a 1080 Ti on Monday and wanted a reference point from my current setup:

    Core i7 4770k @ 4.4 Ghz
    GTX 780 3GB (overclocked)
    GTX 660 2GB (stock clocked)

    CPU + Both GPUs: 2 minutes 45.75 seconds
    CPU + GTX 780 only: 3 minutes 25.68 seconds

  • Robert FreiseRobert Freise Posts: 4,267

    Unfortunatly to run the tests again I'd have to uninstall and reinstall the graphics cards which at the moment I'm unable to do as I have about a weeks worth of video compressing on the Xenon system

    I can however answer some of your questions

    Mobo is capable of running 3 PCIe 3.0 slots at x16

    Ram is 1600MHz DDR3 (PC3-12800) ECC REG server memory

    I posted some times earlier where I had run the test three times and had some pretty drastic swings in the times

    I have run it with optix on and off but saw no difference

    I have also noticed that sometimes Studio has problems on the Xenon system

  • robwhs_6923e8f7bfrobwhs_6923e8f7bf Posts: 3
    edited March 2017
    Robert Freise said:

    Unfortunatly to run the tests again I'd have to uninstall and reinstall the graphics cards which at the moment I'm unable to do as I have about a weeks worth of video compressing on the Xenon system

    I can however answer some of your questions

    Mobo is capable of running 3 PCIe 3.0 slots at x16

    Ram is 1600MHz DDR3 (PC3-12800) ECC REG server memory

    I posted some times earlier where I had run the test three times and had some pretty drastic swings in the times

    I have run it with optix on and off but saw no difference

    I have also noticed that sometimes Studio has problems on the Xenon system


    I'm Running 1 Xeon E5-2670 here with 2 GTX 780 ti's and 32GB 1600MHz - PC3-12800 Ram

    I found my old i7-3960x blew the Xeon away in iray, I can only assume a higher clock speed and higher boost CPU is the way to go.

    Post edited by robwhs_6923e8f7bf on
  • junkjunk Posts: 1,230
    Robert Freise said:

    I posted some times earlier where I had run the test three times and had some pretty drastic swings in the times

    Robert are you making sure to exit each time you run a test before running it a second time?  I do know the second time around running the test, without exiting, I personally see a much lower time result.

    Just checking.

  • Robert FreiseRobert Freise Posts: 4,267

    Yep exited and restarted program each time

    I also did the test doing a complete shutdown and reboot for each one

    I had faster times on the second and third run than first without exiting

  • PA_ThePhilosopherPA_ThePhilosopher Posts: 1,039
    edited March 2017

    Another thing to check is that the viewport is set to Iray before pressing render. I'm sure you already know this, but this also impacts render times significanlty.

    Post edited by PA_ThePhilosopher on
  • TaozTaoz Posts: 9,733
    marktkirby said:

    1 minute 32 seconds

    i7 6800k at 3.4gHz ; 64gb RAM ; 2xGTX 1080 w/SLI bridge

    CPU+2xGPU+OptiX prime enabled

    Best to disable SLI, according to what people say.

  • artphobeartphobe Posts: 97

    Got Asus  GTX 1070 Dual OC today

    GPU: 5 minutes 1.70 seconds

    GPU + Optix : 3 minutes 6.73 seconds





  • FrankTheTankFrankTheTank Posts: 1,131

    Has anyone done a test yet with dual 1080ti's?

  • junkjunk Posts: 1,230
    edited March 2017
    DvoraszeniaStudios said:

    Has anyone done a test yet with dual 1080ti's?

    marktkirby posted above:

    1 minute 32 seconds
    i7 6800k at 3.4gHz ; 64gb RAM ; 2xGTX 1080 w/SLI bridge
    CPU+2xGPU+OptiX prime enabled

    He does have the CPU enabled but I believe the difference will be around 2 seconds or less variance.

    Post edited by junk on
  • FrankTheTankFrankTheTank Posts: 1,131
    edited March 2017
    junk said:
    DvoraszeniaStudios said:

    Has anyone done a test yet with dual 1080ti's?

    marktkirby posted above:

    1 minute 32 seconds
    i7 6800k at 3.4gHz ; 64gb RAM ; 2xGTX 1080 w/SLI bridge
    CPU+2xGPU+OptiX prime enabled

    He does have the CPU enabled but I believe the difference will be around 2 seconds or less variance.

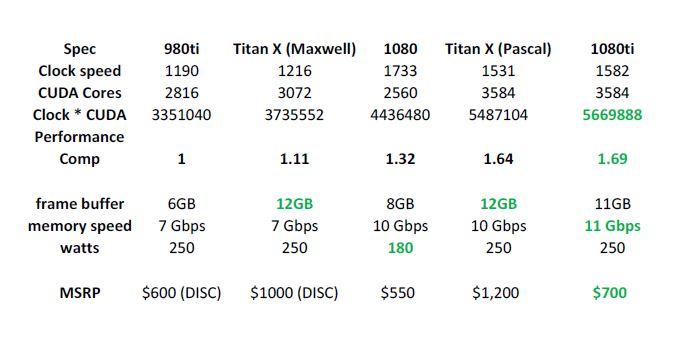

    1080ti's are completely different specs  than 1080s. My dual 980tis are slightly faster than the 1080s, I posted results of 1:27. But dual 1080tis should be faster, but I'd like to see actual proof before I decide if its time to upgrade.

    In theory, the 1080ti should be 69% faster than the 980ti, but then going by strictly  raw data the 1080 should also be 32% faster than the 980ti, but that doesn't bear out in testing, as you can see. Thats why I want real test results from dual 1080tis.

    GPU Comparison chart.JPG
    674 x 348 - 40K
    Post edited by FrankTheTank on
  • junkjunk Posts: 1,230
    edited March 2017

    DvoraszeniaStudios, whoops sorry didn't notice the "ti" portion.  Yeah, I'd love to see what people are getting with that GPU as well.

    Post edited by junk on
  • m43foto11m43foto11 Posts: 3

    i7-6950X (10 Core) at 4.2 GHz, 64 GB, 2 x Titan X Pascal SLI Bridge

    2017-03-23 15:15:05.722 Iray INFO - module:category(IRAY:RENDER):   1.0   IRAY   rend info : CUDA device 1 (TITAN X (Pascal)):   2242 iterations, 11.139s init, 61.925s render
    2017-03-23 15:15:05.722 Iray INFO - module:category(IRAY:RENDER):   1.0   IRAY   rend info : CUDA device 0 (TITAN X (Pascal)):   2435 iterations, 11.139s init, 61.809s render
    2017-03-23 15:15:05.722 Iray INFO - module:category(IRAY:RENDER):   1.0   IRAY   rend info : CPU:   323 iterations, 11.018s init, 61.798s render
    2017-03-23 15:15:05.744 Saved image: O:\Test\test.jpg
    2017-03-23 15:15:05.880 Finished Rendering
    2017-03-23 15:15:05.924 Total Rendering Time: 1 minutes 14.6 seconds




    400 x 520 - 86K
  • FrankTheTankFrankTheTank Posts: 1,131
    m43foto11 said:

    i7-6950X (10 Core) at 4.2 GHz, 64 GB, 2 x Titan X Pascal SLI Bridge

    2017-03-23 15:15:05.722 Iray INFO - module:category(IRAY:RENDER):   1.0   IRAY   rend info : CUDA device 1 (TITAN X (Pascal)):   2242 iterations, 11.139s init, 61.925s render
    2017-03-23 15:15:05.722 Iray INFO - module:category(IRAY:RENDER):   1.0   IRAY   rend info : CUDA device 0 (TITAN X (Pascal)):   2435 iterations, 11.139s init, 61.809s render
    2017-03-23 15:15:05.722 Iray INFO - module:category(IRAY:RENDER):   1.0   IRAY   rend info : CPU:   323 iterations, 11.018s init, 61.798s render
    2017-03-23 15:15:05.744 Saved image: O:\Test\test.jpg
    2017-03-23 15:15:05.880 Finished Rendering
    2017-03-23 15:15:05.924 Total Rendering Time: 1 minutes 14.6 seconds




    Disable SLI in your NVIDIA control panel. DS won't use SLI and it can actually slow down your render. I think if you disable SLI, hopefully you can get closer to 1:00 minute flat.

Sign In or Register to comment.
