Facebook 3D photos how to Carrara

OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253
edited April 28 in Carrara Discussion

https://www.facebook.com/1653360584/posts/10217543133844220?sfns=mo

This is a different photo to the example because I deleted that one from Facebook due to it’s annoyance having no hair in the depth map

you need a depth pass and name it lowercase d _depth not capital D as Carrara does

then invert it, I used irfanview to create a negative

then just upload them together to facebook





1000 x 1116 - 183K
1000 x 1116 - 57K
Post edited by OnlyLuvsCatz on

Comments

  • mindsongmindsong Posts: 1,108

    As a technology, that's kind of an effective 'cheat'. If you don't look too closely at the layering edge detail, it's pretty neat.

    I could imagine having a foreground item in front of a non-busy background  (like a consistent sky or DOF-d or bokeh-d background) would blend the edge artifacts to where it would be an even more subtle blend than it already is.

    thanks for the post - neat.

    --ms

  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253

    https://www.facebook.com/wendy5/posts/10217542978040325

    a scene without close foreground objects works better

    this was Octane

  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253
    edited April 23

    https://www.facebook.com/wendy5/posts/10217543133844220

    https://www.facebook.com/wendy5/posts/10217543129284106

    in Octane you can change the depth too

    Carrara depth maps I am unsure if one can maybe in post?

    not as deep_depth.jpg
    1920 x 1080 - 199K
    1920 x 1080 - 115K
    1920 x 1080 - 1M
    Post edited by OnlyLuvsCatz on
  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253

    https://www.facebook.com/wendy5/posts/10217543258087326

    Octane sees the hair but this is rather terrifying

  • mindsongmindsong Posts: 1,108

    With the right sort of scene, it works well. The jpg/png blow-out in the forest looks like a light background at the end of a forest might look.

    These are pretty neat.

    "rather terrifying..." lol!

    In general, I am amazed at how much depth perception is 'available' via the 3d stereo 'wiggle' technique without any additional image/eye separating viewing aids. What you are doing here (@Wendy_Carrara) seems to be a much more subtle and user-controlled version of that technique. It speaks loudly to our built-in human edge detection processing algorithms for perceiving depth - well-beyond the binocular stereo that we tend to attribute our depth perception to.

    This is to say that even with one eye closed, your posts/images on FB still communicate meaningful and navigable depth to my senses (but only when they're moving, of course).

    very slick,

    --ms



  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253

    https://www.facebook.com/wendy5/posts/10217546588890594

    an iray one but I had to use OrDS to do the depth map, dunno how studio users can otherwise as getting a canvases depth map to work is illuminate secrets devil

  • HeadwaxHeadwax Posts: 7,757

    an evil genius Wendy looking forward to logging in on FB to see this :)

  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253

    an evil genius Wendy looking forward to logging in on FB to see this :)

    You should be able to see mine without logging in but yes everyone is doing it except the DAZ studio users are having to make theirs manually using Photoshop devil we haz the best proggy even if it does then negative and with a capital D

  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253

    I will add Octane you can adjust the Z depth which is extremely useful

    otherwise as I noticed Stezza has on Facebook go the Photoshop, Gimp etc route of just filling your foreground stuff with white and back ground black and greys on things between, you can even render them those colours with a camera headlamp casting soft shadows for a gradual gradient on the nearer ones blending it nicer, I must try this.

  • OnlyLuvsCatzOnlyLuvsCatz Posts: 22,253

    https://www.facebook.com/wendy5/posts/10217549557004795

    my kitty Lynx and a Gimp masking job

  • HeadwaxHeadwax Posts: 7,757

    cat one looks terrific !

  • DesertDudeDesertDude Posts: 766
    edited April 24

    https://www.facebook.com/wendy5/posts/10217543133844220

    https://www.facebook.com/wendy5/posts/10217543129284106

    in Octane you can change the depth too

    Carrara depth maps I am unsure if one can maybe in post?

    Wow, this is cool Wendy.

    You can make your own Depth Matte in Carrara and control the values using Distance Fog, it just takes some steps to set up and tweak. This method also allows you to control the render quality. I set the AA to Best and Object Accuracy to 1. We aren't rendeing shadows, so I left it default 4.

    Here we go:

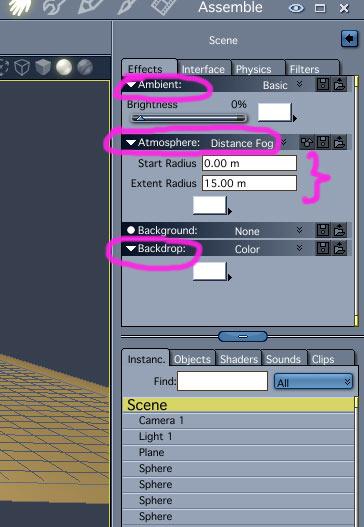

    1 - Turn off ALL your Lights, including any Ambient Light
    2 - In the Scene Effects Tab, turn on the Backdrop and set it to pure white
    3 - In the Scene Effects Tab, under Atmosphere, turn on Distance Fog and set it pure white.
    4 - Set your Start Radius to 0 and Extent Radius to whatever is the furthest point in your scene. These are the controls you use to adjust the values to taste.
    5 - Render.

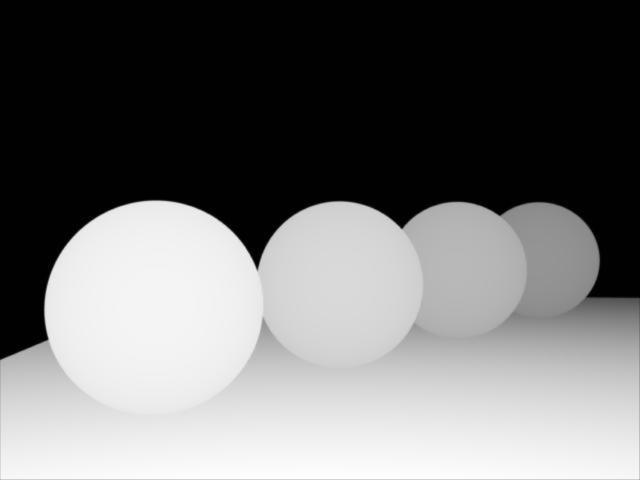

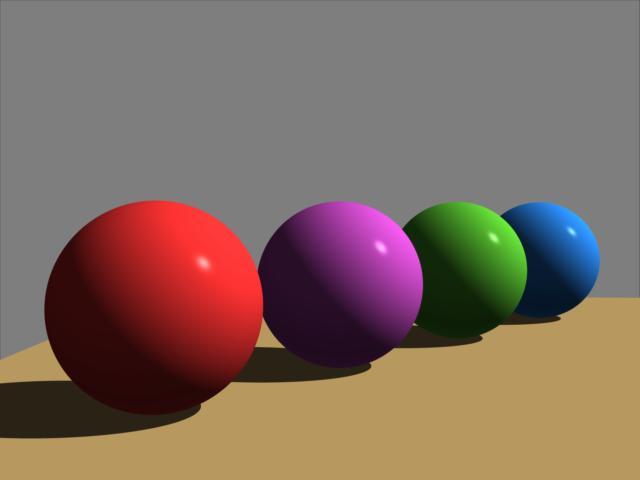

    The first Depth Matte example goes from 0 to 15 meters. Second one goes from 5 to 15 meters. You'll have to 'guestimate' based on the distances in your scene and what kind of value range you want.

    The result goes form dark to pure white. It looks like you need the reverse here. Easiest way is to bring it into your favorite image editor and simply invert it and save it out. But since this Carrara, we can do it internally with a few more steps.

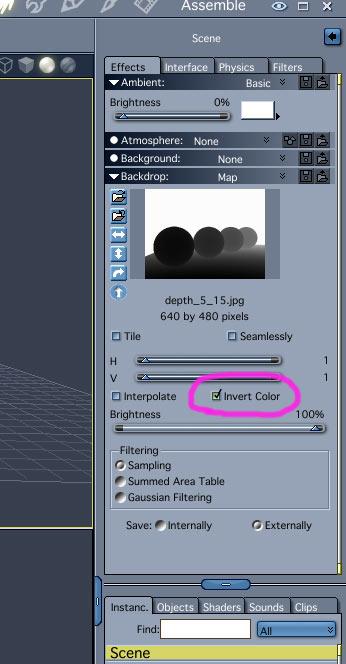

    Turn the visibility of all your objects in your scene off. Turn off the Distance Fog. Set your Backdrop to Map, import the image you just rendered, and check 'Invert Color'. Render.





    640 x 480 - 13K
    364 x 527 - 43K
    640 x 480 - 10K
    640 x 480 - 10K
    346 x 664 - 44K
    640 x 480 - 11K
    Post edited by DesertDude on
  • mindsongmindsong Posts: 1,108
    edited April 28

    @DesertDude, does your technique result in occlusion (the effect is most obvious under the furthest ball), or is it a visual/perception artifact?

    I ask because this would sort of pollute (is there a better word?) the accuracy of the depth info, right?

    That said, a big thanks for posting this technique. I've PDF-d and archived it in my cool-tricks folder!

    ... and @Headwax_Carrara, as I think you've found, you can view Wendy's FB posts without logging in - very few things will draw me to that site (no account - ever), but Wendy's work warrants my clicks.

    (eta: the cat pic is indeed cool, and a beautiful creature, that one.)

    tnx,

    --ms

    Post edited by mindsong on
  • HeadwaxHeadwax Posts: 7,757

    ah I try to stay off face book :) heh

  • DesertDudeDesertDude Posts: 766
    mindsong said:

    @DesertDude, does your technique result in occlusion (the effect is most obvious under the furthest ball), or is it a visual/perception artifact?

    I ask because this would sort of pollute (is there a better word?) the accuracy of the depth info, right?

    Hmmm, I'm not sure... Are you talking about how each sphere is a little bit lighter as they curve away from the camera? I just did a quick render using Carrara's native Depth Matte and I think I see someting similar. This is a super old school technique I picked up from 'another software'. It really just allows more control of the range of values without having to use an external editor.

  • mindsongmindsong Posts: 1,108
    edited April 29
    mindsong said:

    @DesertDude, does your technique result in occlusion (the effect is most obvious under the furthest ball), or is it a visual/perception artifact?

    I ask because this would sort of pollute (is there a better word?) the accuracy of the depth info, right?

    Hmmm, I'm not sure... Are you talking about how each sphere is a little bit lighter as they curve away from the camera? I just did a quick render using Carrara's native Depth Matte and I think I see someting similar. This is a super old school technique I picked up from 'another software'. It really just allows more control of the range of values without having to use an external editor.

    I see this fog trick as a great depth mechanism, but if scene 'light' is doing light-ray like things in concert with the fog effect, I could see it having an impact on the 'purity' or accuracy of the depth info we'd be looking for. In this 3D/stereo effect, it might matter.

    The occlusion effect helps make 'corners' look more correct as the light is absorbed differently in corners. It also occurs where two things meet, like the balls and the plane. In the negative result, you can see a slight 'glow' right near the bottom of the ball, and if it were pure depth information, I don't think that would be there. It's probably a mix of fog/light(?) in this case. It could be an optical illusion though - hence my question for anyone who might know.

    In DS you have to fight to even get real occlusion, so I bet in Carrara, you can turn it off (in the lights or the renderer?) and the issue goes away. Anyone know? If so, we can add that to your recipe for an even more accurate depth gathering hack!

    (I still like the technique - just for the visual effect!)

    cheers,

    --ms

    (edits to tweak wording)

    Post edited by mindsong on
