  • mCasualmCasual Posts: 4,014
    edited December 1969

    Thanks, I will try out those suggestions. I did read at least part of the manual :)

    I've also noticed that some textures don't get included in the 'Maps' folder. I still don't fully understand all the material options included with characters in DS. Some are designed to work with special kinds of lighting and others trigger 3Delight specific options like SSS. I wonder if this is a character specific issue, or does it have to do with material options? It's not a problem for me since I just copy the files from my DAZ textures to the working directory for the .blend file and then see what I like best.

    So much to learn and do and so little time!!

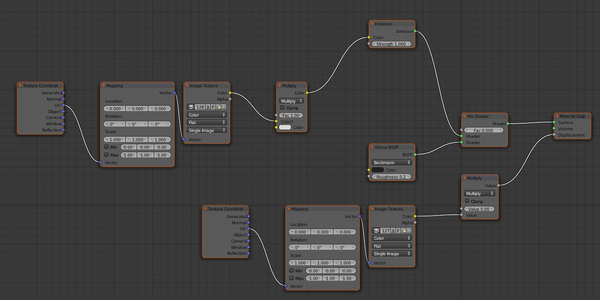

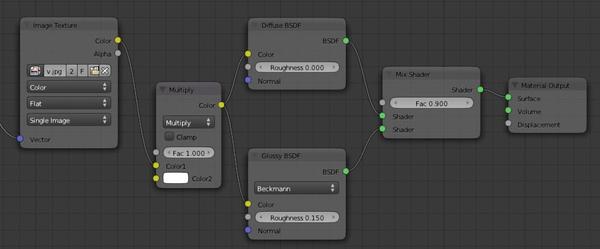

    My current 'cloth' shader node group:

    Only a few standard parameters and maps of the materials are exported,
    you can see them in the .mtl file exported by teleblender/DazStudio.
    When the material is a shader, all the non-standard parameters and maps are not written in the .mtl file,
    so they don't reach Blender.

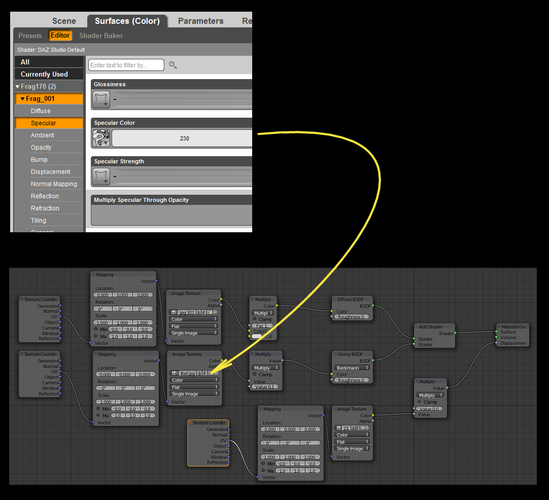

    one way to make sure a given non-standard image map of a shader makes the voyage to Blender
    is to apply it to a channel like "Specylar Color" in Daz Studio. Once you're in Blender, you can re-connect it.

    1082 x 986 - 152K
  • mCasualmCasual Posts: 4,014
    edited January 2013

    reminding everyone that there's environment maps in a format usable by Blender/Teleblender

    right over here :

    http://zbyg.deviantart.com/art/HDRi-Pack-1-97402522

    this render used studiohdr017.hdr

    which was part of HDRi_Pack_2_by_zbyg.zip

    whivh i got from ... let me see ... http://zbyg.deviantart.com/art/HDRi-Pack-2-103458406

    800 x 400 - 21K
    800 x 600 - 28K
    Post edited by mCasual on
  • Wallace3DWallace3D Posts: 109
    edited January 2013

    I have been using this plugin like crazy. I noticed I have to put a texture file in Ambient which becomes Emission. Is there any way you can change the default strength to 1 instead of 100?

    Oh and Also rather than pulling the Name of the object (like Genesis) is there a way to pull the Label Name?
    When i have 3 Figures they group as one object because they all have the same origin name. I mean I can change the name in Daz in the scene tab by going to Menu > Edit > Scene Identification and changing the Primary name.

    Post edited by Wallace3D on
  • mCasualmCasual Posts: 4,014
    edited January 2013

    wallace3d said:
    I have been using this plugin like crazy. I noticed I have to put a texture file in Ambient which becomes Emission. Is there any way you can change the default strength to 1 instead of 100?

    Oh and Also rather than pulling the Name of the object (like Genesis) is there a way to pull the Label Name?
    When i have 3 Figures they group as one object because they all have the same origin name. I mean I can change the name in Daz in the scene tab by going to Menu > Edit > Scene Identification and changing the Primary name.

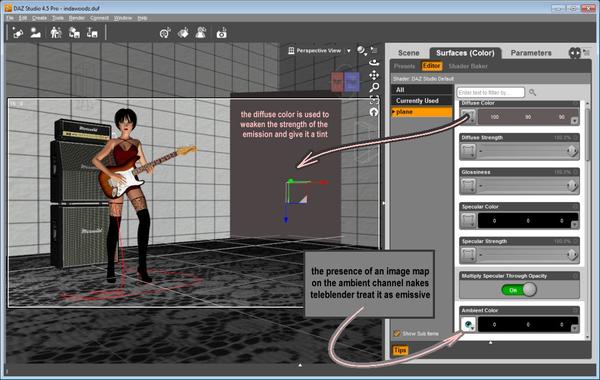

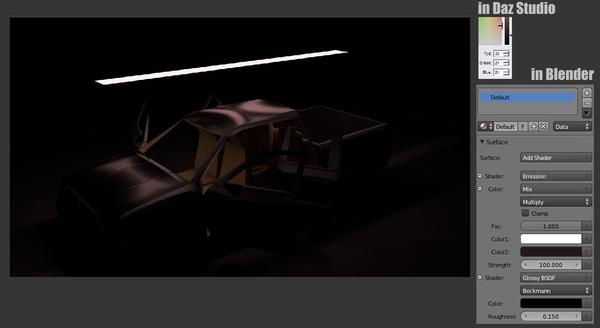

    the Diffuse Color of the surface can be used to lower the light strength, and to colorize it

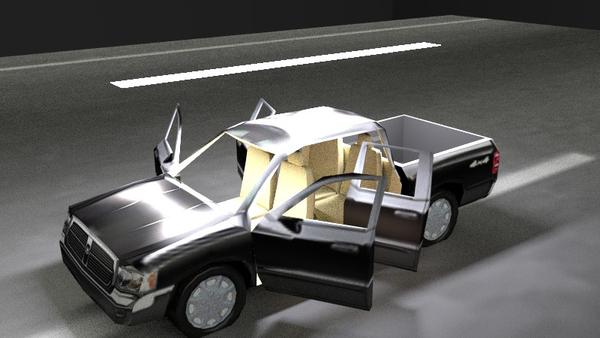

    for example in the image below i set the long light/plane's diffuse color to RGB = 33,24,24

    in the second image i used RGB = 240,240,255

    ( the quick and dirty pickup truck freebie can be found here http://www.daz3d.com/forums/discussion/15760/ )

    1165 x 636 - 62K
    800 x 450 - 91K
    Post edited by mCasual on
  • Wallace3DWallace3D Posts: 109
    edited December 1969

    Casual said:
    wallace3d said:
    I have been using this plugin like crazy. I noticed I have to put a texture file in Ambient which becomes Emission. Is there any way you can change the default strength to 1 instead of 100?

    Oh and Also rather than pulling the Name of the object (like Genesis) is there a way to pull the Label Name?
    When i have 3 Figures they group as one object because they all have the same origin name. I mean I can change the name in Daz in the scene tab by going to Menu > Edit > Scene Identification and changing the Primary name.

    the Diffuse Color of the surface can be used to lower the light strength, and to colorize it

    for example in the image below i set the long light/plane's diffuse color to RGB = 33,24,24

    in the second image i used RGB = 240,240,255

    ( the quick and dirty pickup truck freebie can be found here http://www.daz3d.com/forums/discussion/15760/ )

    Perfect!
    thanks

    I was trying everything in the ambient area and colors and nothing was changing. did not think to do it in Diffuse :P

  • mCasualmCasual Posts: 4,014
    edited January 2013

    wallace3d said:
    I have been using this plugin like crazy. I noticed I have to put a texture file in Ambient which becomes Emission. Is there any way you can change the default strength to 1 instead of 100?

    Oh and Also rather than pulling the Name of the object (like Genesis) is there a way to pull the Label Name?
    When i have 3 Figures they group as one object because they all have the same origin name. I mean I can change the name in Daz in the scene tab by going to Menu > Edit > Scene Identification and changing the Primary name.

    on the topic of scenes with many instances of the same character ...

    when teleblender exports the scene, it uses the export services offered by Daz Studio
    and teleblender requests that the exporter uses the "Write groups / use figure name(s)" option
    if i don't do that each body part is a separate object and it looks quite nasty when it reaches Blender

    unfortunately, as you could see, if 2 figures have the same name, they get welded

    one way to prevent this is to rename the figure(s)


    . . . oops after writing and posting the little script, i see you already had a way to rename the figure . . .
    . . . well, it can maybe save you 1 second :)

    here is a short script that will rename the selected figure to a different name, by appending a random number to it

    you can download this script over here: under the name "mcjRenameFigureRandom.dsa"

    the companion thumbnail is named mcjRenameFigureRandom.dsa.png

    those 2 files should preferably go in your daz content folder, in the scripts/mcasual folder

    400 x 400 - 23K
    Post edited by mCasual on
  • nakamuram002nakamuram002 Posts: 386
    edited December 1969

    Thanks for creating mcjTeleblender, Casual!! I will post a render soon. I agree with daveleitz68 regarding the Mix Shader vs the Add Shader. I'm finding that most of my tweaking involves replacing the latter with the former.

  • mCasualmCasual Posts: 4,014
    edited January 2013

    Thanks for creating mcjTeleblender, Casual!! I will post a render soon. I agree with daveleitz68 regarding the Mix Shader vs the Add Shader. I'm finding that most of my tweaking involves replacing the latter with the former.


    Update ~~Update ~~Update ~~Update ~~Update ~~Update ~~Update

    at mcjTeleblender's homepage, i added a file named mcjMakeCyclesNodes_MIX_instead_of_ADD.zip

    it contains an alternate version of mcjMakeCyclesNodes.py which creates MIX nodes instead of ADD nodes

    go in your blender's "modules" folder, which is where you did install mcjBlendbot ( a kit of python scripts )

    make an archive copy of the existing file mcjMakeCyclesNodes.py

    then unZip the new version, thereby overwriting it

    here are the changes i made to obtain this


    .
    .
    .
    addNode = nodes.new('MIX_SHADER')
    addNode .location = ( ox - 300, oy )
    links.new( mixNode.outputs[0], bsdfNode.inputs[0] )
    links.new( bsdfNode.outputs[0], addNode.inputs[1] )
    links.new( glossNode.outputs[0], addNode.inputs[2] )

    links.new( addNode.outputs[0], outNode.inputs[0] )

    KaMap = getMap( mat, 'Ka', 'Ka.' )
    if KaMap:
    emNode = nodes.new('EMISSION')
    emNode.location = ( ox - 600, oy + 300 )
    emNode.inputs[1].default_value = 100
    links.new( mixNode.outputs[0], emNode.inputs[0] )
    links.new( emNode.outputs[0], addNode.inputs[1] )
    .
    .
    .

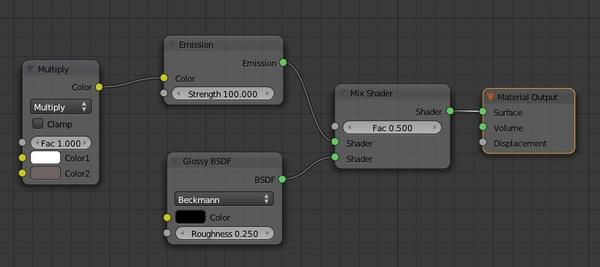

    the second image shows how the diffuse channel's color and optionally diffuse image map are fed through the emission node for materials that emit light

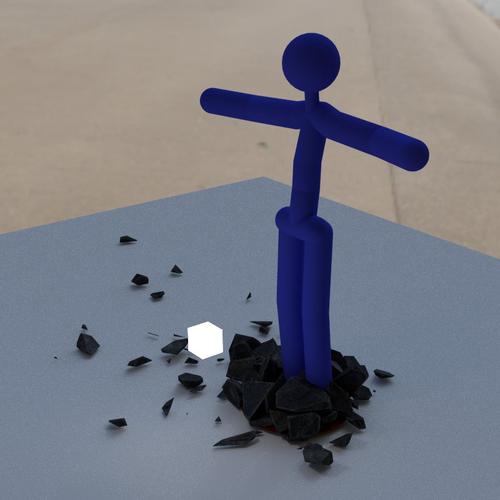

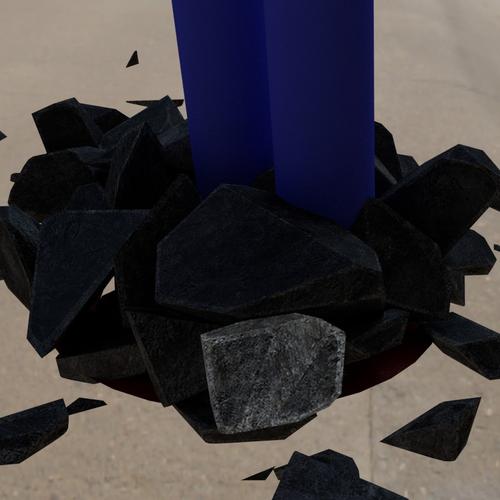

    the third image show there's one rock with an emissive strength of 1 , which is like a surface lit with a 100% ambient light

    800 x 800 - 95K
    1436 x 718 - 131K
    800 x 800 - 97K
    Post edited by mCasual on
  • nakamuram002nakamuram002 Posts: 386
    edited January 2013

    Thanks Casual!! I'll try it out, but I'm concerned about the Emission Node. I use the Emission Node for lights, not for "normal" diffuse textures. This is how I use the mix node. Note that Diffuse and Glossy have the same input.

    966 x 401 - 49K
    Post edited by nakamuram002 on
  • mCasualmCasual Posts: 4,014
    edited January 2013

    Thanks Casual!! I'll try it out, but I'm concerned about the Emission Node. I use the Emission Node for lights, not for "normal" diffuse textures. This is how I use the mix node. Note that Diffuse and Glossy have the same input.

    welcome.

    about the emission node, it still works like before: if you apply any image to the ambient channel of a surface in Daz Studio, teleblender will export it as an emissive surface, the diffuse color can be used to weaken the strength of the light, and give it a tint. The diffuse color can have an image map applied to it (see figure 4), but if there is none, the node graph looks pretty much like yours ( fig 3 )

    1280 x 720 - 181K
    778 x 346 - 38K
    1280 x 720 - 173K
    1138 x 720 - 180K
    Post edited by mCasual on
  • nakamuram002nakamuram002 Posts: 386
    edited January 2013

    Here is the result of my experiments with mcjTeleblender. It has also been uploaded to shareCG, as I did not realize that we could upload large images.

    mcjTeleblender makes things easy -- Thanks Casual!!

    1138 x 1111 - 242K
    Post edited by nakamuram002 on
  • mCasualmCasual Posts: 4,014
    edited January 2013

    Here is the result of my experiments with mcjTeleblender. It has also been uploaded to shareCG, as I did not realize that we could upload large images.

    mcjTeleblender makes things easy -- Thanks Casual!!

    welcome.

    overall it looks good.

    in my images sometimes i wish there were more ambient-occlusion types of shadow
    maybe it's a matter of using smaller lights, and adding obstacles in the scene
    in your image, the thigh skin i think look better because there's shadowy areas caused by the desk and books.
    the books themselves look quite realistic, and there too i think the shadows help
    the chair's painted metal should probably be more shiny.

    trying to think of an image where i obtained interesting shadows ....

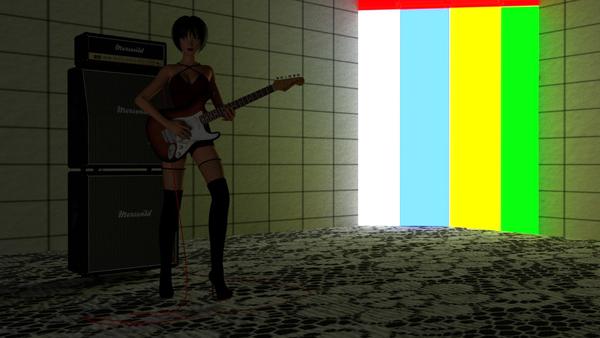

    maybe this one

    i guess the trick is to create recessed areas that dont get too much light, maybe also use many sources of lights, and not flood the scenes too much with light. I noticed when i let the walls be too glossy, they help flood the room with too much light. matte walls often look better.

    1280 x 720 - 262K
    Post edited by mCasual on
  • nakamuram002nakamuram002 Posts: 386
    edited December 1969

    I take no credit for the skin textures. That's just a matter of selecting a superb product, in this case Danae's Lyon. My lighting is the world, plus setting the emission shader on the overhead florescent lights. Too bad there is no ambient occlusion for the emission and/or lamp output nodes. Maybe that will come in the future?

    I'm trying to get the aluminum frame around the backboard to look like aluminum, instead of steel. I just using a white anisotropic shader there. How can I get lighter than white.....

    Overall, I'm impressed by how easy it is to get a good render using your tool, Casual!!

  • Wallace3DWallace3D Posts: 109
    edited December 1969

    Casual said:
    wallace3d said:
    I have been using this plugin like crazy. I noticed I have to put a texture file in Ambient which becomes Emission. Is there any way you can change the default strength to 1 instead of 100?

    Oh and Also rather than pulling the Name of the object (like Genesis) is there a way to pull the Label Name?
    When i have 3 Figures they group as one object because they all have the same origin name. I mean I can change the name in Daz in the scene tab by going to Menu > Edit > Scene Identification and changing the Primary name.

    on the topic of scenes with many instances of the same character ...

    when teleblender exports the scene, it uses the export services offered by Daz Studio
    and teleblender requests that the exporter uses the "Write groups / use figure name(s)" option
    if i don't do that each body part is a separate object and it looks quite nasty when it reaches Blender

    unfortunately, as you could see, if 2 figures have the same name, they get welded

    one way to prevent this is to rename the figure(s)


    . . . oops after writing and posting the little script, i see you already had a way to rename the figure . . .
    . . . well, it can maybe save you 1 second :)

    here is a short script that will rename the selected figure to a different name, by appending a random number to it

    you can download this script over here: under the name "mcjRenameFigureRandom.dsa"

    the companion thumbnail is named mcjRenameFigureRandom.dsa.png

    those 2 files should preferably go in your daz content folder, in the scripts/mcasual folder

    Will give this a shot :) because Daz Studio does not keep the names changes for the genesis figures. it renames them back to there default name when re opening the file :( so hitting this script will reduce that frustration
    and thanks for what you do. Awesome Plugin for sure.

  • daveleitzdaveleitz Posts: 459
    edited December 1969

    @nakamuram002,

    That's a nice render!

  • nakamuram002nakamuram002 Posts: 386
    edited December 1969

    Thanks Dave!! Even I can get good renders with mcjTeleBlender and Blender Cycles!!!!! Now if we only had better Cycles Node Management in Blender...

  • mCasualmCasual Posts: 4,014
    edited February 2013

    ~ Update ~ ~ Update ~ ~ Update ~ ~ Update ~ ~ Update ~ ~ Update ~ ~ Update ~

    Starting with version 2.64 it seems, Blender's .obj importer no longer supports the "map_refl" keyword ( only the "refl" keyword" ) in the .mtl files.

    This was effectively breaking the way mcjTeleblender marks surfaces as "mirrors" ( Sharp BSDF Glossy once in Blender )

    This new update corrects this, if you check-mark mcjTeleblender's "Fix .mtl file for Blender";" check-box

    1280 x 720 - 182K
    Post edited by mCasual on
  • mCasualmCasual Posts: 4,014
    edited December 1969

    - important update - important update - important update - important update -

    mcjTeleblender's February 8th update contained a severe error

    ---

    the February 10th version fixes this and gives you (back) mirror surface materials

    ---

    and to make you forgive me i'll soon post a bunch of shader presets ! :)

    ---

    ( i discovered the error while working on that dress for Aiko3 i started working on in 2012 )

    https://www.facebook.com/video/embed?video_id=10151712112794746

    600 x 800 - 45K
  • nakamuram002nakamuram002 Posts: 386
    edited December 1969

    Thanks Casual!! Got your latest version. What is "mcjTeleBlenderDS2.ds" for?

    I also tweaked your "mcjMakeCyclesNodes_MIX_instead_of_ADD". I added the following line of code to connect the mixNode (multiply) output to the glossNode Input.

    links.new( mixNode.outputs[0], bsdfNode.inputs[0] )
    links.new( mixNode.outputs[0], glossNode.inputs[0] ) <-- added this line<br /> links.new( bsdfNode.outputs[0], addNode.inputs[1] )
    links.new( glossNode.outputs[0], addNode.inputs[2] )
    links.new( addNode.outputs[0], outNode.inputs[0] )

    It seems to me that Glossy shader is really a reflection shader. There really is no Specular like there is in Poser and DAZ Studio -- that is just a simple form of reflection. Now I need to figure out how to best adjust my Diffuse/Glossy mix and roughness, based on a material's DS4/Poser reflection and glossy settings.

  • mCasualmCasual Posts: 4,014
    edited February 2013

    Thanks Casual!! Got your latest version. What is "mcjTeleBlenderDS2.ds" for?

    I also tweaked your "mcjMakeCyclesNodes_MIX_instead_of_ADD". I added the following line of code to connect the mixNode (multiply) output to the glossNode Input.

    links.new( mixNode.outputs[0], bsdfNode.inputs[0] )
    links.new( mixNode.outputs[0], glossNode.inputs[0] ) <-- added this line<br /> links.new( bsdfNode.outputs[0], addNode.inputs[1] )
    links.new( glossNode.outputs[0], addNode.inputs[2] )
    links.new( addNode.outputs[0], outNode.inputs[0] )

    It seems to me that Glossy shader is really a reflection shader. There really is no Specular like there is in Poser and DAZ Studio -- that is just a simple form of reflection. Now I need to figure out how to best adjust my Diffuse/Glossy mix and roughness, based on a material's DS4/Poser reflection and glossy settings.

    hi there

    by default the BSDF Glossy node uses the 'Beckman' type,
    which gives a sort of specular effect since it disperses the rays.
    In Daz Studio if you apply a random image to the reflection channel,
    mcjTeleblender changes the BSDF Glossy type to "Sharp" which is closer to a mirror.

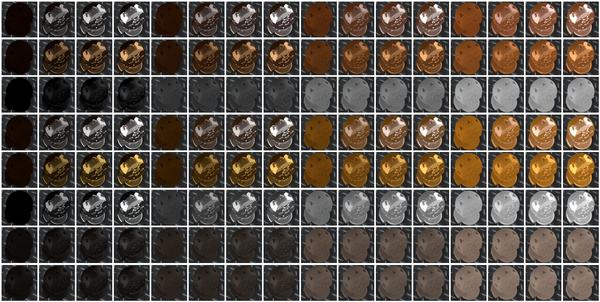

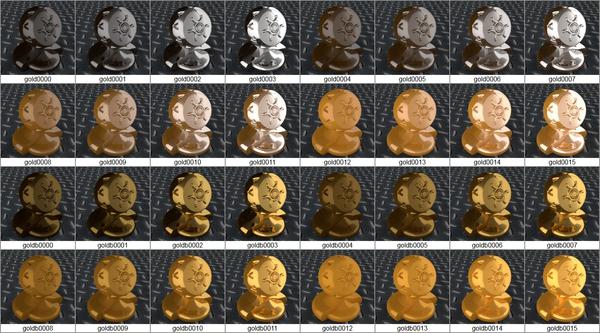

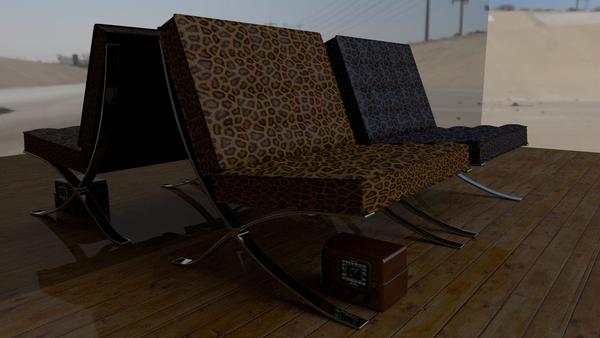

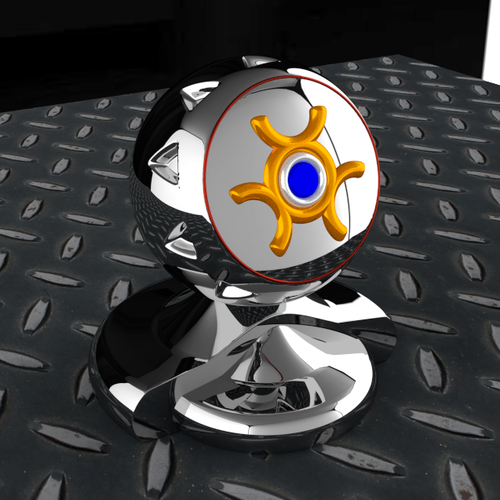

    in the examples shown below, i apply a given hue to the diffuse color, and vary the intensity.

    For the specular color. sometimes i apply different intensities of white, sometimes i apply different intensities of that same hue.

    in all those examples, the mcjTeleblender was set to gloss factor=0.1 roughness=0.1

    if the Daz Studio's obj exporter and Blender's obj importer allowed it, each surface would have its own gloss factor and roughness
    unfortunately the obj/mll pipeline is limited

    ---
    mcjTeleBlenderDS2.ds is the version for Daz Studio version 1.8 and version 2.3 which are still in use in far corners of the galaxy.

    -- later tonight i'll publish the materials shown below, as poser poses or daz scripts

    637 x 637 - 436K
    1523 x 767 - 412K
    Post edited by mCasual on
  • mCasualmCasual Posts: 4,014
    edited December 1969

    ~ 160 Material presets ~ 160 Material presets ~ 160 Material presets ~ 160 Material presets ~ 160 Material presets ~

    in this thread ---> http://www.daz3d.com/forums/discussion/16798/

    i posted 160 material presets ( for DS 1, 2, 3, 4 ) intended to be used with mcjTeleblender

    1474 x 818 - 411K
  • CauriBCauriB Posts: 72
    edited December 1969

    Thank you very much for making this free. Works great and renders in almost no time :-).

  • mCasualmCasual Posts: 4,014
    edited December 1969

    CauriB said:
    Thank you very much for making this free. Works great and renders in almost no time :-).

    Welcome !

    i use it quite a bit too,

    i often use images from the sIBL archive http://www.hdrlabs.com/sibl/index.html as mcjTeleblender's "environment maps". or "world environments"

    those are "equirectangular" environment maps

    you can find others by googling "equirectangular

    there's also some free packs of "photography studio" types of environment maps here:

    http://zbyg.deviantart.com/art/HDRi-Pack-1-97402522

    ( there's more than 1 pack from that same artist )

    ( little known fact - Daz Studio and Blender accept .hdr images )

    1280 x 720 - 121K
    628 x 254 - 23K
  • Tempest!Tempest! Posts: 0
    edited December 1969

    Casual said:

    ( little known fact - Daz Studio and Blender accept .hdr images )

    What do you mean by DS accepting .hdr images?

    I've been wondering, is that last image purely lit by IBL or is there a sun lamp (or something similar) to get the sharp cast shadows?

    Thanks for the links too. I've had sIBL bookmarked but somehow have missed the actual maps altogether until now.
    So, if you just heard a slapping sound from a distance that was me facepalming due to being an idiot. :)

  • mCasualmCasual Posts: 4,014
    edited February 2013

    Tempest! said:
    Casual said:

    ( little known fact - Daz Studio and Blender accept .hdr images )

    What do you mean by DS accepting .hdr images?

    I've been wondering, is that last image purely lit by IBL or is there a sun lamp (or something similar) to get the sharp cast shadows?

    Thanks for the links too. I've had sIBL bookmarked but somehow have missed the actual maps altogether until now.
    So, if you just heard a slapping sound from a distance that was me facepalming due to being an idiot. :)

    some images, like environment maps, are supplied in .hdr format which i think, has 16-bit or more intensity levels per pixel color channel

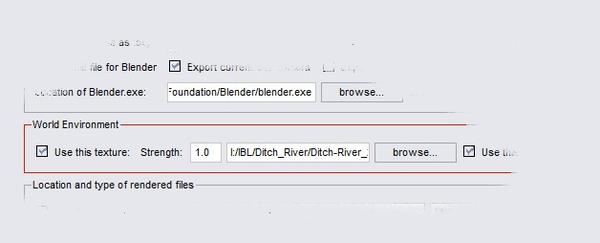

    in mcjTeleblender you can specify those images as the "World Environment" image

    i was under the false impression that you can also apply those .hdr images to surfaces in daz studio and that they would be rendered correctly in software (3delight) render mode. apparently they are not.

    but but i do remember that Daz Studio does accept 16-bit .tiff files ( which is quite usefull for smooth displacement maps )
    http://www.daz3d.com/forums/discussion/3269/

    ----------

    in this render, the IBL map did not produce sharp shadows, so indeed i added a cube with an emissive surface outside the field of view.

    i think we can get the equivalent of Daz's shadow-catchers using Blender's post-processing compositing and the layers

    but i was in a hurry so i placed a beige plane under her feet :)

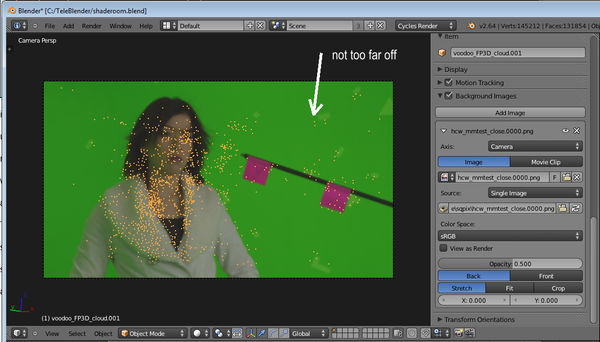

    new camera tracking experiment video ! ----> https://www.youtube.com/watch?v=I9dGsAA1-Ww

    1084 x 618 - 227K
    Post edited by mCasual on
  • Tempest!Tempest! Posts: 0
    edited December 1969

    Well, that falls in line with my (very limited) experiences too. While DS doesn't seem to support .HDR, it does support HDR images in if they're TIFF format. 32 bit TIFFs seem to work fine with UE2 for lighting. So basically you just have to convert the .HDR into TIFF using the utility provided with UE2 or Photoshop or something else that does the job.

    I'm under the impression that "catching shadows" is fairly simple with the latest builds of Blender, particularly since the heavy focus on compositing with 2.64. Haven't had a need for it myself (nor much time either), so no first-hand experiences here. :)

  • mCasualmCasual Posts: 4,014
    edited February 2013

    ─────────────────────────────────────────────────────────
    * Update ** Update ** Update ** Update ** Update ** Update ** Update ** Update ** Update *
    ─────────────────────────────────────────────────────────

    i fixed a longstanding issue, Blender uses 1 unit = 100cm, not 1 unit = 50 cm

    in mcjTeleblender's settings the "blender scaling factor" should be 1%

    this new version now applies the same scaling factor to the positions of the cameras and lights

    in the image below you can see Blender's default cube which is 2 m x 2m x 2m

    1280 x 720 - 97K
    Post edited by mCasual on
  • mCasualmCasual Posts: 4,014
    edited December 1969

    ─────────────────────────────────────────────────────
    - UPDATE - V13 - UPDATE - V13 - UPDATE - V13 - UPDATE - V13 - UPDATE - V13 -
    ─────────────────────────────────────────────────────
    if you're in a hurry, here's a direct link to the zip
    https://sites.google.com/site/mcasualsdazscripts/mcjteleblender-for-ds1-2-3-4/mcjTeleBlender.zip
    else it's at the bottom of this page, as usual
    https://sites.google.com/site/mcasualsdazscripts/mcjteleblender-for-ds1-2-3-4

    there was a confusion between mcjTeleBlender.zip and mcjTeleblender.zip
    so you possibly didnt get the correct version if you updated recently

    V13 fixes the issue wherein the materials were not smoothed when rendering animations

    V13 has better scaling support, if you export to Blender, set mcjTeleBlender's "Scale(%)" setting to 1

    Blender's default cube is 2 m x 2 m. x 2m

    in the image below you can see Aiko was exported from Daz Studio using mcjTeleBlender with a Scale of 1%

    1280 x 720 - 94K
  • YoginoYogino Posts: 4
    edited December 1969

    Thanks a million for this update, Casual. The smoothing fix has definitely improved the quality of rendering Daz animations in Cycles. You are like a one-man software company!

  • mCasualmCasual Posts: 4,014
    edited December 1969

    Yogino said:
    Thanks a million for this update, Casual. The smoothing fix has definitely improved the quality of rendering Daz animations in Cycles. You are like a one-man software company!

    welcome !
    i guess at some point the smoothing code got lost during a version update
    because i'm almost sure it was part of mcjTeleblender when i launched it last year
    http://www.youtube.com/watch?v=HTIIwjTV7s4

Sign In or Register to comment.
