mcjTemplate comes to Daz Studio 4.5 (Updated April 2017)

mCasualmCasual Posts: 4,343
edited April 2017 in Freebies

download here --> https://sites.google.com/site/mcasualsdazscripts2/mcjtemplate

Introduction

Since Daz Studio version 3, we can preview the UV maps of objects in the scene.

But this display's resolution is smaller than what is needed for precision texturing.

mcjTemplate lets you export those UV maps ( aka Templates) as high or very high resolution images

i can now confirm that this script for DS4.5 will work with DS4.0

and i can confirm that installing DS4.0 will uninstall DS4.5
after i tested the script, i copied the whole DS4.0/32-bit folder from c:\Program Files(x86)\Daz3D to c:\Program Files(x86)
and re-installed DS4.5/32bit , and the good news is, the stashed DS4.0 still works, and the DS4.5/64bit was unharmed

( i updated this as part of modeling Aiko3's bodyConscious dress so it's a valid excuse )

shown below a map of the materials for Aiko3's body

1200 x 1200 - 865K
800 x 1200 - 65K
390 x 986 - 50K
406 x 388 - 11K
Post edited by mCasual on

Comments

  • wancowwancow Posts: 2,708
    edited December 1969

    You rawk... you really do! This is something I've needed for a while, gonna make my life quite a bit easier! :)

  • Eustace ScrubbEustace Scrubb Posts: 2,625
    edited December 1969

    The one that's up there now is still just the old one: is there an estimate on what time to expect it?

  • mCasualmCasual Posts: 4,343
    edited December 1969

    The one that's up there now is still just the old one: is there an estimate on what time to expect it?

    this afternoon, probably less than an hour or 2 from now

    the case of maps for selected materials already works

    i'm working on selections by figures or bones

  • mCasualmCasual Posts: 4,343
    edited December 2012

    Yay !

    Render-selected-nodes started working

    Below you see a 1kx1k map for Aiko3's abdomen

    For the second image i selected the over-the-knee boots for Aiko3 figure, so it created a map combining all materials, all bones

    91 x 91 - 8K
    406 x 412 - 18K
    1024 x 1024 - 247K
    1024 x 1024 - 39K
    Post edited by mCasual on
  • mCasualmCasual Posts: 4,343
    edited December 1969

    The one that's up there now is still just the old one: is there an estimate on what time to expect it?

    'tis ready ( though only 3 tests were performed )

  • mCasualmCasual Posts: 4,343
    edited December 1969

    wancow said:
    You rawk... you really do! This is something I've needed for a while, gonna make my life quite a bit easier! :)

    'tis ready,

    though i didnt test it very much
    but i was able to render maps for selected material / bone / figure

  • RAMWolffRAMWolff Posts: 9,685
    edited December 1969

    Thanks so much! Much appreciated!

  • EsemwyEsemwy Posts: 574
    edited June 2016

    A quick hack to make it work with UDIM. Provided in Unix patch format, otherwise all you need to do is add the two new statements to uvLine.

    diff -Naur a/scripts/mcasual/mcjTemplateDS45.dsa b/scripts/mcasual/mcjTemplateDS45.dsa--- a/scripts/mcasual/mcjTemplateDS45.dsa	2012-12-20 11:45:56.000000000 -0500+++ b/scripts/mcasual/mcjTemplateDS45.dsa	2016-06-30 11:36:36.000000000 [email protected]@ -291,6 +291,8 @@ 		return; 	var p0 = uvset.getPnt2Vec( uvwIndex0 ); 	var p1 = uvset.getPnt2Vec( uvwIndex1 );+	p0.x = p0.x - Math.floor(p0.x);+	p1.x = p1.x - Math.floor(p1.x);  	line( canvas, p0.x, p0.y, p1.x, p1.y, white ); 	++cpt;@@ -564,4 +566,4 @@ 	gwEdW.text = def_customWidth; 	gwEdH.text = def_customHeight;	 	saveSetting( "outputFilename", def_outFile )-}\ No newline at end of file+}



    P.S. Thanks for the awesome scripts

    Post edited by Esemwy on
  • nakamuram002nakamuram002 Posts: 522

    I suggested that to DAZ a couple of years ago.  Now it is here and FREE!!  Thanks Casual!!!!!

  • mCasualmCasual Posts: 4,343
    edited April 2017

    UPDATE - UPDATE - UPDATE - UPDATE

    I dont know if it's like that for all Genesis 3 figures, but the Aiko7  UV map had coordinates in the 1..2 range instead of the standard 0..1

    so i added a modulo ( %) based tweak that corrals them back to the uh ok corral

    https://sites.google.com/site/mcasualsdazscripts2/mcjtemplate

    that's the scene i needed a template for, the Halequinette makeup

    that's based on a Picasso painting

    for the same reason mcjTailorsChalk will be updated this morning

    756 x 1000 - 108K
    Post edited by mCasual on
  • MollytabbyMollytabby Posts: 1,133

    Thank you very much for this, I was really struggling to find something that would create me a template. It's really quick and only took me two attempts to work out what I was supposed to do smiley. (I overthink things sometimes!)

  • mCasualmCasual Posts: 4,343
    edited July 2018

    glad someone may use it !

    sometimes i use it to create opacity/cutout maps

    there's also mcjTailorsChalk that may interest you

    https://sites.google.com/site/mcasualsdazscripts4/mcjtailorschalk

    i used it to convert i guess it was a t-shirt into a bikini top

    oh actually it's body-paint ! .... made with mcjTailorsChalk and 2 primitive-planes

    READY ! mcjTailorsChalk has been updated for Gen3 by mCasual

    Thank you very much for this, I was really struggling to find something that would create me a template. It's really quick and only took me two attempts to work out what I was supposed to do smiley. (I overthink things sometimes!)



    Post edited by mCasual on
  • MollytabbyMollytabby Posts: 1,133

    Thank you, I'll take a look. I'm still learning Daz Studio but I can see this will be useful too smiley

  • Turk_WLFTurk_WLF Posts: 177

    I can't get it to work with Daz Studio 4.10.

  • mCasualmCasual Posts: 4,343
    edited October 2018

    it works for me on DS 4.10

    - make sure you have the latest version of the script

    https://sites.google.com/site/mcasualsdazscripts2/mcjtemplate/mcjTemplate.zip?attredirects=0&d=1

    - make sure you are using the script named mcjTemplateDS45 not mcjTemplate, not mcjTemplateDS1

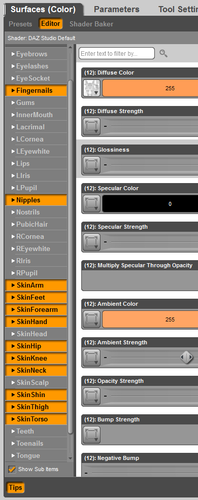

    - if you want to save to disk the template of a specific material, use DazStudio's Surface selection tool or the Surfaces Tab to do so, then launch the script and select the "Selected Materials" option

    - if you want to save to disk the template of all surfaces of a  specific object, select that object then launch the script and select the "Selected Node" option

    then you press the "Build" button

    then you specify a location and filename for the template image to be written ex: c:\tmp\myTemplateOctober13.jpg

    the image location must be a folder that is not protected against file writing

    for example C:\Users\YOURNAMEHERE\Documents

    Note that this script does not generate a UVmap it just creates an image that displays the existing UVmap

    most props and figures do have a UVmap that can be displayed but some objects from the internet have unusable on non-existant UVmaps

    there's scripts on my site that can generate UV maps - mcjplanaruv , mcjBoxUVmcjSphericalUV mcjcylindricaluv



    the resulting template

    https://www.daz3d.com/forums/uploads/FileUpload/93/6869fb1c4b9f1ec6ca07bdedf38f2b.jpg

    860 x 728 - 139K
    512 x 512 - 24K
    Post edited by mCasual on
