  • TangoAlphaTangoAlpha Posts: 4,584


    The model I am building is initially organised by grouping things according to what I think will help me put the model together. So it is about being able to turn off extranious parts to allow me to see the area I am working on in context with the things around it. When I began there was a temptation to UV map as I went along and having the UV mapping tools to hand, as they were in Wings3D, it was easy to end up doing this. However, if you do do that, and then see you need to change something, there is also a temptation to not make that change if you can get away with it because that will mean going back and tinkering with the UV map.

    I was thinking about this as I made a stool model yesterday, since I was told once upon a time always to UV map as you go along. And that's what I've done. And yes there is the temptation to not revisit something that's already mapped, especially if you've spent ages unpicking the knots the mapper tends to throw at you.

    So, while there were a couple of things that I did map because I wanted to duplicate them (the feet and the support bars for the foot rail), by and large I didn't. And it was quite refreshing as a result.

    Of course, today I have to map it . . .

    Screen Shot 2016-11-25 at 08.43.05.png
    1919 x 1070 - 1M
  • TangoAlphaTangoAlpha Posts: 4,584

    On a different but related note, it's interesting to see  how my workflow has changed as a result of adding Substance Painter into the pipeline. Now I don't assign shading domains until after painting, because of the way Painter creates separate map sets for each domain. When you've laid out everything on one UV, it's a pain to recombine them into a single texture sheet. (It's different when I've mapped things to multiple texture sheets though, since I do want the domains to separate them) Also I'll export an "exploded" version of the model to make things easier. For example with the stool, I'll move the seat assembly apart from the base assembly, because the final prop will be rigged to slide up and down. and I don't want an AO shadow to appear halway along the shaft. Windows and glass panels sometimes need extra handling for the AO map.

    And just as some operations break the UV, some (generaly I think, the same) operations don't respect shading domains.

  • wgdjohnwgdjohn Posts: 2,634

    Tell me is that also true for Carrara... does it's 3D Paint create multiple texture sheets? Thanks TangoAlpha for pointing out AO shadows... I've got something else to look forward to. :)   Hmm... would you just have an up/down morph for the top or would you have another or the same to to affect the shaft. I can understand why you would remove the top.

  • TangoAlphaTangoAlpha Posts: 4,584

    I don't know about Carrara's internal 3d Paint.

    What I'll do is split the top into a separate vertex object and parent it with a slider constraint. I'll also parent the casters (not shown above, because they were already made for another model - don't keep reinventing the wheel! wink In DS I'll import the whole thing as a single obj and rig it. This is my first pass at the UV map:

    1024 x 1024 - 51K
  • DartanbeckDartanbeck Posts: 21,623
    edited November 2016
    wgdjohn said:

    Tell me is that also true for Carrara... does it's 3D Paint create multiple texture sheets? Thanks TangoAlpha for pointing out AO shadows... I've got something else to look forward to. :)   Hmm... would you just have an up/down morph for the top or would you have another or the same to to affect the shaft. I can understand why you would remove the top.

    In Carrara's 3D Paint (which is pretty darned cool - but takes some practice*) we select which domain (otherwise known as Material Zone - both are synonymous) we'll be painting on - then we select which shader channel we're painting into.

    Once we get to this point (couple simple clicks) we're presented with a new stack with only one source. We click a button to "Add Layer" to paint on - then we paint or stamp down image maps in layers whose opacity can each be controlled separately, much like we'd do in PhotoShop, PaintShop Pro, or similar.

    Because of this whole layering structure, I advice that, when asked, choose PSD file as the saving extension - because other types don't support layers, and Carrara is fine with psd. This makes it so we can save, close, reopen, and continue working.

    Here are your painting tools (sorry for the old hand-written on image)

    If you look at her Right Lower Eyelid, you'll see my Brush icon, which shows the size and the direction, which updates nicely as we paint.

    Here are some standard Brushes to choose from. Notice in the dialog box that I also have GKDantas' Ron's Scratches and Ringo's Brushes as well

    ...and we can Displace Easily - this example being (possibly) exaggerated

    356 x 380 - 117K
    Create Texture Map.jpg
    1684 x 998 - 715K
    Image 3.jpg
    1678 x 1024 - 942K
    Select Paint Texture.jpg
    1684 x 998 - 765K
    1684 x 998 - 758K
    Post edited by Dartanbeck on
  • DartanbeckDartanbeck Posts: 21,623

    Carrara ships with some nice brushes, so I hope nobody feels that they might have to wait on getting some new brushes before trying this feature.

    The other sets doo add a lot of cool new brushes... 'tis true! Carrara's native brushes are really nice though.

  • DartanbeckDartanbeck Posts: 21,623

    The Gars Man has found a bit of a Bummer when he came back into his UV Layout session.

    Turns out it's not so bad. We just need to know how to deal with it - as he demonstrates in this four minute short update ;)

  • wgdjohnwgdjohn Posts: 2,634

    3DPaint looks kewl... I'll have to find some time to play with it... get my bearings and all. :)

  • DartanbeckDartanbeck Posts: 21,623

    Absolutely.

    I wanted to show where the Tools are (the hand-drawn crappy image) because it's really cool to be able to use a Line tool - set the width and color and click down the beginning and ending. Really cool stuff.

    Just know that we really need good (not just decent - almost good) UV Mapping for this to be a workable option - and it can still be a little hit-and-miss - depending upon what we're wanting to do with it.

    The more we practice, the better it gets. But it's still not a perfect solution. It's no Substance Painter, that's for sure.

    PhilW's advice in Advanced Carrara Techniques is really good when it comes to this - where we can use this tool as a great means to prep for editing maps in an image editor. He goes in a lot more depth, so I hope he doesn't mind the tiny spoiler.

    I also have some fun going the other way as well - using this tool to finish off what I've started on my 2D maps. Like the example image above, getting that dark eyeliner can be tricky using just the maps. In here we can get the brush right inside the lids.

    Painting special bumps, highlights, other individual defining features... it's really neat.

    I'm really glad that, after watching Phil's tutorials, I decided to stop ignoring this tool. It's a lot more fun than I had origianlly thought. Another topic came up about Displacement Brush modeling. While we don't change polygon count on our surfaces in Carrara, we can alter the Sub-D level to add higher resolution to the mesh when we're painting displacement in the model room tools (even in the Assemble Room) - whereas we can also paint displacement using the 3D Paint tool, then using the Displacement tab in the shader to dtermine the resolution of displacement.

    It's really nice that Carrara has both! Displacement on the Mesh level and Displacement on the Shader level - so we can actually use either or both!

  • wgdjohnwgdjohn Posts: 2,634
    SileneUK said:

    OK, I got Silo yesterday  and on their site it does offer the $50 off. So it's $109 vs $159

    http://nevercenter.com/silo/  (click on the Buy Now to see the info)

    BUT if you use Paypal they say before you buy:

    *Note: Unfortunately, discount codes cannot be auto-applied using PayPal. However, if you email us with your discount code after you have placed your order, we will happily apply your discount manually through a refund.

    That's OK, I would have thought this should not be a big deal. So I bought Silo with PP and then emailed them noting my use of the code using the email sent to me with the licence key. It's the right email, double-checked. I have not heard anything, not even an acknowledgement. My PP account has been charged, but no refund. I might think it takes a few days to refund, but that they would at least acknowledge my email as I did as requrested.

    Has anyone else taken the offer?

    frown Silene

    I finally took the offer which is even better now.  I also paid via PayPal in hopes that I can get the discount.  I was wondering how it worked out with you getting a refund for the diff... did you get it OK?

  • DartanbeckDartanbeck Posts: 21,623

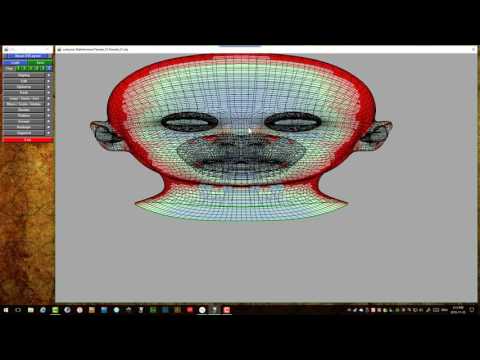

    Garstor has added more tutorials to his UV Layout series and has created a nice playlist to keep them in good order:

    Using Headus UV Layout

    If you like his stuff, please consider subscribing, maybe even dropping him a comment to show some support. He's doing a really great job and putting a lot of time and effort into making these things good. He's already got me totally sold on the software if I ever get that heavy into UV Editing. Bravo Gars Man!!!

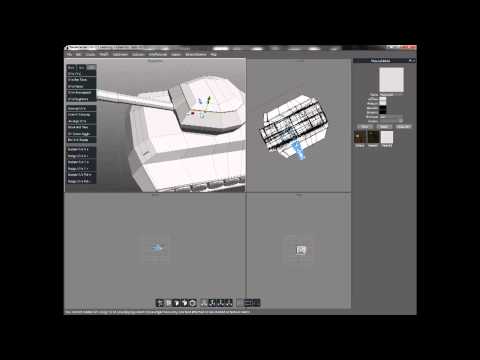

    For our new Silo owners, here's what looks like a pretty cool UV Unwrapping tutorial for Silo

    She has more Silo tutorials on her channel and, from a glance, it looks like Jessica is one heckuvan artist!

  • wgdjohnwgdjohn Posts: 2,634

    Thanks Dart... I'll have to check it out along with others that are mentioned by Nevercenter. Had to treat myself to Silo... always nice having an extra program in my toolbox.

    Just finished Carrara Modeling Tutorials - by mmoir which shows UVmapping in Carrara along with modeling, shading and scene setup for each project.

    Another good place to find out about UVmapping/UnWrapping in Carrara is No one asked me - Diomede posts screenshots on whatever  by diomede starting Here.

    Merry Christmas and a prosperous New Year!  .... to you and Rosie.

  • DartanbeckDartanbeck Posts: 21,623

    You Too!!!

    Yeah... I want to grab Silo too... when I can. One day, I suppose

  • VyusurVyusur Posts: 2,235
    edited December 2016

    So, what about Wings3D and Blender?

    We're going over ways to do all of this in Carrara and with other applications, let's also look at some free options.

    I'm not really familiar with either of them, but here are some demonstrations:

    Intro to UV Unwrapping in Blender

    I make my UV unwrapping in the same program where I model, in Blender 3d. It’s free and powerful software.



    Usually I make my UV unwrapping in the same program where I model, in Blender 3d. It’s free and powerful software.

    Screen Shot 2016-12-26 at 4.57.22 PM.png
    701 x 936 - 341K
    Post edited by Vyusur on
  • VyusurVyusur Posts: 2,235
    edited December 2016

    But the model, that I finished yesterday, was completely done with Carrara: from scratch to UV mapping and texturing. I am not so familiar with Carrara as with Blender, for comparison, and it was kind of challenge. Today I uploaded a video with the process of modeling chair in Carrara:



    800 x 800 - 228K
    800 x 800 - 204K
    800 x 800 - 180K
    Post edited by Vyusur on
  • 3DAGE3DAGE Posts: 3,311

    Hi Dart :)

    there's an offer on the silo site ,.  code "merrysilo" ... 40 $



    Vyusur :)  Nice model and tut .



  • VyusurVyusur Posts: 2,235

    3DAGE, thank you very much!

  • Hi - any info on Silo?  Is that better / faster / different from options available in Carrara?

    Can you bring a DAZ model in, play with it, and bring back into Carrara without losing functionality?  or would this be mostly for original models we create?

    Can geometry shift be saved as morphs or is this just for setting the original geometry?

    If it's a useful tool would certainly consider picking up fro $40!

    Thanks for any additional info you can share.

  • wgdjohnwgdjohn Posts: 2,634
    edited December 2016

    Vyusur, I'm blown away. :)  yesyes  Must watch again... I'm still on that learning curve which you certainly seem to have no problem with.  Won't be able to resist linking the vid to my modeling thread.

    Mosk,  While I can't answer all those questions... $40 is quite a bargain for a good modeler which I do know that Silo is.

    Post edited by wgdjohn on
  • Certainly a good price but doubt I'll have time to play with it and test it before flash sale runs out - so hoping someone with some experience can answer questions.

    If UV Mapping / unwrapping is much better and can make round trip from Carrara to Silo and back, that would be worth a lot as well.

    May try to download and do quick test but would love feedback from any current users.

  • VyusurVyusur Posts: 2,235
    edited December 2016

    Thank you so much, wgdjohn, for watching and for the comment! I am glad, that you like it!

    I can post my link to the modeling thread too.

    Post edited by Vyusur on
  • VyusurVyusur Posts: 2,235

    I’ve found this post by Erez Zukerman about Silo

    http://www.pcworld.com/article/259590/silo_is_a_no_nonsense_3d_modeler.html

  • Yeah - thanks - I saw that too (after posting my initial question) - but still not clear on whether or not this would be useful in the workflow - or if Carrara's pro modeling features allow for pretty much the same.  I've always struggled with UV in Carrara - though want to try again having seen a recent video that made things seem a bit simpler.

  • wgdjohnwgdjohn Posts: 2,634

    Vyusur,  Saw your post and thank you very much.

    Mosk,  FifthElement uses Silo and one of his models was loaded into Carrara and morphs were added... it could have been fully rigged also.

  • DartanbeckDartanbeck Posts: 21,623

    Hi - any info on Silo?  Is that better / faster / different from options available in Carrara?

    Can you bring a DAZ model in, play with it, and bring back into Carrara without losing functionality?  or would this be mostly for original models we create?

    Can geometry shift be saved as morphs or is this just for setting the original geometry?

    If it's a useful tool would certainly consider picking up fro $40!

    Thanks for any additional info you can share.

    No. It's a dedicated modeler, and that's what (they claim) makes it so great. It's not for rendering or texturing... just modeling - which includes UV Unwrapping.

  • DartanbeckDartanbeck Posts: 21,623
    3DAGE said:

    Vyusur :)  Nice model and tut .

    Absolutely!!! yes



    3DAGE said:

    Hi Dart :)

    there's an offer on the silo site ,.  code "merrysilo" ... 40 $



    Saw that. Santa's tapped out :(

  • 3DAGE3DAGE Posts: 3,311

    HI Mosk :)

    UV's are contained in the model,. so if you saved out an OBJ,. (or any other 3d format) and opened that in any 3D program,. it would have the uv's.

    there should be no problems transfering models and / or UV's to Carrara from Silo.

    Silo looks like it has "live update" on uv unwrapping, there's a few tutorial videos on the site and youtube,. looks like you can pull the mesh around the uv layout and it auto updates,.  some nice modelling features too,. like,.. snap to surface.

    hope it helps :)

  • 3DAGE said:



    there should be no problems transfering models and / or UV's to Carrara from Silo.

    Unfortunately, that is not the case, I mentioned this plenty of times, ocassionaly Carrara reads UVs from Silo wrong (few stray vertices, for no apparent reason at all), while Blender, Vue, Substance Painter and Lightwave import the same mesh just fine sad

  • DartanbeckDartanbeck Posts: 21,623
    3DAGE said:



    there should be no problems transfering models and / or UV's to Carrara from Silo.

    Unfortunately, that is not the case, I mentioned this plenty of times, ocassionaly Carrara reads UVs from Silo wrong (few stray vertices, for no apparent reason at all), while Blender, Vue, Substance Painter and Lightwave import the same mesh just fine sad

    Wow. That's just plain odd, isn't it? wt?

  • OBJ importer in Carrara is most likely a very old code, so I do not find it odd, I had problems with OBJ files from other software as well, sometimes I just rearange islands in Silo's UV space and Cararra gets it right smiley
