simple 5 pointed star obj?

IkyotoIkyoto Posts: 1,159
edited December 2015 in The Commons

I could use one if anyone has a lead.

Post edited by Ikyoto on

Comments

  • evilproducerevilproducer Posts: 9,056
    Flat, or do you need it to have some dimensionality, such as beveled edges?
  • Richard HaseltineRichard Haseltine Posts: 107,966
    edited December 2015

    For a very basic star you can do it in DS:

    Create a cylinder, I've set the axis to Z but that isn't vital - what is important is giving the cylinder ten sides (five points, five indents) and one segment (so you don't have too much fiddling to do, though you could add more if you wanted a degree of rounding).

    Create cylinder

    Create a DForm and move the field right out of the way.

    Remove field

    Set the DForm itself to scale down the cylinder's width - in my case that's x-scale and y-scale.

    Set scaling

    Swiitch to the Node Weight Map Brush tool and open Tool Settings, with one of the DForm parts selected

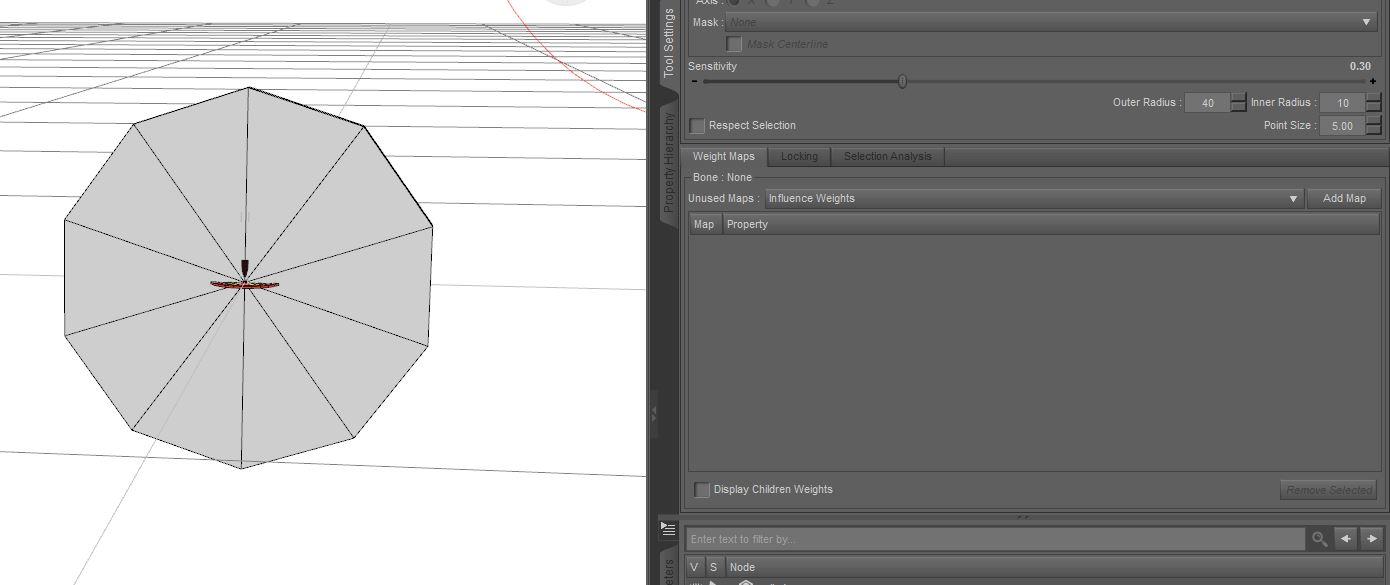

    In Tool Settings click Add Map nextt o Influence Weights.

    Apply weight map

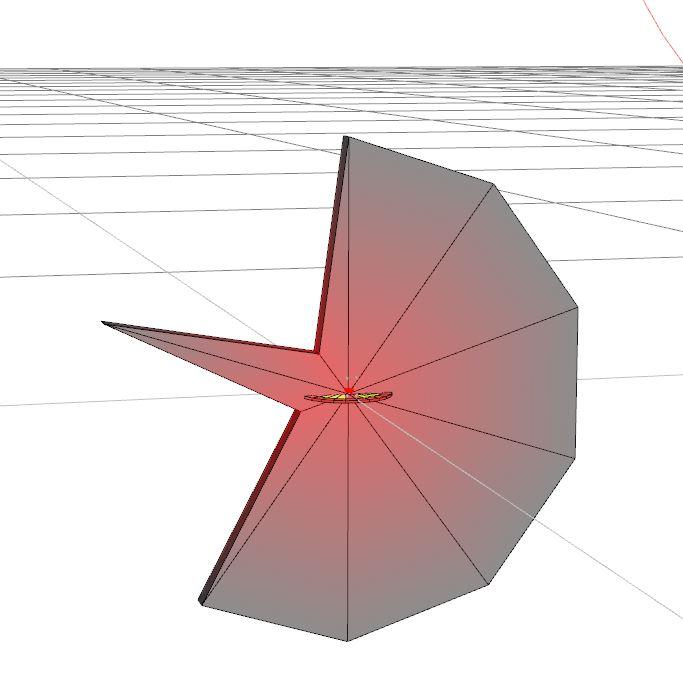

    Now in the viewport paint on every other set of side vertices, front and back - it's easiest to do this in wire shaded view. Make sure you hit only the indent vetices, not the points - it doesn't matter if you hit the mid point as it won't move whatever the weight is since it's in the centre of the scale effect. Keep painting until the points stop moving - that's 100% effect, if you try stopping part way it will be impossible to keep everything even.

    Paint weights

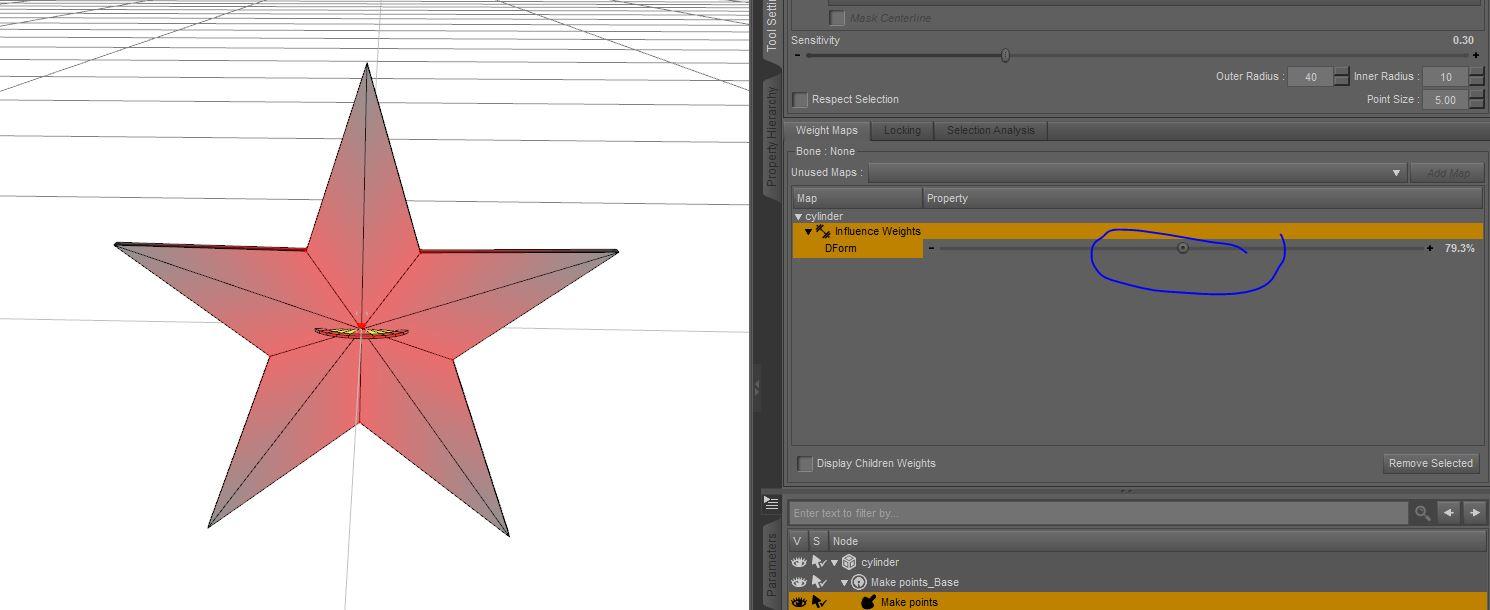

    When done you can use the slider under the map to adjust the depth of the indents.

    Adjust

    00 Create Cylinder.JPG
    270 x 344 - 23K
    01 Lost field.JPG
    1281 x 856 - 89K
    02 Scale DForm.JPG
    1093 x 693 - 78K
    03 Add Weights.JPG
    1390 x 585 - 78K
    04 painting.JPG
    683 x 688 - 48K
    05 Adjust.JPG
    1490 x 610 - 88K
    Post edited by Richard Haseltine on
  • Charlie JudgeCharlie Judge Posts: 13,243
    edited December 2015

    Free beveled includes obj: http://www.turbosquid.com/3d-models/star-3ds/378264

    Free beveled includes obj: http://www.turbosquid.com/3d-models/20-face-star-3ds-free/535674

    Free flat includes obj: http://www.turbosquid.com/3d-models/free-3ds-mode-star/664920

    Free flat but 3DS only: http://www.turbosquid.com/3d-models/free-star-3d-model/533342

    And more available at Turbo -- Search for ' star ' and sort by price low to high

    Post edited by Charlie Judge on
  • RGcincyRGcincy Posts: 2,862
    edited December 2015

    I have several .obj in this free Christmas kit. Works in Bryce, Daz Stiudio 4.8, and other 3D programs. Textures not included.

    Post edited by RGcincy on
  • FistyFisty Posts: 3,416

    Perfect jewlery boxes has a star box, the lid works well for some things.  It was a weekly freebie, you likely have it in your account.

    http://www.daz3d.com/perfect-jewelry-boxes

  • mjc1016mjc1016 Posts: 15,001
    edited December 2015

    Richard, your method works very well...with a few minor modifications in Blender laugh

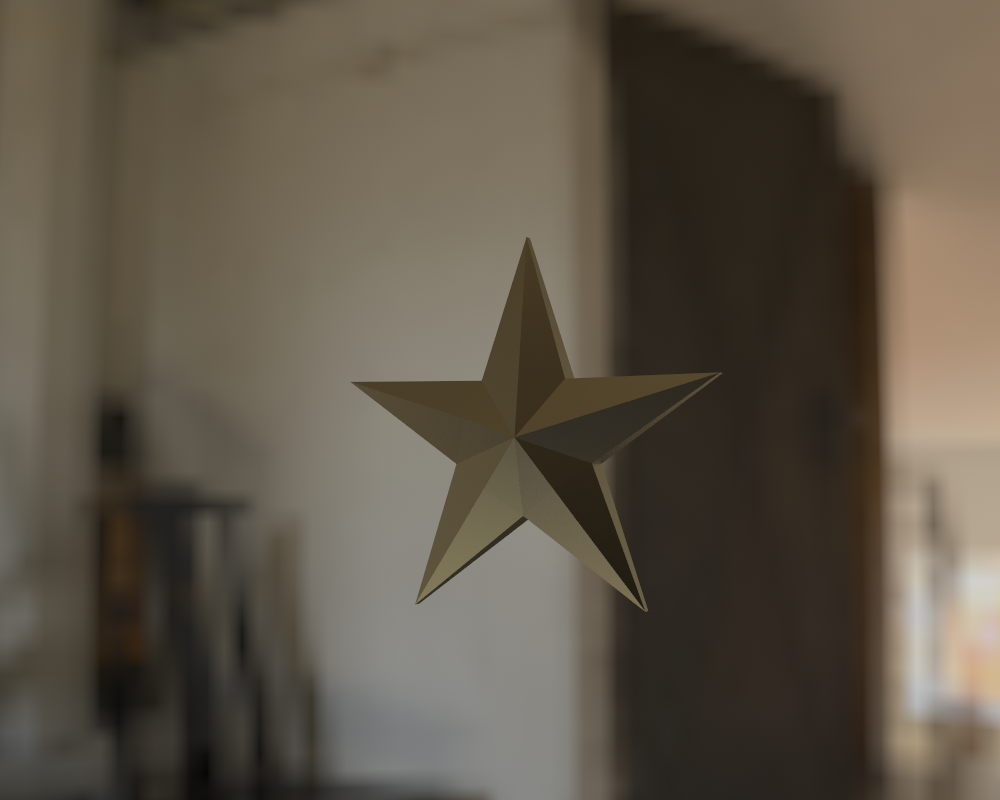

    Cranked this out in about 10 mins, including UV mapping it.

    1000 x 800 - 642K
    Post edited by mjc1016 on
  • Charlie JudgeCharlie Judge Posts: 13,243
    edited December 2015

    mjc1016:  It looks very nice. Have you considered uploading it to your sharecg gallery?

    Thanks,

         Charlie

    Post edited by Charlie Judge on
  • mjc1016mjc1016 Posts: 15,001

    Well, after I get some textures for the bell, too...not going to do balls or fancy ones, I'll throw them on there...



  • IkyotoIkyoto Posts: 1,159

    Could this threa be any more fun? You folk made my season
