Anyone flip a hair product (left to right)

Comments

• TimberWolf Posts: 311

  January 17

  Select the root object of the hair and scale it to -100% on the x-axis. This works for pretty much any object you want to reverse, including curves hair.
• alan bard newcomer Posts: 2,367

  January 17

  TimberWolf said:

  Select the root object of the hair and scale it to -100% on the x-axis. This works for pretty much any object you want to reverse, including curves hair.

   wouldn't it be nice if there was a way to "like" posts like in facebook
  ---
  But it does bring up a question for Richard.
  If you do the reverse X and then save if as a scene subset does modified version come back reversed but with a normal X for the new object?
  ----
  I remember years ago where I reversed an object, a piece of bric-a-brac to use on a house and subsequently the scene began to crash, took me a long time to isolate that it was that one object that caused the crashes. And it was not originally created in daz but you would that that a basic imported object would be just like a daz object. And I have imported hundreds over the years and that was the only one that caused issues.
• barbult Posts: 26,394

  January 17

  This is how I do it (works for dForce hair):

  1. Load the hair into Daz Studio
  2. Select the Geometry Editor tool
  3. Export the hair to OBJ with Remove Unused Vertices and Write Polylines selected, as well as your normal export settings
  4. Open Blender (I have version 5)
  5. Import the exported hair OBJ into Blender.
  6. In Blender Object Mode, select the imported hair object.
  7. In Blender, Right click and select Mirror, X Global
  8. In Blender, Export the selected hair to OBJ
  9. Back in Daz Studio, with the Geometry Editor tool still selected, select Morph Loader Pro and import the Blender-exported-mirrored OBJ as a morph
  10. Wait and be patient. It takes my computer several minutes to import the OBJ
  11. Dial the created morph to 100% to verify that it works correctly.
  12. Set the min and max morph limits to 0% and 100% with Set Limits checked. Be sure default is 0%.
  13. Save the morph that is created as a Modifier Asset

  Now you have a mirroring morph saved to the hair, and you can use it now and when you load the hair in the future.

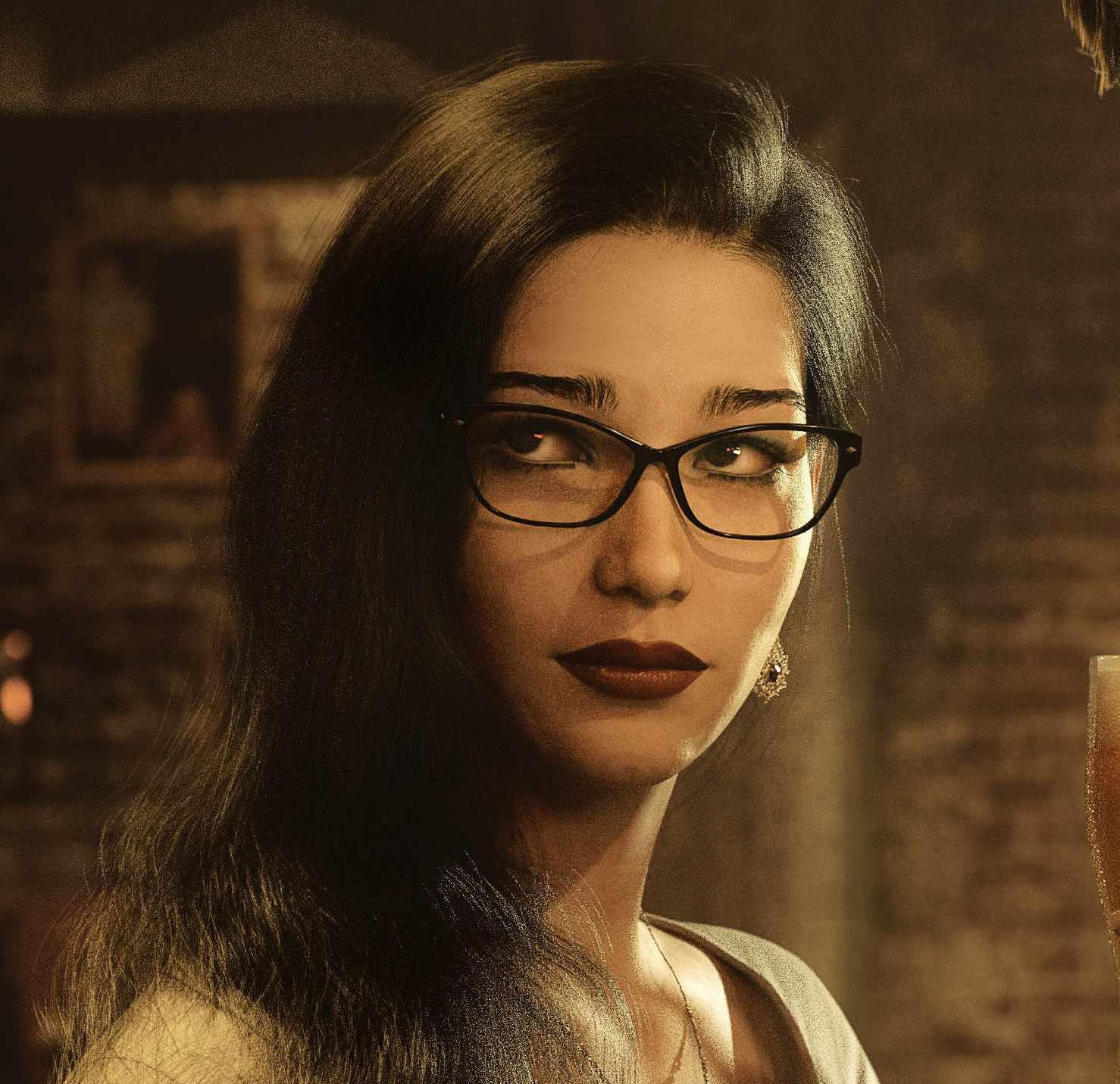

  I don't have Side Swept Glam Hair. Here is an example with Bixie Cut Hair (I only loaded and mirrored the Main hair, and didn't bother with the strays, but they can be mirrored with the same technique).

  You can use this same technique to create morphs for dForce hair, by moving vertices around in edit or sculpt mode in Blender, instead of mirroring the whole hair.





  Bixie Cut Main Hair.jpg

  2000 x 2000 - 1M





  Bixie Cut Main Hair Mirror Morph 100%.jpg

  2000 x 2000 - 1M
• crosswind Posts: 9,645

  January 17

  alan bard newcomer said:

  TimberWolf said:

  Select the root object of the hair and scale it to -100% on the x-axis. This works for pretty much any object you want to reverse, including curves hair.

   wouldn't it be nice if there was a way to "like" posts like in facebook
  ---
  But it does bring up a question for Richard.
  If you do the reverse X and then save if as a scene subset does modified version come back reversed but with a normal X for the new object?
  ----
  I remember years ago where I reversed an object, a piece of bric-a-brac to use on a house and subsequently the scene began to crash, took me a long time to isolate that it was that one object that caused the crashes. And it was not originally created in daz but you would that that a basic imported object would be just like a daz object. And I have imported hundreds over the years and that was the only one that caused issues.

  No matter saving it as a Wearable Preset or a Scene Subset, the hair can be loaded with the reversed shape as well as X Scale set as -100% ~~
• junk Posts: 1,502

  January 18 edited January 20

  Man you guys are awesome! Thank you very much crosswind, barbult and Timberwolf!

  Ended up flipping a different hair all together but love the results here.

  Post edited by junk on January 20
• chris-2599934 Posts: 1,909

  January 22

  https://www.daz3d.com/mirror-geometry-for-genesis-9

  https://www.daz3d.com/mirror-geometry [for genesis 8, dunno if it does 8.1 too]

  https://www.daz3d.com/mirror-geometry-for-genesis-3

  I have the latter two, but I've never used them. Riversoft Art's scripts are usually pretty good though.
• Pendraia Posts: 3,615

  January 24

  barbult said:

  This is how I do it (works for dForce hair):

  1. Load the hair into Daz Studio
  2. Select the Geometry Editor tool
  3. Export the hair to OBJ with Remove Unused Vertices and Write Polylines selected, as well as your normal export settings
  4. Open Blender (I have version 5)
  5. Import the exported hair OBJ into Blender.
  6. In Blender Object Mode, select the imported hair object.
  7. In Blender, Right click and select Mirror, X Global
  8. In Blender, Export the selected hair to OBJ
  9. Back in Daz Studio, with the Geometry Editor tool still selected, select Morph Loader Pro and import the Blender-exported-mirrored OBJ as a morph
  10. Wait and be patient. It takes my computer several minutes to import the OBJ
  11. Dial the created morph to 100% to verify that it works correctly.
  12. Set the min and max morph limits to 0% and 100% with Set Limits checked. Be sure default is 0%.
  13. Save the morph that is created as a Modifier Asset

  Now you have a mirroring morph saved to the hair, and you can use it now and when you load the hair in the future.

  I don't have Side Swept Glam Hair. Here is an example with Bixie Cut Hair (I only loaded and mirrored the Main hair, and didn't bother with the strays, but they can be mirrored with the same technique).

  You can use this same technique to create morphs for dForce hair, by moving vertices around in edit or sculpt mode in Blender, instead of mirroring the whole hair.

  Wow! That sounds so easy Blender normally  makes my brain melt.  I may have to give it another try.
• barbult Posts: 26,394

  January 24

  Pendraia said:

  barbult said:

  This is how I do it (works for dForce hair):

  1. Load the hair into Daz Studio
  2. Select the Geometry Editor tool
  3. Export the hair to OBJ with Remove Unused Vertices and Write Polylines selected, as well as your normal export settings
  4. Open Blender (I have version 5)
  5. Import the exported hair OBJ into Blender.
  6. In Blender Object Mode, select the imported hair object.
  7. In Blender, Right click and select Mirror, X Global
  8. In Blender, Export the selected hair to OBJ
  9. Back in Daz Studio, with the Geometry Editor tool still selected, select Morph Loader Pro and import the Blender-exported-mirrored OBJ as a morph
  10. Wait and be patient. It takes my computer several minutes to import the OBJ
  11. Dial the created morph to 100% to verify that it works correctly.
  12. Set the min and max morph limits to 0% and 100% with Set Limits checked. Be sure default is 0%.
  13. Save the morph that is created as a Modifier Asset

  Now you have a mirroring morph saved to the hair, and you can use it now and when you load the hair in the future.

  I don't have Side Swept Glam Hair. Here is an example with Bixie Cut Hair (I only loaded and mirrored the Main hair, and didn't bother with the strays, but they can be mirrored with the same technique).

  You can use this same technique to create morphs for dForce hair, by moving vertices around in edit or sculpt mode in Blender, instead of mirroring the whole hair.

  Wow! That sounds so easy Blender normally  makes my brain melt.  I may have to give it another try.

  Be sure you heed the Daz Studio part about selecting the Geometry Editor tool.
