I'm new to this and don't know how to import an object along with its texture.

bastiangarrido888bastiangarrido888 Posts: 0
in Bryce Discussion

When I import this object together with the .mtl file, the textures do not load correctly. I think this problem is due to my lack of experience with the program. I would appreciate your help.

Comments

  • Richard HaseltineRichard Haseltine Posts: 107,945

    Please attach your image, embedded images are not shown properly.

    Are the image files in question present, in that location on disc? OBJ has very limited material settings in any event, so you cannot expect a geat deal.

  • Bunyip02Bunyip02 Posts: 9,233
    edited August 18

    A bit of a tutorial - hopefully Horo might chip in with a good recommendation for an advance tutorial on the subject.

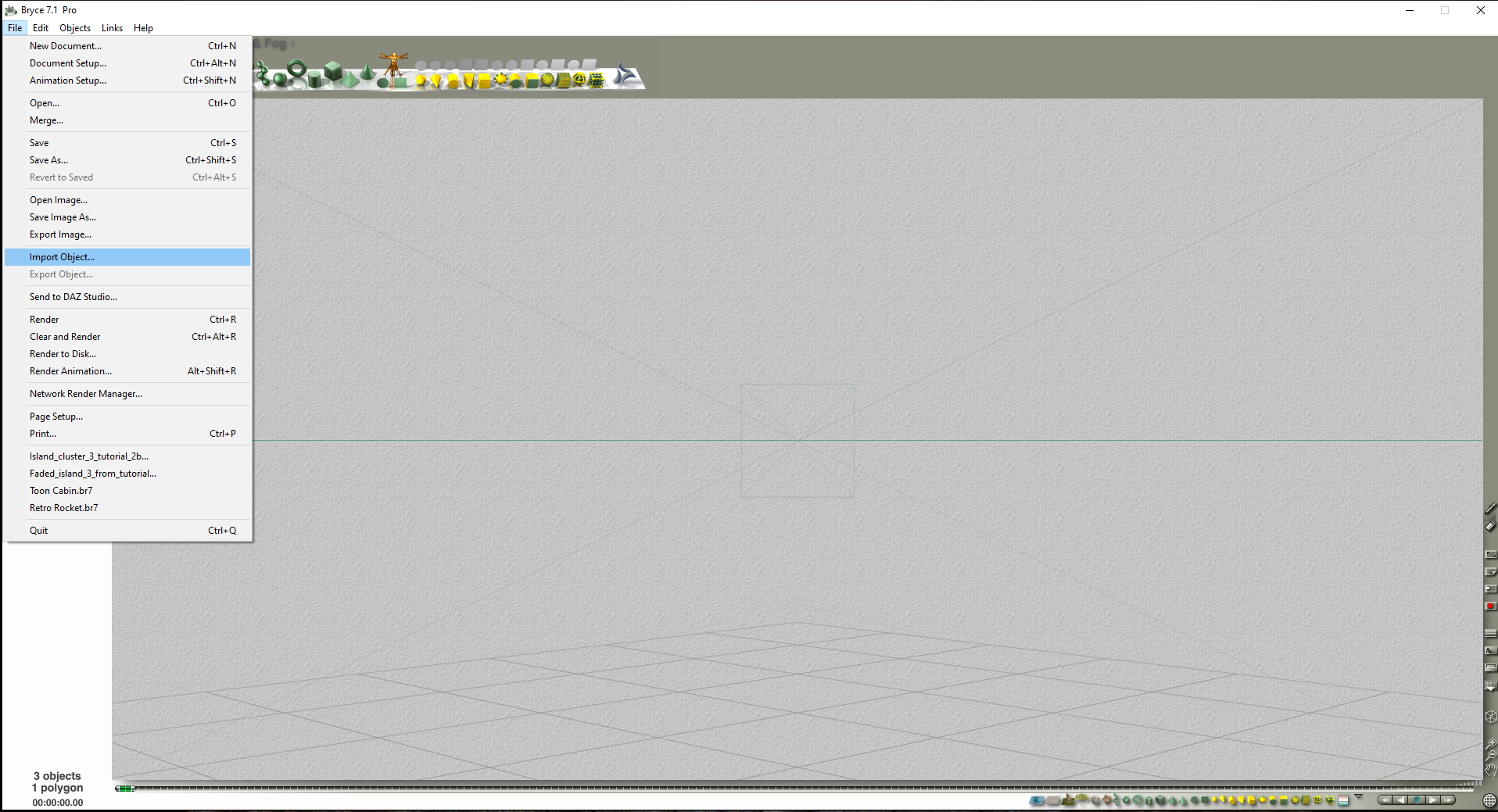

    Click on File then Import Object

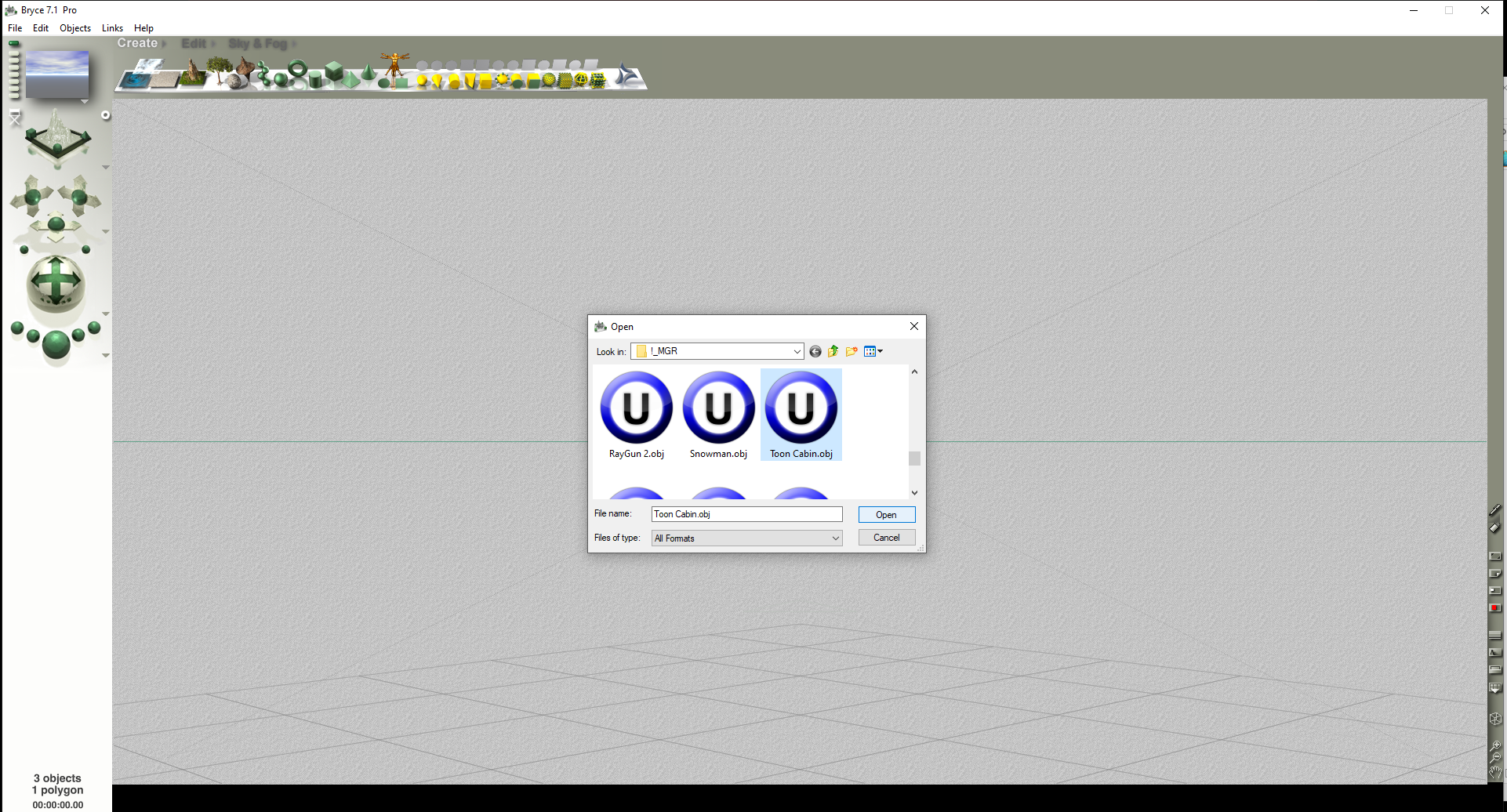

    Locate obj file

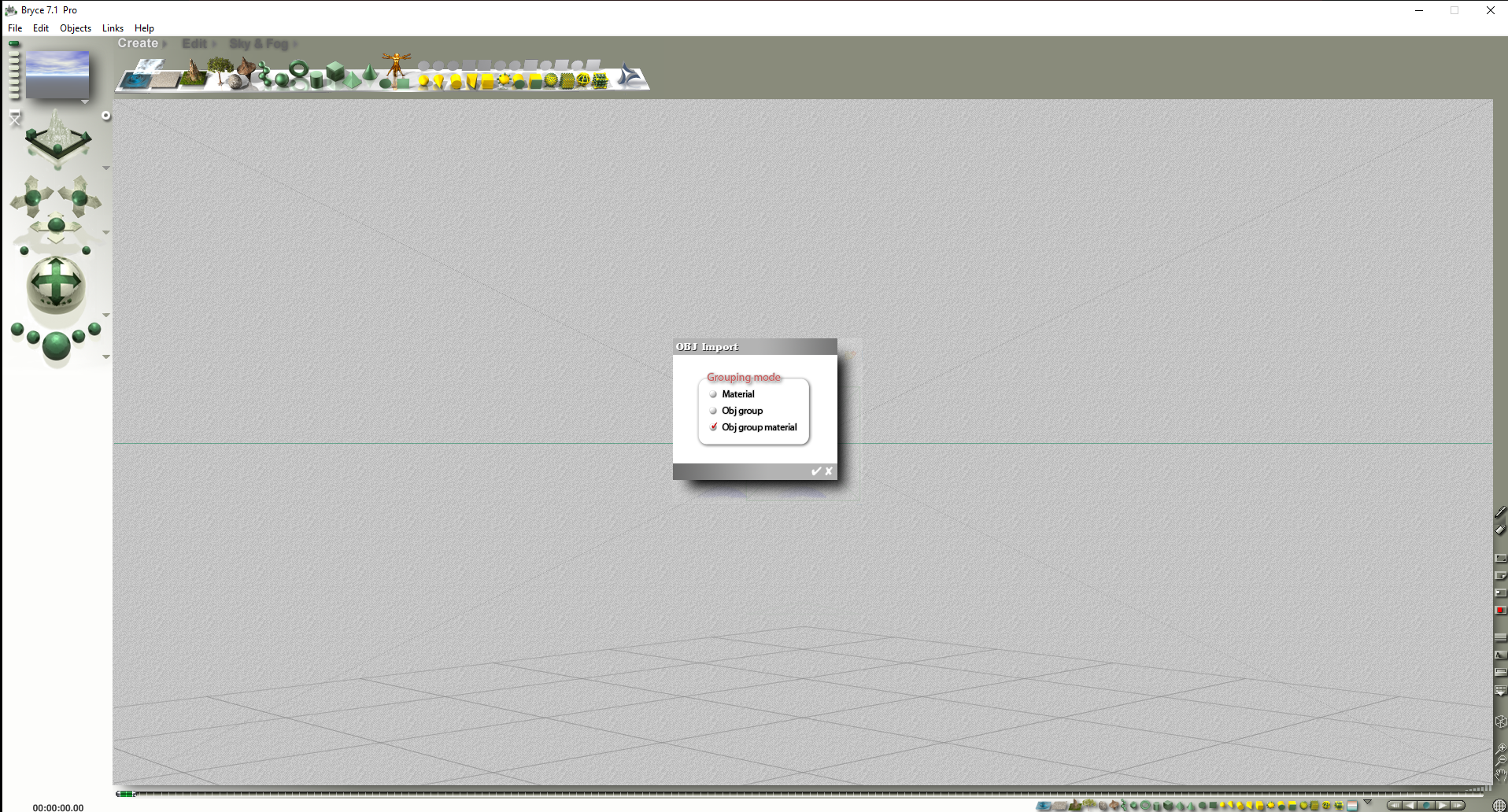

    Click on Obj group material

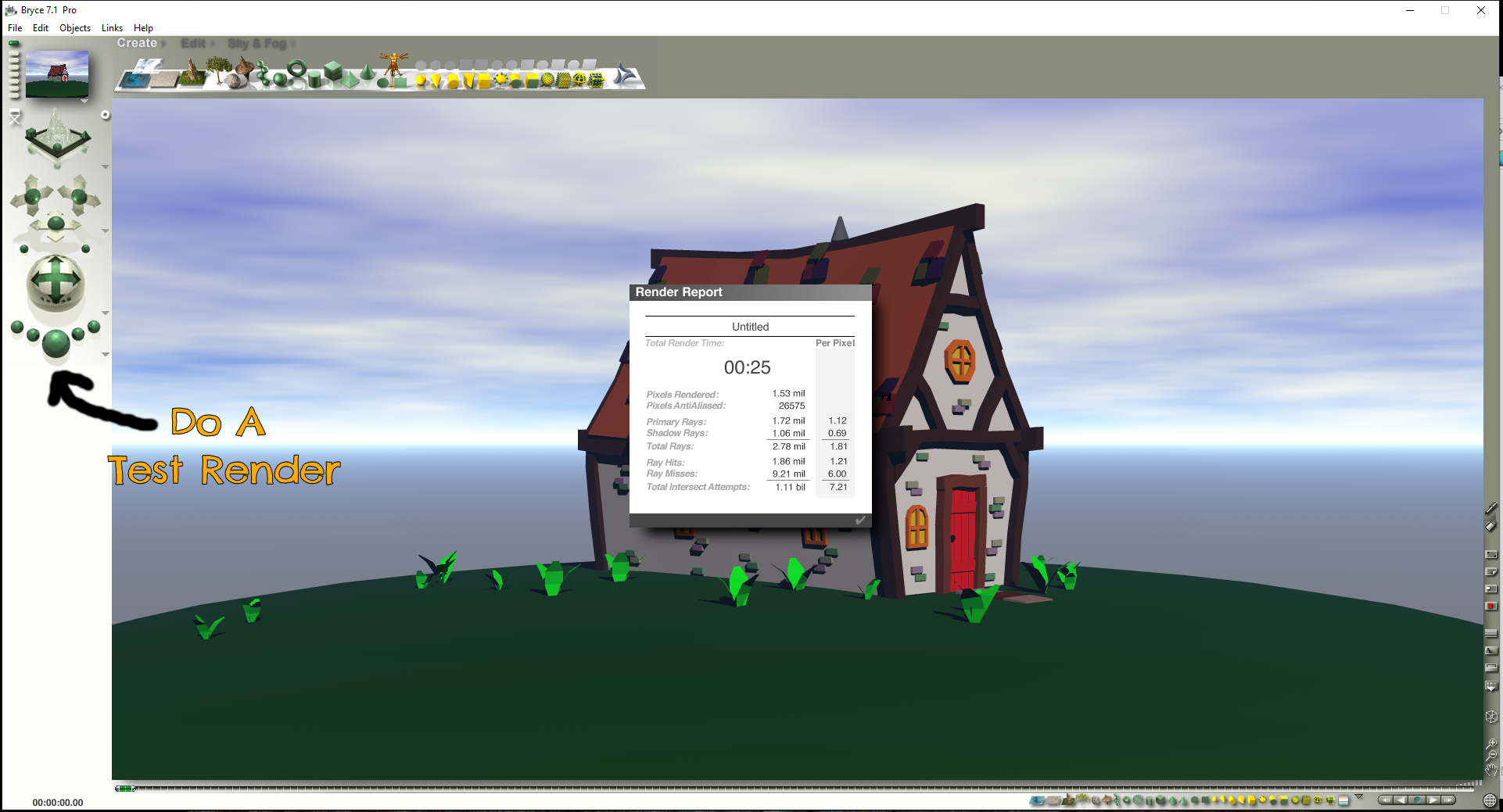

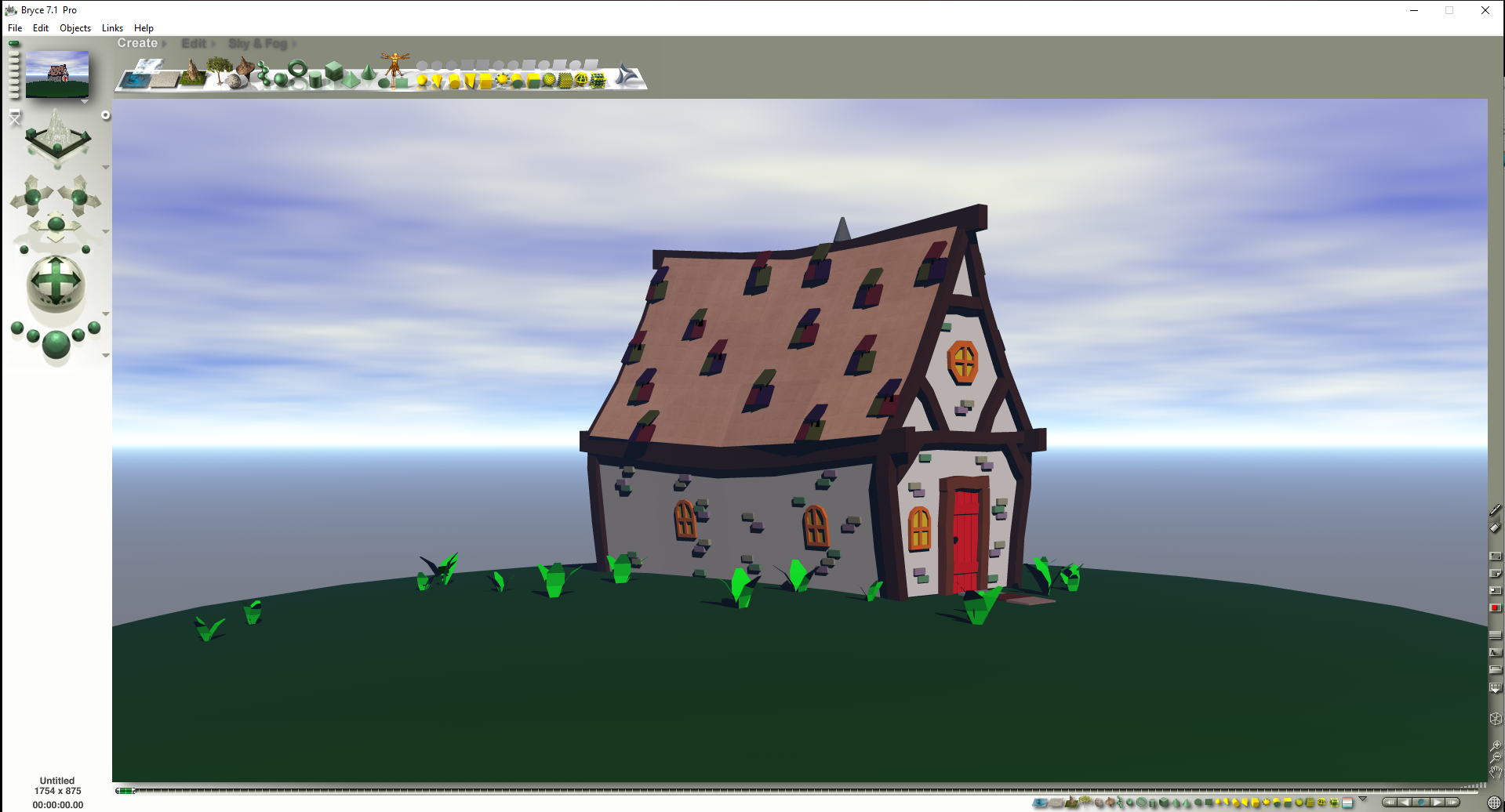

    Do a test render

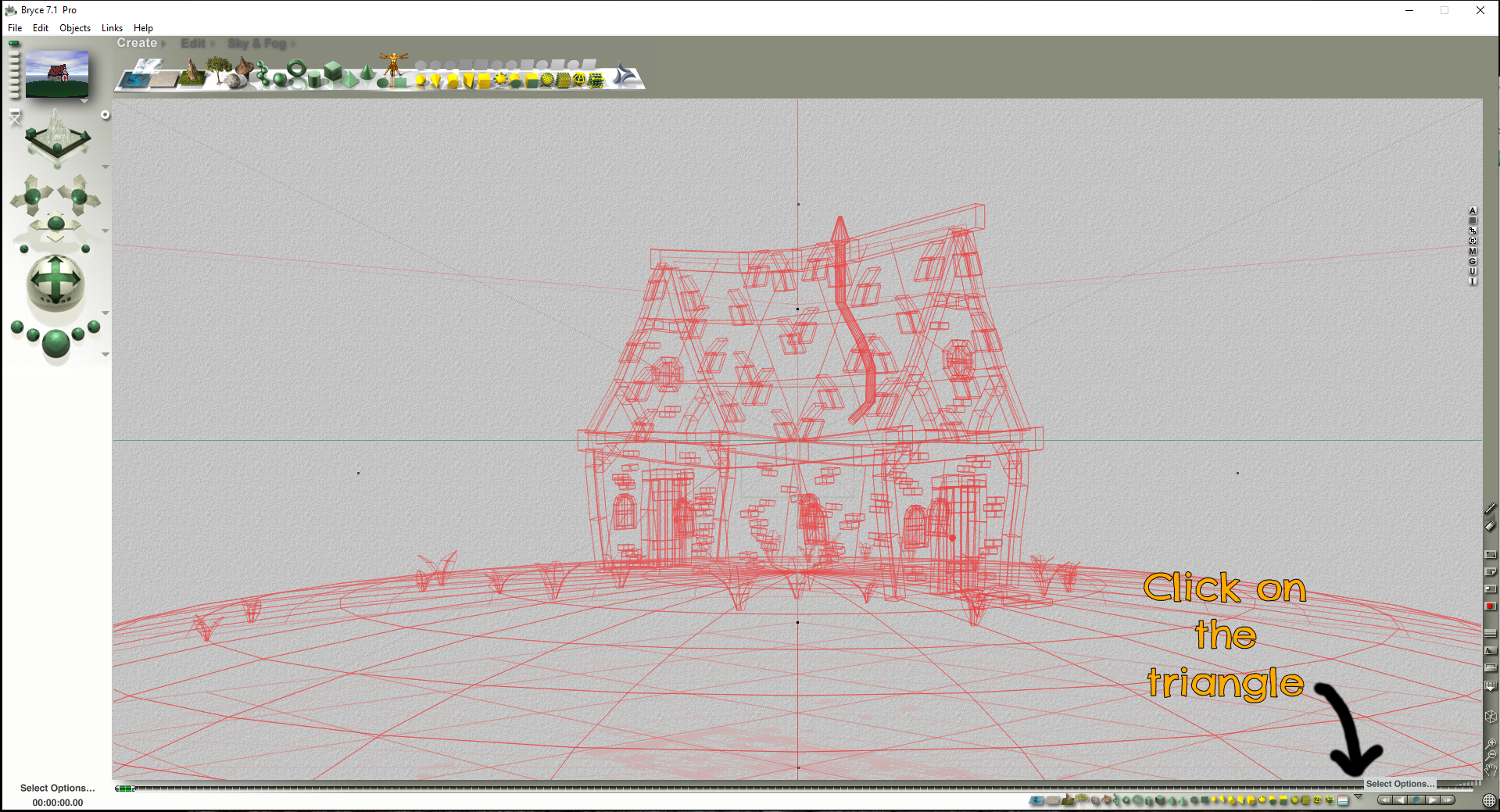

    Some objs have multiple elements, to find out, click on the triangle

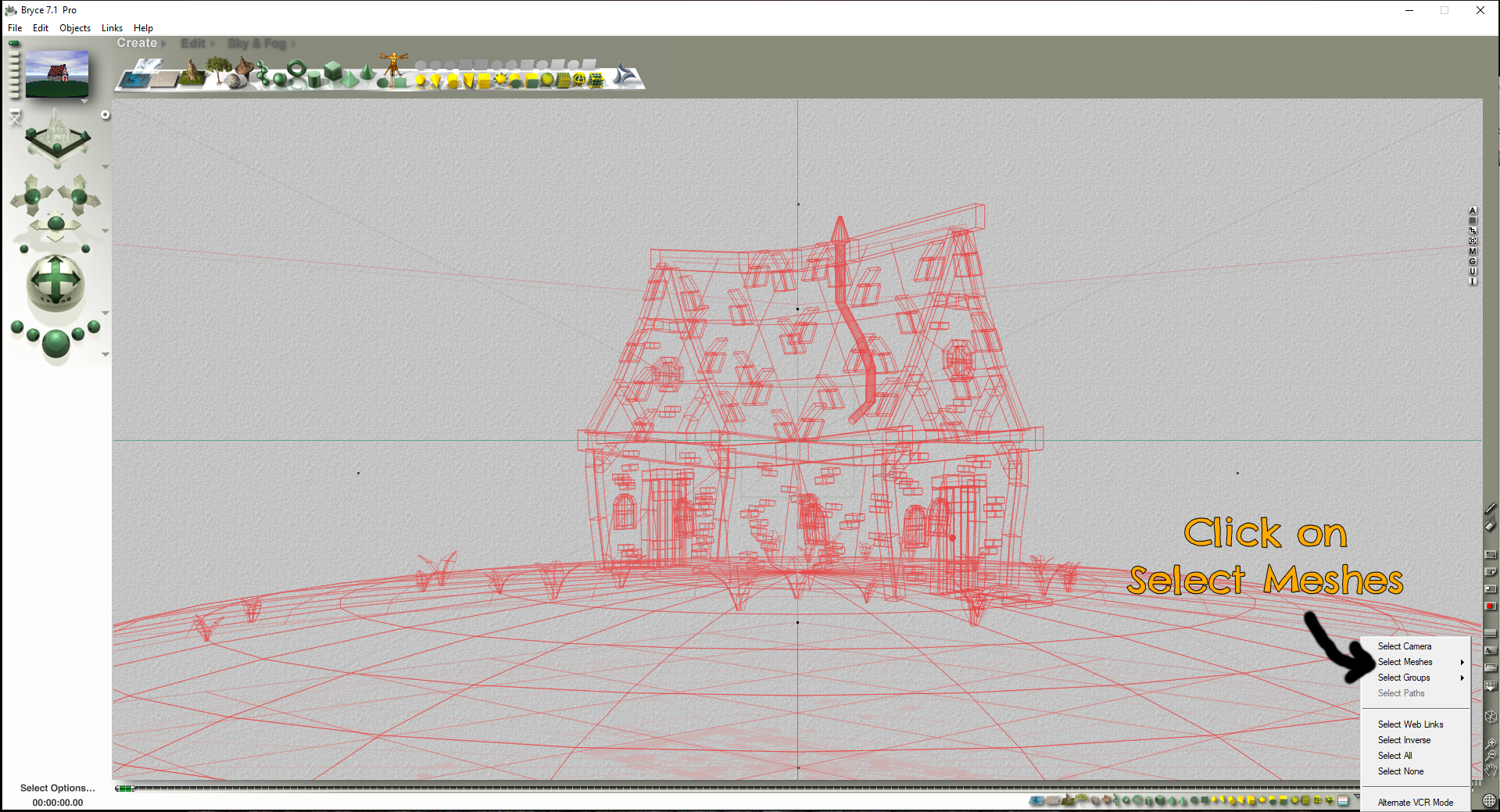

    Click on Select Meshes

    Post edited by Bunyip02 on
  • Bunyip02Bunyip02 Posts: 9,233
    edited August 18

    Continuing -

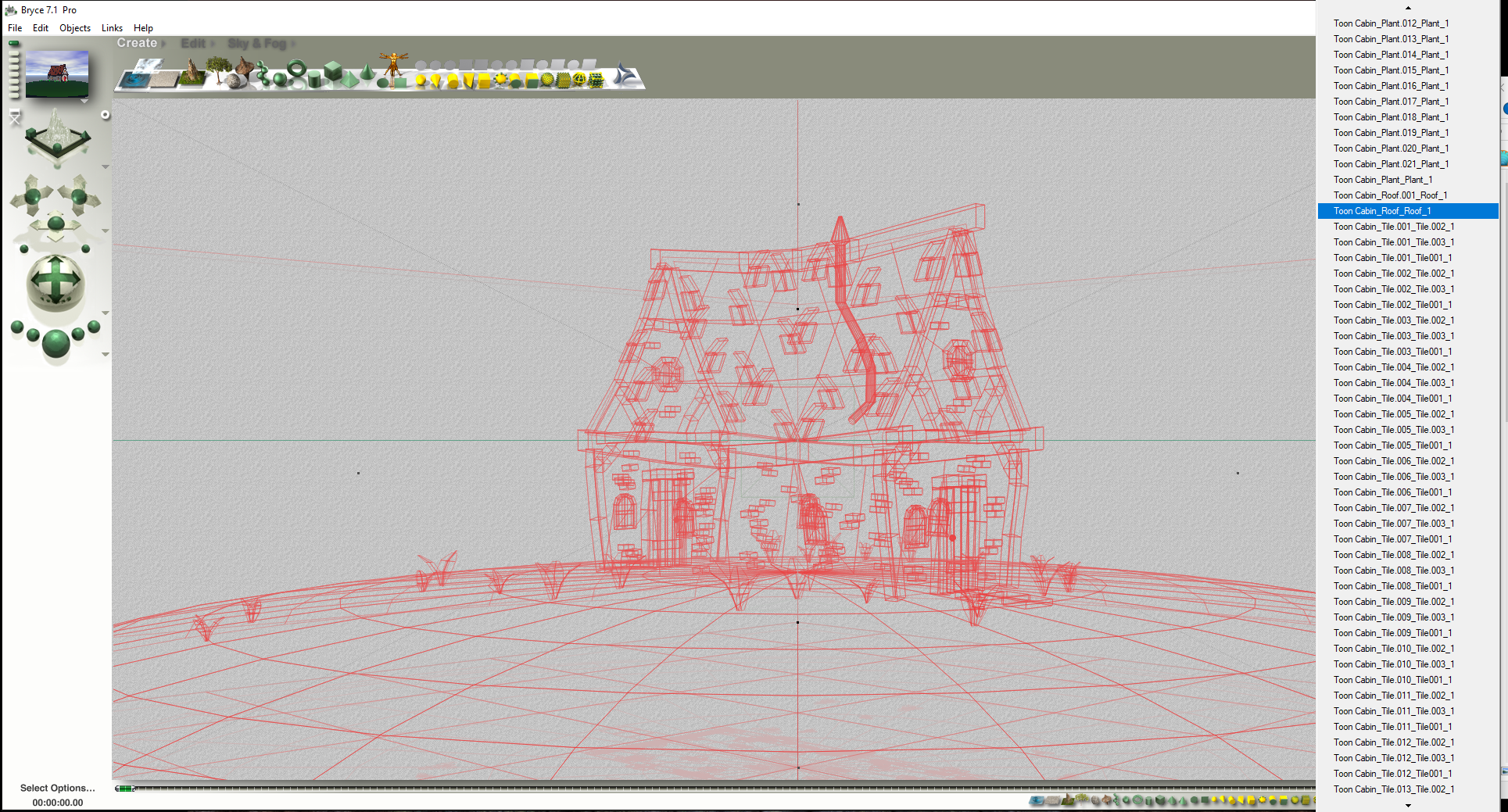

    Scroll down the list to the section of choice, click on it to select

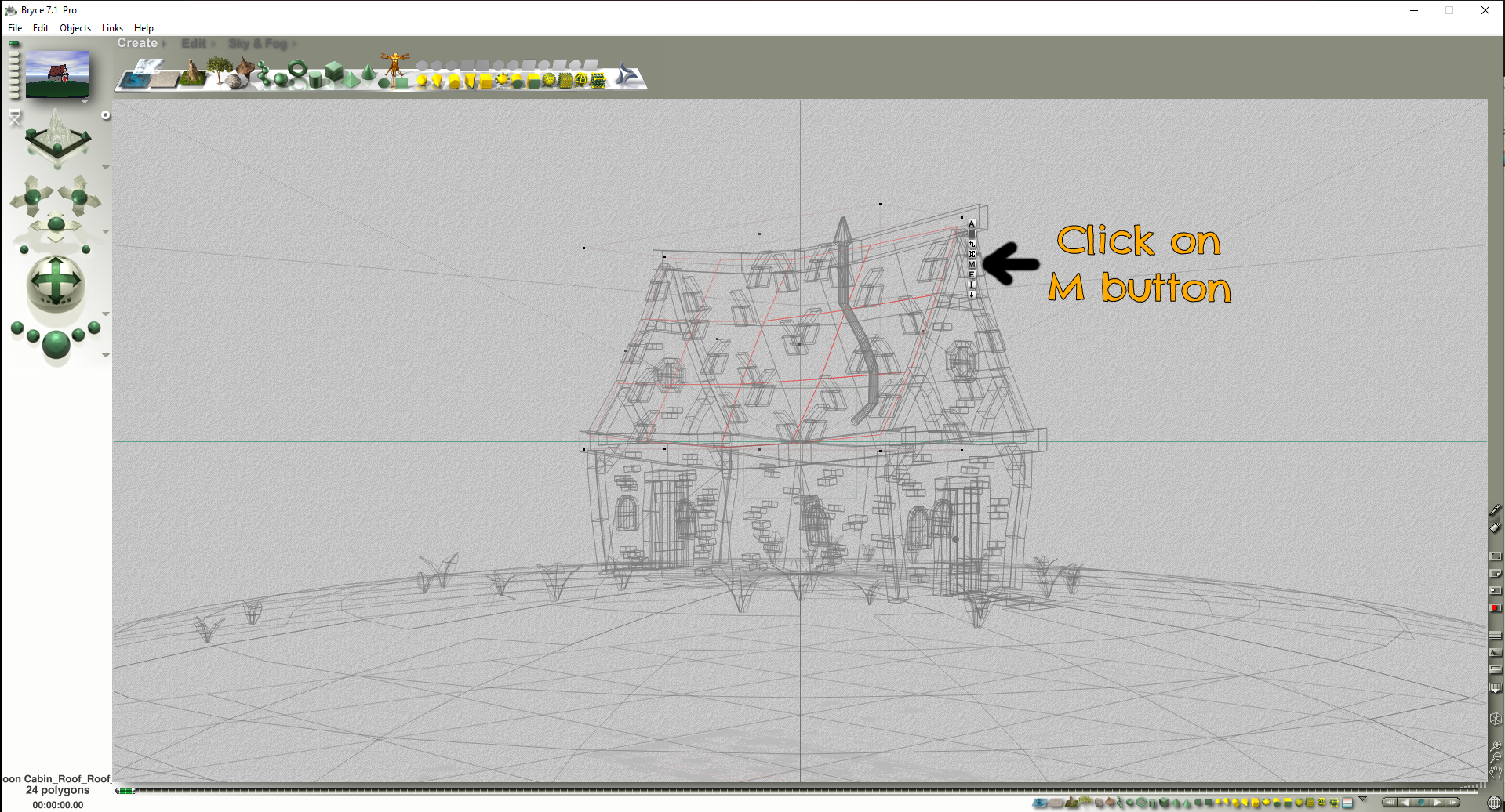

    Check that the area selected has turned red. Next click on the M button

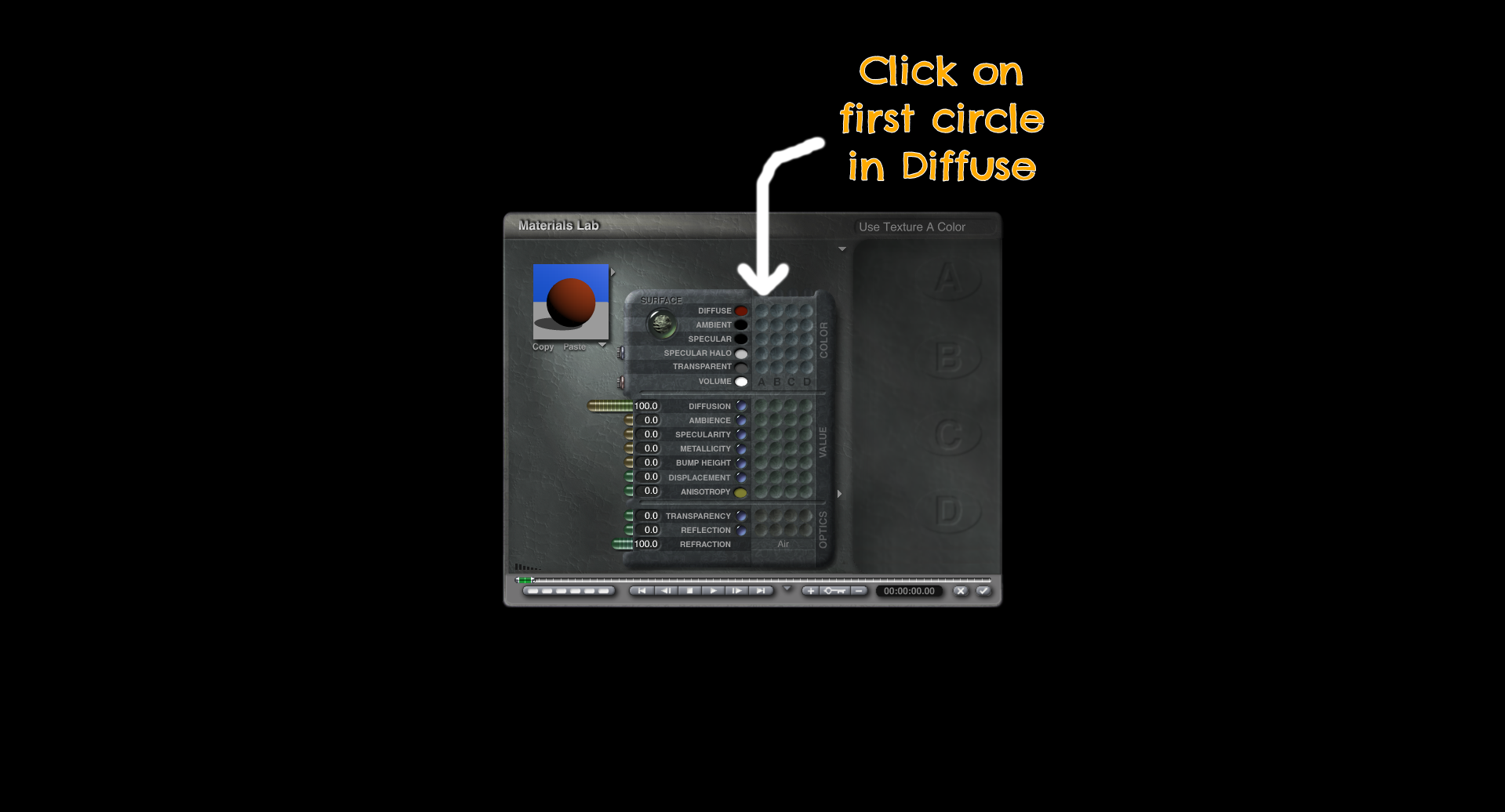

    If it did not load with textures, click on the first circle in the Diffuse row

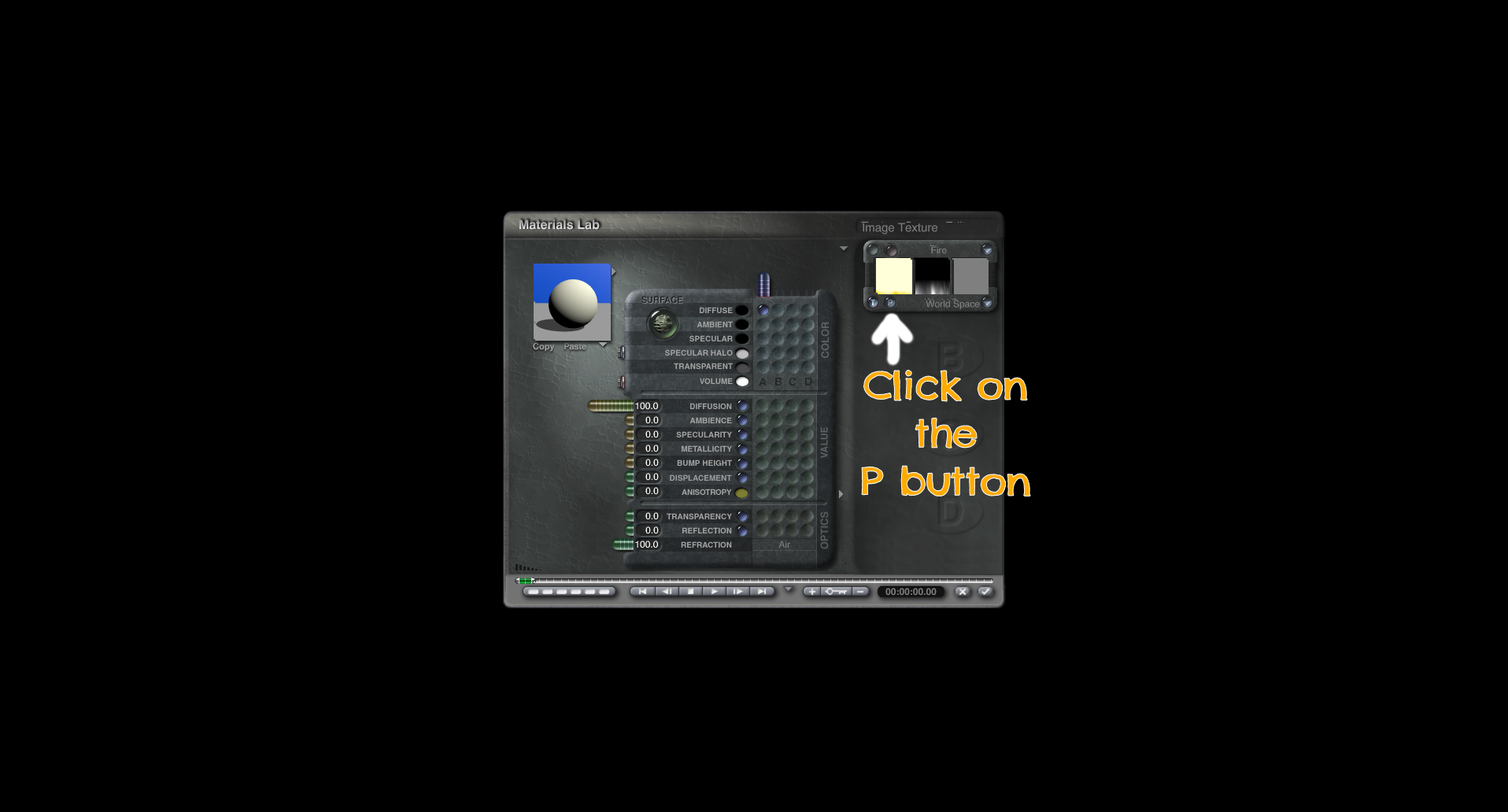

    Click on the P button

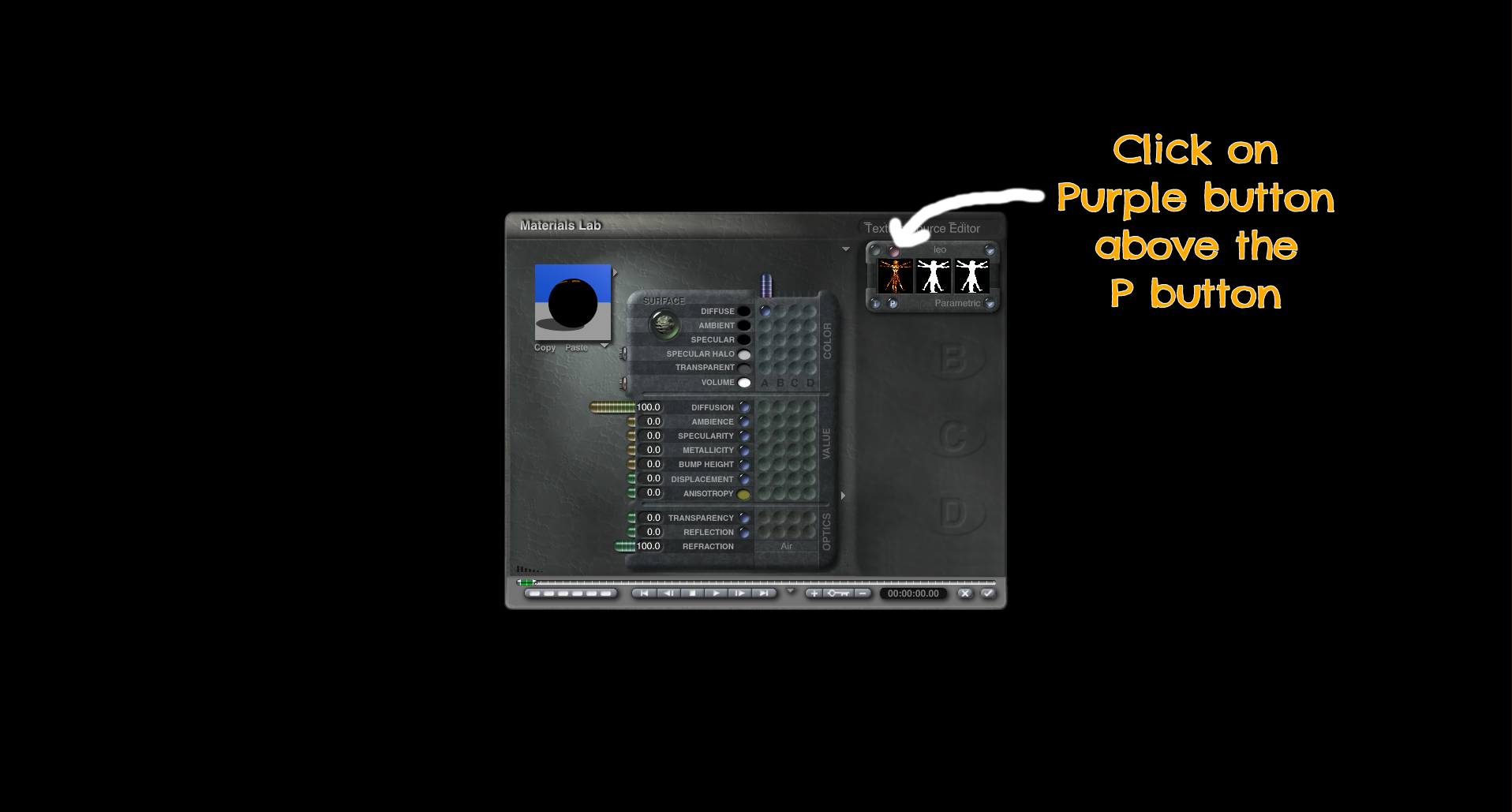

    Click on Purple button above the P button

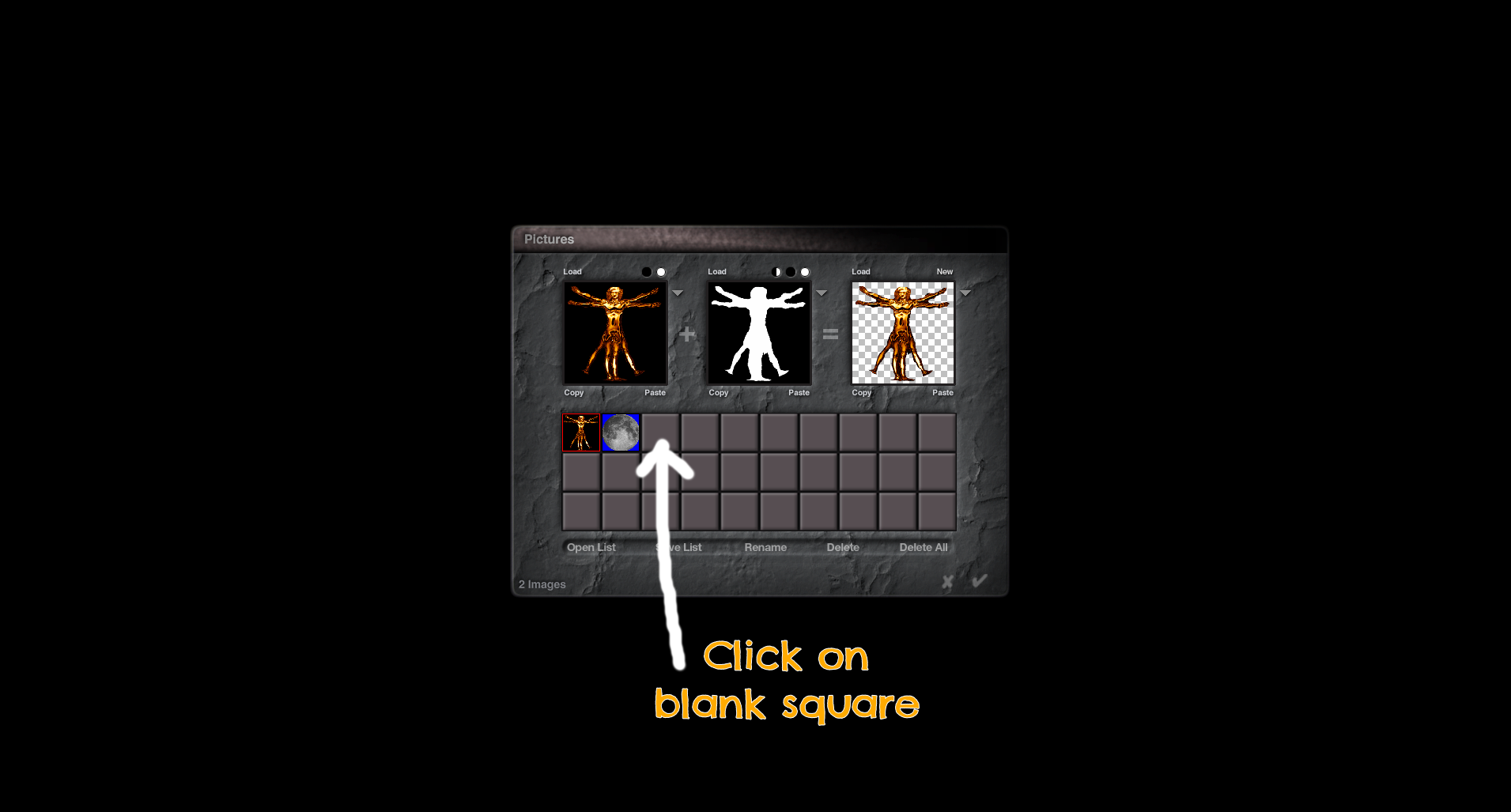

    Click on blank square next to the images to begin loading a texture

    Post edited by Bunyip02 on
  • Bunyip02Bunyip02 Posts: 9,233
    edited August 18

    Continuing -

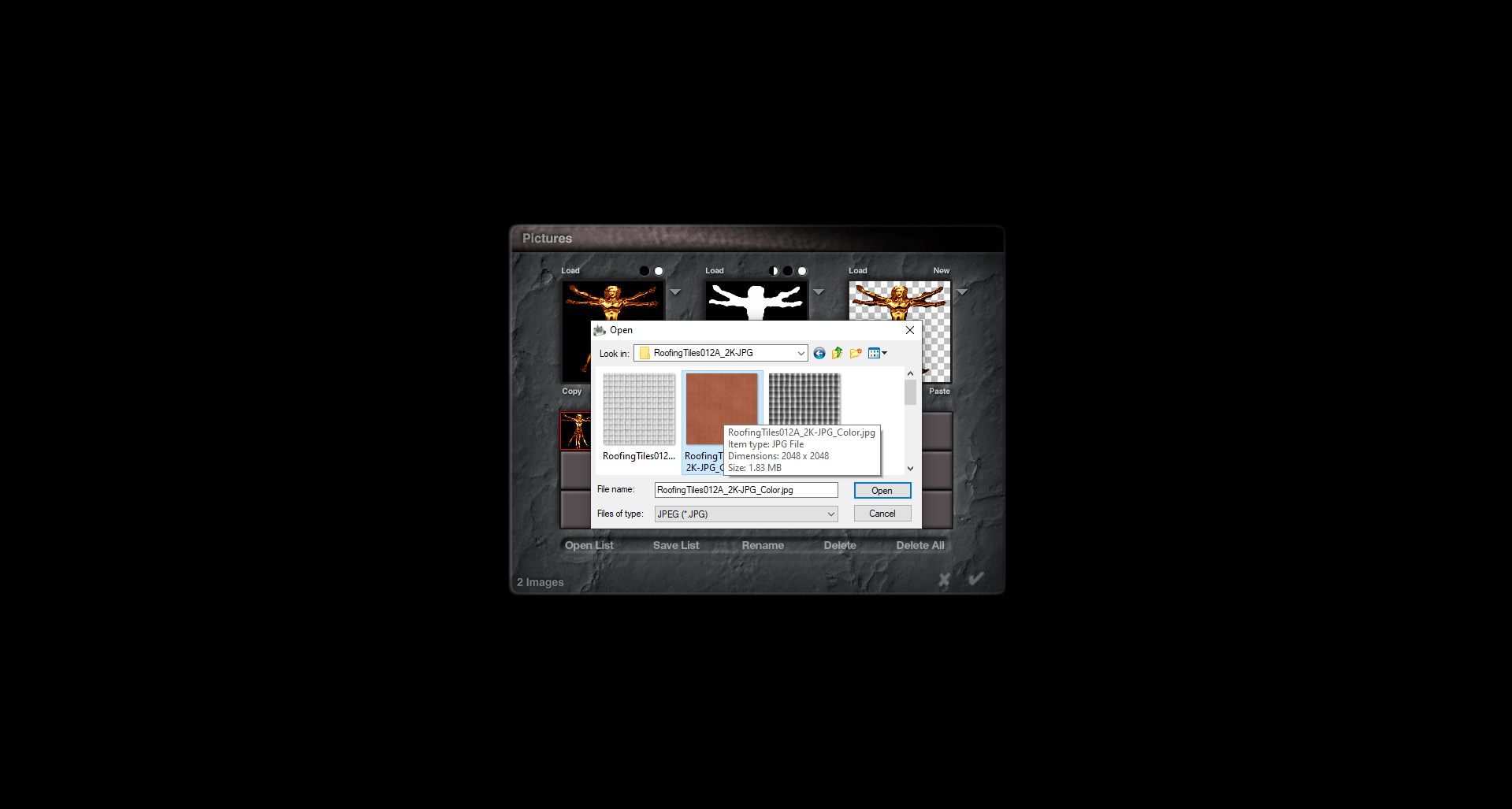

    Locate your texture file

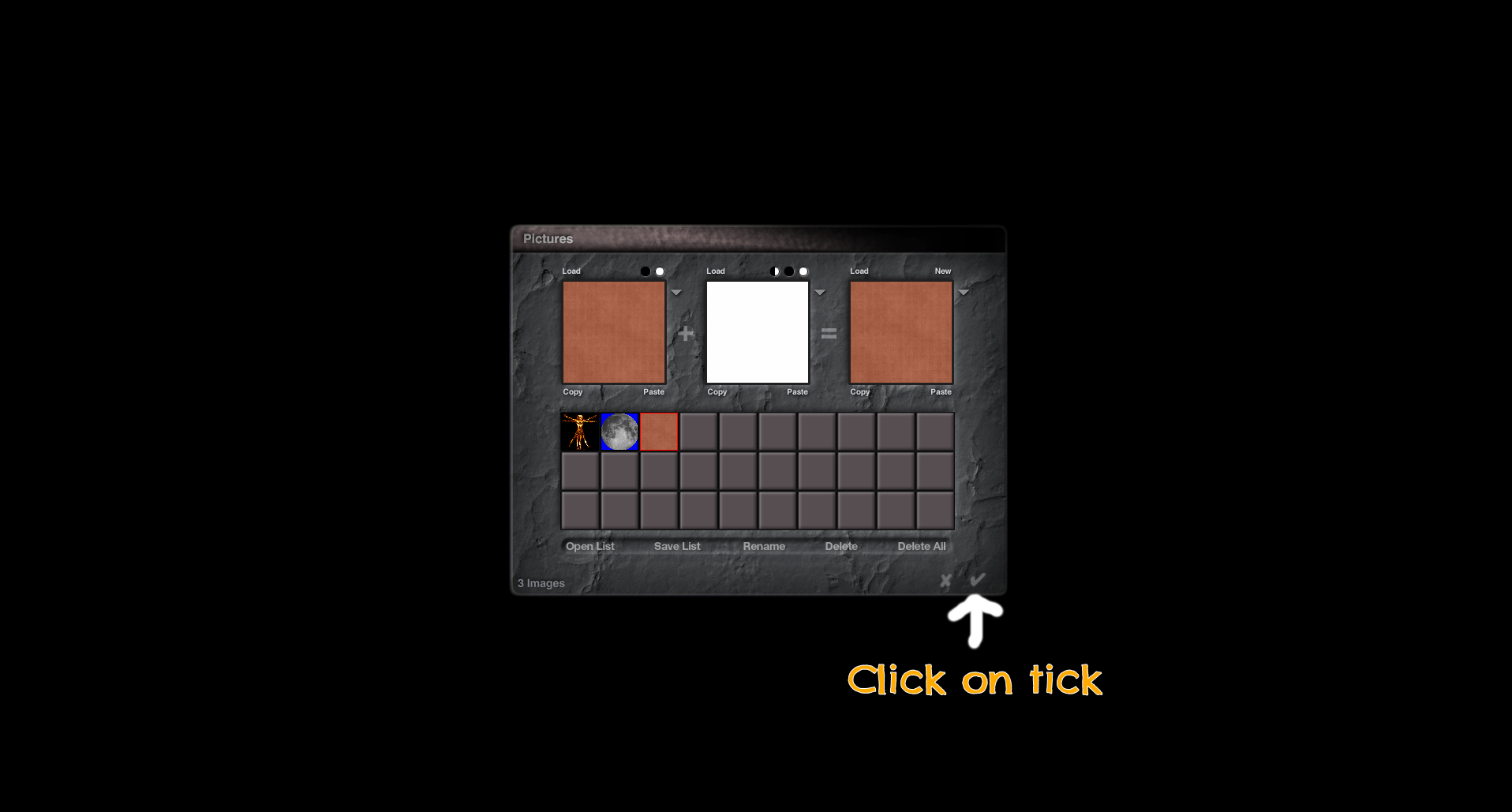

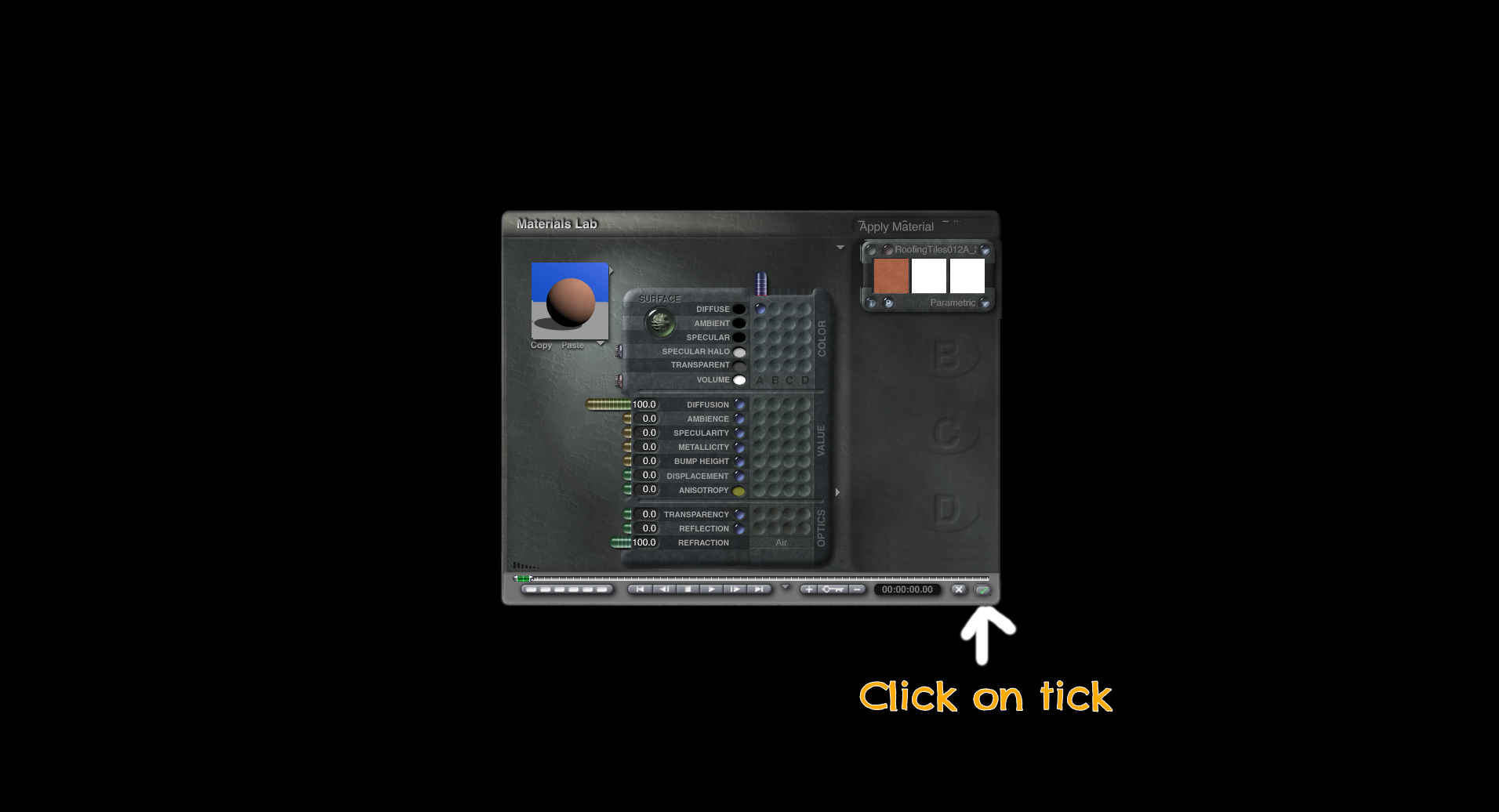

    Click on tick to accept

    Click on tick to accept

    Do a test render to see how the change looks

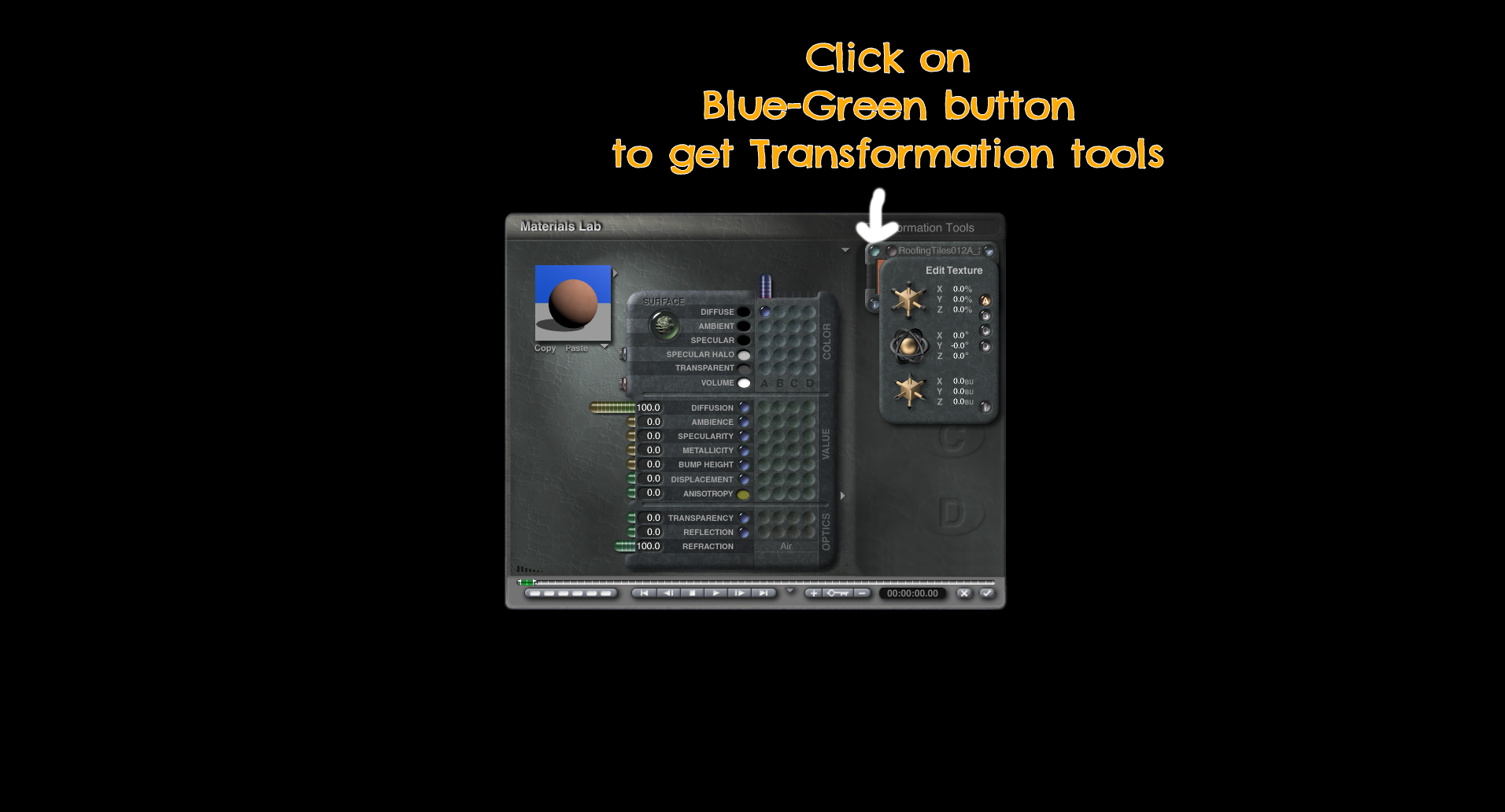

    If you go and click on the M button again, then click on the Blue-Green button you get the Transformation tools.



    Bryce Import 1.png
    1916 x 1039 - 216K
    Bryce Import 2.png
    1922 x 1036 - 323K
    Bryce Import 3.png
    1916 x 1032 - 343K
    Bryce Import 5.png
    1922 x 1039 - 1M
    Bryce Import 6.png
    1919 x 1039 - 857K
    Bryce Import 7.png
    1919 x 1039 - 849K
    Bryce Import 8.png
    1929 x 1039 - 818K
    Bryce Import 9.png
    1919 x 1036 - 655K
    Bryce Import 9b.png
    1919 x 1036 - 671K
    Bryce Import 10.png
    1919 x 1036 - 480K
    Bryce Import 11.png
    1916 x 1032 - 481K
    Bryce Import 12.png
    1916 x 1029 - 499K
    Bryce Import 13.png
    1911 x 1027 - 347K
    Bryce Import 14.png
    1919 x 1027 - 326K
    Bryce Import 15.png
    1916 x 1029 - 340K
    Bryce Import 16.png
    1912 x 1036 - 481K
    Bryce Import 17.png
    1919 x 1036 - 1M
    Bryce Import 18.png
    1912 x 1032 - 530K
    Post edited by Bunyip02 on
  • HoroHoro Posts: 11,338

    bastiangarrido888 - get this free 11 page PDF document: https://horo.ch/docs/mine/pdf/BryceContent_v4.pdf it should help you understand where objects, materials etc. belong.

  • mermaid010mermaid010 Posts: 6,043

    bastiangarrido888 said:

    When I import this object together with the .mtl file, the textures do not load correctly. I think this problem is due to my lack of experience with the program. I would appreciate your help.



    I have this problem only with most freebies, I normally have to texture the object from the images included in the file, just like Bunyip02 showed.

  • HansmarHansmar Posts: 3,134

    I recognize the issue and also use Bunyip's approach, or, preferably, change textures to procedural textures from Bryce to save many MBs.
