Need Help with Animating Overhead Garage Door

I’m trying to figure out how to animate a standard overhead Garage Door the rolls up. I could use some suggestions how to do it. I have tried using the Bi-fold concept but it’s not the result that I want.

Thanks,

800 x 532 - 29K

Comments

  • MarcCCTxMarcCCTx Posts: 854
    edited September 10

    Do you actually needed rolling up? There is a second garage door for the Dream Home already in the up position. LoRez sketch attached.


    Otherwise, you would have to take the door apart and add bones and limits.

    lorez test.jpg
    1000 x 1000 - 854K
    Post edited by MarcCCTx on
  • MarcCCTxMarcCCTx Posts: 854
    edited September 10

    dupe post.

    Post edited by MarcCCTx on
  • StezzaStezza Posts: 5,778

    I don't do animations but I would imagine the door would have to be modeled like a linked tank tread or linked bike chain so it can bend around the top whilst it opens and closes.

    so using an animated system similar to tank tread should work... you just need to model the door accordingly...  then animate it cool

    other Carrara users who do animations will have better ideas.

  • DiomedeDiomede Posts: 11,404
    edited September 10

    What Stezza said.

    I only add that there was a plugin that might help, maybe.  If the door is a treated as a wide chain and the top of the doorframe a pulley, the plugin would animate the door.

    http://www.sparrowhawke3d.com/Sparrowhawke3DPlugins.html

    bb01 carrara plugin pulley.jpg
    790 x 292 - 29K
    Post edited by Diomede on
  • WendyLuvsCatzWendyLuvsCatz Posts: 28,464
    edited September 11

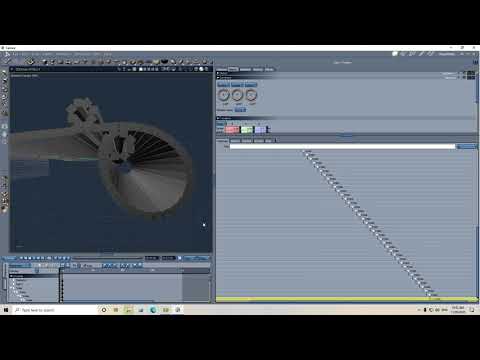

    maybe make a long skinny cube (a slat) duplicate and move it down and keep going untill you have a door,

    parent one to the next

    in animation set IK limits ball joint so they only rotate on the X axis and maybe about +/- 170°

    lock the top one

    then pull the end "bone" slat and  roll it up

    once set can unlock the top one and unroll it along the timeline pulling the rest down locking it as you do then make an NLA clip to drive that action ( can be reversed sped up etc)

    Post edited by WendyLuvsCatz on
  • WendyLuvsCatzWendyLuvsCatz Posts: 28,464

    LOL actually I have no bloody idea

  • DartanbeckDartanbeck Posts: 16,457

    My wife just pushes the button on the garage door opener ;)

  • WendyLuvsCatzWendyLuvsCatz Posts: 28,464

    I am thinking the old cylinder and a lengthening plane trick

    and untile the texture as it grows

  • DartanbeckDartanbeck Posts: 16,457

    Kidding. If you need it opening from the inside like that, but the model doesn't include appropriate morphs to make it happen, you could use VFX techniques to make it happen. Use a clean plate of the garage with no door, and another with the door closed. Animate the door as a simple plane going straight up until it reaches full height. Do another animation with the same plane turned horizontal coming at us along the upper tracks. It would then take VFX trickery to blend everything together using masks on each element to get the desired effect.

    Better options might include:

    Sound - The sound of a garage door opening will convince the audience that the garage door is opening, so you don't need to show the whole thing. This is a common filmmaker technique - maybe not for this, but...

    In that case, you could set the camera so that we cannot see the ceiling as the bottom of the door begins to lift. Another angle might be shot showing the door above moving along the tracks - but it's just a simple plane. ILM and Weta Digital and all other VFX studios use these sorts of techniques. In fact, things like this is the reason why most VFX supervisors have someone from the studio during the film shoot, so that they can direct the Director on what can and cannot be done on the agreed upon budget.

    Another great option is to do as Stezza and Diomede suggest above.

  • WendyLuvsCatzWendyLuvsCatz Posts: 28,464

    my crappy idea and the plane and cylinder

  • DesertDudeDesertDude Posts: 1,058

    Some cool ideas here everyone!

    For this I used a Bend and Twist Modifier on the garage door with a Bend Angle set to 90 and the Limits set to 80 - 100%. Over four seconds I animated the Limits to 0 - 5%. I also tweaked the Hot Point and the Position slightly, but I don't fully understand what I did, lol, so I want to redo it so I can provide a clear explanation. I'm pressed for time at the moment but will be back this evening with more detail once I figure out why I had to do it that way.



  • Turk_WLFTurk_WLF Posts: 177

    I have looked into both "Tracks and Chains Package" and "The Belt Drive" Plug-ins, while both solve part of the problem, they don't work because they both have full loop "The Belt & the Tracks" for the door.

  • DesertDudeDesertDude Posts: 1,058
    edited September 13

    Not sure if this is useful at all as a solution but here are the basic steps I took:

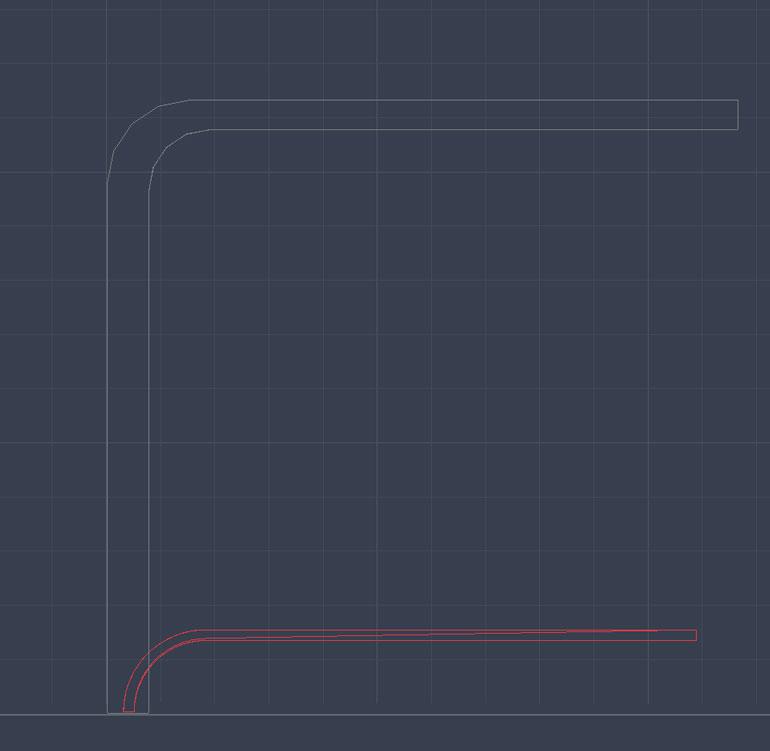

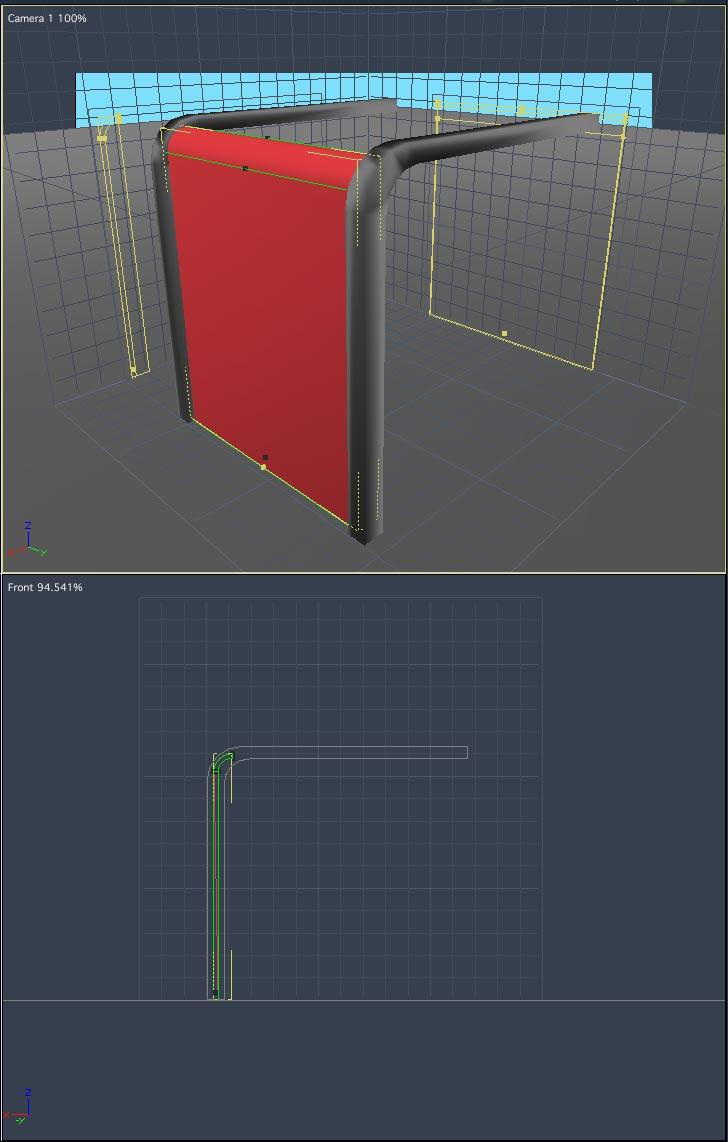

    In the vertex modeler I made a simple track shape using the points from 1/4 of a disc, then connected to more points one at the vertical base and one for the horizontal end part of the track. I extruded that polyline and added a bit of thickness. I then added a simple box for a door and scaled it to 'fit' the tracks, then broke out the object into two parts - the door and the tracks.

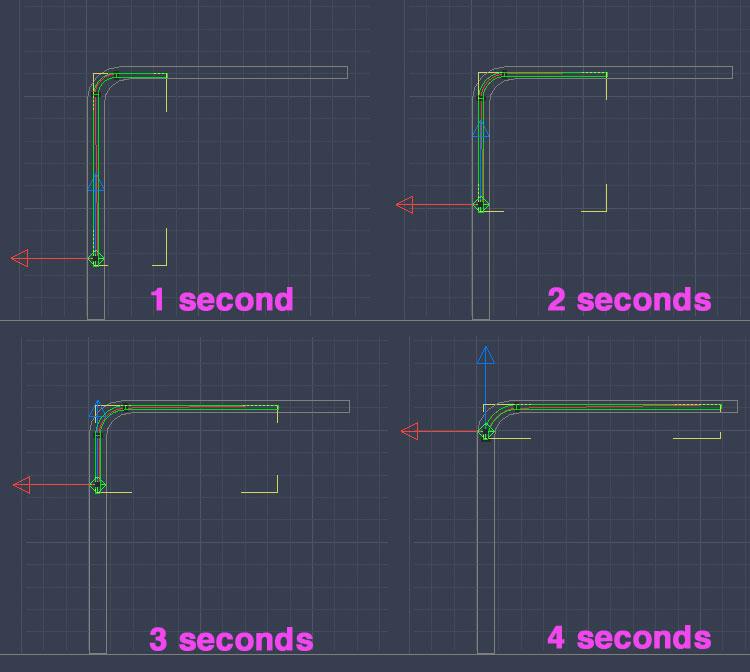

    To the door I added the Bend and Twist Modifier, set the Bend Angle to 90 and set initial Limits to 90 - 100.





    At the 4 second mark I changed to Limits to 0 - 20.





    If you test the animation at this stage, the door bends, but then flattens like a platform moving down - not what we want.

    So back at the 4 second mark I moved the door up on the 'Z' axis to match the horizontal part of the track.





    I did have to fiddle with the Limits to find settings that kept the door on the track. It still moves slightly which is why this may not work for you. I guess it depends how detailed you need the animation to be, where is camera etc.

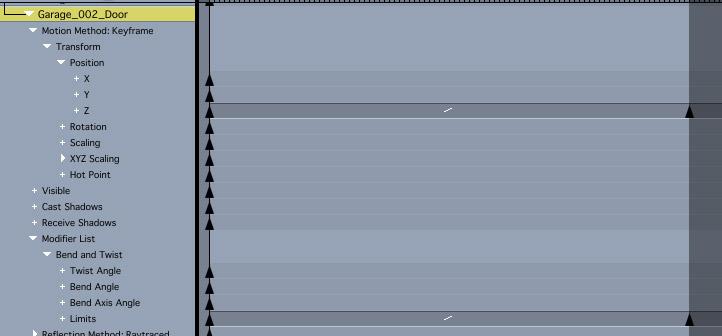

    Lastly, here is a picture of the Sequencer - just 2 keyframes - 'Limits' and Position on the 'Z' axis.







    728 x 1142 - 70K
    244 x 250 - 10K
    230 x 248 - 12K
    770 x 751 - 28K
    750 x 672 - 64K
    722 x 336 - 33K
    Post edited by DesertDude on
  • DesertDudeDesertDude Posts: 1,058

    I am thinking the old cylinder and a lengthening plane trick

    and untile the texture as it grows

    Was this what you were thinking of?

    https://www.daz3d.com/forums/discussion/comment/663427/#Comment_663427

  • WendyLuvsCatzWendyLuvsCatz Posts: 28,464

    I am thinking the old cylinder and a lengthening plane trick

    and untile the texture as it grows

    Was this what you were thinking of?

    https://www.daz3d.com/forums/discussion/comment/663427/#Comment_663427

    mine was much simpler as seen in the second half of my video but I got the tiling speed wrong

  • DesertDudeDesertDude Posts: 1,058
    edited September 13

    I am thinking the old cylinder and a lengthening plane trick

    and untile the texture as it grows

    Was this what you were thinking of?

    https://www.daz3d.com/forums/discussion/comment/663427/#Comment_663427

    mine was much simpler as seen in the second half of my video but I got the tiling speed wrong

    Cool, cool. Do you mind if I ask what the objejt looks like? Is it 2 objects with the animated tiling.

    I didn't know one could animate the tiling count, just tried a quick test. Sweet.

    Post edited by DesertDude on
  • WendyLuvsCatzWendyLuvsCatz Posts: 28,464

    I am thinking the old cylinder and a lengthening plane trick

    and untile the texture as it grows

    Was this what you were thinking of?

    https://www.daz3d.com/forums/discussion/comment/663427/#Comment_663427

    mine was much simpler as seen in the second half of my video but I got the tiling speed wrong

    Cool, cool. Do you mind if I ask what the objejt looks like? Is it 2 objects with the animated tiling.

    I didn't know one could animate the tiling count, just tried a quick test. Sweet.

    just a cube and a cylinder resizing and translating, very very simple

  • DesertDudeDesertDude Posts: 1,058

    just a cube and a cylinder resizing and translating, very very simple

    Cool, thanks! smiley

  • DiomedeDiomede Posts: 11,404

    Any chance we can see what was chosen as the solution?

    I'm curious.  smiley
