All textures show black on Genesis character?

WsCGWsCG Posts: 391
edited July 2020 in Carrara Discussion

Hello,

What the subject says. I purchased a few characters for Genesis, and every one of them turn black when I apply the materials. They don't render, either.

I've tried googling this, but can't find the reason why. They're definitely for Genesis, and I didn't get them for the wrong generation, etc.

How do I fix this?

Thanks

851 x 761 - 87K
Post edited by WsCG on

Comments

  • DartanbeckDartanbeck Posts: 21,210
    TwoCats said:

    Hello,

    What the subject says. I purchased a few characters for Genesis, and every one of them turn black when I apply the materials. They don't render, either.

    I've tried googling this, but can't find the reason why. They're definitely for Genesis, and I didn't get them for the wrong generation, etc.

    How do I fix this?

    Thanks

    If at first this process seems like a real pain in the behind, please keep in mind that it becomes completely second-nature very quickly - okay? It truly is worth the know-how and becomes fun and powerful! We'll get the basics down now, but in the near future we'll cover how to use some real magic within the Carrara shader system to get some truly incredible results!

    So, this video uses Victoria 4 as an example, but it will at least get you a good idea of how to fix your shaders on a basic level - even your Genesis. The Genesis turning Black is a different issue than V4, but following the same procedures should get you there:

    Now please keep in mind that the video was made quite a long time ago. Nowadays I no longer use Black for Highlight except on rare occassions. Instead I add the Specular map (texture_name_S) and then turn the brightness of that map down to make it less glossy. But just making Highlight Black is a quick and simple solution for a good, basic skin.

    I'd also like to point out that I am currently making all new videos on all of this stuff, so really soon we'll be getting much better information in much more efficient, easier to follow videos. So stay tuned! ;)

  • Bunyip02Bunyip02 Posts: 7,662
    edited July 2020

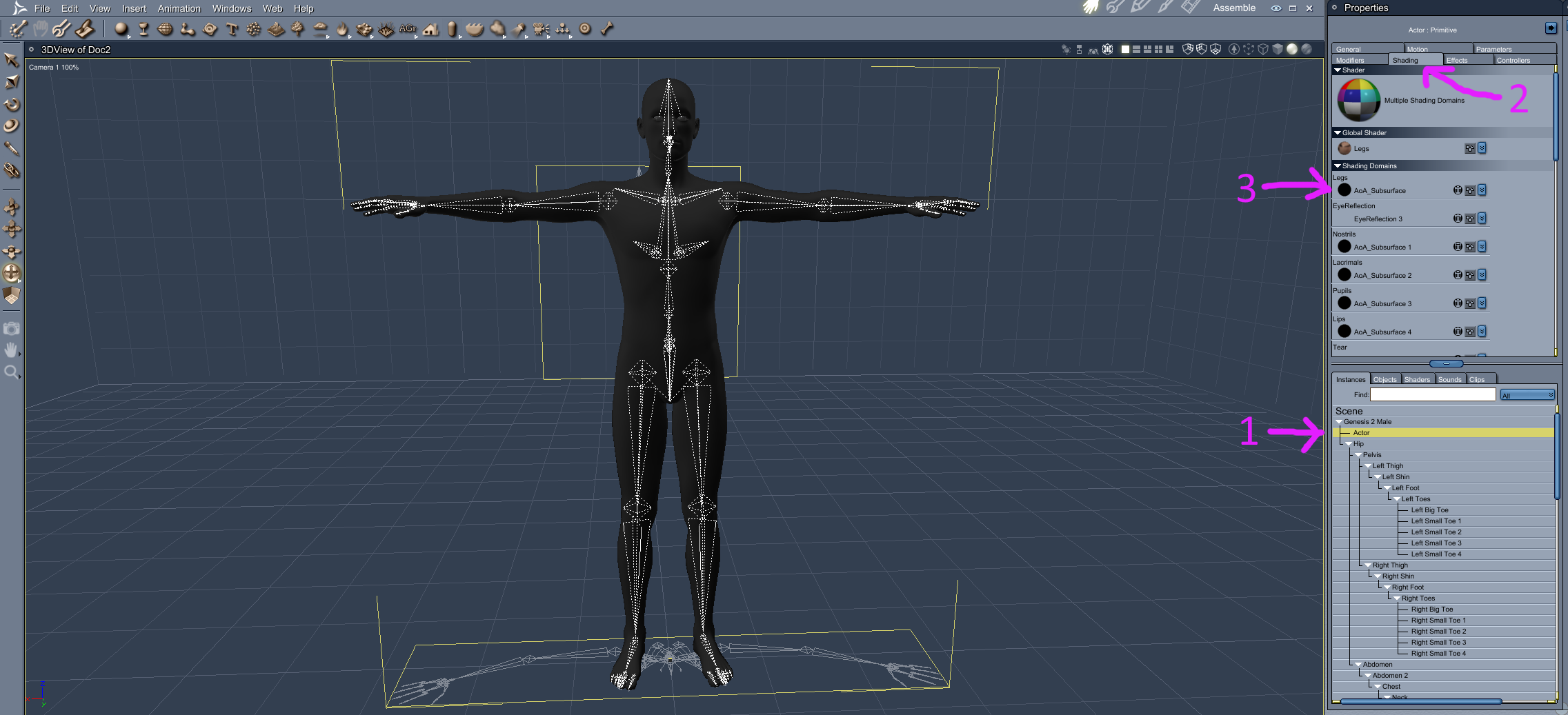

    The black shader surface often comes with AoA shaders, to check if it's them do the following:-

    1. Click on Actor

    2. Click on the Shading tab

    3. Check to see if you have shaders named AoA Subsurface

    I find quite a few of Genesis 2 & Genesis 3 figures have this problem.

    AoA Shaders Black 1.png
    2273 x 1037 - 351K
    Post edited by Bunyip02 on
  • WendyLuvsCatzWendyLuvsCatz Posts: 37,800

    yeah I often fix those AoA shaders in DAZ studio and resave, just holding ctl and loading dzdefault ignoring maps is often enough

  • WsCGWsCG Posts: 391

    Hmm.. Okay I'll look into that and see if it does the trick. Sounds like it will.

    Thanks!

  • WsCGWsCG Posts: 391
    edited July 2020

    Welp, I went ahead and loaded up one of the characters I purchased (Lyoness > Sloan) and, as is typical for me, nothing ever works out the way it should. My situation doesn't match the scenarios suggested here.

    There's no AoA shader to be seen. That's exactly how it looks when I select the shading tab. I haven't changed anything

    So... Back to square one.  Ugh lol.



    1935 x 1413 - 338K
    Post edited by WsCG on
  • Bunyip02Bunyip02 Posts: 7,662
    TwoCats said:

    Welp, I went ahead and loaded up one of the characters I purchased (Lyoness > Sloan) and, as is typical for me, nothing ever works out the way it should. My situation doesn't match the scenarios suggested here.

    There's no AoA shader to be seen. That's exactly how it looks when I select the shading tab. I haven't changed anything

    So... Back to square one.  Ugh lol.



    Sorry to hear that. I don't have that product so can't test it for you. That leaves changing the shaders manually or trying Wendy's method.

  • Bunyip02Bunyip02 Posts: 7,662

    Just had a look at the product in the store and it makes reference to AoA

    • Textures:
      • 43 Texture, Bump, Displacement and Specular Maps (4000 x 4000)
      • 12 Texture, Bump and Reflection Maps (2048 x 2048)
      • 02 Mouth Texture Maps (1500 x 1500)
      • 03 Texture and Transparency Maps (1024 x 1024)
      • This product uses the Genesis and Genesis 2 Female Victoria 5 UV Maps
    • DAZ Studio AoA Sub-Surface Scatter Material Presets (.DUF)
  • DartanbeckDartanbeck Posts: 21,210

    Correct. Those AoA textures might be excellent in Daz Studio, but they come into Carrara pretty much unusable. I think, however, that the base texture maps will be present, and if that's the case, just following that simple shader tutorial video should help one to clear them up.

    I have a heavy workload at work (which is away from home and computer) this weekend, so I'm trying to help quickly. I'll investigate further as I can! ;)
