How do I UVmap an obj in Carrara

Hi.  Hopefully someone will be able to assist me with this.  I have been trying to figure out how to UVmap an object so that I can apply textures and shaders properly to it in DAZ.

Basically what is happening currently is that if I apply a shader in DAZ, the obj ends up just a base color but won't allow for any actual texture such as diffuse, bump, spec or normal mapping.  Other users have pointed me to UVmapping the obj in Carrara, Blender or other 3D app.

I have tried watching some videos about this but can't seem to figure out how to do this at all.  Truthfully I am still just trying to figure out how the heck to navigate Carrar.  Maybe I am just so used to DAZ, but Blender, Carrara and a lot of other apps I have tried are just a pain to navigate around.

Any help would be appreciated.

Thanks.

Comments

  • DiomedeDiomede Posts: 9,820
    edited March 2018

    Welcome.

    There are some links to helpful threads.  Scroll down to find some uvmapping specific links.  For the links, see the second post in this thread.  https://www.daz3d.com/forums/discussion/96301/modeling-objects-in-carrara-q-a-come-one-and-all/p1



    Here is a good thread.

    https://www.daz3d.com/forums/discussion/72057/uv-mapping-and-unfold/p1



    Having said that, here is some quick info on navigation.  In the bottom right of the Carrara interface, there is a box called the instances tray. Select your modeled object there.  Click on the wrench in the upper right menu to enter the modeling room for your selected object.  Along the right side there is a menu.  Near the top are three options labeled edit modes.  Choose the far right, which sort of looks like a fishing net. The screen should split.  One part of the screen has the mesh of your model.  The other half shows a square grid, which is the uv map.  That right side menu should have tabs for various uv editing options.  You can use presets for common shapes, such as cubes and grids.  You can also create seams and pins to unwrap a uv map.  See the links above for examples.

    Post edited by Diomede on
  • Geminii23Geminii23 Posts: 1,236
    Diomede said:

    Welcome.

    There are some links to helpful threads.  Scroll down to find some uvmapping specific links.  For the links, see the second post in this thread.  https://www.daz3d.com/forums/discussion/96301/modeling-objects-in-carrara-q-a-come-one-and-all/p1



    Here is a good thread.

    https://www.daz3d.com/forums/discussion/72057/uv-mapping-and-unfold/p1



    Having said that, here is some quick info on navigation.  In the bottom right of the Carrara interface, there is a box called the instances tray. Select your modeled object there.  Click on the wrench in the upper right menu to enter the modeling room for your selected object.  Along the right side there is a menu.  Near the top are three options labeled edit modes.  Choose the far right, which sort of looks like a fishing net. The screen should split.  One part of the screen has the mesh of your model.  The other half shows a square grid, which is the uv map.  That right side menu should have tabs for various uv editing options.  You can use presets for common shapes, such as cubes and grids.  You can also create seams and pins to unwrap a uv map.  See the links above for examples.

    Hi.  Thanks for sharing that info.  So when I first load it up, the UV View was completely blank.  Then I try to unwrap the obj and it look really strange.



    2560 x 1371 - 555K
  • StezzaKararaStezzaKarara Posts: 4,911

    have you setup the texture domains?

    one for the bat

    one for the eyes I think it is ( it's either a bat bra or bat goggles I'm guessing )

    and one for the rest

    then try again

  • Geminii23Geminii23 Posts: 1,236
    Stezza said:

    have you setup the texture domains?

    one for the bat

    one for the eyes I think it is ( it's either a bat bra or bat goggles I'm guessing )

    and one for the rest

    then try again

    how do you setup texture domains?  I setup surfaces in DAZ before I exported it is that the same thing?

  • DiomedeDiomede Posts: 9,820
    edited March 2018

    You can uvmap without shading domans, but it is easier if you have them.

    RE uvmapping in Carrara: this video may be helpful.



    Post edited by Diomede on
  • DiomedeDiomede Posts: 9,820
    edited March 2018

    Here is an example.  I made a quick model similar to yours.  It is a modified cylinder with some wings in front.  I noticed that your model is triangles instead of quads, so mine starts that way also.

    The first thing I did was select the entire mesh and then use the model tab from the top menu to "untriangulate" the mesh.  Wasn't perfect, but it helps.

    But I have a fully quad version so I am going to use that.

    Not necessary, but I selected the wings and created new shading domains using the menu in the right panel (properties tray).  One for the wings and one for the bra, but do as many as you wish.





    aa01 model with some of same characteristics.JPG
    1857 x 1056 - 184K
    aa02b model untriangulate polygon.jpg
    1281 x 982 - 332K
    aa03b shading dmain create new and name.jpg
    1674 x 977 - 338K
    aa04 bra.JPG
    1625 x 735 - 100K
    Post edited by Diomede on
  • DiomedeDiomede Posts: 9,820

    I then went to the uv editing mode.  As default, Carrara applies a spherical type map.  Result isn't too bad, but there are some overlapping uvs.  If you press unfold now, Carrara spreads the uv islands along the bottom of the map.  They can be very small sometimes.  That appears to be what happened in your pic.

    I selected the edges where I wanted the seams.  In this case, I selected the edges where the wings meet the bra.  Press the plus under seam and the selection turns blue.  NOTE - I sometimes make a mistake and press plus under the selection tools instead of the plus under seam.  Try to avoid that.  You can also place pins.

    I pressed unfold and Carrara spread my wings island and my bra island along the bottom of the map.  Because I only have two islands, they are not tiny.  They can be rescaled so make as many islands as desired.

    Not too bad, but I noticed that there are some oddities around the corners of the wings.  It can still be improved.



    aa05b uvmap efault note yours spread along bottom in small stuff.jpg
    1894 x 873 - 312K
    aa06b seelct lines where want seams can use magnifying glass press plus for seam turns blue.jpg
    1889 x 932 - 413K
    aa07b initial unfold creates islands along bottom of uvmap not so bad.jpg
    1917 x 1009 - 450K
  • DiomedeDiomede Posts: 9,820

    I selected some of the edges around the upper and lower corners of the wings and added more seams.  I hit unfold again and Carrara spread the islands along the bottom again.  The corners of the wings are improved.

    You could select the uvs using the same selection tools as usual.  You can also select by shading domain.  In this case, my shading domains match the islands.  I selected each uv island and moved and scaled them to take better advantage of the uv space.

    aa08b select and create a few mor seams.jpg
    1680 x 977 - 366K
    aa09b see improvement in wings.jpg
    1709 x 1000 - 348K
    aa10b select by shading domain gets that iseland because match up.jpg
    1806 x 988 - 481K
    aa11b seelect and use scale translate tools to maximize use of uvmap space.jpg
    1782 x 875 - 471K
    aa12b note dont have to seams instead can use operations tab projection presets can be done on individual selections dtach polygons etc.jpg
    1500 x 874 - 377K
  • DiomedeDiomede Posts: 9,820
    edited March 2018

    I applied a checkered shader.  Note that because my islands are slightly different scale, the checkers for the wings are slightly smaller than the checkers for the bra.  In effect, that would allow greater detailed painting to be more easily applied to the wings.

    aa13b test render with checker shader.jpg
    640 x 480 - 25K
    aa14b test render with checker shader.jpg
    640 x 480 - 13K
    Post edited by Diomede on
  • Geminii23Geminii23 Posts: 1,236

    Wow thank you for sending all of this.

    Ok, so one of the issues that I am having when selecting the shading domains is a warning box pops up that says "Polymeshes sharing same shading domains should not have different wrapping setup".

    The other issue I am having is just the learning curve of navigating Carrara.  I am so used to DAZ that the whole setup seems foreign.  It seems like the default view is the Director Camera which feels really cumbersome to navigate around.  I was trying to rotate around using the dolly tool and the object just swung off screen and vanished.  It is as if there is some kind of anchor that won't allow me to actually rotate the object itself.  Now I am trying everything I can to figure how to reset my view but can't figure it out.  LOL

  • 3DAGE3DAGE Posts: 3,301

    With UV Unwrapping,. you need to define "seams" so that the 3D model can be split and flattened out on the UV Grid,. normally this results in several small "islands" of flattened mesh on the Grid view (which you got already),. each of these can be manually selected (double click) and moved, rotated and scaled to enable you to layout the islands within the UV grid,.

    You do that to allow you to export a "template" (Wireframe image of your UV flattened mesh) from the Display tab./export

    you can then open that in an image editor, and create new layers to paint or add images to that UV template,. then export your final "texture map"

    You'd then load that texture into your shader/surface material structure (diffuse/color channel) in any 3D app.



    The error message you're getting is because some parts of your model have the same "Texture" (shading domain in Carrara) .. (Surface material /group in DS/Poser)

    but those parts have different UV mapping types or layouts.

    You can either adjust the parts to have the same UV layout,.

    or create a new shading domain and apply that to one part of the model



    In the scene,. Carrara uses the "currently selected object" as the rotate point,. this can be really fast to work with,. although kind of strange at first.  Use ALT+ click in the empty scene space to move around with the camera, Left, Middle/push/pull , Right buttons to Rotate/Dolly/Pan

    Using the Directors camera . rather than  a main "animatable camera" prevents the new user creating unexpected camera motion,. the director camera doesn't animate.

    it can be used to move around the scene,. find interesting points of view,. then save that position as a saved camera view,.

    you can then "apply" any saved camera position to any camera in your scene, at any point in time.

    You can change camera's by clicking the text in the top left corner EG: "Directors camera"

    select a camera from the drop down menu,. or save/load camera positions.

    Hope it helps :)

  • FENgariFENgari Posts: 1,104

    This is something I've never done in Carrara, though I've had a go at Decals. I could be wrong, but the advantage of UV mapping is the shader stays put when the underlying mesh is deformed...

    Here are my attempts and zipped .car file. To create my textures, I 'unfolded' a simple cube model and shaded it using Enhance:C then I exported the maps using Baker. I found that bump maps give greater definition...

    Final renders use one bulb and indirect lighting.

    zip
    zip
    Cube_UV_Mapping.zip
    2M
  • FENgariFENgari Posts: 1,104

    Yes, using texture maps for diffuse and bump means an animated mesh looks correct. Just using a procedural shader (which I particularly love) moves all over the place...

    An example of Sparrowhawke3D's Jiggle Modifier applied to a texture-mapped object.

    PS: Second attempt at UV-mapping using a cylinder. I haven't attached the .car file as the technique used is the same as above (unfold, bake diffuse and bump maps...)

  • FENgariFENgari Posts: 1,104

    Confirmed ... this time using softbody physics!

    Use of a sphere this time - unwrapping this was most exciting!

  • FENgariFENgari Posts: 1,104

    Further experiments to try and understand what 'pins' do - they seem to help get a better proportioned map.

    This sphere is based on pentagonal polyhedron. Finally, I would say that texture maps should not be 'interpolated' if you want them to be seamless (esp Bump/Normals).

  • FENgariFENgari Posts: 1,104

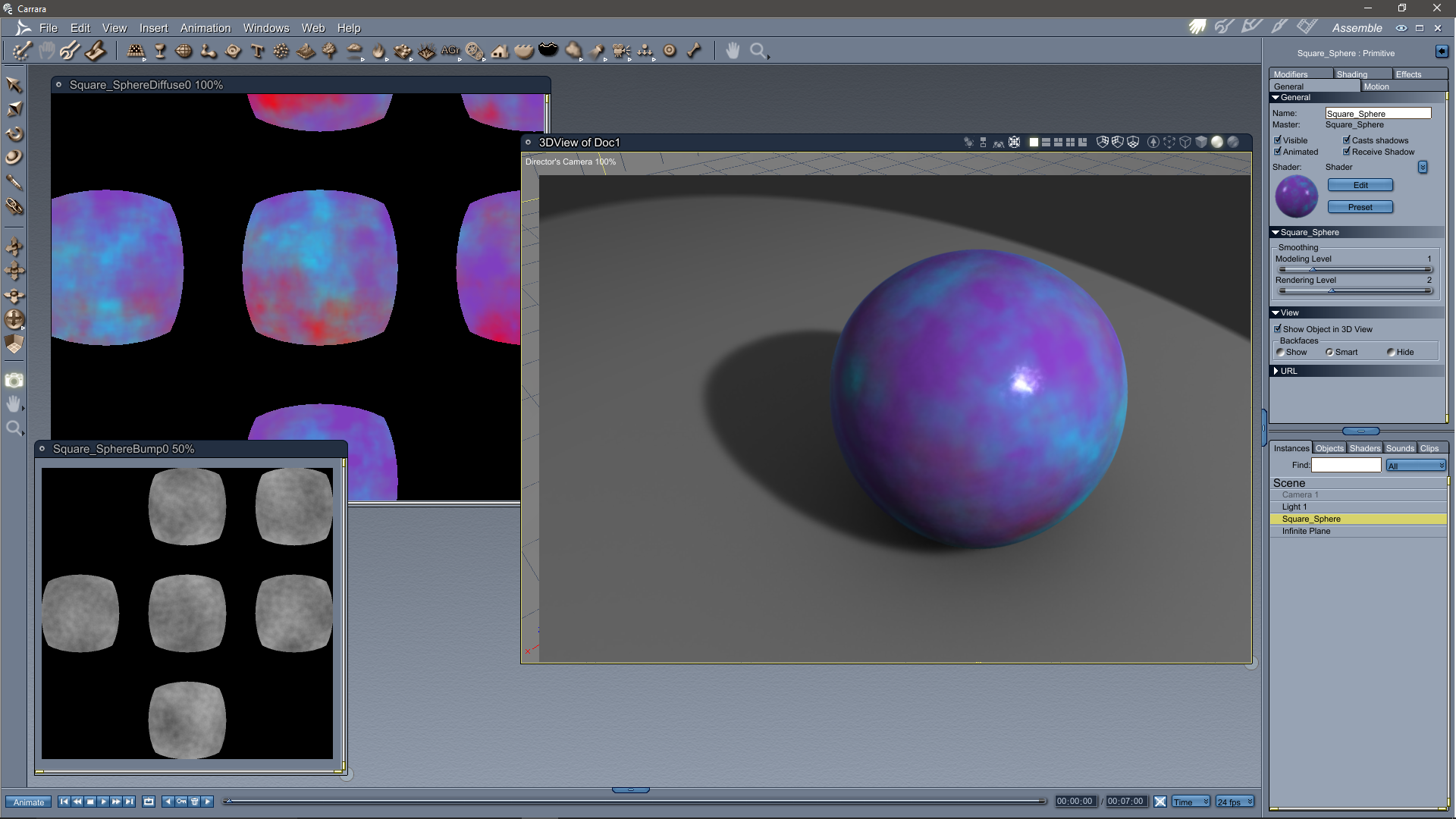

    Other sphere mappings:

    FLOWER (animation here)

    BOX

    I like my maps nice neat and well proportioned - still learning cheeky

  • DiomedeDiomede Posts: 9,820

    Thanks for these illustrations of alternatives, Selinita.  Can anticipate circumstances when each one might be the right choice.
