Sadie and Sam Seam guides

QuietrobQuietrob Posts: 361
edited December 1969 in The Commons

This was a question asked but never answered in the old forum.

Is there a seam guide for Sam and Sadie? If so, where can I get it?

-Q

Thank you.

Hopefully my Thanks appears below.

1024 x 738 - 541K

Comments

  • JimmyC_2009JimmyC_2009 Posts: 8,891
    edited December 1969

    I checked SnowSultan's web site for them, but no luck (I'm sure you tried that too)

    I hope someone can help.

  • QuietrobQuietrob Posts: 361
    edited December 1969

    Thanks for checking. Snow Sultan was the first place I checked.

    I'll test to see if UV Mapper Free will make the texture map for me. If it does, I wonder if I can repost the map. With all of the peeks inside this thread, I don't think I'm only one interested.

  • SnowSultanSnowSultan Posts: 3,805
    edited June 2013

    Do you mean the old standalone Sadie and Sam figures or the shapes for Genesis? I don't own either one so unfortunately I can't make a template for you, but if you're using the Genesis shapes, you can switch the UVs in DAZ Studio's Surfaces panel to work with V4 or other figures' textures.

    Sorry I can't be of more help!


    edit: oh, and if you make blank templates, you can share them. You just can't share any mesh files (like OBJs) or actual texture maps.

    Post edited by SnowSultan on
  • patience55patience55 Posts: 7,006
    edited December 1969

    http://www.sharecg.com/v/20933/gallery/11/Poser/Sadie-Head-and-Body-Texture-Template-Part-1

  • QuietrobQuietrob Posts: 361
    edited December 1969

    SnowSultan said:
    Do you mean the old standalone Sadie and Sam figures or the shapes for Genesis? I don't own either one so unfortunately I can't make a template for you, but if you're using the Genesis shapes, you can switch the UVs in DAZ Studio's Surfaces panel to work with V4 or other figures' textures.

    Sorry I can't be of more help!


    edit: oh, and if you make blank templates, you can share them. You just can't share any mesh files (like OBJs) or actual texture maps.

    Cool Beans! I was able to make a blank texture map for Sam Body suit. I wish I understood a little more about the whole thing but maybe I can make my bodysuit after all.

    I'll just over to Nuts n Bolts and ask how do you know which part of a UV map is the side and back. I understand a texture map is like unwrapping your obj skin but really, without a line down the side or something, how do you know?

  • QuietrobQuietrob Posts: 361
    edited December 1969

    Patience55 said:
    http://www.sharecg.com/v/20933/gallery/11/Poser/Sadie-Head-and-Body-Texture-Template-Part-1

    Thank you! I hope it will be even better than the texture I made. I must learn Patience!

  • patience55patience55 Posts: 7,006
    edited December 1969

    You're welcome.

    Do you happen to have Hexagon?

  • QuietrobQuietrob Posts: 361
    edited December 1969

    Patience55 said:
    You're welcome.

    Do you happen to have Hexagon?

    Why yes. Yes I do. I got the last free version. May I ask why?

    Any help or pointers would be greatly appreciated!

  • patience55patience55 Posts: 7,006
    edited December 1969

    quietrob said:
    Patience55 said:
    You're welcome.

    Do you happen to have Hexagon?

    Why yes. Yes I do. I got the last free version. May I ask why?

    Any help or pointers would be greatly appreciated!

    Great! Because you can very easily get a template :-)

    I'll be back with some pics.

  • QuietrobQuietrob Posts: 361
    edited December 1969

    Patience55 said:
    quietrob said:
    Patience55 said:
    You're welcome.

    Do you happen to have Hexagon?

    Why yes. Yes I do. I got the last free version. May I ask why?

    Any help or pointers would be greatly appreciated!

    Great! Because you can very easily get a template :-)

    I'll be back with some pics.

    I'll be here!

  • patience55patience55 Posts: 7,006
    edited June 2013

    Okay ... this was a quick job. [translation, hope I got this right]

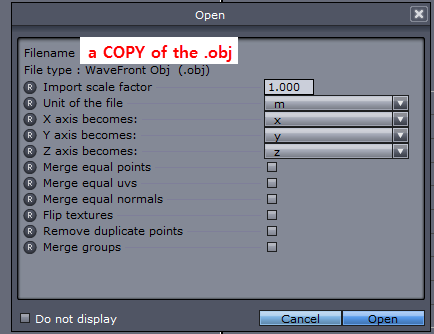

    1. Import a "copy" of the .obj found in the Geometries folder of whichever item being worked on.

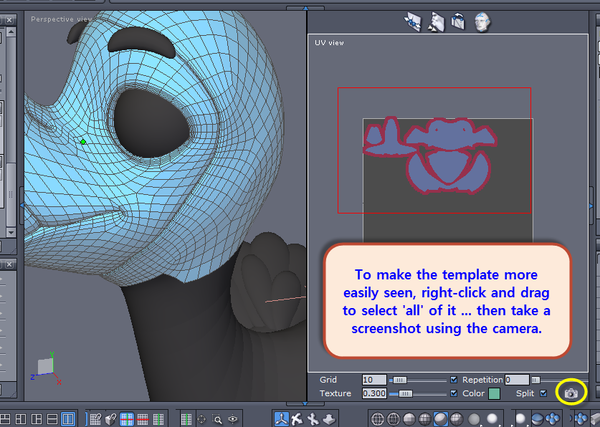

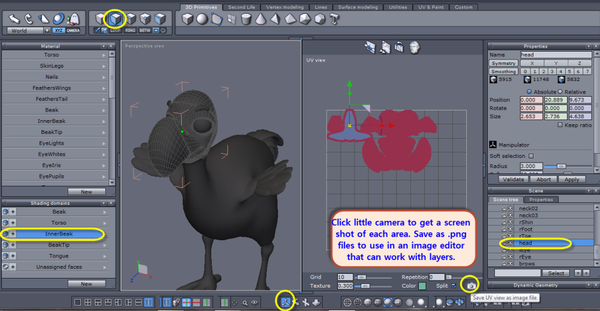

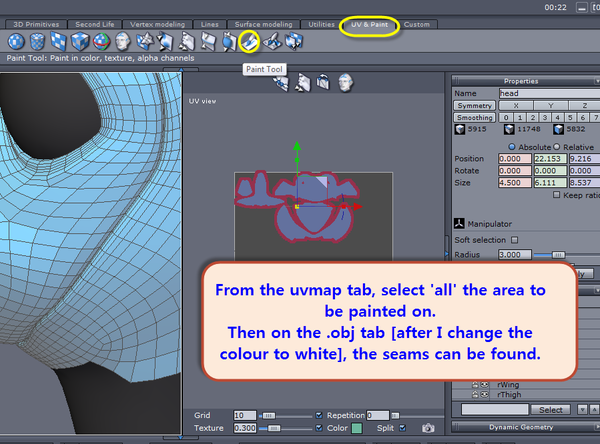

    2. I've circled some of the main areas being used. You only 'need' one template per .obj group [i.e. not every shading domain].

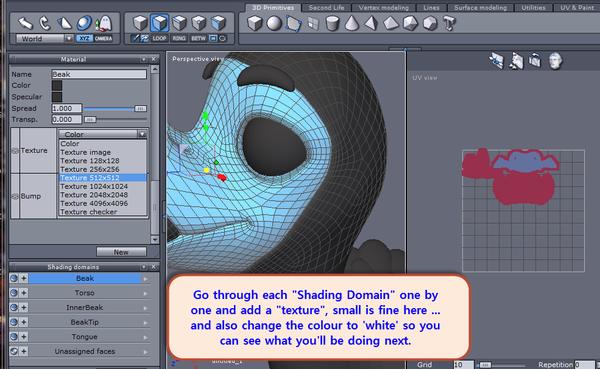

    3. I'm illustrating how to add a texture paper to paint on. Small is fine because one needs to match them all making them all the same size [and larger of course] in the image editor. And before starting to paint, make the colour 'white' ;-)

    899 x 666 - 132K
    837 x 596 - 132K
    985 x 606 - 173K
    1000 x 518 - 223K
    434 x 334 - 14K
    Post edited by patience55 on
  • patience55patience55 Posts: 7,006
    edited June 2013

    This is no where near as perfect as SnowSultan's but can be done.

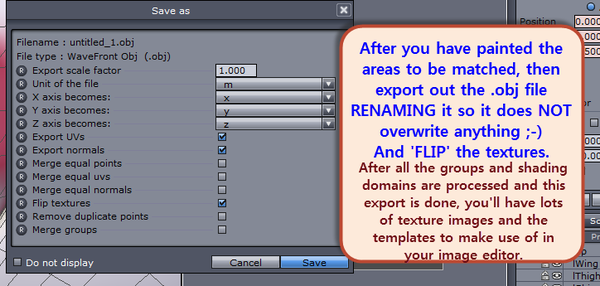

    Exporting out a new .obj and 'flip' the textures so Hexagon will also ship out a whole bunch of textures for you.

    Now those along with the templates can be used in layers in your image editor.
    I found selecting each section in the templates and even just by using light effects, one can make colourful sections for easy selection for texturing.

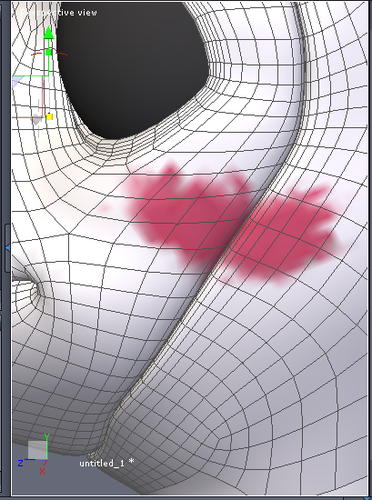

    One minor detail is to paint a little around all the edges to allow for 'seam allowances'. Otherwise some areas are usually a pixel or two off and the seams will show on the figure in D/S.

    I've attached my squirrel template which I created using Hexagon and PSP as an example.

    689 x 689 - 125K
    724 x 345 - 58K
    409 x 550 - 146K
    Post edited by patience55 on
  • QuietrobQuietrob Posts: 361
    edited December 1969

    Patience55 said:
    This is no where near as perfect as SnowSultan's but can be done.

    Exporting out a new .obj and 'flip' the textures so Hexagon will also ship out a whole bunch of textures for you.

    Now those along with the templates can be used in layers in your image editor.
    I found selecting each section in the templates and even just by using light effects, one can make colourful sections for easy selection for texturing.

    One minor detail is to paint a little around all the edges to allow for 'seam allowances'. Otherwise some areas are usually a pixel or two off and the seams will show on the figure in D/S.

    I've attached my squirrel template which I created using Hexagon and PSP as an example.

    This is amazing! I had no hexagon could do all this. It didn't seem intuitive. 11pm on the west coast of the USA so I'll have to start in the morning but I'll keep working on this so everyone can see what can be done.

    Admins if you wish to move this to nuts n bolts I understand.

  • rcousineau2007_22c883170drcousineau2007_22c883170d Posts: 70

    Just discovered your tutorial. This is a life saver.

    Thannks

  • Catherine3678abCatherine3678ab Posts: 8,556

    You're welcome,

    Catherine3678ab aka Patience55
