Text from Hex to Daz
richardgaray_c9b7eb2acb
Posts: 0
Is there anyway to get text created in Hex into Daz without the characters getting screwed up? It looks great in Hex, but once in Daz extra faces/planes are created that make it all but recognizable.
Daz 3D is part of
Connect
DAZ Productions, Inc.
224 S 200 W, Suite #250
Salt Lake City, UT 84101
Licensing Agreement | Terms of Service | Privacy Policy | EULA
© 2024 Daz Productions Inc. All Rights Reserved.
Comments
Yes there is but it involves another program to create the initial tex in another format. Import that format into Hexagon and then export out an .obj for to import into D/S.
Found it: http://www.armanisoft.ch/webdesign/elefont/Elefont.html
Otherwise it's a rather labour intensive exercise to manually make each letter workable by adding tessellation lines, fixing face normals, etc and checking it via the smoothing actions.
Think somebody posted an alphabet over at sharecg.com too.
Thanks Patience, both of your suggestions are great resources.
Maybe a stupid question... but shouldn't the txt function in Hex work perfectly in Daz?
Not a stupid question at all. Text works in D/S from other modelers [or so I've been told] but Hexagon is well, Hexagon.
It doesn't do Boolean functions in "an acceptable for use in D/S" manner either.
Hi Patience:)
The problem is that Hex makes the text faces N-gons, which Studio doesn't know how to read - Hex's text works perfectly well in all my other applications.
Even after triangulating the N-gons in Hex I get artifacts in Studio, which I don't get in other apps.
Patience is spot-on about Elifont - it makes nice clean text:)
Hi chaps yes those artifacts were bothering me too.
I have seen this question asked time and time again, I had the same problem with it at first. Hexagon can create perfectly good text that will work in Daz Studio, all it requires is a little thought, if we tell it to make a poor model it will, likewise a good one. Hexagon gives us the power to create but it will not create for us.
Props in Daz are not always made of one part, so I would view a text model in the same way.
Just give this a go and see if it makes a difference. please excuse if I over simplified..or confused.

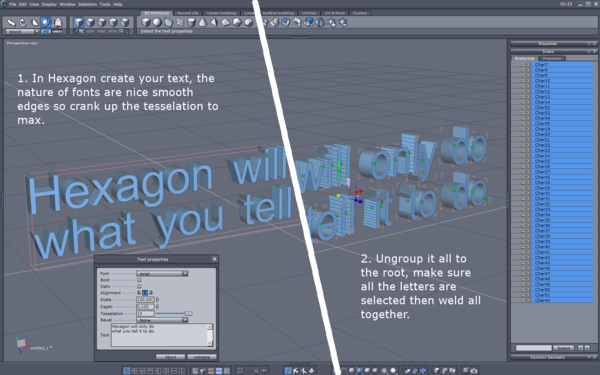

1. In Hexagon create your text, the nature of fonts are nice smooth edges so crank up the tessellation to max.
2. Ungroup it all to the root, make sure all the letters are selected then weld all together.

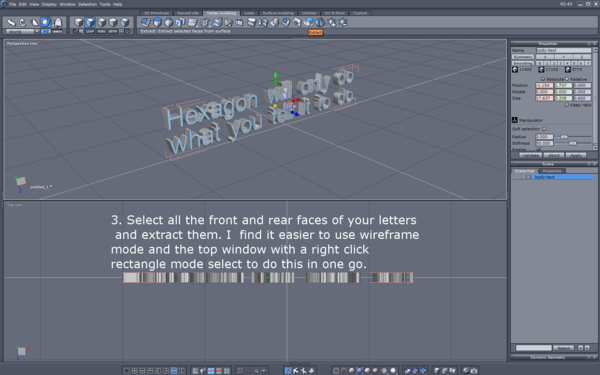

3. Select all the front and rear faces of your text and extract them. I find it easier to use wire frame mode and the top window with a right click rectangle mode select to do this in one go.
4. With your new face object selected triangulate the nonagons.

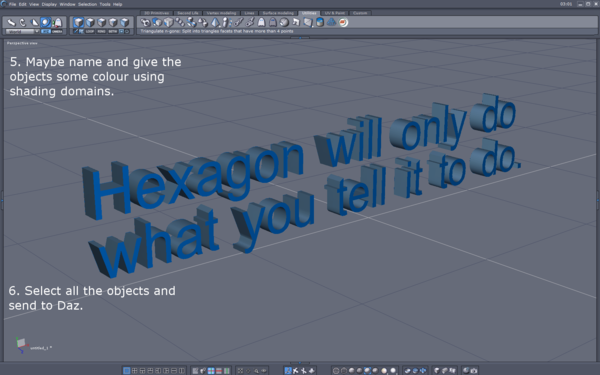

5. Maybe name and give the objects some colour using shading domains.
6. Select all the objects, send to Daz.

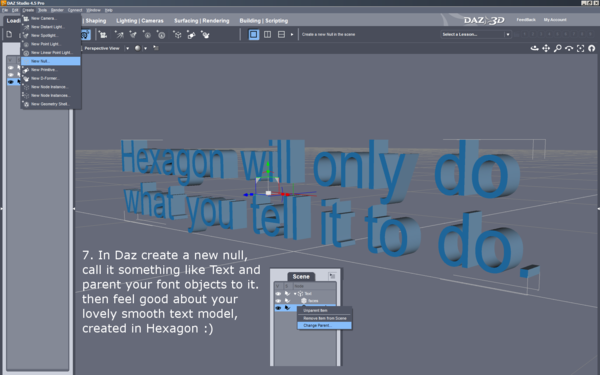

7. In Daz create a new null, call it something like Text and parent your font objects to it. then feel good about your lovely smooth text model, created in Hexagon :)
