Here's a nice little tutorial aimed at beginners to Hexagon, hope you like it.

This tutorial uses a simple test grid which was included in the sword tutorial -

http://www.sharecg.com/v/76902/view/21/DAZ-Studio/Hexagon-sword-Tutorial

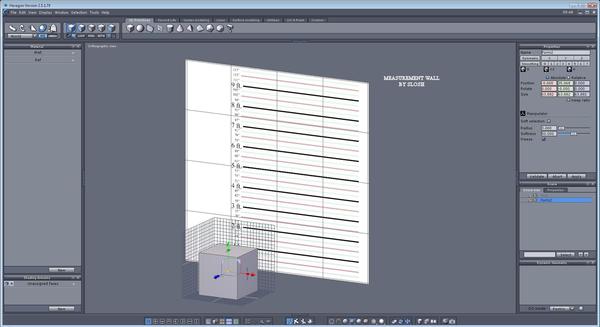

and Slosh's Measurement Wall - Very handy :)

http://www.sharecg.com/v/69559/gallery/21/DAZ-Studio/Measuring-Wall

Click on image to view full screen.

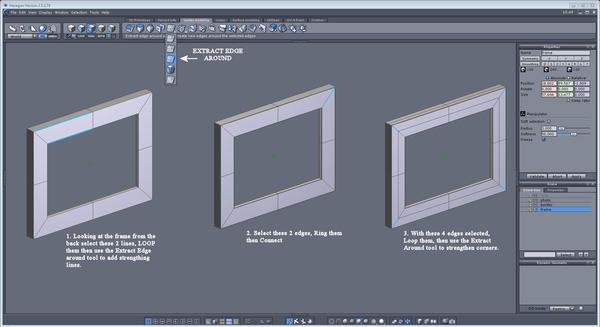

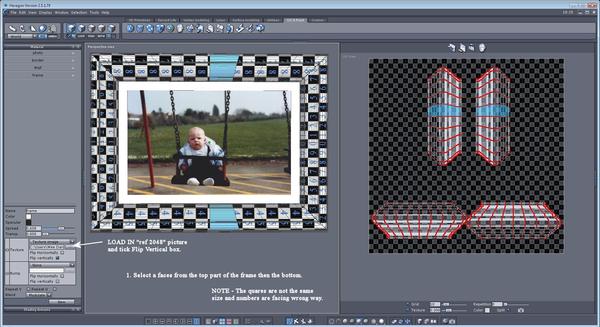

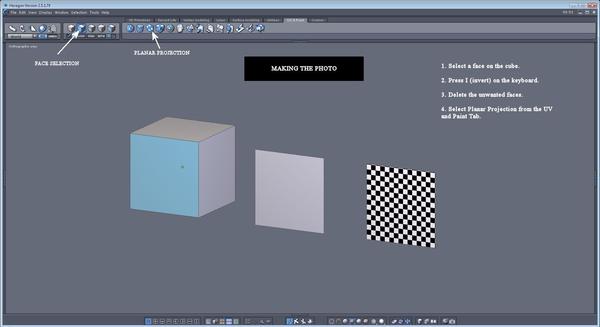

Start with a primitive cube.

1920 x 1047 - 232K
Post edited by Wee Dangerous John on

Comments

  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

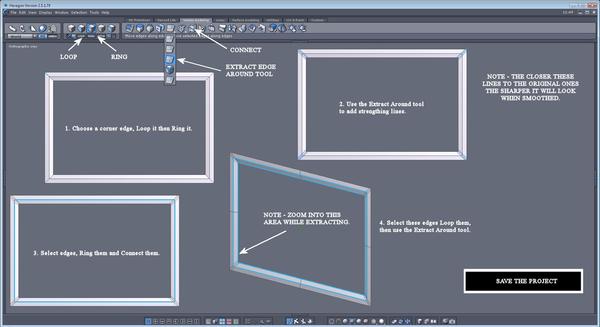

    02

    1920 x 1047 - 155K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

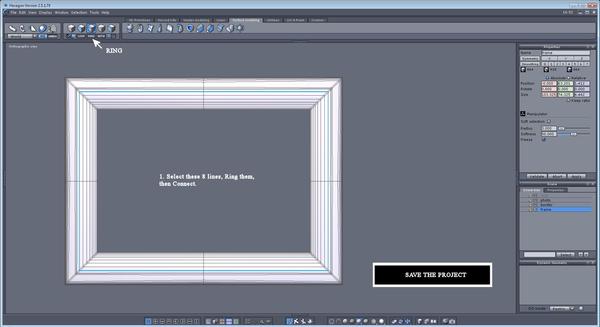

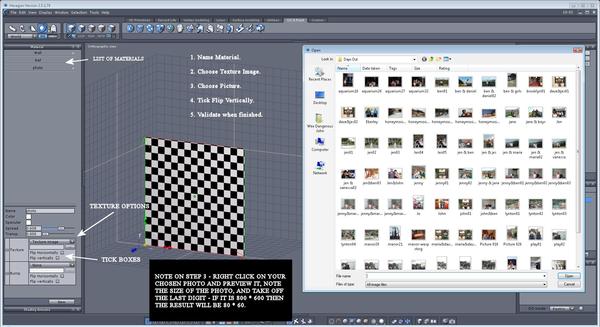

    03

    1920 x 1047 - 349K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited August 2014

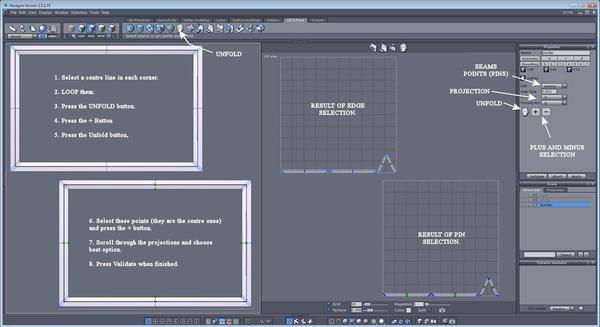

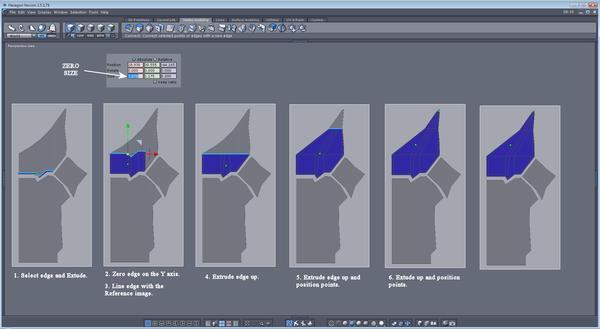

    04 - That's my boy :)

    1920 x 1047 - 223K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

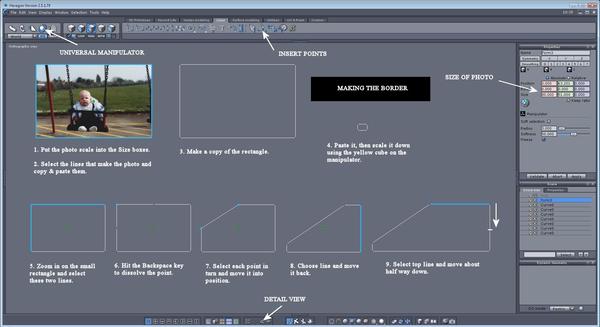

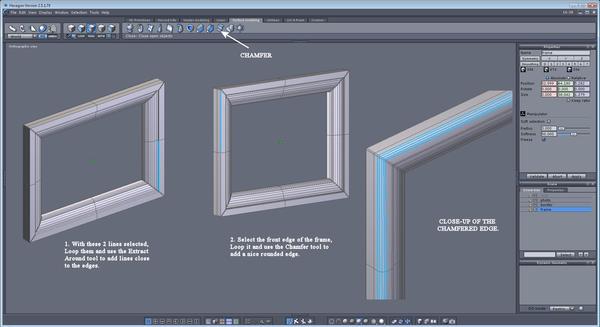

    05

    1920 x 1047 - 186K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

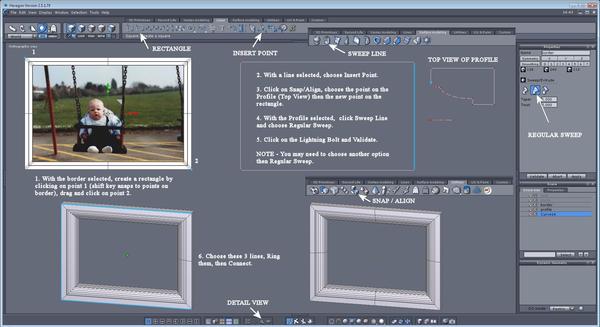

    06

    1920 x 1047 - 209K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

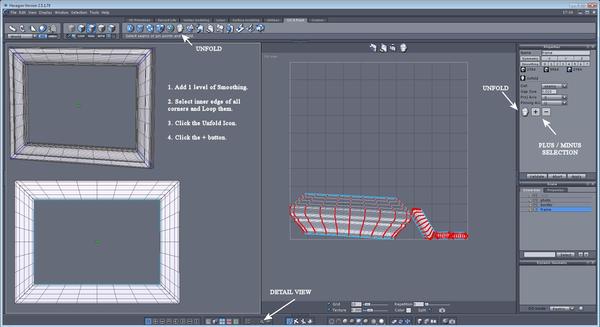

    07

    1920 x 1047 - 234K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

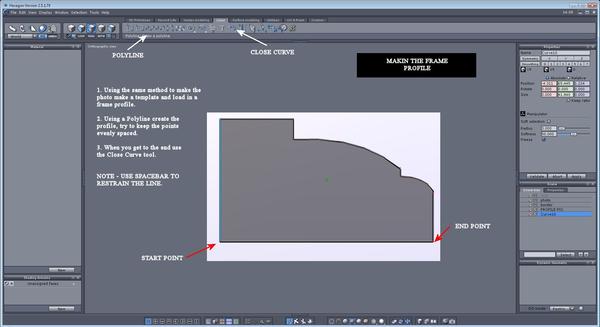

    08

    1920 x 1047 - 189K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited August 2014

    09

    1920 x 1047 - 197K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

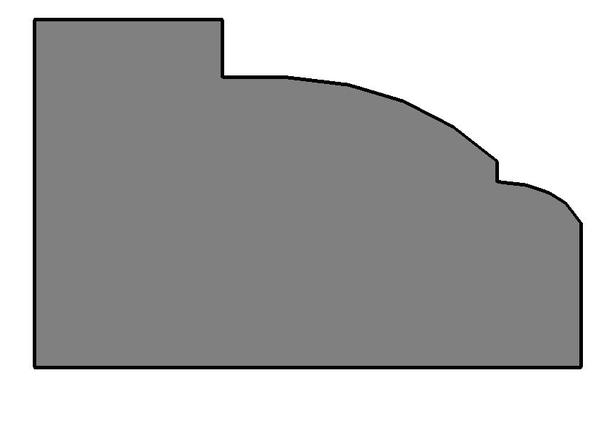

    profile - this is just a quick profile, if you want it just right click and save image

    843 x 593 - 26K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited August 2014

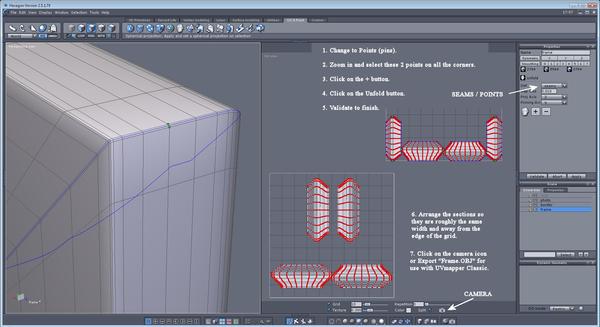

    10

    1920 x 1047 - 285K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    11

    1920 x 1047 - 210K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    12

    1920 x 1047 - 243K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    13

    1920 x 1047 - 214K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    14

    1920 x 1047 - 266K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    15

    1920 x 1047 - 280K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    16

    1920 x 1047 - 401K
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited August 2014

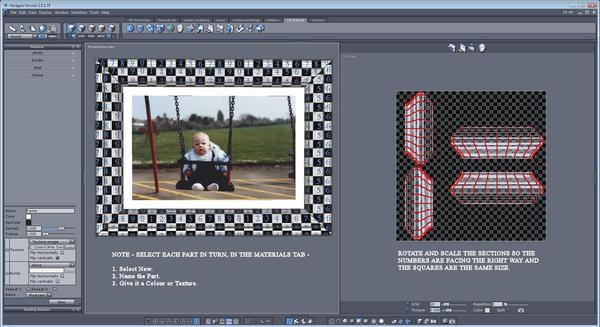

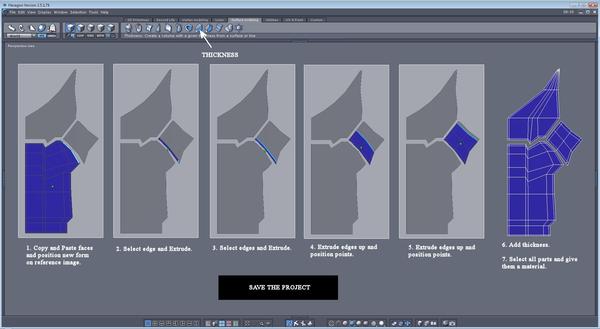

    17 - Work on the UV window and watch the result in the main one.

    1920 x 1047 - 371K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605

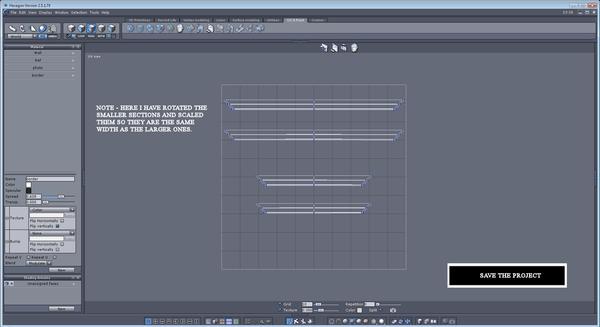

    edited August 2014

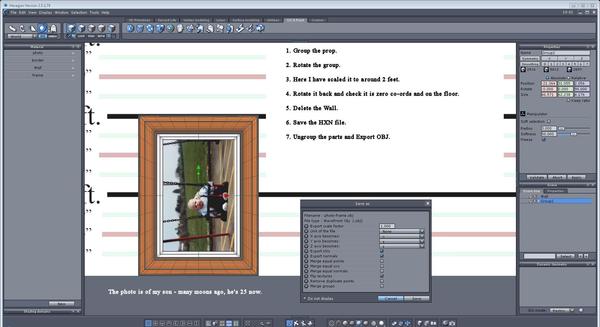

    18 - That is it, I had a bit of a problem uploading a few of the pictures - Hopefully I did not mess things up.

    Any problems please feel free to post a note here or send me a PM - John

    1920 x 1047 - 265K
    Post edited by Wee Dangerous John on
  • GhostmanGhostman Posts: 215
    edited December 1969

    Really nice tut John.

  • patience55patience55 Posts: 7,006
    edited December 1969

    :-) Thank you!

  • useroperatoruseroperator Posts: 247
    edited August 2014

    yay picture frames

    548 x 365 - 373K
    Post edited by useroperator on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited August 2014

    Nice work User. Operator - I really like the render :)

    Aint no where near as good as yours User.Operator but this is all I could find.

    650 x 500 - 59K
    Post edited by Wee Dangerous John on
  • DoctorJellybeanDoctorJellybean Posts: 7,990
    edited December 1969

    Very nice, John! Now we need a tut for the broken glass ;)

  • useroperatoruseroperator Posts: 247
    edited August 2014

    that broken glass reminds me of something I was messing with a while ago, never did quite do anything with it. it's basically impact shattering glass, that is entirely geometry. the model that makes up the cracked glass is about 5000 faces.

    569 x 365 - 229K
    Post edited by useroperator on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    We'll see Doc :)

    That is excellent User-Operator

  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited August 2014

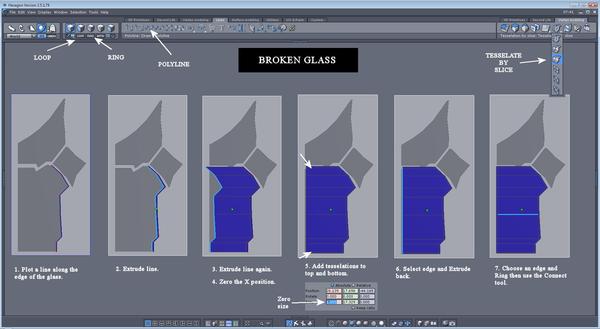

    Here you go Doc, I've only made 3 pieces of glass as all you are basically doing is taking faces from one segment to make the next.

    I leave a small air gap between each piece as I find it renders better.

    Site playing up a bit, looks like it will take a while to upload the pics.

    Here is a rough reference image I made -

    1917 x 1050 - 205K
    1917 x 1050 - 192K
    1917 x 1050 - 212K
    1917 x 1050 - 208K
    489 x 1000 - 31K
    Post edited by Wee Dangerous John on
  • Wee Dangerous JohnWee Dangerous John Posts: 1,605
    edited December 1969

    Sorry, I wanted to upload one picture at a time, but the site would not let me do it that way. You should be able to click on each in turn to view full screen.
