Rigging in DS 4.6.2.120 for use in Carrara

RoygeeRoygee Posts: 2,220
edited December 1969 in Carrara Discussion

Hi all :)

Just curious whether anyone has recently rigged a figure in DS and exported as cr2 for use in Carrara?

I used to do this a lot because I much prefer the weight-painting and constraints setting. Haven't done it in a while, though, because I've been concentrating on hard body modelling.

Just finished making a dinosaur, which worked perfectly in DS, but did some really strange things in C 8.1, so ran some tests on a simple figure.

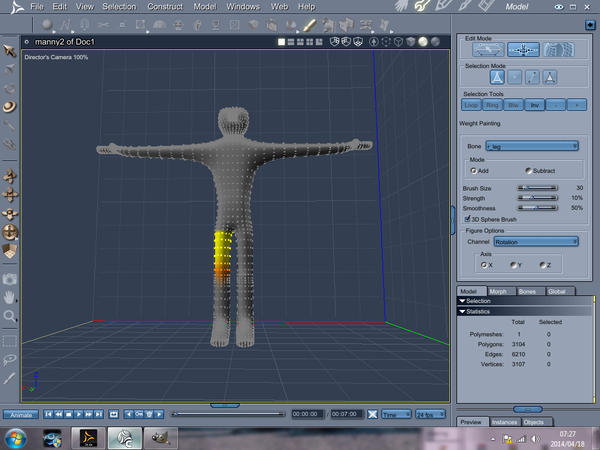

The cr2 works perfectly in DS, but in C, whether using Tri-Ax or parametric, in most cases, but not all, it reads the bones hierarchy wrong; for instance, the weights for r-leg is allocated to r_thigh - always one up in the hierarchy and the child bones are not attached. In other cases, such as the shoulders, it reads and behaves correctly.

I'm just wondering whether this works OK in C8.5 and Daz has just made 8.1 redundant for this purpose?

1024 x 768 - 184K
1024 x 768 - 162K
1024 x 768 - 204K

Comments

  • fabafaba Posts: 53
    edited April 2014

    Hello Roy,

    I never had comparable issues when rigging in DAZ Studio for Carrara.
    Can you upload the project files to have a closer look at?

    Post edited by faba on
  • RoygeeRoygee Posts: 2,220
    edited April 2014

    Hi faba - thanks for offering to take a look :)

    Here is the link http://www.4shared.com/folder/8zr8R9Ok/Myfigs.html

    Post edited by Roygee on
  • fabafaba Posts: 53
    edited December 1969

    Looks like 4shared doesn't work very well for me.
    Would you mind to upload the file somewhere else?
    In case you would like send it as e-mail check your PMs.

  • RoygeeRoygee Posts: 2,220
    edited December 1969

    I've sent it to you by e-mail. These upload sites can be confusing - I've just now learned how to get a link from Dropbox - the instructions say to hover the mouse over the file, but you have to actually r-click to get the link :)

  • Wendy_CarraraWendy_Carrara Posts: 18,216
    edited December 1969

    have you tried the triax .duf in carrara 8.5
    weight painted Cr2 for Poser 9+ maybe Fenrics script in Poser could fix

  • Wendy_CarraraWendy_Carrara Posts: 18,216
    edited December 1969

    save as support asset figure character .duf import that into carrara

  • fabafaba Posts: 53
    edited December 1969

    Hello Roy,

    When I open the file in DAZ Studio and watch the weight assignments I can see that lines that show the static/ posed angle are flipped (red is static, green is posed).
    I attach a screenshot

    When i fix the angles (red to static/ green to posed) it behaves in Carrara as expected.

    689 x 539 - 85K
  • RoygeeRoygee Posts: 2,220
    edited December 1969

    That is great - thanks:)

    What tool do you activate to see the weight assignments and angles? That is what I used to see on the old DS3 FST, before they introduced weight-painting. Never seen them in DS4 and thought that those and the sphere influences had been replaced by weight-painting.

    @Wendy - I'm on C8.1, so DUF is not for such as us:)

  • fabafaba Posts: 53
    edited December 1969

    those options are still there if you are editing a parametric character.

    818 x 982 - 106K
  • RoygeeRoygee Posts: 2,220
    edited December 1969

    Aaah, yes, I see it now - I'll know what to do if this problem comes up again :)

  • DartanbeckDartanbeck Posts: 13,976
    edited December 1969

    Very cool... thanks for this!
