Saving D-Former Clothing For Other Use
Novica
Posts: 23,859
I know how to save a D-Former as a support asset. I'm not sure exactly what that does though. I know it saves it for that particular scene (you can close studio and come back to it) but how do you save that piece of clothing with the d-forms so you can load it onto another figure at another time?
Daz 3D is part of
Connect
DAZ Productions, Inc.
224 S 200 W, Suite #250
Salt Lake City, UT 84101
Licensing Agreement | Terms of Service | Privacy Policy | EULA
© 2024 Daz Productions Inc. All Rights Reserved.
Comments
When I have stuff in DS that I want to import as a chunk (like a figure and a prop together) I save it as a scene subset. Select the item and d-former together when you save, and they should arrive together when you add them back in.
You could make the morph and save that.
[Can make the morph either by sending clothing over the bridge to Hexagon and shooting it back over the bridge to a "fresh default load" of said clothing piece or by exporting out an .obj file to bring back in via Morph Loader] again to a "fresh default load" clothing piece].
Thanks KaribousBoutique- I knew that, thanks :) It's the Merge function. What I want is just the clothing so I can put it on other characters.
Patience 55- you said "or by exporting out an .obj file to bring back in via Morph Loader again to a “fresh default load” clothing piece."
So File>Export>Wavefront Obj, then what exactly is "via Morph Loader." ? Sorry, I'm clueless.

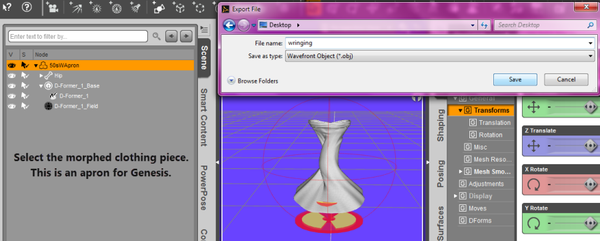

One has the clothing piece shaped as desired. Select it.

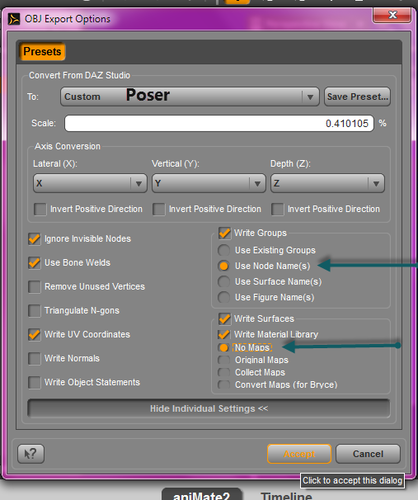

File > Export > choose the .obj file [working on memory late at night, think it was the Poser settings]. To the desktop is fine.

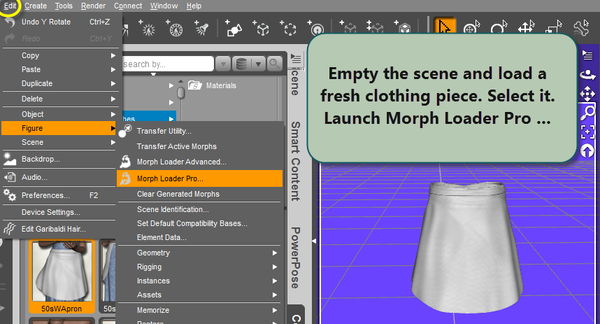

Then in D/S load in a fresh copy of the very same clothing piece and have it selected. [i.e. there are no morphs on/in it].
Then ... I think it's under Edit ... somewhere there's a reference link for Morph Loader Pro, launch it.

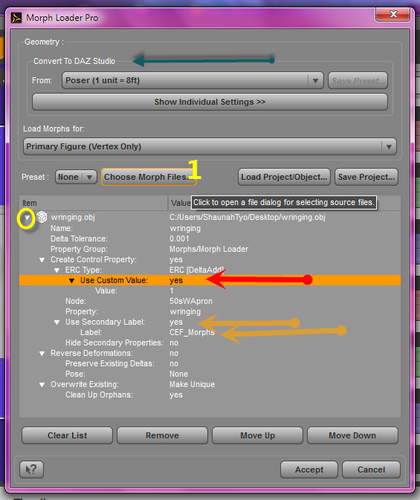

In Morph Loader Pro, browse for the morphed .obj file bringing it into D/S this way so Morph Loader can bring up the making morph dialogue box.
Name the morph and name/select desired options and hopefully you'll get a success message.

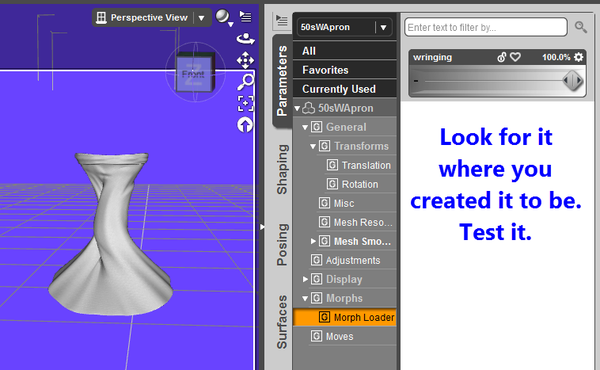

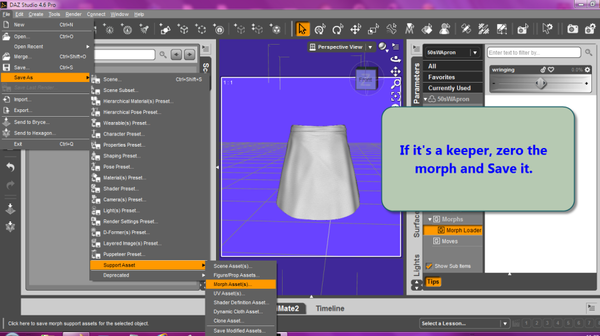

Then over on the Parameters Tab should be the new morph. Dial it up and see if it works as desired. If yes, then "0" it and save it.

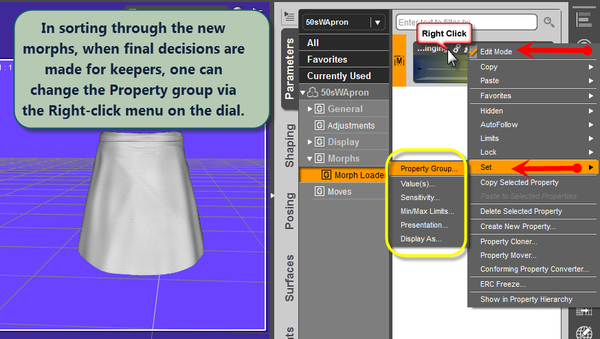

One can further edit the new morph's dial for placement, colour, etc. and then resave it to keep changes.
Thanks, I'll give it a go after I finish making the other side of the top (doing the mermaid top.)
If anyone is interested in how to do a D-former on clothing, I did the step by step for the first side of it and am doing the second side now.
EDIT: http://www.daz3d.com/forums/discussion/38051/P1140/#634266 shows the d-former on the mermaid top
How To Do It: http://www.daz3d.com/forums/discussion/38051/P1140/#634325
I even gave the cooridinates so you can save a couple hours figuring it out if you're new to it.
I see why your name is Patience :)
hehehe ... it's to remind myself to have some for myself too.

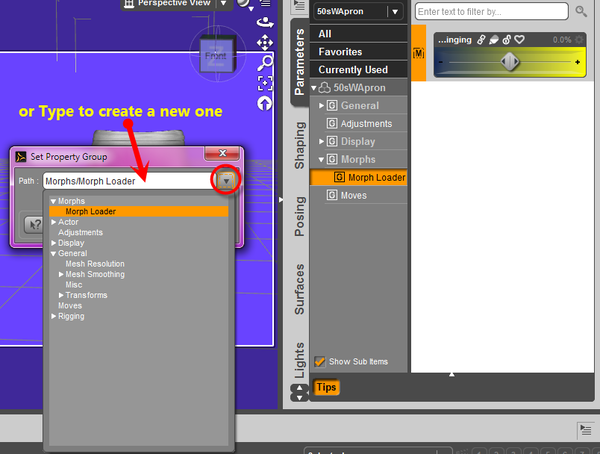

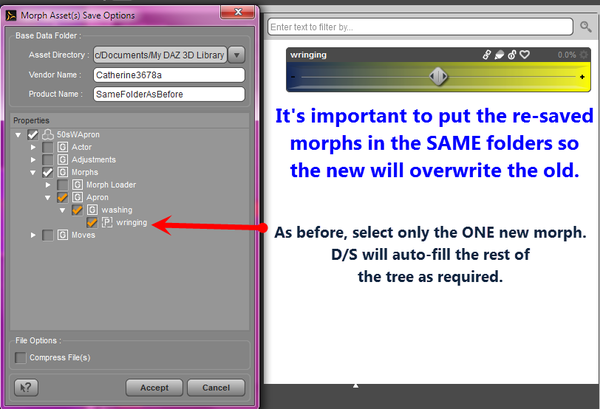

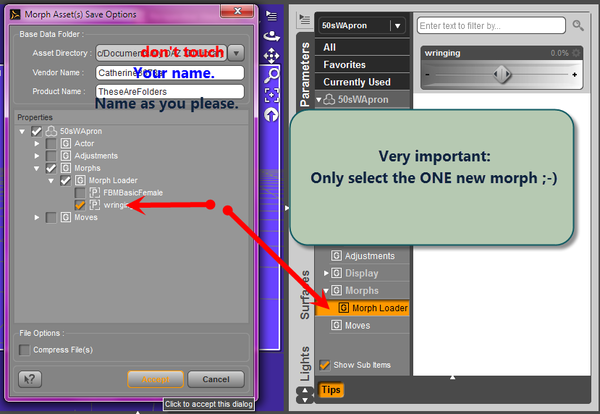

Made some pics:
And the rest ...
Hope this helps.
When I add a D-Former to my clothing items I make, such as a waist fit etc, I tell it to Spawn the Morph and then change the name, limits etc and it is saved in the Morphs part of the Parameters tab. That morph is now in the data folder for that item and ready to use. I don't do any more than that.
Thought I might have missed something ... been a hectic week.
Okay ... you "just" change the name etc ... are you saving it or does that happen automatically? So far [from previous attempts when I remembered to spawn the morph], it didn't save unless I did something like as above.
NO, I have never saved a D-Former morph. It always appears in Parameters and stays there even after closing DS.
Okay, I'll have to try that again ... don't recall how far back it was when I went through a whole bunch of procedures before ... they slipped in an improvement! :-)
Well we have a mystery Wilmap.
tip toes in with 'nuther question ...
Is there any chance that you were saving scenes or parts thereof?
runs out to duck into closet with pillow over ears ...
['cause you see it isn't working just plainly for others either without doing something like saving the morph asset so others are curious too, ty]
The only thing I save is the clothing item, once I have added all the D-Formers I want.
Okay thank you very much :-)
It's trew! It's trew!
Big thank you!!!
Made a long skirt, made a d-form morph, spawned it too ... repositioned it, coloured the bar ... saved the skirt. Deleted the skirt. Loaded a new one and the morph is still there!
In digging through some notes for something else discovered a comment made that something had changed between 4.5 and 4.6 with saving ... now I know what they were talking about ;-)
The "Wilmap Procedure" is how I now think of it.
It is still a mystery to me as to why the morphs become permanent in items such as User created Clothing but do not become permanent when Spawned for a Figure such as Genesis, they are lost if the morph is not saved for figures.
Because Genesis is already a saved figure.
If it follows pattern one would have to be resaving the Genesis figure as though for the lst time. I might test this theory later with a DIFFERENT figure [like the make human one] because there is no way I wish to mess up that Genesis file lol ..
Because Genesis is already a saved figure.
If it follows pattern one would have to be resaving the Genesis figure as though for the lst time. I might test this theory later with a DIFFERENT figure [like the make human one] because there is no way I wish to mess up that Genesis file lol ..Ah... okay there goes that elusive Click. I knew there was a reason right there but not what it was. TY.
Glad you got it sorted patience.
I don't think anything changed from DS4.5 to 4.6 because that's how I've always done D-Formers way back in DS4 as well I think.
