How can I make this Checker Cab Poser model work right in Studio?
Posted: 11 October 2012 10:31 PM   [ Ignore ]
Active Member
Avatar
RankRank
Total Posts:  761
Joined  2006-06-12

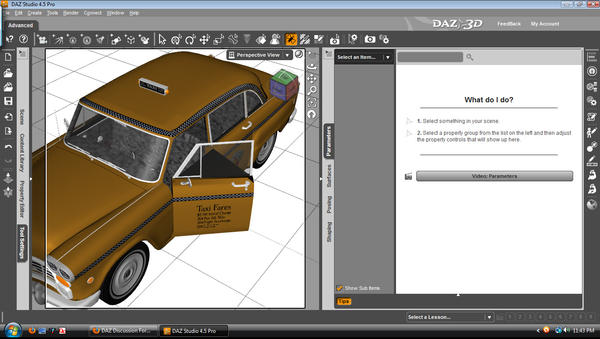

I picked up a Poser Car, hoping to use it in Studio, and I’m running into an odd problem with the doors.  With both of the ones up front, I’ve got some poly’s that won’t move with the rest of the door.  They work right in Poser, but not in studio. I would have thought it’d have been a falloff zone issue (from my limited experience modeling clothes), but the doors don’t have falloff zones.

Image Attachments
 Signature

My Daz Store
ShareCG Freebies

Profile


Posted: 12 October 2012 12:30 AM   [ Ignore ]   [ # 1 ]
Power Member
Avatar
RankRankRank
Total Posts:  1262
Joined  2005-02-25

Make sure the poser file is not reading a PMD morph file !

 Signature

The Mind on the other side!
http://www.daz3d.com/shop/midnight_stories/



Profile


Posted: 12 October 2012 03:47 PM   [ Ignore ]   [ # 2 ]
Active Member
Avatar
RankRank
Total Posts:  761
Joined  2006-06-12
midnight_stories - 12 October 2012 12:30 AM

Make sure the poser file is not reading a PMD morph file !

There’s no pmd morphs so far as I can see.  It all seems to be a very straight forward rig, doors are meant to rotate on an axis, windows slide up and down.  only problem is that the front doors are leaving some polygons behind when they open, forming an ugly triangle that connects them back to the main vehicle.

If this were happening on some clothing I’d made, I’d just adjust the falloff zones, but there don’t seem to be any falloff zones on this rig, so I don’t know why any poly’s are being left behind when the doors open.  but then again, my rigging knowledge is still very limited.

 Signature

My Daz Store
ShareCG Freebies

Profile


Posted: 12 October 2012 04:05 PM   [ Ignore ]   [ # 3 ]
Active Member
Avatar
RankRank
Total Posts:  588
Joined  2004-11-04

In the Parameters tab, check that the <bend> is off. Should be about the last item at the bottom of the Parameters tab

 Signature

DZ FIRE’S
MASTER MODELS

Click HERE to get started.
Facebook

Profile


Posted: 12 October 2012 04:19 PM   [ Ignore ]   [ # 4 ]
Active Member
Avatar
RankRank
Total Posts:  761
Joined  2006-06-12
DzFire - 12 October 2012 04:05 PM

In the Parameters tab, check that the <bend> is off. Should be about the last item at the bottom of the Parameters tab

Bend is off.

Trying to get the doors to open in Studio, I tried exporting out the car with it’s doors opened from Poser and then loading it as a morph target. After doing so, I get the same weird triangles of polygons, just shooting out from the door and away from the car, rather than connecting the door back to the car.  Out of curiosity (wondering if they were shooting out equally far from the car as they were towards it) I then loaded the same morph target with reverse deformations on.  It almost solved the problem.  Now I just have a single narrow strand of polygons connecting the door back to the car, rather than the large triangular mass.

Loading the exported car with it’s doors open into Studio does work.  The car shows up with an open door and no strange polygons shooting out anywhere.

Thinking, heck, I’ll just open it up in zBrush and make my own door opening morph, or at least a jcm to fix the problem (even though that sounds silly for something as simple as opening a door),  I found that the car had n-gons.

Could the n-gons be the root of the problem?

 Signature

My Daz Store
ShareCG Freebies

Profile


Posted: 12 October 2012 04:27 PM   [ Ignore ]   [ # 5 ]
Active Member
Avatar
RankRank
Total Posts:  588
Joined  2004-11-04

It very well may be. If you have UV Mapper Pro or the free download, you can fix all the problems by going to the Tools tab. Select <Facets> and run Concave, Degenerate, and Collinear (all three) then save.

This should fix it (fingers crossed)

 Signature

DZ FIRE’S
MASTER MODELS

Click HERE to get started.
Facebook

Profile


Posted: 12 October 2012 08:33 PM   [ Ignore ]   [ # 6 ]
Active Member
Avatar
RankRank
Total Posts:  761
Joined  2006-06-12

I ran it through those uv mapper pro functions and it’s still goofy.  I can just open the door in poser, export it, and import it in to studio.  I just need it as a background element anyway.  Thank you for the advice, though.

 Signature

My Daz Store
ShareCG Freebies

Profile


Posted: 13 October 2012 04:06 AM   [ Ignore ]   [ # 7 ]
Active Member
Avatar
RankRank
Total Posts:  905
Joined  2007-01-04

DS4 treats all Poser figures as if it was a single skin mesh ie it welds it, so check the vertices on the door to see if they are to close to the vertices in the upright, as they could have been welded together.

 Signature

**shuffles of with a new headache** tongue wink

Profile


Posted: 13 October 2012 09:26 AM   [ Ignore ]   [ # 8 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4545
Joined  2007-09-13
Bejaymac - 13 October 2012 04:06 AM

DS4 treats all Poser figures as if it was a single skin mesh ie it welds it, so check the vertices on the door to see if they are to close to the vertices in the upright, as they could have been welded together.

Does it do that for files that use external geometry or just those that include the geometry in the cr2/pp2?

 Signature

1432 old posts

My ShareCG gallery.

Just because something costs a lot, doesn’t mean it’s the best…

It just means it’s expensive.

Profile


Posted: 13 October 2012 11:54 AM   [ Ignore ]   [ # 9 ]
Active Member
Avatar
RankRank
Total Posts:  761
Joined  2006-06-12
Bejaymac - 13 October 2012 04:06 AM

DS4 treats all Poser figures as if it was a single skin mesh ie it welds it, so check the vertices on the door to see if they are to close to the vertices in the upright, as they could have been welded together.

Thank you. This proved to be the solution.  It wasn’t the rigging, it wasn’t the n-gon’s, it wasn’t the thousands of duplicate unwelded vertices. Once I moved a handful of door vertices away from the main body of the car, the doors now open and close without any strangeness.

 Signature

My Daz Store
ShareCG Freebies

Profile


Posted: 13 October 2012 01:09 PM   [ Ignore ]   [ # 10 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4545
Joined  2007-09-13
Joequick - 13 October 2012 11:54 AM
Bejaymac - 13 October 2012 04:06 AM

DS4 treats all Poser figures as if it was a single skin mesh ie it welds it, so check the vertices on the door to see if they are to close to the vertices in the upright, as they could have been welded together.

Thank you. This proved to be the solution.  It wasn’t the rigging, it wasn’t the n-gon’s, it wasn’t the thousands of duplicate unwelded vertices. Once I moved a handful of door vertices away from the main body of the car, the doors now open and close without any strangeness.

Well, crap…I guess that means being even more meticulous on mesh construction.  There’s tons of ‘sloppy’ meshes out there, that worked in previous versions of the software that probably should be cleaned up…

Of course, modelling just for DS and working only in DS formats may be a bit more forgiving.

Joe, were the vertices in question actually ‘touching’ or were they just ‘near’?  Were they close enough that at ‘default’ settings, the average modelling app would have counted them as dups or welded them?

 Signature

1432 old posts

My ShareCG gallery.

Just because something costs a lot, doesn’t mean it’s the best…

It just means it’s expensive.

Profile


Posted: 13 October 2012 01:28 PM   [ Ignore ]   [ # 11 ]
Active Member
Avatar
RankRank
Total Posts:  761
Joined  2006-06-12
mjc1016 - 13 October 2012 01:09 PM
Joequick - 13 October 2012 11:54 AM
Bejaymac - 13 October 2012 04:06 AM

DS4 treats all Poser figures as if it was a single skin mesh ie it welds it, so check the vertices on the door to see if they are to close to the vertices in the upright, as they could have been welded together.

Thank you. This proved to be the solution.  It wasn’t the rigging, it wasn’t the n-gon’s, it wasn’t the thousands of duplicate unwelded vertices. Once I moved a handful of door vertices away from the main body of the car, the doors now open and close without any strangeness.

Well, crap…I guess that means being even more meticulous on mesh construction.  There’s tons of ‘sloppy’ meshes out there, that worked in previous versions of the software that probably should be cleaned up…

Of course, modelling just for DS and working only in DS formats may be a bit more forgiving.

Joe, were the vertices in question actually ‘touching’ or were they just ‘near’?  Were they close enough that at ‘default’ settings, the average modelling app would have counted them as dups or welded them?

I didn’t actually look at them.  zBrush is my only modeler, and it won’t open the cab without converting the n-gons and losing the material groups.  (when DZFire’s suggestions didn’t solve the problem, I just restored the default cab mesh).  So what I did to move the polygons was open the doors by “5” in Poser, export out that obj and replace the default one with it. Then load the .cr2 in Studio and changed the parameters for the doors so that they loaded with “-5” as their default state and then resaved the .cr2

 Signature

My Daz Store
ShareCG Freebies

Profile


Posted: 13 October 2012 02:50 PM   [ Ignore ]   [ # 12 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4545
Joined  2007-09-13

Well, that would move them…but no way of telling how far from their original position they had to be to actually work.  I guess one could go and try narrowing it down by trying a smaller increment…or doing the ‘by half until it doesn’t work’ method.

It’s looking like tolerances are just tighter on everything in DS4.5.

 Signature

1432 old posts

My ShareCG gallery.

Just because something costs a lot, doesn’t mean it’s the best…

It just means it’s expensive.

Profile


Posted: 14 October 2012 06:19 AM   [ Ignore ]   [ # 13 ]
Active Member
Avatar
RankRank
Total Posts:  905
Joined  2007-01-04

As long as the vertices aren’t sitting on top of each other you should be alright, you just need to remember that DS4 will convert any Poser figure you import into a fully welded ungrouped single skin mesh (just like Genesis), which is why we had so much trouble with Binary morphs done for a hard split grouped mesh in 4.0.

 Signature

**shuffles of with a new headache** tongue wink

Profile
