Clean Pose Transitions
Posted: 08 October 2012 11:15 PM   [ Ignore ]
New Member
Total Posts:  19
Joined  2012-02-17

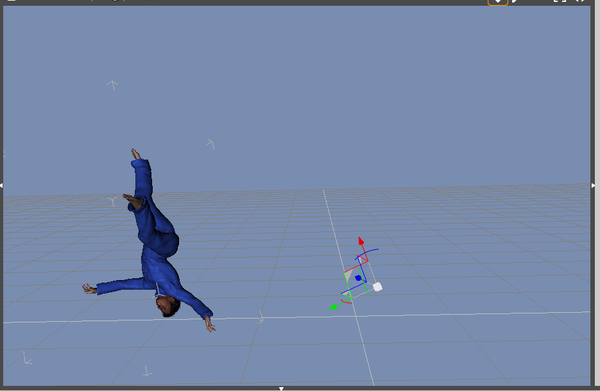

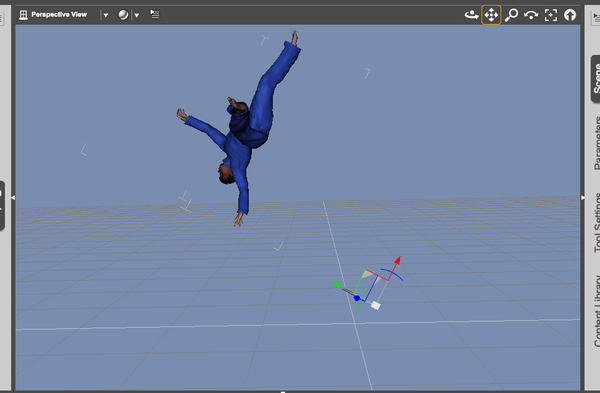

I have attached some images of a figure I am creating poses for. Right now the figure is rotating to far in the scene. I want more control in rotating him so that he stays more in one place in the scene, while doing a complete flip in one place. I am sure this is very simple. I can do it in Modo but with Daz I cant figure out how to use the rotation tool to achieve this.

Can anyone please help?

Image Attachments
Profile


Posted: 09 October 2012 12:28 AM   [ Ignore ]   [ # 1 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  16403
Joined  2009-01-22

Can we get a Snap of your Scene Tab. It does not look like you have the Root of the figure selected.

 Signature

Exile, Drows Walk: A Tale of Jaderail starts here. Free pulp fiction at its Fantasy best, Updated 2/3/14.
Proud Member of the Bald Wizards Club My stuff at DeviantArt

Profile


Posted: 09 October 2012 07:23 AM   [ Ignore ]   [ # 2 ]
New Member
Total Posts:  19
Joined  2012-02-17

Yes. Here is a more full view

Image Attachments
Profile


Posted: 09 October 2012 07:43 AM   [ Ignore ]   [ # 3 ]
Power Member
Avatar
RankRankRank
Total Posts:  1825
Joined  2004-08-24

I agree with Jaderail,. it looks like you’re rotating the whole figure group, and not the hip.
It also looks like you have a really long animation time-line, with only a few key-frames for an acrobatic flip .
3000 frames at 30fps is 100 seconds.

I could be wrong and you have a much more complex animation before the flip,. but,... the way that DS “tweens” is (I think) bezier, by default, and that can lead to extended curving between key-frames which are separated with a large distance like this.

Have you tried using something like Puppeteer, to create a fake motion capture,.. instead of hand animating the figure, you;d make a series of Poses,. then roll the mouse over the pose dots, and record the action as key-frames.

Profile


Posted: 09 October 2012 07:52 AM   [ Ignore ]   [ # 4 ]
New Member
Total Posts:  19
Joined  2012-02-17

I have not tried Puppeteer, is this a part of Daz studio or is it a separate software?

Profile


Posted: 09 October 2012 08:00 AM   [ Ignore ]   [ # 5 ]
New Member
Total Posts:  19
Joined  2012-02-17

Okay just found the puppeteer tab and docked it. Do you know of any good tutorials on how to use it? I have never used this plug-in before.

Image Attachments
Profile


Posted: 09 October 2012 08:10 AM   [ Ignore ]   [ # 6 ]
Power Member
Avatar
RankRankRank
Total Posts:  1825
Joined  2004-08-24

Puppeteer is built into Daz Studio
Windows / Tabs / Puppeteer.

you can dock the panel wherever you like. (see pic)

Puppeteer is a Grid, where you can Save the current Pose by clicking in the grid to create a “Pose Dot”
once you create several pose dot’s , you can switch to Preview mode,.. then roll your mouse over the dots to animate the change from one to the next.

you can record this , and convert it to key-frames on the timeline.

but you need to animate the figure bones, such as the Hip, to create the rotation,. and not the entire figure group.

Hope it helps smile

Image Attachments
Profile


Posted: 09 October 2012 08:12 AM   [ Ignore ]   [ # 7 ]
Power Member
Avatar
RankRankRank
Total Posts:  1825
Joined  2004-08-24

there should be some Video tutorials on You tube

http://www.youtube.com/watch?v=3AZRYJC9RV8

Profile


Posted: 09 October 2012 10:48 PM   [ Ignore ]   [ # 8 ]
New Member
Total Posts:  19
Joined  2012-02-17

Thank you so much. This helps a great deal. Things are rolling now!

Profile


Posted: 10 October 2012 12:27 AM   [ Ignore ]   [ # 9 ]
New Member
Total Posts:  19
Joined  2012-02-17

Do you know how to switch off the timeline when creating puppeteer poses? It keeps creating key frames whenever I try work on the pose dots in the edit mode in puppeteer.

Profile


Posted: 10 October 2012 07:53 AM   [ Ignore ]   [ # 10 ]
Power Member
Avatar
RankRankRank
Total Posts:  1825
Joined  2004-08-24

Hi village_residuum smile

You should be able to work on frame 0 of the animation time-line without creating any key-frames,. so make sure your time-line slider is back at the start of your animation,.

If the time-line is advanced forward, and you move /pose a figure,.. then it’ll create a key-frame.

You should be able to select the figure and Clear all the animation (see pic)
(this won’t change you puppeteer pose dots)
you can also save and reload the Puppeteer poses you’re making as a Puppeteer preset.

Hope it helps smile

Image Attachments
Profile


Posted: 14 October 2012 02:20 PM   [ Ignore ]   [ # 11 ]
New Member
Total Posts:  19
Joined  2012-02-17

Thank you! This helps a great deal for me to understand the workings of these features and plugins. Also, where would I load different puppeteer presets? Can I just load them into the timeline when I am ready to create new key frames?

Can I use existing pose presets in the puppeteer grid?
