Hi

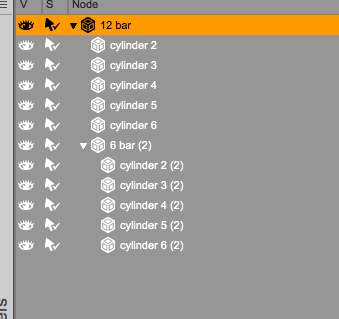

I have two questions but i may have trouble finding a way to describe exactly what my questions are. I have taken the easy way out for the first question, and included a screen shot, here goes. If i have a number of things that i want to hide in a scene do i have to click on each and every eye icon to hide it. I have tried ctrl click but it dont work! Oh just in case its relevant, i’m using a Mac.
Now the next question which is harder, not to answer perhaps, but to ask properly. I know i can view scenes in a number of ways, side by side and various different combinations. Is there a way to assign hot keys to different view combinations to enable me to switch easily between views.
Actually that seems to be a fairly clear way to put the question.
Any help appreciated

Image Attachments
Profile


Posted: 07 October 2012 03:47 PM   [ Ignore ]   [ # 1 ]
Addict
Avatar
RankRankRankRank
Total Posts:  7521
Joined  2009-05-14

We used to have to click every eye but now new in DS4.5 XXXX we have the “New Group” function found under the “Create” menu. Select the object/s go to Create > New Group making sure Parent Selected Items is checked and Accept. Now one click on the Groups Eye and all is hidden.

I just tetsed it in DS 4.5.137 beta but I am fairly sure it is in 4.5.0.114


EDIT Or do what Richard said below..clever clogs. smile

 Signature

Pete

Somethings to Consider when starting to learn CG

My Gallery

My Render Thread

Proud member of the Bald Wizards Club and Co-operative

Profile


Posted: 07 October 2012 03:49 PM   [ Ignore ]   [ # 2 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  13412
Joined  2003-10-09

Select all of the items you wish to hide, then go to the Parameters pane and click the button labelled Visible (in the Genral group) to hide them at one go.

Open the Customise dialogue (Window>Workspace>Customise in 4.5, Edit>Customise before that) and in the left-hand column go to the Viewports group, right click on the layout you want to give a shortcut to, and from the menu select Change keyboard Shortcut, then press the key combination you wish to use.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 07 October 2012 03:50 PM   [ Ignore ]   [ # 3 ]
Addict
Avatar
RankRankRankRank
Total Posts:  7521
Joined  2009-05-14

As for assigning Hotkeys commands to the Orthogrpahic views I have no idea sorry.

 Signature

Pete

Somethings to Consider when starting to learn CG

My Gallery

My Render Thread

Proud member of the Bald Wizards Club and Co-operative

Profile


Posted: 07 October 2012 03:57 PM   [ Ignore ]   [ # 4 ]
Addict
Avatar
RankRankRankRank
Total Posts:  6181
Joined  2005-08-15

I am using DS 4.5, and my Customise option is still in the Edit menu.

See the image below on how to change it, might make it a bit easier.

Image Attachments
Profile


Posted: 08 October 2012 02:56 AM   [ Ignore ]   [ # 5 ]
Member
Rank
Total Posts:  248
Joined  2010-07-20

Hi
Thank you for the tip regarding closing multiple view, simple when you know how. The second question which was easier to ask is not as easy to resolve it seems. When i go to the edit menu i have nothing like the image Jimmy posted, now i realise that this may be that i am using a different view than Jimmy, or maybe its the old Mac thing again. Maybe i should have asked how do i assign hot keys to scene views, who knows? The screen shot is all i get when i open up edit, so this question remains unanswered. Not for long i have no doubt.
Thanks

Image Attachments
Profile


Posted: 08 October 2012 03:06 AM   [ Ignore ]   [ # 6 ]
Member
Rank
Total Posts:  248
Joined  2010-07-20
Richard Haseltine - 07 October 2012 03:49 PM

Open the Customise dialogue (Window>Workspace>Customise in 4.5, Edit>Customise before that) and in the left-hand column go to the Viewports group, right click on the layout you want to give a shortcut to, and from the menu select Change keyboard Shortcut, then press the key combination you wish to use.

It is not exactly as Richard says, its perfect for me up to right click on the layout you want to edit. I need to click the drop down arrow to get into the sub menu and the right click to make changes or assign hot keys.
I really should concentrate on the answers i get before i decide they are not correct. Thank you Richard

Profile


Posted: 08 October 2012 03:16 AM   [ Ignore ]   [ # 7 ]
Active Member
Avatar
RankRank
Total Posts:  322
Joined  2004-04-07

Mine is under: Window>Workspace>Customize or you can use its default shortcut of F3 grin

 Signature

regards
prixat

Profile


Posted: 08 October 2012 03:24 AM   [ Ignore ]   [ # 8 ]
Addict
Avatar
RankRankRankRank
Total Posts:  6181
Joined  2005-08-15

I have no idea why my Customize menu is still in the Edit menu, but it has always been there.  I probably put it there myself, and I have forgotten about it.  I have been using DS4 since the early betas, and it has never has been put into the Window menu.

Sorry David, you should always listen to Richard anyway smile

Hope you get it working.

Profile


Posted: 08 October 2012 03:27 AM   [ Ignore ]   [ # 9 ]
Member
Rank
Total Posts:  248
Joined  2010-07-20

Hi
Dont be sorry, its fine and i have listened to Richard and it is now working, thank you

Profile


Posted: 08 October 2012 07:09 AM   [ Ignore ]   [ # 10 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  13412
Joined  2003-10-09

You won’t get the updated menus for 4.5 (or other versions) of DS unless you reload the layout - otherwise DS will leave the menus alone, so that it doesn’t overwrite deliberate customisations.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 08 October 2012 07:18 AM   [ Ignore ]   [ # 11 ]
Addict
Avatar
RankRankRankRank
Total Posts:  6181
Joined  2005-08-15

Ah, I see, thanks Richard.

I do use my own layout, so now I know why.
