Newbies help with shaders
Posted: 24 August 2012 12:30 PM   [ Ignore ]
Member
Avatar
Rank
Total Posts:  51
Joined  2008-12-29

So im not a real dazaholic im mostly a bryce / hexagon user. So forgive me if this is a silly question.

I searched long and hard and found a few helptopics/videos on how to use shaders but evertime I go to apply a shader. ( Even while holding down ctrl, and selecting ignore on the opotions setting ) All my textures for the applied object gets removed, and I have no way on founding out how to reapply them. Any one know a idea to why this is?

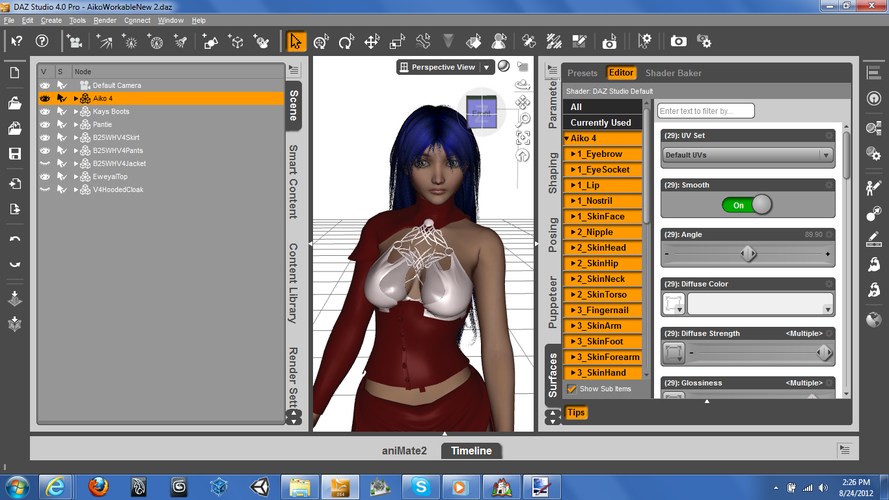

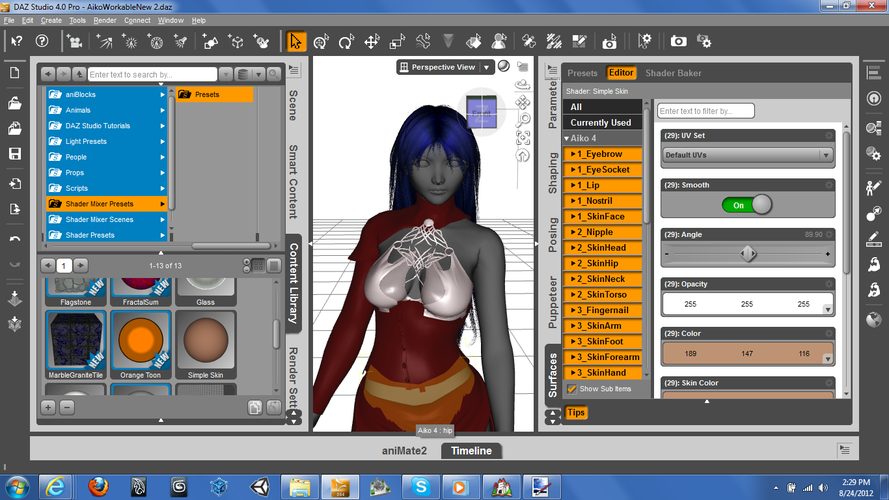

Im trying to apply a simple skin shader to a V4 Model to make the skin look more realistic, here are some SS’s

Image Attachments
 Signature

LOL be warned, I might be friendly

Profile


Posted: 25 August 2012 10:28 AM   [ Ignore ]   [ # 1 ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08

Well, normally pressing Control/Command will do what you wish to do, but you’ve stumbled on one of the few cases where it doesn’t work. Those aren’t just presets, but actually new-shaders-with-presets, made in Shader Mixer, and they generally do not support textures nor do they support “Control Freak”. You can however reapply textures manually by making sure just one surface is selected then going into Shader Mixer selecting File->Import from scene (pick the default: Material; on the pop-up)  and add the texture in a meaningful place. It’s hard to explain where that is, since it depends on the shader. For the Simple skin shader, though, you can plug in an Image brick (Bricks (Default)->Functions->Textures->Image Map on the left area, labeled “Brickyard”, under the preview) into the Diffuse (4) brick and browse to the texture you used, then switch back to the Surfaces tab momentarily, and select all surfaces that share the same texture and back to Shader Mixer click the green Apply button (bottom right).

Profile


Posted: 25 August 2012 01:23 PM   [ Ignore ]   [ # 2 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  13601
Joined  2003-10-09

I believe they will work with the ctrl key modifier, if the inputs were renamed to match the names of the regular shader inputs. At least in DS4.5 - there was a bug report on this with discussions. Note in the creenshot that the labels have changed from Diffuse color to plain Color.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 26 August 2012 08:16 PM   [ Ignore ]   [ # 3 ]
Member
Avatar
Rank
Total Posts:  51
Joined  2008-12-29
ReDave - 25 August 2012 10:28 AM

Well, normally pressing Control/Command will do what you wish to do, but you’ve stumbled on one of the few cases where it doesn’t work. Those aren’t just presets, but actually new-shaders-with-presets, made in Shader Mixer, and they generally do not support textures nor do they support “Control Freak”.

Is it possible to aquire new shaders that do support textures? like elite human shader texture? I just want to make sure before I aquire a product that doesnt nessaraliy achive the realism Im looking for

Richard Haseltine - 25 August 2012 01:23 PM

I believe they will work with the ctrl key modifier, if the inputs were renamed to match the names of the regular shader inputs. At least in DS4.5 - there was a bug report on this with discussions. Note in the creenshot that the labels have changed from Diffuse color to plain Color.

and what exactly is this control key modifier? sorry for the silly question raspberry big words confuse me

 Signature

LOL be warned, I might be friendly

Profile


Posted: 26 August 2012 10:27 PM   [ Ignore ]   [ # 4 ]
Power Member
Avatar
RankRankRank
Total Posts:  1659
Joined  2005-12-31

Totally posted in the wrong thread! Whoops!

Profile


Posted: 27 August 2012 05:19 AM   [ Ignore ]   [ # 5 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  13601
Joined  2003-10-09

The ctrl key modifier is what you’ve been doing to get the option dialogue. The point is that the names have to match or DS won’t know that the texture should be applied to the property in the new shader, it doesn’t get functional definitions, only the names determine what is matched.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 28 August 2012 01:33 PM   [ Ignore ]   [ # 6 ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08
Apoc23 - 26 August 2012 08:16 PM

Is it possible to aquire new shaders that do support textures? like elite human shader texture? I just want to make sure before I aquire a product that doesnt nessaraliy achive the realism Im looking for

Yes, Human Surface Shader has been supporting Ctrl+click for doing that since its inception. HSS is now called UberSurface and is bundled with DS.
I have tried applying in DS 4.5 a pwEffect shader after an Ubersurface shader on a surface that has a diffuse texture and indeed it is as Richard says, you don’t even have to press ctrl anymore to have them apply and retain the texture.
