Materials are inside out when importing obj
Posted: 24 May 2014 12:05 PM   [ Ignore ]
New Member
Total Posts:  1
Joined  2010-07-15

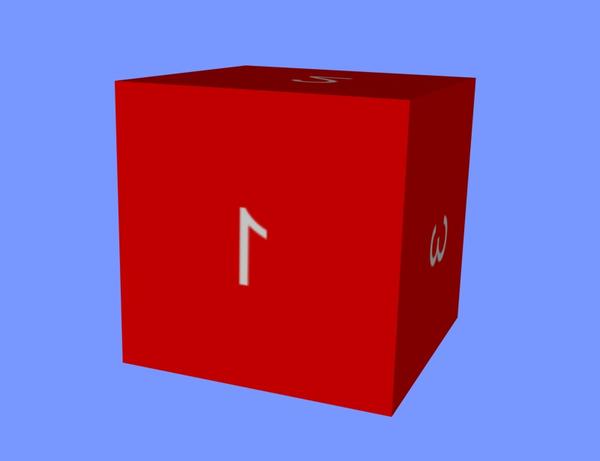

I created a box in 3ds max 2010 with 6 sides. Created a material to basically test the import. It is something of a die model with the numbers one through six on the sides. I save it out and then import it into Daz 4.6. Everything seems to be fine except the material appears inside out, or mirrored if you like. It is as if the material is facing the inside of the model instead of the outside. Does anyone have a fix for this, or know the settings I should use in 3ds max to get it right? I included a pic of the die so you can get a better idea of what i mean.

Thanks in advance.

Image Attachments
Profile


Posted: 24 May 2014 12:15 PM   [ Ignore ]   [ # 1 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  16403
Joined  2009-01-22

That shows that the Normals are reversed, pointing in instead of out. Not sure of the fix but that is the cause.

 Signature

Exile, Drows Walk: A Tale of Jaderail starts here. Free pulp fiction at its Fantasy best, Updated 2/3/14.
Proud Member of the Bald Wizards Club My stuff at DeviantArt

Profile


Posted: 24 May 2014 12:58 PM   [ Ignore ]   [ # 2 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  15734
Joined  2003-10-09

It isn’t normals, the UVs just need mirroring (at least on the 1 face, the 3 looks OK as far as I can see).

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 24 May 2014 01:04 PM   [ Ignore ]   [ # 3 ]
Addict
Avatar
RankRankRankRank
Total Posts:  6138
Joined  2005-08-29

I think it’s one of the x/y/z that needs to be inverted (I think there is a checkbox for that and that the MAX importer sets that by default, or it is set but not needed.

 Signature

=============================================
My DAZ Gallery  | The adventures of Lomund
Free RPG adventures for DnD, O:FR and more: http://4eyes.code66.se
Community Volunteer

Proud member of the Bald Wizards Club
I always look on the bright side of life, ‘cause I never expected the Spanish inquisition!

Profile


Posted: 24 May 2014 01:07 PM   [ Ignore ]   [ # 4 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  15734
Joined  2003-10-09

Ah, yes - would explain why the 3 looks OK. There are also invert checkboxes in the DS OBJ importer dialogue.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 24 May 2014 01:16 PM   [ Ignore ]   [ # 5 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  16403
Joined  2009-01-22

Ah. I was thinking it was modeled bas ack wards… (BLUSH goes here.) I have done it before. One plane joined but rotated wrong so parts were pointing in and not out. Face direction was the next thing I learned.
