fixing cloud contrast, cloud is too light in one area and too dark in another
Posted: 17 May 2013 08:00 PM   [ Ignore ]
Power Member
Avatar
RankRankRank
Total Posts:  1451
Joined  2003-10-09

  What is the most appropriate way to fix contrast problems in clouds where one part of the cloud is washed out and another part of the cloud is very dark?  Nothing I try seems to fix the problem, and most things that get rid of the washed-out part also make another part of the cloud look like smoke.

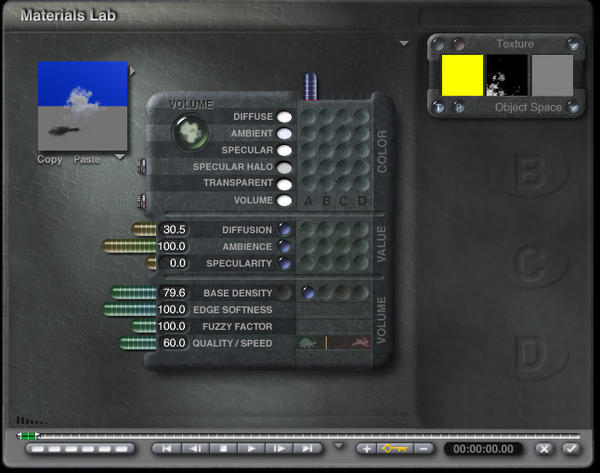

  I have attached a screenshot of the settings for this particular cloud screenshot just to illustrate, although it is not the only setting combination I have tried.  I’ve mostly been messing around with the ambient and diffuse and base density settings, but perhaps that is completely the wrong approach to take.
  (I don’t actually have anything but sky in this scene at the moment though, as I was intending to use it as a backdrop, but I have been avoiding changing the light settings for now, because they were pulled from a scene that was working fine and I’m assuming I don’t want to mess with those especially if I want to save my cloud settings for future use in a different scene. )

Image Attachments
Profile


Posted: 17 May 2013 10:06 PM   [ Ignore ]   [ # 1 ]
Active Member
Avatar
RankRank
Total Posts:  716
Joined  2006-05-26

I am currently having a difficult time understanding what the problem is. The clouds in the slab have different depths at different areas. In some areas light travels through a lot less stuff than it does in other areas. The denser areas naturally occlude more passing light rays than the thinner areas, so the darker areas are surely thicker clouds. Also when considering the behavior of sunlight, sometimes light from the sun strikes clouds in unusual places.

Some things to consider…

Look at the Skylab settings. As a general rule the Sky ambience needs to be fully white. When this color is fully white it allows materials to glow at full force. When you add colors other than white to that channel what you are doing is lowering the total amount of “ambient” light available for your materials. That being said, if your sky ambience is black then your materials wont glow no matter how high you set the material ambience slider.

Looking at your screen shots I can see that the Ambience slider is at 100 yet there are still areas of the cloud that are somewhat darker. Ambience can be used to bake away that darkness but it comes at a price.

I think you should do the following.

1. Make sure sky ambience is fully white.
2. In the material lab turn off all Diffuse. Increase Ambience to 100.
3. What you should have now is a uniform cloud that doesnt have any highlights or shaded regions. It should be a gray somewhat flat looking cloud.
4. Add in diffuse in small doses until you get a little bit of highlight.

Now, if for some reason thge steps above dont work then try to play with the shading mode. Off hand I cannot remember what the sequence is, but most clouds are set to Basic Shading. Most likely that will fix it for ya.

Best of luck, please report back with your progress.

 Signature

Please view my Daz3d User Gallery
http://www.daz3d.com/gallery/#users/465/

Profile


Posted: 18 May 2013 01:30 AM   [ Ignore ]   [ # 2 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2562
Joined  2004-07-06
Sean Riesch - 17 May 2013 08:00 PM

  What is the most appropriate way to fix contrast problems in clouds where one part of the cloud is washed out and another part of the cloud is very dark?  Nothing I try seems to fix the problem, and most things that get rid of the washed-out part also make another part of the cloud look like smoke.
  I have attached a screenshot of the settings for this particular cloud screenshot just to illustrate, although it is not the only setting combination I have tried.  I’ve mostly been messing around with the ambient and diffuse and base density settings, but perhaps that is completely the wrong approach to take.
  (I don’t actually have anything but sky in this scene at the moment though, as I was intending to use it as a backdrop, but I have been avoiding changing the light settings for now, because they were pulled from a scene that was working fine and I’m assuming I don’t want to mess with those especially if I want to save my cloud settings for future use in a different scene. )

If you want to email me the scene I’ll take a look and find out what the the best approach is.

 Signature

that Bryce Tutorials Info and this Products made by Horo and myself and a link to my gallery at DAZ 3D

Profile


Posted: 18 May 2013 07:43 PM   [ Ignore ]   [ # 3 ]
Power Member
Avatar
RankRankRank
Total Posts:  1451
Joined  2003-10-09

@Rashad, thanks, that was the information I needed.  It looks like there were several problems.
  One was indeed the sky ambience setting in the Sky Lab, which was set to grey instead of white.  Setting that to white got rid of the dark grey part of the cloud.  I didn’t even know that was there and having an effect.
  The second part was that the washed-out top part of the cloud was actually part of the second cloud in the scene in addition to the top of the first cloud.  It was actually in front of the first cloud instead of behind it; that should have been obvious, but I wasn’t paying attention because I was too focused on the other cloud’s settings. When I then turned diffuse completely off for the first cloud the overlap with the other one became obvious and I realized my confusion.  Of course none of the adjustments I made to the first cloud were fixing it, although since you could see through it, changes seemed to be happening, just not as expected.
  With the ambience at white, I am now able to adjust both clouds the way I want.

@David, thanks very much for the offer but it looks like Rashad has sent me in the correct direction.

I have started taking screenshots, will post them when I get the final adjustments rendered.
