How to sync skeleton, guts with model and hide skeleton red rings in render?
Posted: 15 May 2013 01:22 AM   [ Ignore ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

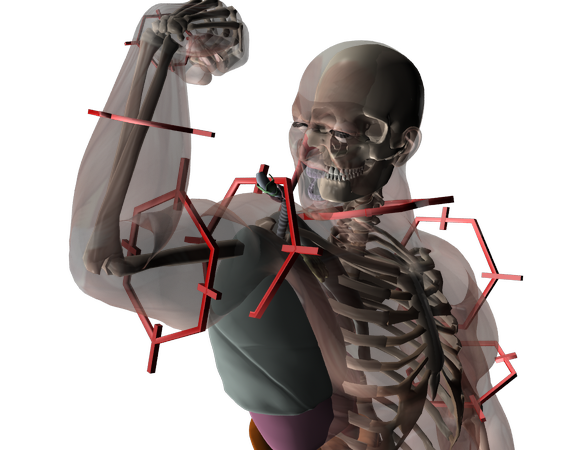

1.) I’m using the M4 skeleton and guts models. I want to have the skeleton and guts synced to the same pose as the m4 model. I did an Edit->copy->copy figure on the m4 model, then on the guts and skeleton I did Edit->paste->paste figure pose and Edit->paste->paste figure shape

However the result isn’t quite right and things don’t line up. For instance the guts trachea is outside the m4 body entirely and the skeleton eyes don’t match the m4. How do you fix that?


2.) Also in the final render, the red rings around the skeleton are still visible. How do you hide those?

Image Attachments
Profile


Posted: 15 May 2013 03:35 AM   [ Ignore ]   [ # 1 ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

I found that it almost works if I start with a blank pose and use the ‘fit to’ function.

However, it still has the problem of the skeleton kneecaps and feet not lining up with the m4 model. Is there any way to fix that?

Also, how do I remove the red rings from the render?

Image Attachments
Profile


Posted: 15 May 2013 03:36 AM   [ Ignore ]   [ # 2 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  15646
Joined  2003-10-09

If I remember correctly you need to conform M4 to the skeleton, not the other way round.

 Signature

Chohole’s Space        Neil’Vs Freebies and stuff        L Summer Bryce Rendering Challenge        August Freebie Challenge
My DAZ 3D Gallery    11915

Profile


Posted: 15 May 2013 03:50 AM   [ Ignore ]   [ # 3 ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

When I conform M4 to the skeleton it still gives a strange shape to the feet and the skeleton kneecaps show through the skin.

Profile


Posted: 15 May 2013 04:16 AM   [ Ignore ]   [ # 4 ]
Addict
Avatar
RankRankRankRank
Total Posts:  7843
Joined  2009-05-14

I can’t help with the skeleton as I don’t have it but for the rings is there a preset to hide them? Or in the scene pane, can turn off the little eye or youi can set the opacity to 0% in the Surfaces Pane.

 Signature

Pete

Somethings to Consider when starting to learn CG

My Gallery

My Render Thread and Tutorials

Proud member of the Bald Wizards Club and Co-operative

Profile


Posted: 15 May 2013 04:54 AM   [ Ignore ]   [ # 5 ]
Addict
Avatar
RankRankRankRank
Total Posts:  6487
Joined  2005-08-15

I don’t have the M4 skeleton either, but I have the M3 one.

If you use the Surface Selection tool to select one of the red rings, and go to the Surfaces pane, you should see it highlghted.  On the M3 skeleton they are called ‘Helpers’, and you can turn down the Opacity slider to zero.

Profile


Posted: 15 May 2013 05:20 AM   [ Ignore ]   [ # 6 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14030
Joined  2003-10-09

The handles are named for the body parts they control - lCollar, lShoulder etc. - and can be turned off via the visibility setting (the eye in the Scene pane or the Visible button in Parameters). I suspect some of your other issues are related to the morphs - have you used the morph transfer to get the M4 morphs you are using into the bones and organs (not that you necessarily want all the morphs to transfer, but you can always turn Show Hidden properties on by right-clicking the Parameters pane’s tab and then zero the ones that shouldn’t carry over in the conformers). The morphs may well be the reason that conforming the human to the bones doesn’t work - the transfer doesn’t work in that direction.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 15 May 2013 05:49 AM   [ Ignore ]   [ # 7 ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

Thanks, I was able to get it to work

Profile


Posted: 15 May 2013 06:09 AM   [ Ignore ]   [ # 8 ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

How do you sync the brain with the model? It’s a prop so it doesn’t seem to act the same way as the other models?

Image Attachments
Profile


Posted: 15 May 2013 06:16 AM   [ Ignore ]   [ # 9 ]
Addict
Avatar
RankRankRankRank
Total Posts:  6487
Joined  2005-08-15

If the brain is a prop, it will need to be ‘Parented’.  Put it where you want it to be (probably the head?), then right click on the brain and change the parent to the head.  It iwll then always move with the head to any position.

Profile


Posted: 15 May 2013 07:10 AM   [ Ignore ]   [ # 10 ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

That works great, thanks!

Profile


Posted: 25 May 2013 05:28 PM   [ Ignore ]   [ # 11 ]
Member
Rank
Total Posts:  59
Joined  2013-05-11

I’m having problems getting the brain to align with the skull correctly. The front lobes are sticking through the bone in the forehead. The steps I’ve taken:

- add ds skeleton to brand new scene
- in parameters, zero skeleton figure
- add brain attachment to scene, this seems to put it as a child of the skull automatically

I’ve attached a screenshot of what it’s doing and the scene structure. Is there any way to manually align the brain?

Image Attachments
Profile


Posted: 26 May 2013 05:40 AM   [ Ignore ]   [ # 12 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14030
Joined  2003-10-09

Try reducing the Z Scale on the brain a bit - you may need to enable the display of hidden parameters for that, right-click on the Parameters pane’s tab.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list
