Rigging issue when using Figure Setup Tools
Posted: 07 May 2013 12:45 PM   [ Ignore ]
Member
Avatar
Rank
Total Posts:  54
Joined  2003-10-12

I’m either doing something wrong or Poser hates me….

I’m in the process of building an “item” that requires an articulating hinge joint, which I’ve built in DS using the Figure Setup Tools.

Everything looks fine…. in DS, but when I try to use the file in Poser….

Specifically, the hinge joint is attached to a framework of an aircraft canopy and the glass is parented to the frame.

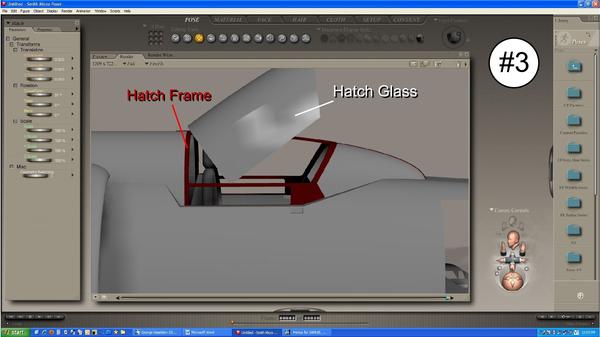

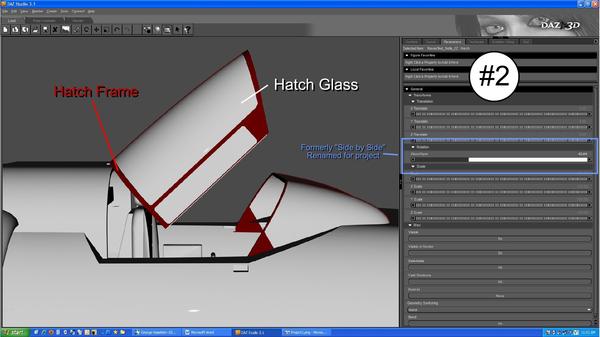

Once I set the proper XYZ, etc, the controller works perfectly in DS as the frame moves upa and down as planned. But, in Poser, the frame stays put and the glass moves!

What am I doing wrong?

Image Attachments
Profile


Posted: 07 May 2013 12:49 PM   [ Ignore ]   [ # 1 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14285
Joined  2003-10-09

Do the group names in the OBJ match the bone names?

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 07 May 2013 01:03 PM   [ Ignore ]   [ # 2 ]
Member
Avatar
Rank
Total Posts:  54
Joined  2003-10-12

Yes.

I’m considering merging the frame and glass as a single obj file to see if this corrects the problem.

Profile


Posted: 07 May 2013 04:14 PM   [ Ignore ]   [ # 3 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2865
Joined  2004-04-14
Georgehaze - 07 May 2013 01:03 PM

Yes.

I’m considering merging the frame and glass as a single obj file to see if this corrects the problem.


I would recommend doing just that.  If they are a single piece in the OBJ then there should be no issue.  None that I have encountered anyways.

 Signature

My DAZ3D Store
My Free Stuff
My Art @ DeviantART
Ships of the Line - MEGA THREAD
How to use the Poser Format Exporter - **Updated 2013-02-09**

Profile


Posted: 08 May 2013 09:45 AM   [ Ignore ]   [ # 4 ]
Member
Avatar
Rank
Total Posts:  54
Joined  2003-10-12

OK. Tried that….. It didn’t work.

This time, although it worked fine in DS, in Poser nothing would move at all.

Poser hates me.

Profile


Posted: 09 May 2013 10:32 AM   [ Ignore ]   [ # 5 ]
Member
Avatar
Rank
Total Posts:  54
Joined  2003-10-12

Eureka!!!

Solved it (albeit by a counter intuitive method)...

Since Poser is determined to make the frame stay still but move everything else, I redid the CR2 build….

I used a cube primitive (to limit polygon count), reduced it to almost microscopic size and set that as the “hinge point” and then parented the frame and glass as child bones to the hinge, reasoning that whether or not a microscopic hinge point is ‘seen’ to move or not would be irrelevant since it is buried within the frame obj.

As I said, makes no since at all but, since Poser is determined to treat my CR2 this way I figured that I’d play along and… viola! It works.

Project back on track.
