Having problems with Figure Setup Tools in DS4.5
Posted: 24 April 2013 03:31 PM   [ Ignore ]
Member
Avatar
Rank
Total Posts:  54
Joined  2003-10-12

To begin with, I’m using 64-bit DS 4.5 Pro (version 4.5.2.40) on PC running 64-bit Windows-8.

I don’t know whether this is a DS 4.5 problem or a Windows-8 problem of a combination thereof….

In previous versions of DS (and Windows), when using the Figure Setup Tools, I could drag and drop an object (via “adding geometry”) onto the tree of a project and, when created, the objects would appear in the main window.

However, ever since upgrading to 4.5 (and Win-8), I have the recurring problem that all appears well…

Until I “create” the figure and discover that, depending upon tree structure, I either have all files not show up or some of them not show up.

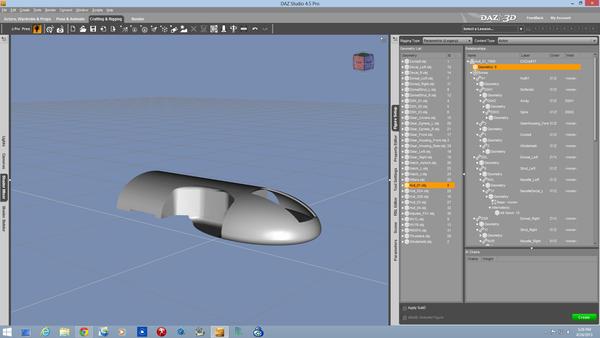

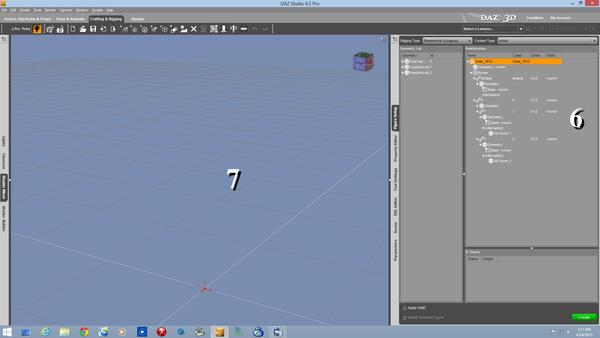

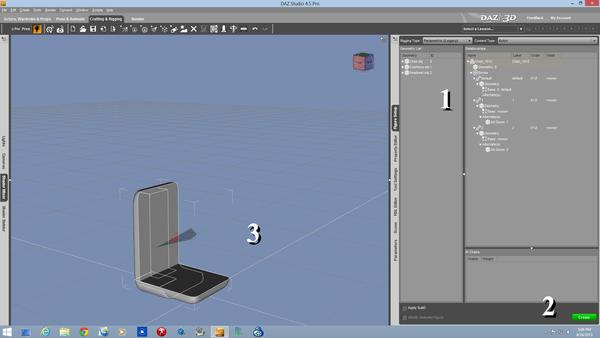

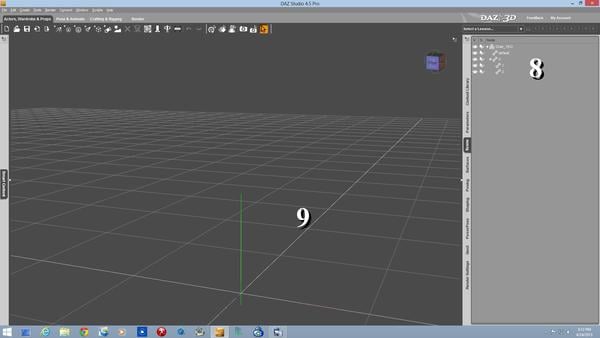

See example pics below (THAT ARE OUT OF ORDER!).

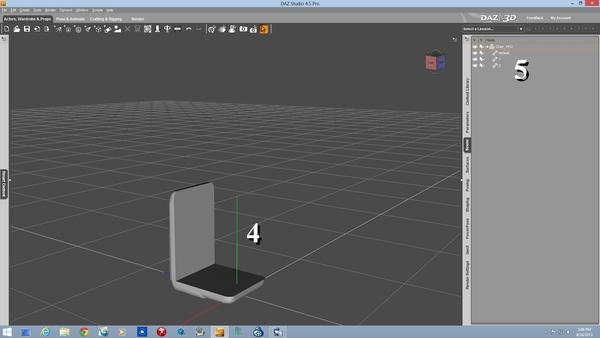

I’ve even tried loading a figure that I created with DS3, copying the setup into FST (allowing it to import all of the appropriate pieces) and, when “created” I again get only one piece out of thirty showing up (see reference pic #5)

So… either I’m doing something wrong and, if that’s the case, it’s the same methods that I’ve always used with success, or there is something wrong with the application.

Image Attachments
Profile


Posted: 24 April 2013 04:04 PM   [ Ignore ]   [ # 1 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14285
Joined  2003-10-09

4.5 doesn’t like multi-part figures - you’ll note in some of your screen shots that the extra geometries are listed as Alt Geoms (for geometry switching) rather than plain geom references. I’m not sure if it’s a bug or design, but there’s no harm in reporting it (assuming someone can’t get it working for you).
