mcjParent - script - simple parenting and animations where you pick and leave objects (updated!)
Posted: 30 March 2013 06:24 AM   [ Ignore ]
Addict
Avatar
RankRankRankRank
Total Posts:  2927
Joined  2006-01-19

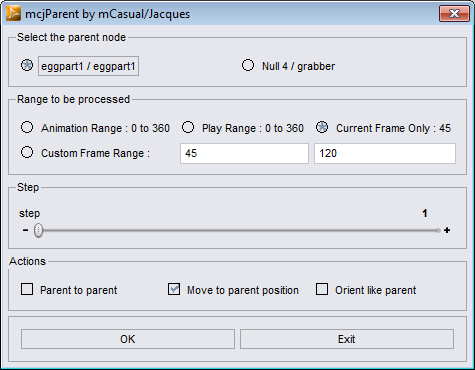

Download and manual——> https://sites.google.com/site/mcasualsdazscripts3/mcjparent

────────────────────────────
Introduction
────────────────────────────

This script for DS1, 2, 3, 4 will let you do animations tasks like picking and leaving an object

a hand picking a sword for example or a robotic arm picking an egg

It can also let you do simple parenting.

In fact initially i wrote this script because my Daz Studio 3 regularly loses the ability to parent

one node to another after an hour of work on a scene.

So instead of saving my scene, closing DS3, restarting DS3 and re-loading the scene, i use this script

Image Attachments
Profile


Posted: 30 March 2013 06:32 AM   [ Ignore ]   [ # 1 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2927
Joined  2006-01-19

Sneak Preview of the robotic arm prop which will be free on my web site soon ( say tomorrow maybe? )



Image Attachments
Profile


Posted: 30 March 2013 08:31 AM   [ Ignore ]   [ # 2 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  18931
Joined  2003-10-09
Casual - 30 March 2013 06:24 AM

In fact initially i wrote this script because my Daz Studio 3 regularly loses the ability to parent

one node to another after an hour of work on a scene.

Is that by drag-and-drop only, or is it also by the Change Parent dialogue? Drag-and-drop in DS3 could be killed by renaming a node, or anything else that involved an active rename field in a pane - I can’t recall if it was ever fixed in 3, it isn’t an issue in 4.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 30 March 2013 03:56 PM   [ Ignore ]   [ # 3 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2927
Joined  2006-01-19
Richard Haseltine - 30 March 2013 08:31 AM
Casual - 30 March 2013 06:24 AM

In fact initially i wrote this script because my Daz Studio 3 regularly loses the ability to parent

one node to another after an hour of work on a scene.

Is that by drag-and-drop only, or is it also by the Change Parent dialogue? Drag-and-drop in DS3 could be killed by renaming a node, or anything else that involved an active rename field in a pane - I can’t recall if it was ever fixed in 3, it isn’t an issue in 4.

by drag and drop mainly ( cant recall exactly if i tried through the menus )

i tend to use DS3 often, because DS4 is more crash prone on my Win7/AMD ( possibly an interaction with Window’s Magnifier )
also because i try to maintain DS3 compatibility for the scripts.

(in other news, i should soon update mcjWarp to DS4.5 ... then maybe implement OSCeleton/Kinect )



Profile


Posted: 09 June 2013 03:36 AM   [ Ignore ]   [ # 4 ]
Member
Rank
Total Posts:  200
Joined  2012-05-25

Can i also parent figures hands with this?
like parent genesis (1)  to hand from genesis (2)  and control genesis(2) hand with genesis (1) hand?

that can be script animators like

 Signature

Very Happy that i save $$$ for products that have no manual and invest this in the great lux modo :p

Profile


Posted: 09 June 2013 09:15 AM   [ Ignore ]   [ # 5 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2927
Joined  2006-01-19
creativemodelsbe - 09 June 2013 03:36 AM

Can i also parent figures hands with this?
like parent genesis (1)  to hand from genesis (2)  and control genesis(2) hand with genesis (1) hand?

that can be script animators like

it’s just to parent an object to a figure, or an object to another object

parenting body parts to body parts would possibly break the skeleton

i wrote scripts for hands and feet animation

https://sites.google.com/site/mcasualsdazscripts2/mcjholdo
https://sites.google.com/site/mcasualsdazscripts/mcjautolimb
https://sites.google.com/site/mcasualsdazscripts/mcjmaketarget
https://sites.google.com/site/mcasualsdazscripts/mcjkeeporient

unfortunately mcjAutoLimb, the more powerful tool of the lot works only with pre-Genesis figures
( Aiko Hiro Victoria Michael 3 and 4 etc ... )

this summer i plan to upgrade and improve mcjAutoLimb



Profile


Posted: 28 June 2015 05:46 AM   [ Ignore ]   [ # 6 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2927
Joined  2006-01-19

i’ll post an mcjParent version that includes a “parent in place” option

but since i cant miss an occasion to waste time . . .

Fig 1 - We have Amy Bun making her nose hard to catch and Amy PixieTail which will catch it

Fig 2 - at frame 0, i set the nose catch pose, i used mcjAutoLimb2014 of course ! and mcjHands
notice the target node which was used to bring Amy PixieTail’s index where it is

now comes the problem, we parent the target node to Amy Bun’s head using mcjParent (2013)
but first i delete all keyframes on the terget node ( because i think it would solve the issue ! )

Fig 3 ok, i select the null node, followed by Amy Bun’s head, i launch mcjParent and i parent
.... and the target node didn’t move

so that’s not a problematic situation


Fig 4, ok i got it ! the problem is, if the target-node is parented to Miss PixieTail’s index, and i re-parent it to the head, it jumps


Now i’ll add the “parent in place” option to the script

ok done, it’s a bit odd because i was using a daz script parenting function which was supposed to “parent in place”

so what i did is, i note the world position of the node being re-parented before the parenting
and i re-position it following the parenting


  var pos = srcnode.getWSPos();
  if( destnode.getNodeParent() == srcnode )
  {
  srcnode.removeNodeChild( destnode );
  }
  destnode.addNodeChild( srcnode, true );
  srcnode.setWSPos( pos );

In Fig 5 we’ll see if Amy PixieTail succeeds in her mission ...









Image Attachments
Profile


Posted: 28 June 2015 07:11 AM   [ Ignore ]   [ # 7 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2927
Joined  2006-01-19

UPDATE


new version with better “parent in place” functionality

when parenting a node that was already parented, the node wont jump away

https://sites.google.com/site/mcasualsdazscripts3/mcjparent

or if you have trouble downloading from my google site

here’s a direct link to the zip

https://sites.google.com/site/mcasualsdazscripts3/mcjparent/mcjParent.zip?attredirects=0&d=1
