heavy scenes
Posted: 27 December 2012 04:59 AM   [ Ignore ]
Member
Rank
Total Posts:  194
Joined  2011-06-17

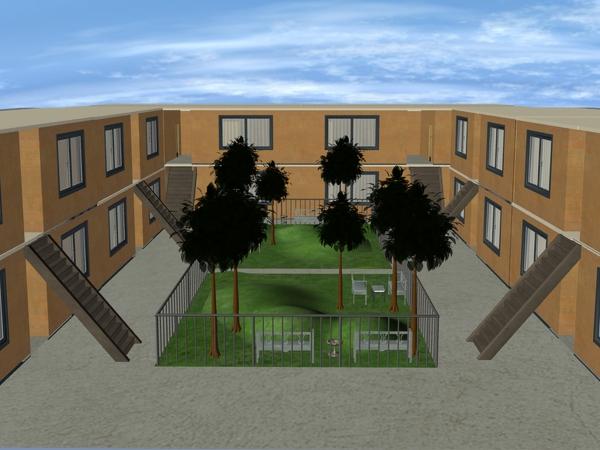

I suppose it’s no wonder I have a hard time with Daz sometimes as I tend to get carried away creating. But it’s so much fun. When the scene starts to drag is it my computer trying to keep up or is it Daz trying to keep up or both? When does a scene get too heavy-that’s what I call it as it tends to slow everything down. IN this render I got really carried away. The files shows to be 5.46MB, is that a bit too much? All the rooms are MacLean’s Hotel Room (reworked the walls so the rooms can face opposite of each other) given the brick texture. the stairs from RoomCreator2 given the metal texture, the courtyard is a plane given the grass texture (MacLean) and used the Dformer to make the little mounds and another primitive cube under that with a grass suface to give it depth and to complete the grassy area. It’s surrounded by the balcony from RoomCreator given a greyish finish to match the Great Accessories furniture (Genesis) given a metal finish and the table from Home One Living Room also given the metal finish. And also the NoAi-vase from Aikanaro. The Palm trees from Bryce7. The ground is a plane with the cement texture (MacLean). So needless to say, now the scene is starting to drag and I haven’t completely finished it yet. Why does it start to drag? I think you can not put a Genesis product in the same scene as a Daz, that’s when it tends to drag.

Image Attachments
Profile


Posted: 27 December 2012 05:23 AM   [ Ignore ]   [ # 1 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2815
Joined  2009-02-24

I’ve worked on some pretty memory intensive scenes myself, and Daz certainly does slow down considerably when using larger sets. The problem isn’t so much the information in the scene, as what’s actually being displayed in the window. Some important things to realise when working with Daz is that there are subdivided and smoothed models being used often. Sometimes these also have their own collision detection, especially in the case of clothing for characters. That’s a lot of work and calculation to be done, so you need to minimize it as much as you can when working on the scene, then add it up later to calculate collisions.

With that said, here’s a few tips to keep things moving more swiftly.

1) Texture-Shading is not always your friend. It’s nice to be able to see what you’re working with easily, but using a texture shaded window in large scenes can really chew your machine up.

2) Bounding Box is difficult to work with, but allows you to quickly move around without worrying. Useful for shifting cameras around or repositioning your perspective viewport. It’s useful for getting the camera into place before making character or set changes.

3) High poly counts cane the viewport. The most obvious troublemaker in the scene you posted are the trees, which likely use high poly counts in the leaves. Knowing which items cause the most drag is useful as you can be more creative with their use to keep things swift without losing quality.

4) High memory won’t help you much. Memory is great for storing all the information, and the more the better for the rendering. It won’t help much with the viewport however. I believe (don’t quote me) that the viewport is drawn entirely software based , which means your CPU rather than your GPU is working to render the working scene. This would at least be consistent with my observations since using the software. It basically means you should minimize the amount of work your processor is trying to do at the same time. This will speed things up.

I don’t pretend to know the inner workings of Daz Studio, so take my word with a pinch of salt. Still, I’ve done scenes with a ton of characters and props before, so I know how badly it can slow down when working. Best of luck minimizing the grind.

 Signature

Find me on DeviantArt
Download my free IBL presets for Luxus
Re-upload of Cresent’s awesome pwToon shaders
Create your own Smart Content

Profile


Posted: 27 December 2012 06:29 AM   [ Ignore ]   [ # 2 ]
Member
Rank
Total Posts:  194
Joined  2011-06-17

Thanks for the information, stuff to keep in mind. I just tend to go at it. The camera presets, I should keep that in mind more often as I create scenes that tend to get so spread out. Needless to say this scene goes beyond the starting floor square layout. The one thing I have learned is give Daz the chance to catch up, especially when bringing the scene back in. I have created scenes that take almost a minute to load, as the log tells. I know there’s a lot of math invloved working with the program and any 3D system. I just gotta learn and understand much more about it all. Any good reference material that would help?

Image Attachments
Profile


Posted: 27 December 2012 02:58 PM   [ Ignore ]   [ # 3 ]
Power Member
Avatar
RankRankRank
Total Posts:  1390
Joined  2011-11-16
texjones - 27 December 2012 06:29 AM

Thanks for the information, stuff to keep in mind. I just tend to go at it. The camera presets, I should keep that in mind more often as I create scenes that tend to get so spread out. Needless to say this scene goes beyond the starting floor square layout. The one thing I have learned is give Daz the chance to catch up, especially when bringing the scene back in. I have created scenes that take almost a minute to load, as the log tells. I know there’s a lot of math invloved working with the program and any 3D system. I just gotta learn and understand much more about it all. Any good reference material that would help?

A minute? That’s all? You’ve got it easy. I’ve had scenes that take more than twenty minutes to load.

Profile


Posted: 27 December 2012 05:49 PM   [ Ignore ]   [ # 4 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4545
Joined  2007-09-13

One thing not mentioned so far…

‘Big scene’ is a relative term…what may be positively unworkable in one hardware configuration may be ‘tiny’ in another.

So, before we go off…what is your config?  CPU, RAM, OS (and bit count), video card (and memory size) and so on…

 Signature

1432 old posts

My ShareCG gallery.

Just because something costs a lot, doesn’t mean it’s the best…

It just means it’s expensive.

Profile


Posted: 27 December 2012 06:47 PM   [ Ignore ]   [ # 5 ]
Member
Rank
Total Posts:  194
Joined  2011-06-17
Tramp Graphics - 27 December 2012 02:58 PM
texjones - 27 December 2012 06:29 AM

Thanks for the information, stuff to keep in mind. I just tend to go at it. The camera presets, I should keep that in mind more often as I create scenes that tend to get so spread out. Needless to say this scene goes beyond the starting floor square layout. The one thing I have learned is give Daz the chance to catch up, especially when bringing the scene back in. I have created scenes that take almost a minute to load, as the log tells. I know there’s a lot of math invloved working with the program and any 3D system. I just gotta learn and understand much more about it all. Any good reference material that would help?

A minute? That’s all? You’ve got it easy. I’ve had scenes that take more than twenty minutes to load.

  Well I am glad to hear that sorta. If it takes more than a minute I’ll think there’s something wrong. I did have a scene of the town laid out wide and huge it took a while to load, I thought there was something wrong and deleted it to start over. I had to anyways because I messed up in too many areas to fix. So when I start a new layout, this time I gots to be VERY patient. But that’s the kind of thing that makes me worry if it’ll kill my computer.

Profile


Posted: 27 December 2012 06:50 PM   [ Ignore ]   [ # 6 ]
Member
Rank
Total Posts:  194
Joined  2011-06-17

Well, now that I’ve gotten to understand about the Log File ,now here is my computer etc… the current memory usage here is because of open programs and web pages.

+++++++++++++++ DAZ Studio 4.5.1.6 starting +++++++++++++++++
Platform bits: 64
Qt Version: 4.8.1
Running on Windows 7, Build 7601, Service Pack 1
CPU String: AuthenticAMD
Stepping ID = 3
Model = 5
Family = 15
Extended family = 1
CLFLUSH cache line size = 64
APIC Physical ID = 2
The following features are supported:
SSE3 New Instructions
MONITOR/MWAIT
x87 FPU On Chip
Virtual-8086 Mode Enhancement
Debugging Extensions
Page Size Extensions
Time Stamp Counter
RDMSR and WRMSR Support
Physical Address Extensions
Machine Check Exception
CMPXCHG8B Instruction
APIC On Chip
SYSENTER and SYSEXIT
Memory Type Range Registers
PTE Global Bit
Machine Check Architecture
Conditional Move/Compare Instruction
Page Attribute Table
Page Size Extension
CFLUSH Extension
MMX Technology
FXSAVE/FXRSTOR
SSE Extensions
SSE2 Extensions
Hyper-threading Technology
CPU Brand String: AMD Athlon(tm) II X4 630 Processor
Cache Line Size = 64
L2 Associativity = 8
Cache Size = 512
Total Physical Memory: 3839 Mb (4025782272)
Available Physical Memory: 2085 Mb (2186944512)
Total Virtual Memory: 8388607 Mb (8796092891136)
Available Virtual Memory: 8388413 Mb (8795888885760)
Current Memory Usage: 45%
Thu Dec 27 18:47:19 2012
Temp folder: C:/Users/Selander/AppData/Roaming/DAZ 3D/Studio4/temp
Total temp disk size: 702932 Mb, Available: 193879 Mb
Locale: en_US

Current OpenGL Version:
3.3.10834 Compatibility Profile Context


OpenGL Provider:
ATI Technologies Inc.


Hardware:
ATI Radeon HD 4200


Features:

MultiTexturing
Supported

Shadow Map
Supported

Hardware Antialiasing
Supported

OpenGL Shading Language
Supported

Pixel Buffer
Supported


Pixel Buffer Size
Not Enabled


Maximum Number of Lights
8

Number of Texture Units
8

Maximum Texture Size
8192 x 8192



Profile


Posted: 27 December 2012 09:46 PM   [ Ignore ]   [ # 7 ]
Power Member
Avatar
RankRankRank
Total Posts:  1390
Joined  2011-11-16
texjones - 27 December 2012 06:47 PM
Tramp Graphics - 27 December 2012 02:58 PM
texjones - 27 December 2012 06:29 AM

Thanks for the information, stuff to keep in mind. I just tend to go at it. The camera presets, I should keep that in mind more often as I create scenes that tend to get so spread out. Needless to say this scene goes beyond the starting floor square layout. The one thing I have learned is give Daz the chance to catch up, especially when bringing the scene back in. I have created scenes that take almost a minute to load, as the log tells. I know there’s a lot of math invloved working with the program and any 3D system. I just gotta learn and understand much more about it all. Any good reference material that would help?

A minute? That’s all? You’ve got it easy. I’ve had scenes that take more than twenty minutes to load.

  Well I am glad to hear that sorta. If it takes more than a minute I’ll think there’s something wrong. I did have a scene of the town laid out wide and huge it took a while to load, I thought there was something wrong and deleted it to start over. I had to anyways because I messed up in too many areas to fix. So when I start a new layout, this time I gots to be VERY patient. But that’s the kind of thing that makes me worry if it’ll kill my computer.

I only start over on a piece if simply loading it crashes DAZ completely. I have .daz scenes in excess of 50mb, so a 5 mb file isn’t anything. Each one of the characters I’ve made (all saved as .Daz files, and completely textured and clothed) is over 9mb at least, some exceeding 16mb.

Profile


Posted: 28 December 2012 03:46 AM   [ Ignore ]   [ # 8 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2815
Joined  2009-02-24
Tramp Graphics - 27 December 2012 09:46 PM

I only start over on a piece if simply loading it crashes DAZ completely. I have .daz scenes in excess of 50mb, so a 5 mb file isn’t anything. Each one of the characters I’ve made (all saved as .Daz files, and completely textured and clothed) is over 9mb at least, some exceeding 16mb.

The DUF format seems pretty space conserving. Even my larger scenes only take up a few Mb and that’s because the characters aren’t saved with the file as with other formats, but rather loaded when the file is. Of course, this does mean it can actually take longer for files to load, as it’s effectively importing the necessary figures on the fly.

Generally DUF files are far smaller than their DAZ counterparts, but no less intensive when loading depending on the complexity of the scene. Even one of my scenes with the highest poly count, and the largest number of props and figures loaded only comes to a few Mb. Though oddly, the recent Daz 3D group shot wallpaper I did only comes to 1.6Mb, far less than a simpler scene which is almost double the size!

The DUF format has some oddities with file sizes, but generally even complex scenes can be reduced to a few Mb. Animation is a sure fire way to ramp up the file sizes though. My largest is around 8Mb so far.

 Signature

Find me on DeviantArt
Download my free IBL presets for Luxus
Re-upload of Cresent’s awesome pwToon shaders
Create your own Smart Content

Profile


Posted: 28 December 2012 05:12 AM   [ Ignore ]   [ # 9 ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08
HeraldOfFire - 27 December 2012 05:23 AM

I’ve worked on some pretty memory intensive scenes myself, and Daz certainly does slow down considerably when using larger sets. The problem isn’t so much the information in the scene, as what’s actually being displayed in the window. Some important things to realise when working with Daz is that there are subdivided and smoothed models being used often. Sometimes these also have their own collision detection, especially in the case of clothing for characters. That’s a lot of work and calculation to be done, so you need to minimize it as much as you can when working on the scene, then add it up later to calculate collisions.

With that said, here’s a few tips to keep things moving more swiftly.

1) Texture-Shading is not always your friend. It’s nice to be able to see what you’re working with easily, but using a texture shaded window in large scenes can really chew your machine up.

2) Bounding Box is difficult to work with, but allows you to quickly move around without worrying. Useful for shifting cameras around or repositioning your perspective viewport. It’s useful for getting the camera into place before making character or set changes.

3) High poly counts cane the viewport. The most obvious troublemaker in the scene you posted are the trees, which likely use high poly counts in the leaves. Knowing which items cause the most drag is useful as you can be more creative with their use to keep things swift without losing quality.

All correct, good post.

HeraldOfFire - 27 December 2012 05:23 AM

4) High memory won’t help you much. Memory is great for storing all the information, and the more the better for the rendering. It won’t help much with the viewport however. I believe (don’t quote me) that the viewport is drawn entirely software based , which means your CPU rather than your GPU is working to render the working scene. This would at least be consistent with my observations since using the software. It basically means you should minimize the amount of work your processor is trying to do at the same time. This will speed things up.

I don’t pretend to know the inner workings of Daz Studio, so take my word with a pinch of salt. Still, I’ve done scenes with a ton of characters and props before, so I know how badly it can slow down when working. Best of luck minimizing the grind.

Point 4 is wrong, though. DS uses the GPU in the viewport, not the CPU. A better videocard will help you having less of a drag with bigger scenes. You can also drag a slider towards Performance to increase responsiveness (Edit->Preferences->Interface tab->Texture Resources); and there’s the Display Optimization option (but I haven’t heard much good about it; it usually fixes things for people when they switch it off! wink ). Also switching Off Backface Lighting should speed up everything if you have transmaps.

Profile


Posted: 28 December 2012 06:43 AM   [ Ignore ]   [ # 10 ]
Addict
Avatar
RankRankRankRank
Total Posts:  2815
Joined  2009-02-24

Curious then that my GPU usage is quite minimal when using Daz Studio (as in almost none at all) even when using rather large scenes. I’ll have to check the preferences to see if something I’ve done has disabled it.

 Signature

Find me on DeviantArt
Download my free IBL presets for Luxus
Re-upload of Cresent’s awesome pwToon shaders
Create your own Smart Content

Profile


Posted: 28 December 2012 08:31 AM   [ Ignore ]   [ # 11 ]
Member
Rank
Total Posts:  194
Joined  2011-06-17

Then I suppose the next question would be how large of a field do you work on? Since I am trying create a village. I decided this time to start first with the foundation with primitive planes that would equal 1 mile x 2 miles, scaled to 50%, and just that alone the system drags just trying to adjust that layout over the starting center graph. When I created the village before, I scaled everything to 50%. That’s where I definitely used the camera presets to focus in on certain areas. For me it’s all about the animation, so I know it would take HOURS to render a 30 sec piece with such a large field.
  The drag I refer to is simply trying to move the stuff into position or turning the layout so I can get a look at it and certain points, that’s where it drags, when the scene gets bigger with more stuff added. I know Daz has to check everything as it loads the scene, and number repeated items. I finally understand the duplicate IDs I had mentioned before. It simply means there are two items in the scene that may be different but have the same name, and there is where, as in this scene, ALL of the rooms have assigned number and everything in the room has that same number. I mean rooms are empty but counting the door handle, the window, the curtain, etc. I had to stop with the three buildings as it was starting to drag to much. Sorry to keep adding pics but I just love this scene, this is where I love working with Daz.

Image Attachments
Profile


Posted: 28 December 2012 08:55 AM   [ Ignore ]   [ # 12 ]
Active Member
Avatar
RankRank
Total Posts:  822
Joined  2008-09-17

Textures can eat up a lot of memory (especially the photo-realistic 12 -16 megapixel textures).
