Why Aren’t My M4 Skin Textures Working on Genesis in Poser 9?
Posted: 09 December 2012 01:36 PM   [ Ignore ]
Active Member
Avatar
RankRank
Total Posts:  271
Joined  2008-08-09

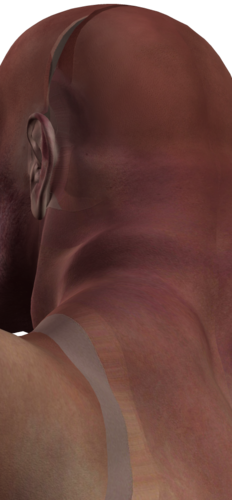

I thought skin textures made for M4 would fit figures created with Genesis.  I imported Genesis into Poser 9.  In Poser I try to apply M4 skin textures, and none of them fit.  All of them are distored (like the black of the nostrils appears on the side of the nose of the figure), or the texture splits appart at the seams and there are big gaps of non-texture visible.  These M4 textures I have are the Poser versions of the textures.  The figure is Genesis.  Does anyone know what I’m doing wrong?

Thanks!

Image Attachments
Profile


Posted: 09 December 2012 01:57 PM   [ Ignore ]   [ # 1 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  16030
Joined  2003-10-09

Are you using the right UV mapping mode for genesis ? I gather you can change the way it is uv mapped, to equate with the skin that your are using, so M4 skin would need Genesis to be in M4 UV mapping mode.

 Signature

Chohole’s Space        Neil’Vs Freebies and stuff        Autumn Bryce Rendering Challenge        September Freebie Challenge
My DAZ 3D Gallery    11915

Profile


Posted: 09 December 2012 02:11 PM   [ Ignore ]   [ # 2 ]
Active Member
RankRank
Total Posts:  928
Joined  2003-10-09

Mec4d.com has a free set of UV switching presets for use on Genesis in Poser.  Apply the M4 UV switching preset before applying your M4 texture.

Profile


Posted: 09 December 2012 02:12 PM   [ Ignore ]   [ # 3 ]
Member
Avatar
Rank
Total Posts:  248
Joined  2006-04-05

Go to the following link

http://www.mec4d.com/store/index.php?_a=viewProd&productId=86

Mec4D had produced a very handy set of material setting for Poser that chance the UV layout prior to applying a texture to Genesis.

It should sort out the above issue.

 Signature

My DevArt Gallery

Profile


Posted: 09 December 2012 03:17 PM   [ Ignore ]   [ # 4 ]
Power Member
Avatar
RankRankRank
Total Posts:  2089
Joined  2003-10-09

Go to Daz Genesis in your Materials folder, there you will find Sample Jeremy, Sample Lana and Sample Child. Apply Sample Jeremy and it will switch Genesis to M4 UVs, then you can apply any M4 MAT pose and it will work properly, Sample Lana = V4, Sample Child = K4

Profile


Posted: 09 December 2012 03:53 PM   [ Ignore ]   [ # 5 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14343
Joined  2003-10-09

The Mec4D scripts have the advantage of not loading more textures you won’t use, so they would be preferable. Note that you need to manually set the UVs only if you are using Poser materials - if the item has .duf presets with companion files then those should set the UV set before applying the (hopefully Poser-optimised) materials.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 09 December 2012 06:16 PM   [ Ignore ]   [ # 6 ]
Active Member
Avatar
RankRank
Total Posts:  271
Joined  2008-08-09

Thanks all!  I downloaded the MEC4D script and it works beautifully.  Now the question is, how do I convert more than one texture to use on the same figure.  For example, I use the MEC4D script to convert a M4 Poser skin texture to use on Genesis in Poser, but now, how do I add the M4 Displacement Maps - which would have to be converted too?

Profile


Posted: 10 December 2012 08:14 AM   [ Ignore ]   [ # 7 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14343
Joined  2003-10-09

The UV set is a setting for the whole material, it isn’t a setting for the texture as it is in Lightwave or modo, so you can’t mix different mapping on the same zone (you can use different maps on different material zones on a single figure). You could use Texture Converter 2 with the Michael 4 and Victoria 4 plugins to literally convert the maps, of course.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 10 December 2012 09:25 AM   [ Ignore ]   [ # 8 ]
Active Member
Avatar
RankRank
Total Posts:  271
Joined  2008-08-09
Richard Haseltine - 10 December 2012 08:14 AM

You could use Texture Converter 2 with the Michael 4 and Victoria 4 plugins to literally convert the maps, of course.

Is there a Genesis plugin for Texture Converter 2?  I can’t find it.

Profile


Posted: 10 December 2012 11:38 AM   [ Ignore ]   [ # 9 ]
Active Member
Avatar
RankRank
Total Posts:  869
Joined  2005-11-06
Fauvist - 10 December 2012 09:25 AM
Richard Haseltine - 10 December 2012 08:14 AM

You could use Texture Converter 2 with the Michael 4 and Victoria 4 plugins to literally convert the maps, of course.

Is there a Genesis plugin for Texture Converter 2?  I can’t find it.

No, but why do you need one. didn’t you get the M4 map to work?  the MEC4D script doesn’t convert the textures, it should only create the texture layout for the figure, which means any M4 texture now works and then in the material room you can apply any of the other M4 textures such as disp, spec, etc..

 Signature

Regards, Michael

“Documentation? Who needs documentation, just open it and learn!”

My DeviantArt Gallery

My DAZ Gallery

Profile


Posted: 10 December 2012 12:44 PM   [ Ignore ]   [ # 10 ]
Active Member
Avatar
RankRank
Total Posts:  271
Joined  2008-08-09
FSMCDesigns - 10 December 2012 11:38 AM
Fauvist - 10 December 2012 09:25 AM
Richard Haseltine - 10 December 2012 08:14 AM

You could use Texture Converter 2 with the Michael 4 and Victoria 4 plugins to literally convert the maps, of course.

Is there a Genesis plugin for Texture Converter 2?  I can’t find it.

No, but why do you need one. didn’t you get the M4 map to work?  the MEC4D script doesn’t convert the textures, it should only create the texture layout for the figure, which means any M4 texture now works and then in the material room you can apply any of the other M4 textures such as disp, spec, etc..

Well, I’m confused.  The M4 map worked, but I want to use a displacement map in addition, and Richard wrote: “The UV set is a setting for the whole material, it isn’t a setting for the texture as it is in Lightwave or modo, so you can’t mix different mapping on the same zone (you can use different maps on different material zones on a single figure). You could use Texture Converter 2 with the Michael 4 and Victoria 4 plugins to literally convert the maps, of course.”

He seems to be saying I can’t mix different maps for the same zone - and you seem to be saying that it’s no problem.

Profile


Posted: 10 December 2012 12:50 PM   [ Ignore ]   [ # 11 ]
Administrator
Avatar
RankRankRankRank
Total Posts:  14343
Joined  2003-10-09

Sorry, I misread your post - the figure is using the M4 mapping now so any M4 map will fit. What you can’t do, and what it misunderstood you to be asking, is use and M4 map for diffuse and a V4 map for specular on the same material zone.

 Signature

DAZ Studio Frequently Asked Questions

Index of free DAZ Studio scripts and plugins list

Profile


Posted: 28 March 2013 01:12 AM   [ Ignore ]   [ # 12 ]
New Member
Total Posts:  10
Joined  2011-11-10

The other easy way with not loading additional scripts or materials:
at start load not the “Genesis” figure but “Basic Male” figure that should be at same folder.
It’ll load Genesis with Basic male slider set to 1( you can drop it and set M4 to 1)  and ready for M4 materials. smirk
