Questions on TriAx rigging
Posted: 19 November 2012 05:05 PM   [ Ignore ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08

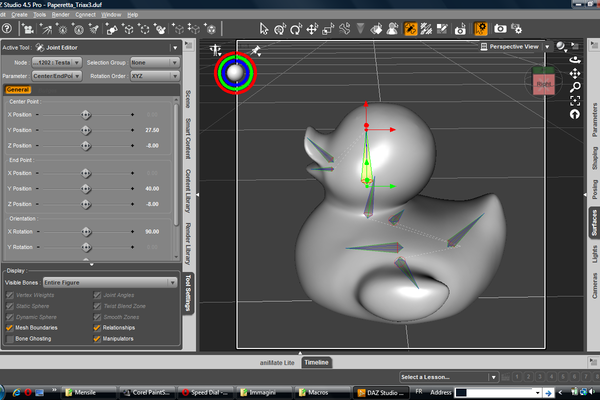

I’m trying my first rig, I’m stuck at the weight maps, and the DAZ documentation seems silent on this. Do the various bones have to align on one another? In the pic below does the highlighted bone have to end near the beginning of the beak bones? And I assume the point the dotted lines intersect to, near the tail, is going to be the origin? Is it safe to have it in a fairly random position or is it important to place it somewhere in particular?

Image Attachments
Profile


Posted: 19 November 2012 05:19 PM   [ Ignore ]   [ # 1 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4924
Joined  2008-03-06

Omigosh a moving rubber ducky I wannit


*Ahem.*


Yes, that’s the origin.  Generally you want less space between your bones because the further they are from the geometry they affect, the worse bending will be. Do you have face groups set up to use for the weight grouping?  You can try right click-edit-adjust rigging to shape and it will help somewhat.

 Signature

My store at DAZ.

My Deviantart gallery.

Profile


Posted: 20 November 2012 02:16 AM   [ Ignore ]   [ # 2 ]
Member
Rank
Total Posts:  33
Joined  2012-09-22

As SickleYield says, you generally want bones to align when it makes sense. In this case I would line up the tail, body, neck and head bone by scaling the bones to a good size and then use the snap and align commands for the joint editor tool. The other bones - the beak and wings - is fine to leave ‘detached’ from the other bones.
I see in your picture that the selection group for the selected bone is ‘none’. You will have to set up poly groups, again as SickleYield says, and assign as selection maps for the bone to be able to select it and pose it.
Then you weight paint the duck…

Profile


Posted: 20 November 2012 04:33 AM   [ Ignore ]   [ # 3 ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08

Yeah! “Selection Group”, that was why weight maps didn’t want to cooperate, thanks a lot!!!
And also thanks for the rest of the answers!
I’ll do my best for the duck… Be afraid, be very afraid.

Profile


Posted: 20 November 2012 11:17 AM   [ Ignore ]   [ # 4 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4924
Joined  2008-03-06
ReDave - 20 November 2012 04:33 AM

Yeah! “Selection Group”, that was why weight maps didn’t want to cooperate, thanks a lot!!!
And also thanks for the rest of the answers!
I’ll do my best for the duck… Be afraid, be very afraid.

He’s going on an adorable rampage!

 Signature

My store at DAZ.

My Deviantart gallery.

Profile


Posted: 23 November 2012 09:16 AM   [ Ignore ]   [ # 5 ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08

Ducky says hi! There’s quite a bit of crumpling whenever I dial anything above 10. I obviously need to master gradient filling because map painting tends to give uneven results (or at least my painting, does). It was fun though, and finally the rubber duck can do at least something!

Image Attachments
Profile


Posted: 23 November 2012 12:13 PM   [ Ignore ]   [ # 6 ]
Addict
Avatar
RankRankRankRank
Total Posts:  4924
Joined  2008-03-06

Well,he can turn his head, that’s cool. smile


Smoothing isn’t helping?

 Signature

My store at DAZ.

My Deviantart gallery.

Profile


Posted: 26 November 2012 03:34 PM   [ Ignore ]   [ # 7 ]
Active Member
Avatar
RankRank
Total Posts:  803
Joined  2007-01-08

Yes even though the maps aren’t great (or even good) it’s great that the duck now moves in several parts!
I hadn’t thought of smoothing, actually, thanks for bringing it up, but the mesh is fairly high poly (surprisingly, around 50k quads), so the facets are small, and I’m not sure if it would help. I’ll try tomorrow.

Edit: and here it is (some postwork):
